Model # C9UHX080J12A Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP C9UHX080J12A gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Furnace Inducer Vent Motor Assembly (replaces 1014338) 1172823
#11

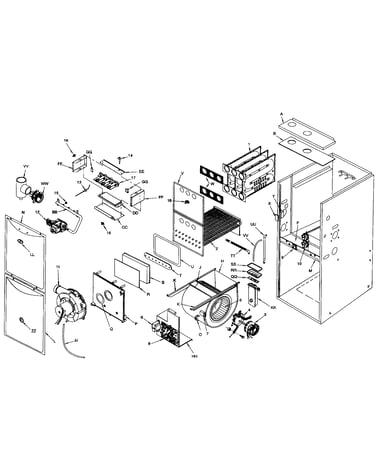

Furnace diagram

Furnace inducer vent motor assembly (replaces 1014338)

Part #1172823

$214.67 |
5% OFF Phone Price : $226.67
In Stock
Furnace Electronic Control Board 1172550
#8

Furnace diagram

Furnace electronic control board

Part #1172550

$269.24 |
$12.00 OFF Phone Price : $281.24
In Stock
Furnace Blower Fan Motor 1174983
#3

Furnace diagram

Furnace blower fan motor

Part #1174983

$398.80 |
$12.00 OFF Phone Price : $410.80
In Stock
Transition 1172229
#P

Furnace diagram

Transition

Part #1172229

$103.84
Back Order
Drain Tube 1171994
#NI

Furnace diagram

Drain tube

Part #1171994

This item is not returnable
$7.17
In Stock
Furnace Blower Fan Wheel (replaces 1009147) 1011420
#5

Furnace diagram

Furnace blower fan wheel (replaces 1009147)

Part #1011420

$160.43 |
7% OFF Phone Price : $172.43
In Stock
Gasket 1012595
#U

Furnace diagram

Gasket

Part #1012595

$22.91
In Stock
Connector 1171998
#NI

Furnace diagram

Connector

Part #1171998

This item is not returnable
$3.54
In Stock
Furnace Drain Trap 1171917
#KK

Furnace diagram

Furnace drain trap

Part #1171917

$49.16
In Stock
Exchanger 1174981
#2

Furnace diagram

Exchanger

Part #1174981

$1985.20
In Stock
