Pioneer
Speaker

Model # PDP-S12-LR Official Pioneer audio speaker

Here are the diagrams and repair parts for Official Pioneer PDP-S12-LR audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Tweeter FK26AP02-75F
#2

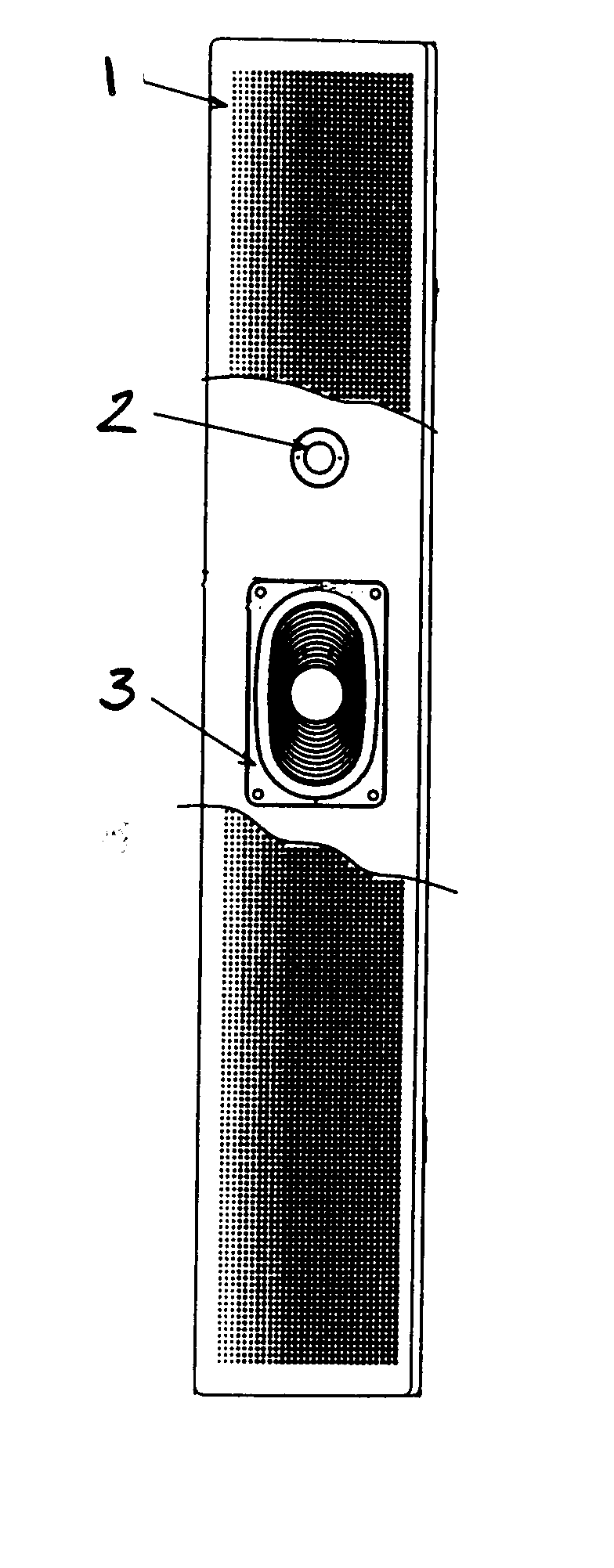

Speaker diagram

Tweeter

Part #FK26AP02-75F

The manufacturer no longer makes this part, and there's no substitute part

Service Manual RRV2818
#NI

Speaker diagram

Service manual

Part #RRV2818

The manufacturer no longer makes this part, and there's no substitute part

Audio Speaker Wire SDS1148
#NI

Speaker diagram

Audio speaker wire

Part #SDS1148

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual SRD1257
#NI

Speaker diagram

Owner's manual

Part #SRD1257

The manufacturer no longer makes this part, and there's no substitute part

Baffle R SNK2708
#1B

Speaker diagram

Baffle r

Part #SNK2708

The manufacturer no longer makes this part, and there's no substitute part

Baffle L SNK2707
#1A

Speaker diagram

Baffle l

Part #SNK2707

The manufacturer no longer makes this part, and there's no substitute part

Woofer A101EC65-52F
#3

Speaker diagram

Woofer

Part #A101EC65-52F

The manufacturer no longer makes this part, and there's no substitute part
