Craftsman
Lawn Edger

Model # 257857950 Official Craftsman electric lawn edger/trimmer

Here are the diagrams and repair parts for Official Craftsman 257857950 electric lawn edger/trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Strap 1357
#29

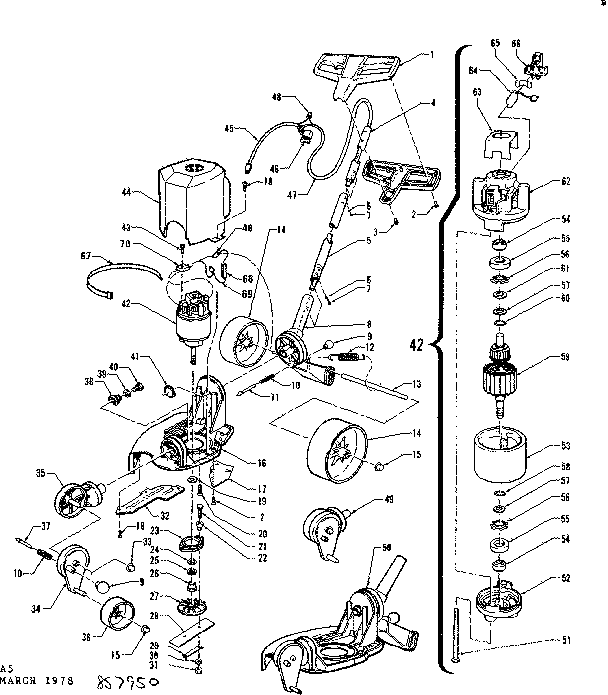

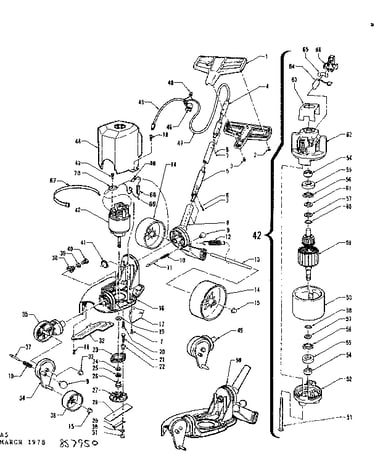

Replacement parts diagram

Strap

Part #1357

Replaced by #534135700

?
Manufacturer substitution
This part replaces 1357. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
Push Nut 1210
#15

Replacement parts diagram

Push nut

Part #1210

Replaced by #534121000

?
Manufacturer substitution
This part replaces 1210. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
Wheel P24-3
#36

Replacement parts diagram

Wheel

Part #P24-3

Replaced by #534240003

?
Manufacturer substitution
This part replaces P24-3. Substitute parts can look different from the original.
This item is not returnable
$7.40
In Stock
Bearing 2137
#54

Replacement parts diagram

Bearing

Part #2137

The manufacturer no longer makes this part, and there's no substitute part

Index Pin 1209
#37

Replacement parts diagram

Index pin

Part #1209

The manufacturer no longer makes this part, and there's no substitute part

Push Nut 1207
#33

Replacement parts diagram

Push nut

Part #1207

The manufacturer no longer makes this part, and there's no substitute part

Retainer 2285
#56

Replacement parts diagram

Retainer

Part #2285

The manufacturer no longer makes this part, and there's no substitute part

Cut Blade 2053
#28

Replacement parts diagram

Cut blade

Part #2053

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 747-2
#58

Replacement parts diagram

Retaining ring

Part #747-2

The manufacturer no longer makes this part, and there's no substitute part

Motor 2250-7
#42

Replacement parts diagram

Motor

Part #2250-7

The manufacturer no longer makes this part, and there's no substitute part
