GE
Wine & Beverage Cooler

Model # ZIW241NBWBII Official GE beverage center

Here are the diagrams and repair parts for Official GE ZIW241NBWBII beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

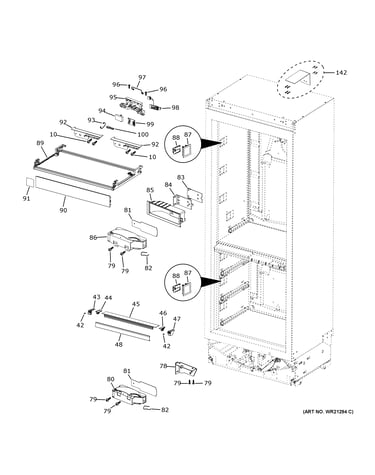

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |

Cplg1/4-5/32 WR97X10033
#7000

Lokring connectors diagram

Cplg1/4-5/32

Part #WR97X10033

In Stock
.118" To .07 WR97X10140
#7007

Lokring connectors diagram

.118" to .07

Part #WR97X10140

$44.19
12% OFF Phone Price : $50.19
In Stock
Right Upper WR72X46451
#32

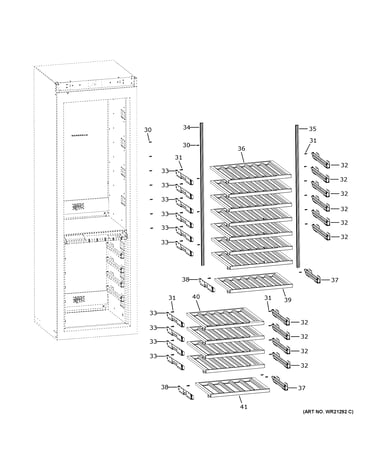

Racks & slides diagram

Right upper

Part #WR72X46451

In Stock
Door Trim Ki WR02X46439
#26

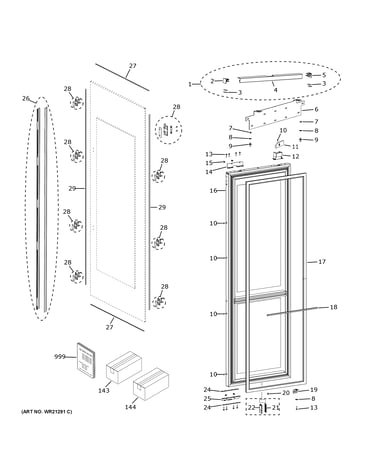

Door diagram

Door trim ki

Part #WR02X46439

In Stock
Defrost Heater Grounding Harness WR55X46485
#67

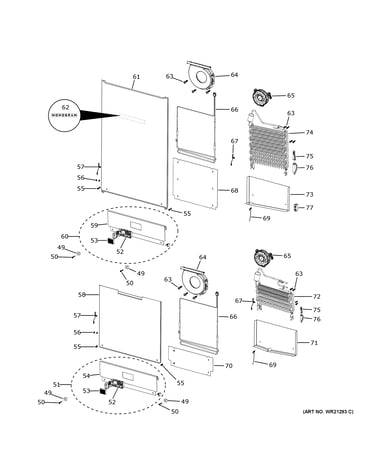

Refrigerator section diagram

Defrost heater grounding harness

Part #WR55X46485

In Stock
Clip WR01X46534
#111

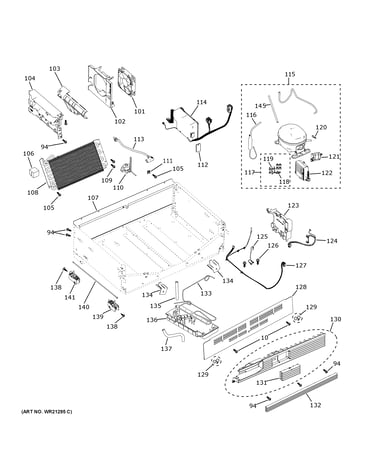

Machine compartment diagram

Clip

Part #WR01X46534

In Stock
Grounding Ha WR55X46475
#57

Refrigerator section diagram

Grounding ha

Part #WR55X46475

In Stock
Left Top Doo WR13X46409
#5

Door diagram

Left top doo

Part #WR13X46409

In Stock
Right Bottom WR01X46438
#25

Door diagram

Right bottom

Part #WR01X46438

In Stock
Br .295-1/4 WR97X10081
#7003

Lokring connectors diagram

Br .295-1/4

Part #WR97X10081

In Stock
