Model # T8MPV050B12A1 Official ICP 90+ 2-stage & variable-speed blower gas furnace

Here are the diagrams and repair parts for Official ICP T8MPV050B12A1 90+ 2-stage & variable-speed blower gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#12

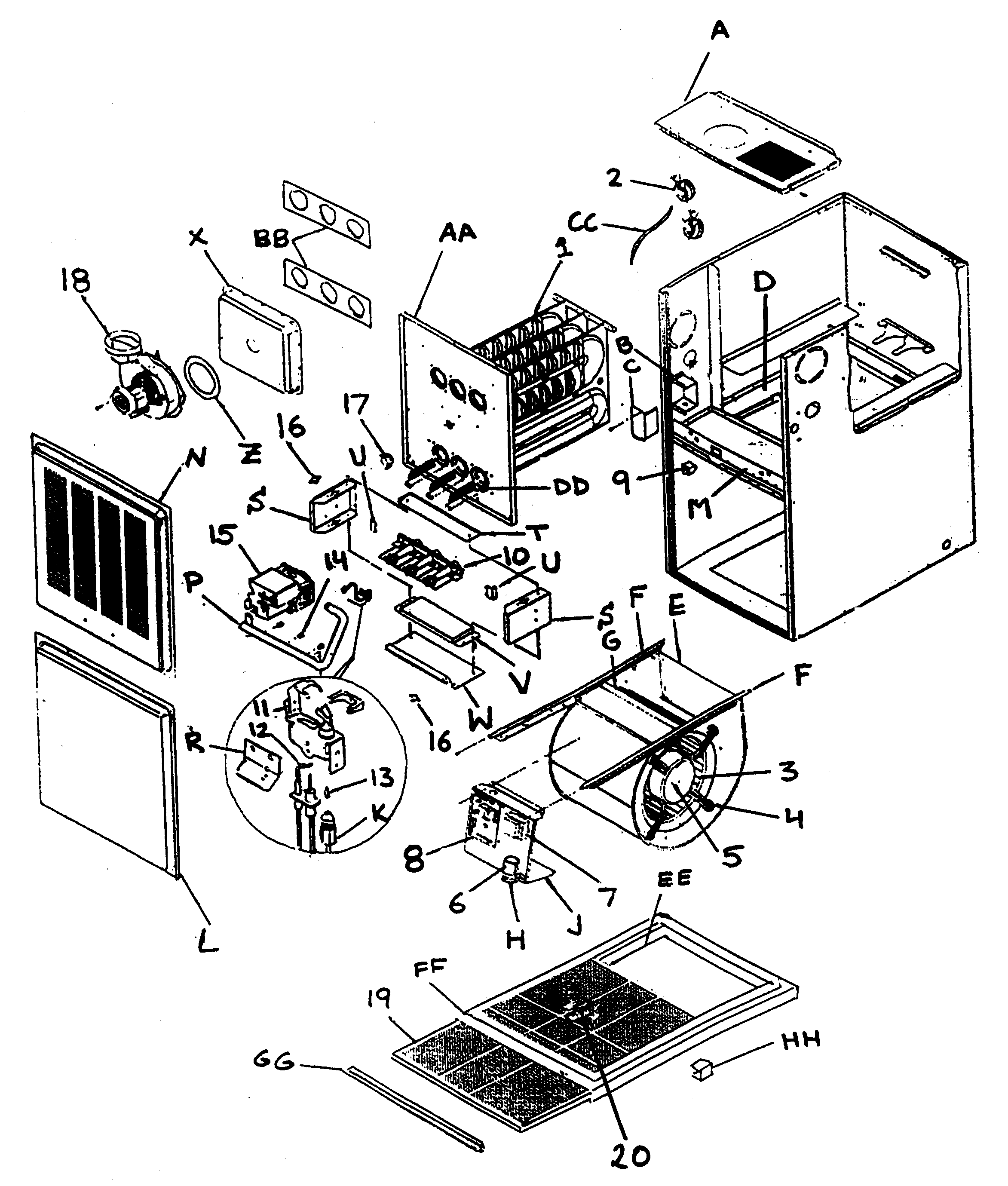

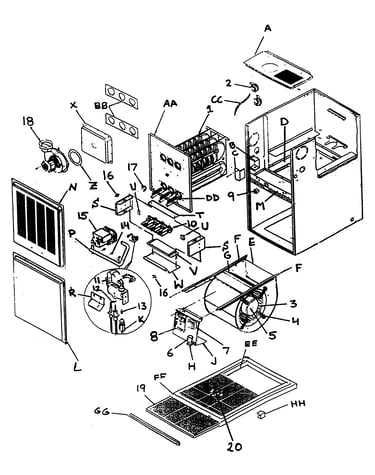

Furnace diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Furnace Fan Control Board (replaces 1012084) 1014459
#8

Furnace diagram

Furnace fan control board (replaces 1012084)

Part #1014459

$320.61 |
$12.00 OFF Phone Price : $332.61
In Stock
Furnace Blower 1013866
#18

Furnace diagram

Furnace blower

Part #1013866

Replaced by #1014526

?
Manufacturer substitution
This part replaces 1013866. Substitute parts can look different from the original.
$316.36 |
$12.00 OFF Phone Price : $328.36
In Stock
Mount 1014796
#4

Furnace diagram

Mount

Part #1014796

$46.09
In Stock
Furnace Blower Fan Housing Hanger Bracket 1012328
#F

Furnace diagram

Furnace blower fan housing hanger bracket

Part #1012328

$301.63 |
$12.00 OFF Phone Price : $313.63
In Stock
Bracket 1013677
#J

Furnace diagram

Bracket

Part #1013677

$99.80
In Stock
Control Motor 1014060
#20

Furnace diagram

Control motor

Part #1014060

$568.28
In Stock
Bracket 1012532
#U

Furnace diagram

Bracket

Part #1012532

$296.29
In Stock
Bracket 1014271
#M

Furnace diagram

Bracket

Part #1014271

This item is not returnable
$5.06
In Stock
Baffle 1012338
#V

Furnace diagram

Baffle

Part #1012338

$336.85
In Stock
