Model # GNJ100N12C1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP GNJ100N12C1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#28

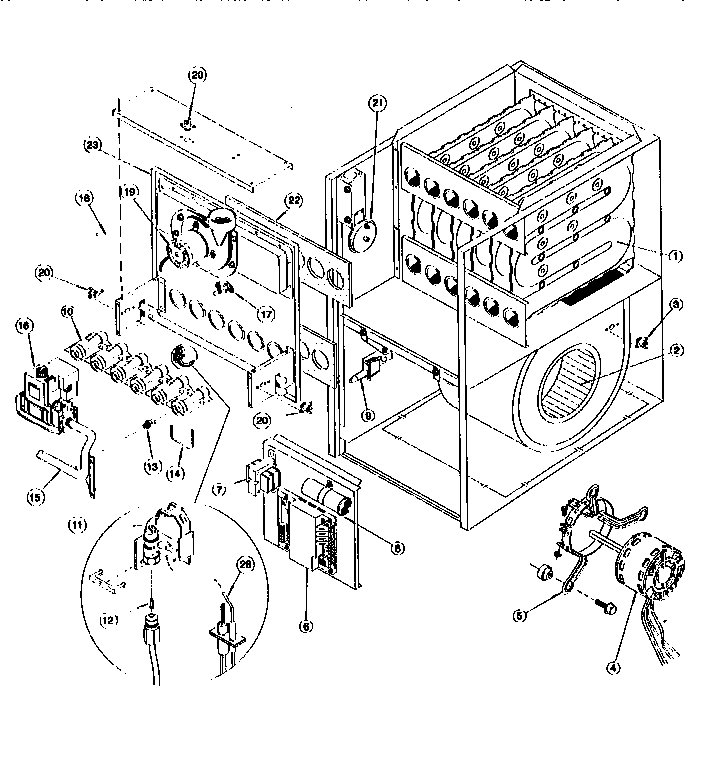

Functional replacement parts diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Cont Fan Tmr 1009838
#6

Functional replacement parts diagram

Cont fan tmr

Part #1009838

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1009838. Substitute parts can look different from the original.
$220.46 |
5% OFF Phone Price : $232.46
In Stock
Furnace Blower Fan Wheel 601210
#2

Functional replacement parts diagram

Furnace blower fan wheel

Part #601210

$194.16
In Stock
Heat Exchange 231010104
#1

Functional replacement parts diagram

Heat exchange

Part #231010104

Replaced by #1014491

?
Manufacturer substitution
This part replaces 231010104. Substitute parts can look different from the original.
$799.23
In Stock
Limit Switch 1000735
#3

Functional replacement parts diagram

Limit switch

Part #1000735

Replaced by #1013105

?
Manufacturer substitution
This part replaces 1000735. Substitute parts can look different from the original.
This item is not returnable
$15.14
In Stock
Furnace Pilot Burner 1149856
#11

Functional replacement parts diagram

Furnace pilot burner

Part #1149856

$314.91 |
$12.00 OFF Phone Price : $326.91
In Stock
Rail Galv Bl 57059
#BB

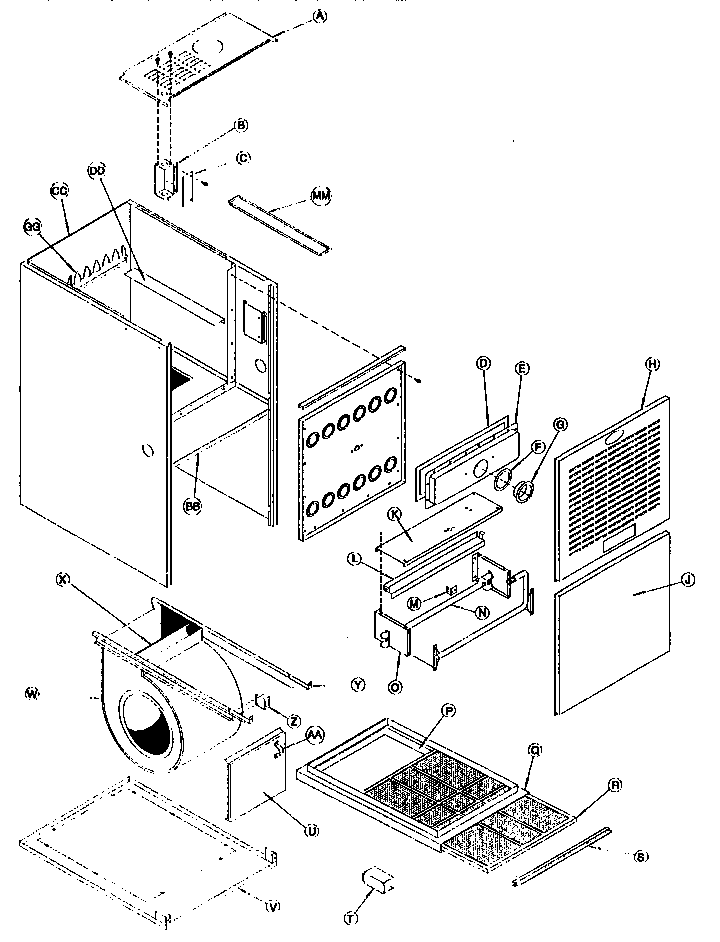

Non-functional replacement parts diagram

Rail galv bl

Part #57059

$952.55
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#5

Functional replacement parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Gskt Htx Bnr 2480906
#22

Functional replacement parts diagram

Gskt htx bnr

Part #2480906

$15.97
In Stock
Panel Cutoff 721020008
#X

Non-functional replacement parts diagram

Panel cutoff

Part #721020008

$252.09
In Stock
