Model # 143019001 Official Craftsman engine

Here are the diagrams and repair parts for Official Craftsman 143019001 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Needle Seat 631021
#30

Carburetor 640052 (71/143) diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.79 |
9% OFF Phone Price : $10.79
Back Order
Troybilt Lawn & Garden Equipment Engine Carburetor Rebuild Kit (replaces 632760a, 632809) 632760B
#(NI)

Carburetor 640052 (71/143) diagram

Troybilt lawn & garden equipment engine carburetor rebuild kit (replaces 632760a, 632809)

Part #632760B

BEST SELLER
$23.60 |
20% OFF Phone Price : $29.60
In Stock
Lawn & Garden Equipment Engine Recoil Starter Rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032) 590535
#12

Rewind starter 590733 diagram

Lawn & garden equipment engine recoil starter rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032)

Part #590535

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#292

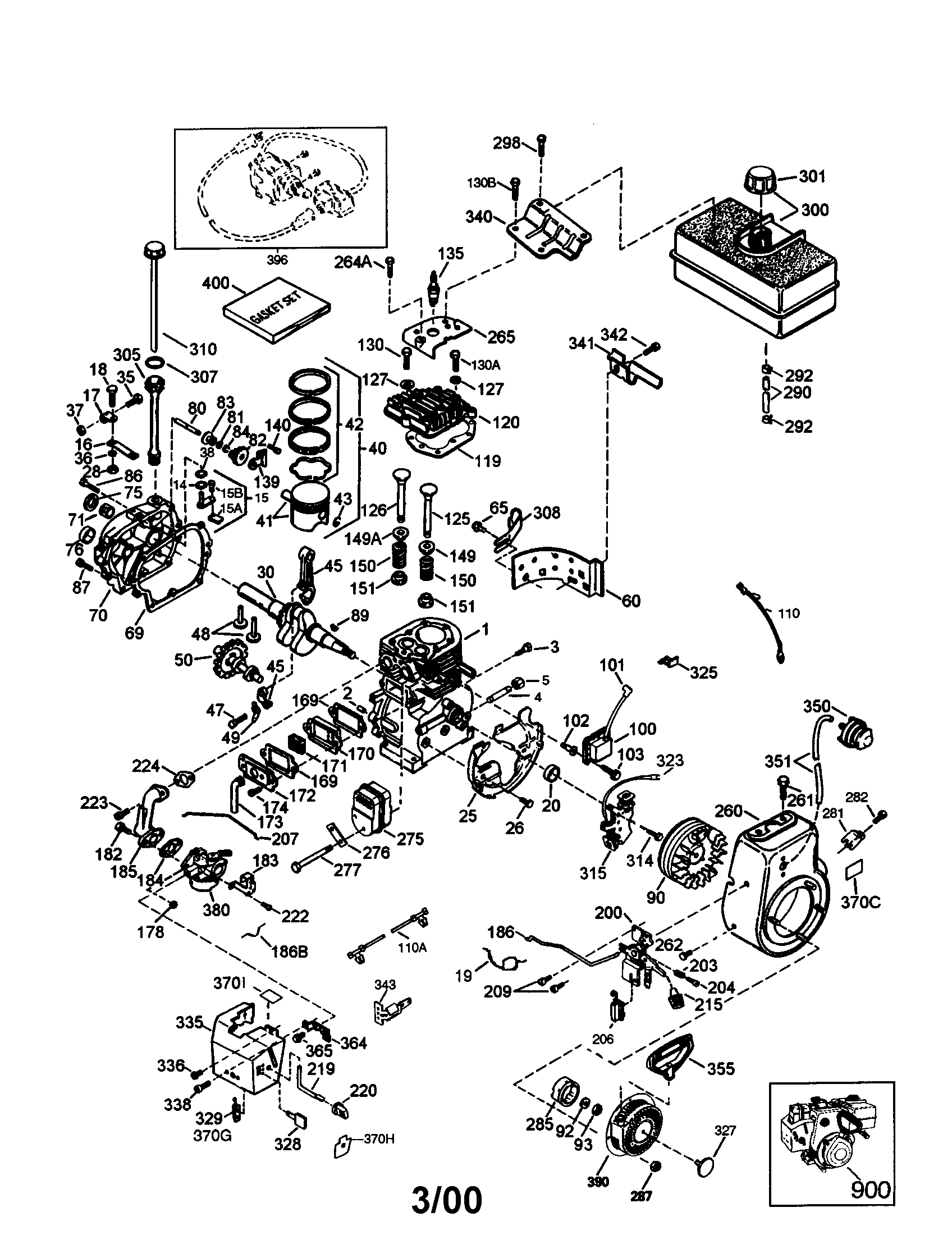

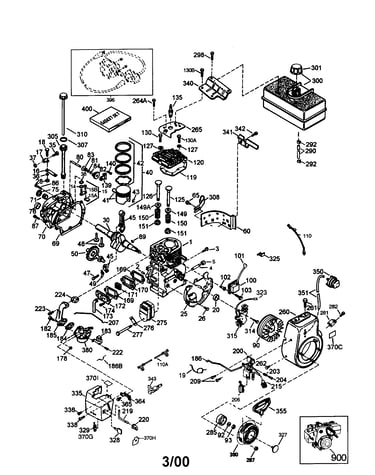

Craftsman engine diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 27110
#44

Carburetor 640052 (71/143) diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Carburetor Primer Assembly (replaces 570682, Tc-570682a) 570682A
#350

Craftsman engine diagram

Lawn & garden equipment engine carburetor primer assembly (replaces 570682, tc-570682a)

Part #570682A

BEST SELLER
$11.79 |
15% OFF Phone Price : $13.79
In Stock
Cook Top Side Trim Kit Lawn & Garden Equipment Engine Air Filter (replaces 28424l) 28424
#171

Craftsman engine diagram

Cook top side trim kit lawn & garden equipment engine air filter (replaces 28424l)

Part #28424

BEST SELLER
This item is not returnable
$4.14 |
19% OFF Phone Price : $5.14
In Stock
Lawn & Garden Equipment Engine Fuel Tank Cap 35355
#301

Craftsman engine diagram

Lawn & garden equipment engine fuel tank cap

Part #35355

Replaced by #37845

?
Manufacturer substitution
This part replaces 35355. Substitute parts can look different from the original.
BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
Back Order
Cook Top Side Trim Kit Lawn & Garden Equipment Engine Carburetor Manifold Gasket 33263
#184

Craftsman engine diagram

Cook top side trim kit lawn & garden equipment engine carburetor manifold gasket

Part #33263

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Carburetor O-ring 632547
#37

Carburetor 640052 (71/143) diagram

Troybilt lawn & garden equipment engine carburetor o-ring

Part #632547

This item is not returnable
$3.64 |
22% OFF Phone Price : $4.64
In Stock
