Hoover
Upright Vacuum

Model # U4505--- Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U4505- upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Kenmore Support Washer 21312781
#81

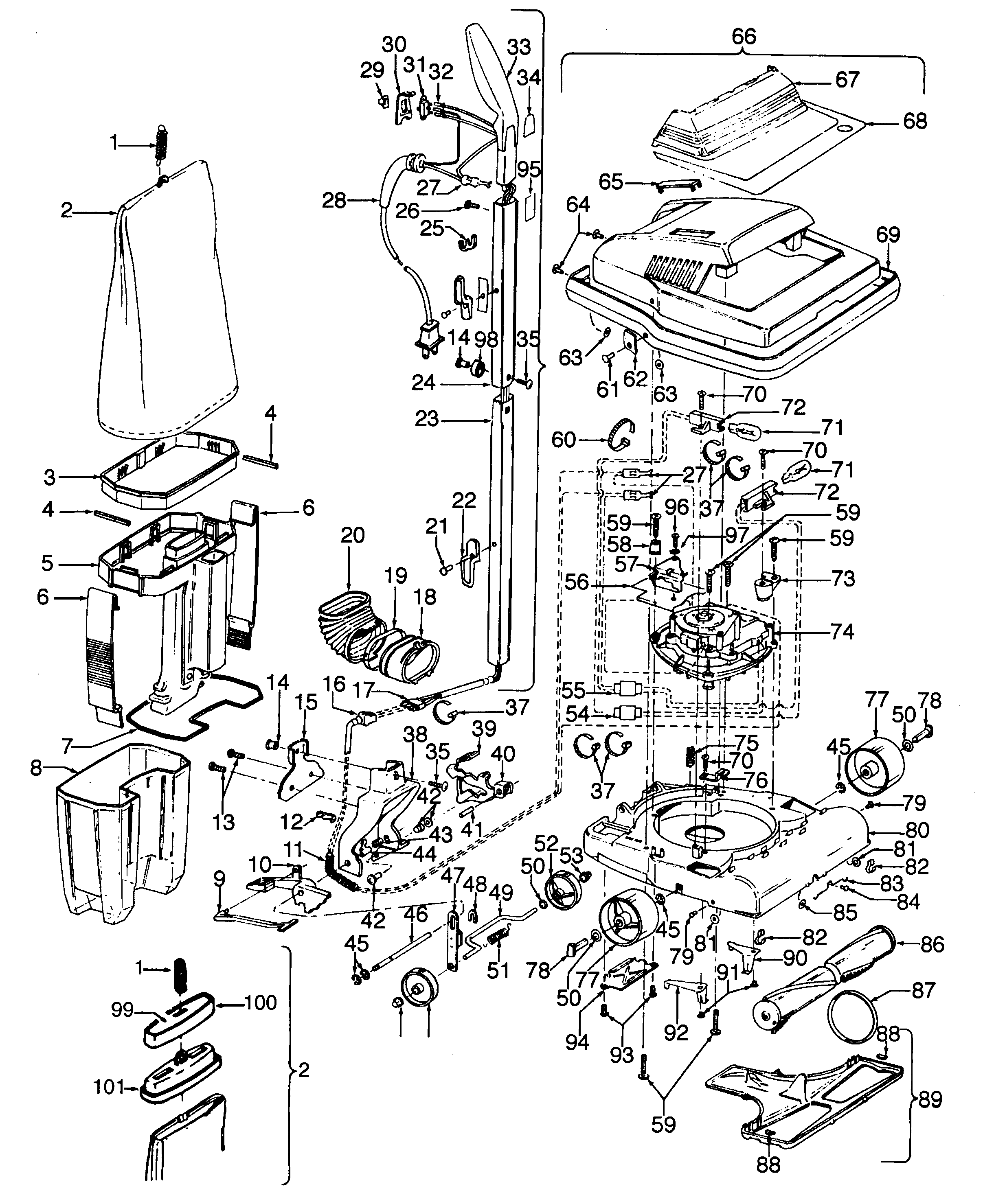

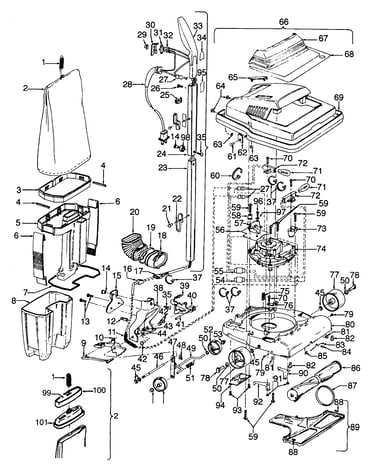

Handle, mainbody, dirtcup, outerbag diagram

Kenmore support washer

Part #21312781

The manufacturer no longer makes this part, and there's no substitute part

Agitator End 41435070
#4B

Agitator diagram

Agitator end

Part #41435070

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Agitr Shaft 32724008
#6A

Agitator diagram

Kenmore agitr shaft

Part #32724008

The manufacturer no longer makes this part, and there's no substitute part

Motor Case 42195003
#5A

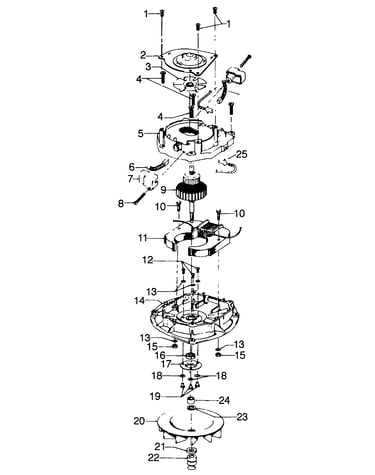

Motor assembly diagram

Motor case

Part #42195003

The manufacturer no longer makes this part, and there's no substitute part

Handle Nut 32277008
#14

Handle, mainbody, dirtcup, outerbag diagram

Handle nut

Part #32277008

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Conical Washer 21347003
#3

Agitator diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

Washer 12 Pk 21312772
#50

Handle, mainbody, dirtcup, outerbag diagram

Washer 12 pk

Part #21312772

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Bag Expander 35173001
#3

Handle, mainbody, dirtcup, outerbag diagram

Vacuum bag expander

Part #35173001

The manufacturer no longer makes this part, and there's no substitute part

Screw/doze 21772501
#12

Motor assembly diagram

Screw/doze

Part #21772501

The manufacturer no longer makes this part, and there's no substitute part

Dust Cup 38775001
#8

Handle, mainbody, dirtcup, outerbag diagram

Dust cup

Part #38775001

The manufacturer no longer makes this part, and there's no substitute part
