Model # 143614052 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143614052 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Lawn Mower O-ring 631028
#16

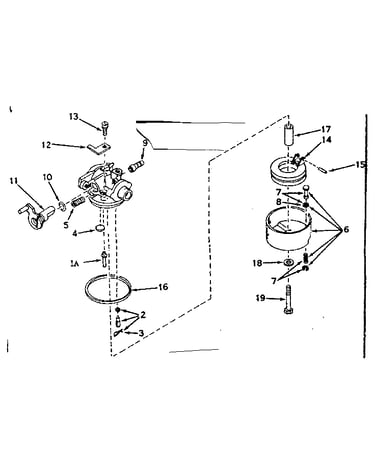

Carburetor diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Needle Seat 631021
#2

Carburetor diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.79 |
9% OFF Phone Price : $10.79
In Stock
Generac Lawn & Garden Equipment Engine Fuel Line (replaces 14306, 34357) 29774
#118

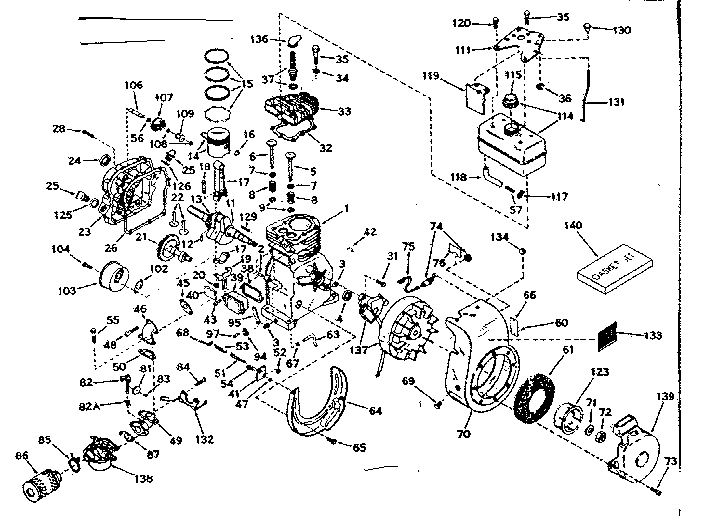

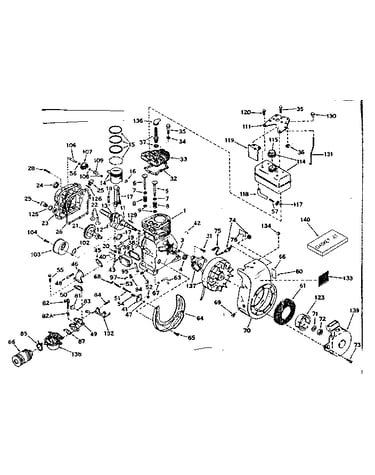

Basic engine diagram

Generac lawn & garden equipment engine fuel line (replaces 14306, 34357)

Part #29774

BEST SELLER
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Carburetor Float 631023
#14

Carburetor diagram

Carburetor float

Part #631023

Replaced by #632019A

?
Manufacturer substitution
This part replaces 631023. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Craftsman Lawn & Garden Equipment Engine Air Filter (replaces 32972, 3331, 80362) 36693
#86

Basic engine diagram

Craftsman lawn & garden equipment engine air filter (replaces 32972, 3331, 80362)

Part #36693

This item is not returnable
$13.69 |
13% OFF Phone Price : $15.69
In Stock
Lawn & Garden Equipment Engine Screw 28942
#54

Basic engine diagram

Lawn & garden equipment engine screw

Part #28942

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Generac Lawn & Garden Equipment Engine Governor Control Lever Clamp 31335
#94

Basic engine diagram

Generac lawn & garden equipment engine governor control lever clamp

Part #31335

This item is not returnable
$2.16
In Stock
Carburetor Lawn & Garden Equipment Engine Carburetor Bowl Drain Valve 27136A
#7

Carburetor diagram

Carburetor lawn & garden equipment engine carburetor bowl drain valve

Part #27136A

This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Screw 650176
#48

Basic engine diagram

Screw

Part #650176

Replaced by #650451

?
Manufacturer substitution
This part replaces 650176. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw 30564
Screw

Part #30564

Replaced by #650451

?
Manufacturer substitution
This part replaces 30564. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
