GE
Bottom-Mount Refrigerator

Model # GNE27EYMKFFS Official GE refrigerator

Here are the diagrams and repair parts for Official GE GNE27EYMKFFS refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

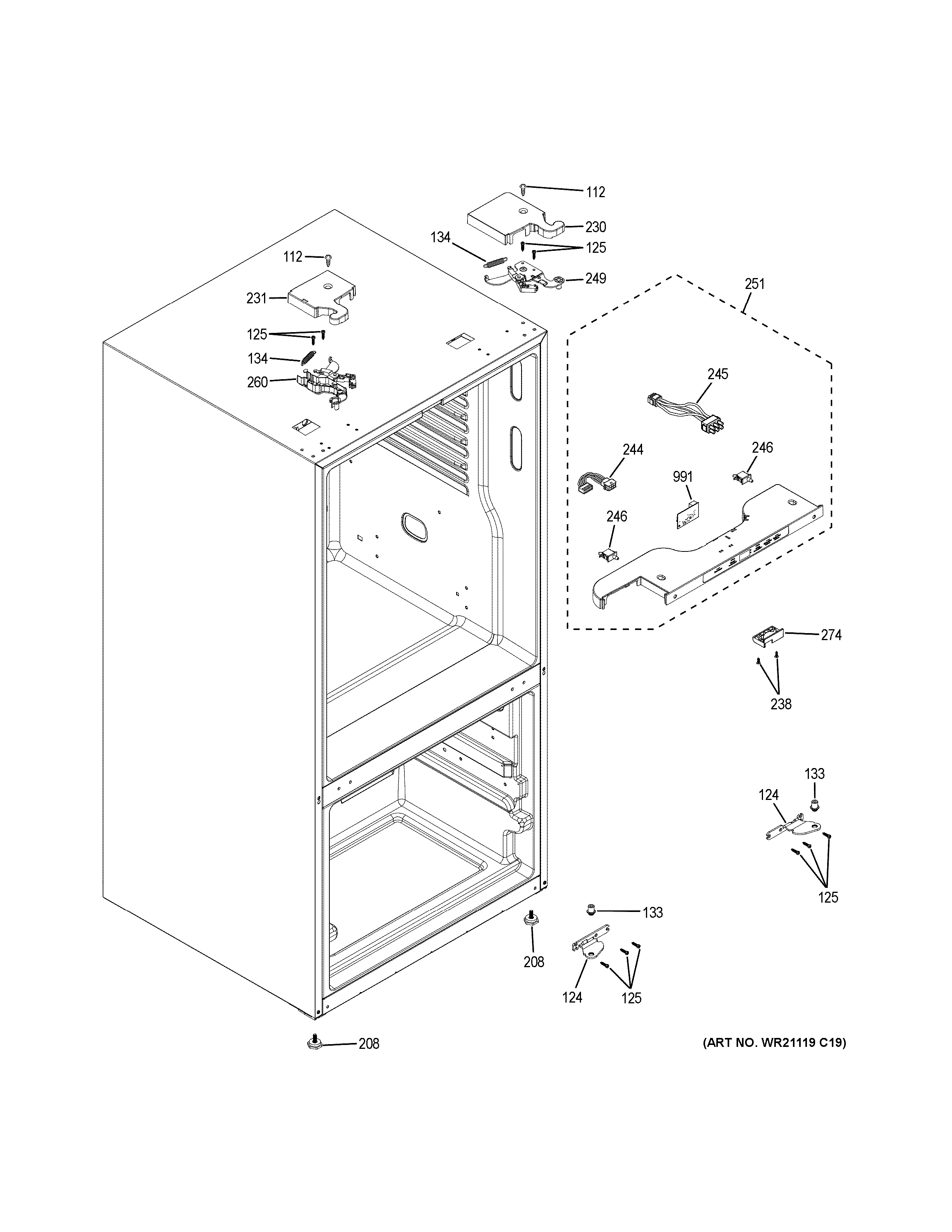

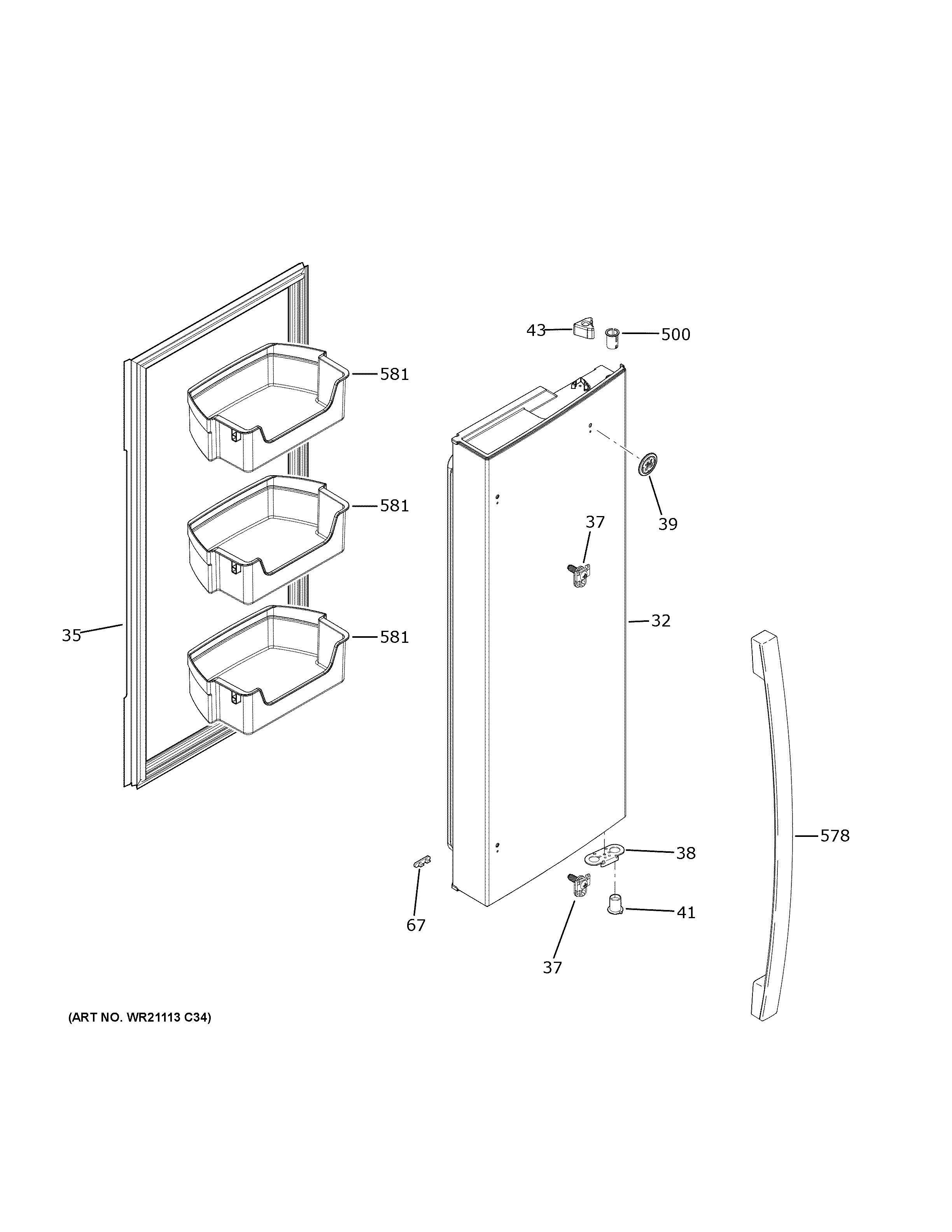

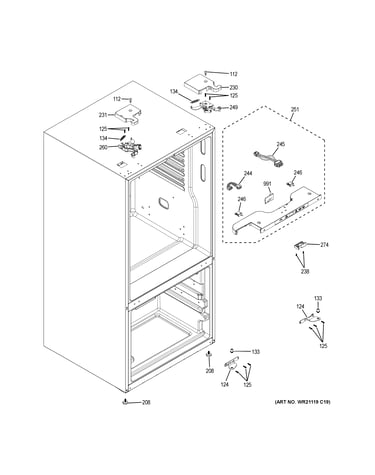

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Dryer Filter WR86X0096
#740

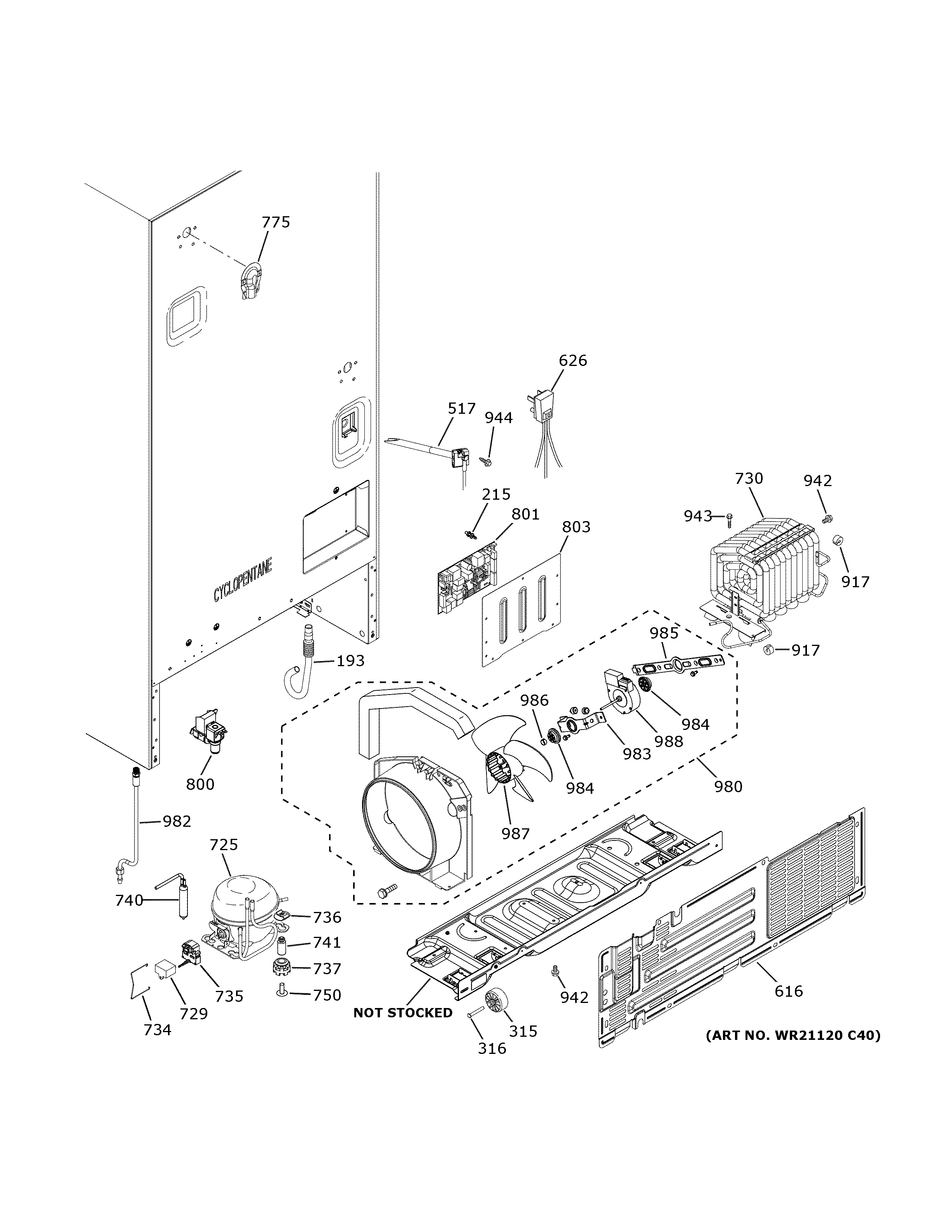

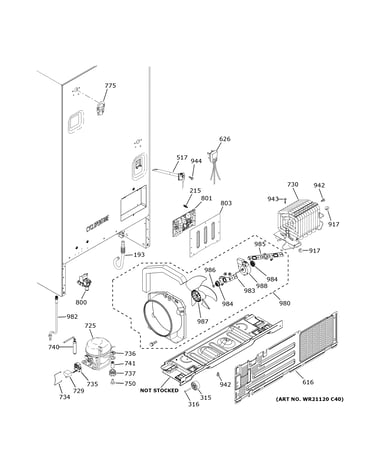

Machine compartment diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Main Control Board Assembly WR55X30600
#801

Machine compartment diagram

Main control board assembly

Part #WR55X30600

Replaced by #WR55X40448

?
Manufacturer substitution
This part replaces WR55X30600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$270.42 |
$12.00 OFF Phone Price : $282.42
In Stock
Refrigerator Defrost Bi-metal Thermostat WR50X10069
#241

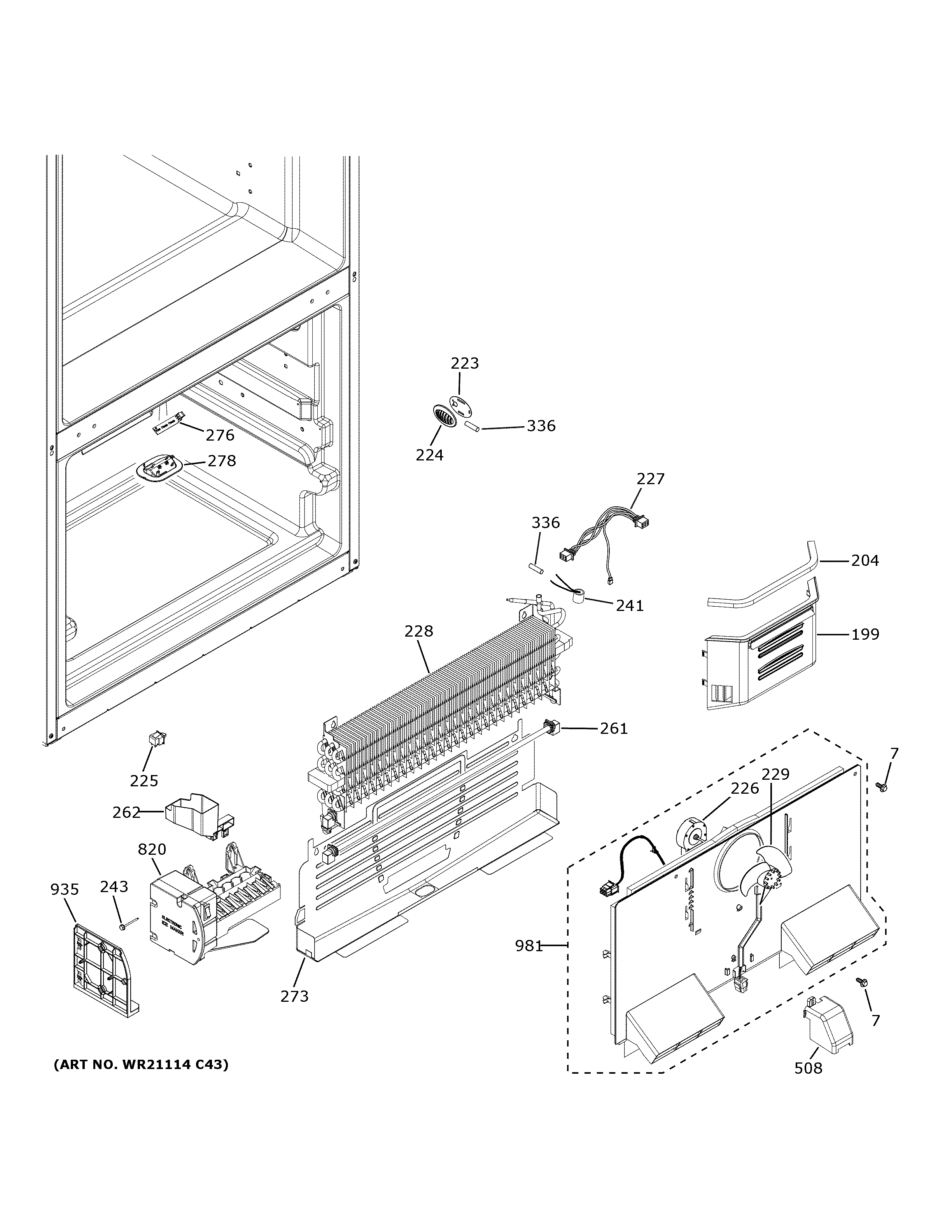

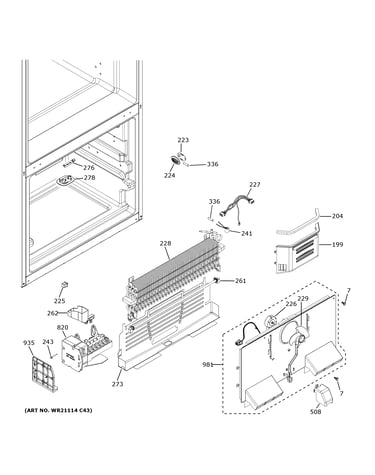

Freezer section diagram

Refrigerator defrost bi-metal thermostat

Part #WR50X10069

BEST SELLER
This item is not returnable
$20.56 |
23% OFF Phone Price : $26.56
In Stock
Hotpoint Refrigerator Evaporator Fan Blade (replaces Wr60x10208) WR60X30922
#229

Freezer section diagram

Hotpoint refrigerator evaporator fan blade (replaces wr60x10208)

Part #WR60X30922

BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Refrigerator Flipper Assembly WR17X25027
#66

Fresh food door - lh diagram

Refrigerator flipper assembly

Part #WR17X25027

BEST SELLER
$185.89 |
6% OFF Phone Price : $197.89
In Stock
Compressor Assembly WR87X27951
#725

Machine compartment diagram

Compressor assembly

Part #WR87X27951

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X27951. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Water Filter Bypass WR17X30044
#264

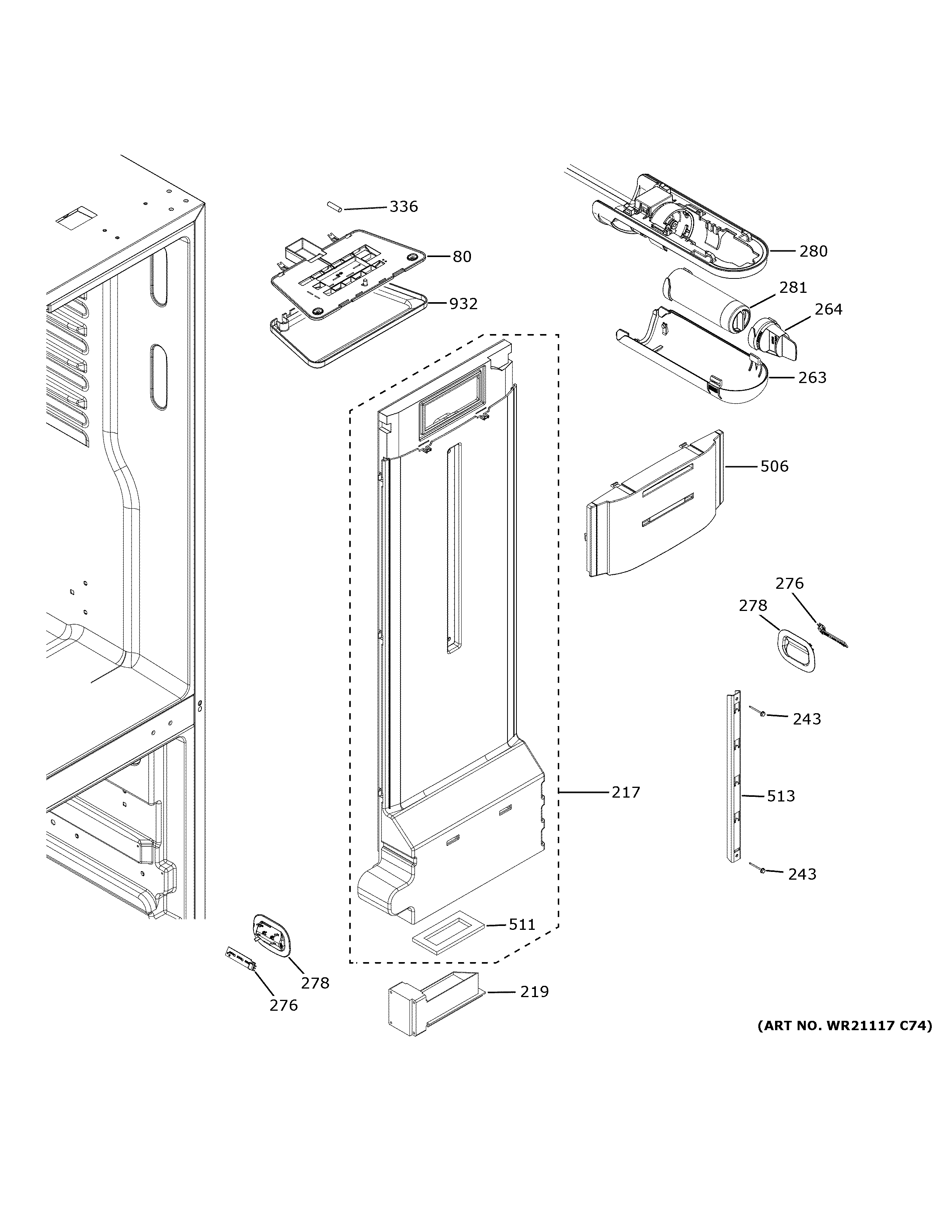

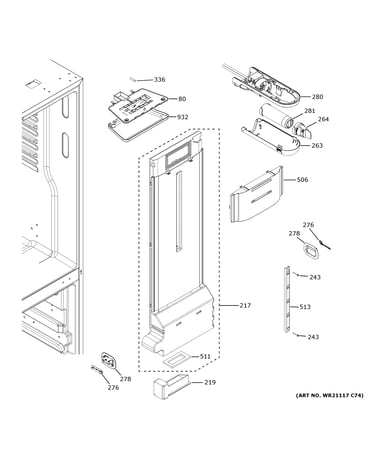

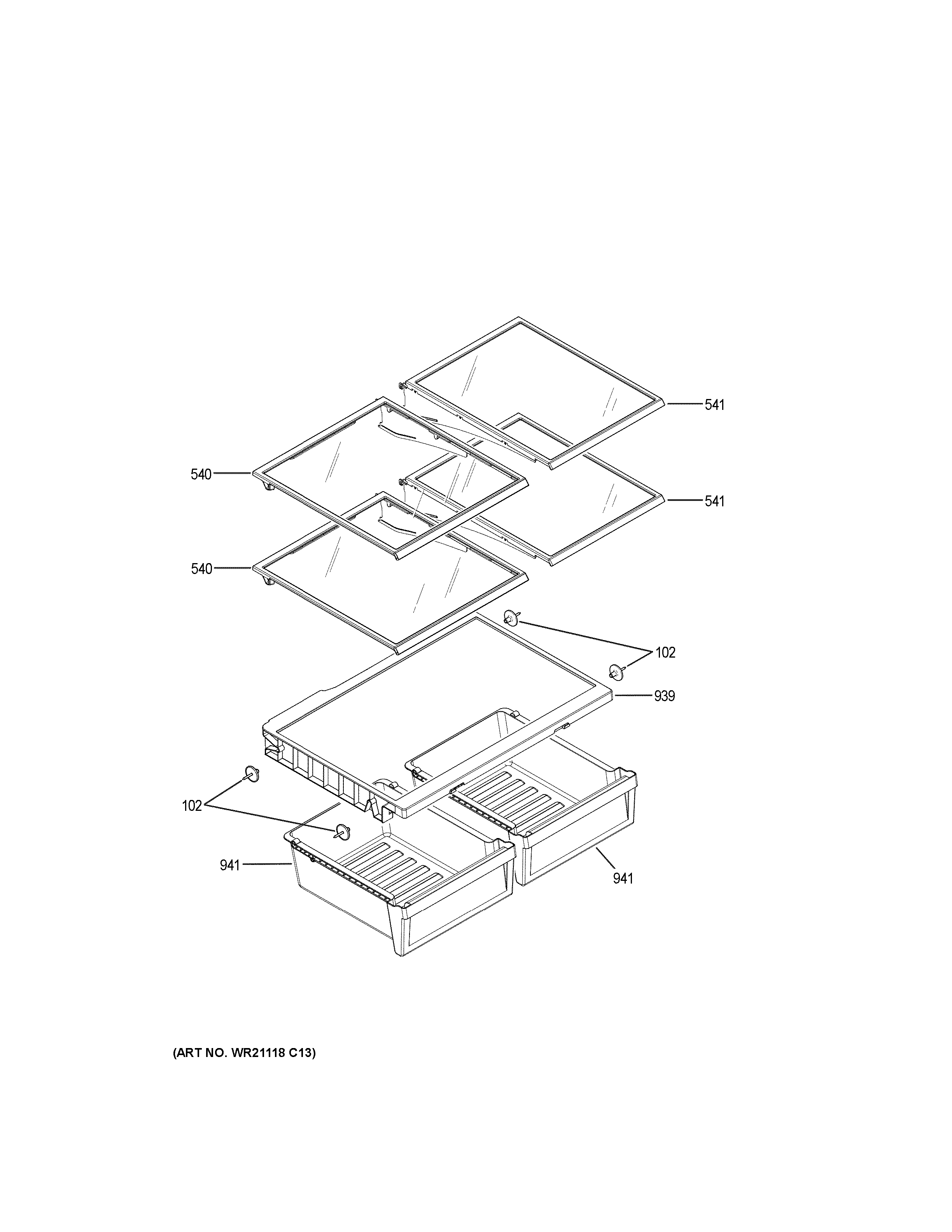

Fresh food section diagram

Refrigerator water filter bypass

Part #WR17X30044

Replaced by #WR17X33825

?
Manufacturer substitution
This part replaces WR17X30044. Substitute parts can look different from the original.
BEST SELLER
$31.32 |
16% OFF Phone Price : $37.32
In Stock
Icemaker WR30X30099
#820

Freezer section diagram

Icemaker

Part #WR30X30099

Replaced by #WR30X35285

?
Manufacturer substitution
This part replaces WR30X30099. Substitute parts can look different from the original.
BEST SELLER
$97.24 |
11% OFF Phone Price : $109.24
In Stock
Motor Dc Con WR60X24483
#988

Machine compartment diagram

Motor dc con

Part #WR60X24483

Replaced by #WR60X10209

?
Manufacturer substitution
This part replaces WR60X24483. Substitute parts can look different from the original.
BEST SELLER
$59.27 |
9% OFF Phone Price : $65.27
