Model # 0234-1 TYPE K Official Milwaukee 1/2" hole shooter

Here are the diagrams and repair parts for Official Milwaukee 0234-1-TYPE-K 1/2" hole shooter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

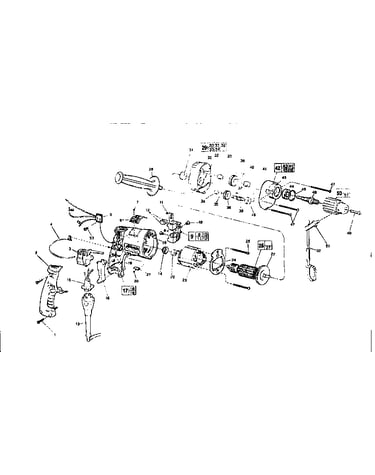

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

1-1/4 Oz. Type "g" Grease No. 49-08-4140, In Grease Cavity.  1-1/2 Oz. Type 'b" Grease, No. 49-08-0600, To Build Up Wall Of Grease Around Grease Cavity. N/P
1-1/4 oz. type "g" grease no. 49-08-4140, in grease cavity. 1-1/2 oz. type 'b" grease, no. 49-08-0600, to build up wall of grease around grease cavity.

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

2-1/4 Lead 23-94-6245
#4

Unit diagram

2-1/4 lead

Part #23-94-6245

The manufacturer no longer makes this part, and there's no substitute part

Cup 22-72-0100
#14

Unit diagram

Cup

Part #22-72-0100

The manufacturer no longer makes this part, and there's no substitute part

Brush Spring Assembly 22-20-0345
#11

Unit diagram

Brush spring assembly

Part #22-20-0345

The manufacturer no longer makes this part, and there's no substitute part

Spring 40-50-0085
#20

Unit diagram

Spring

Part #40-50-0085

The manufacturer no longer makes this part, and there's no substitute part

Field 18-11-0075
#23

Unit diagram

Field

Part #18-11-0075

The manufacturer no longer makes this part, and there's no substitute part

Brush Holder Screw 31-75-0040
#10

Unit diagram

Brush holder screw

Part #31-75-0040

The manufacturer no longer makes this part, and there's no substitute part

Screw 06-82-7266
#1

Unit diagram

Screw

Part #06-82-7266

The manufacturer no longer makes this part, and there's no substitute part

Handle 43-62-0885
#28

Unit diagram

Handle

Part #43-62-0885

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver Motor Brush Holder 22-22-0351
#9

Unit diagram

Drill/driver motor brush holder

Part #22-22-0351

The manufacturer no longer makes this part, and there's no substitute part
