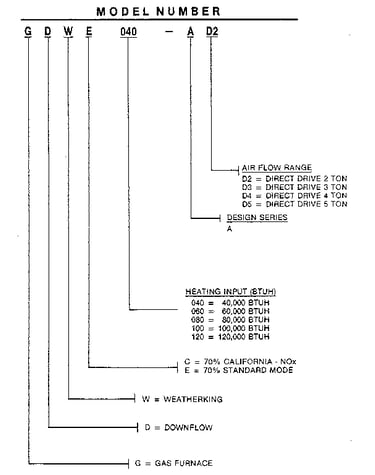

Model # GDWC/GDWE Official Weatherking downflow gas furnace

Here are the diagrams and repair parts for Official Weatherking GDWC-GDWE downflow gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

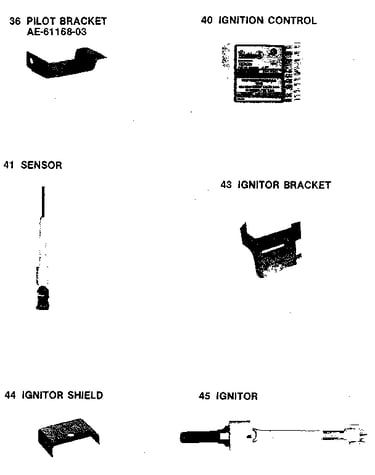

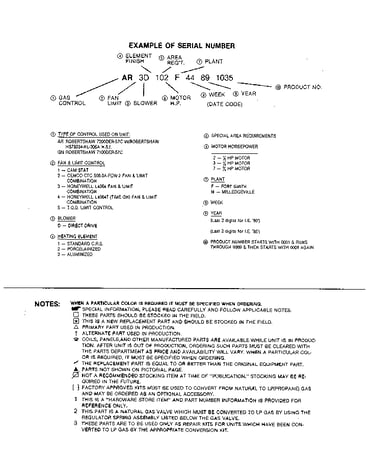

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Capacitor 43-20847-11

#32

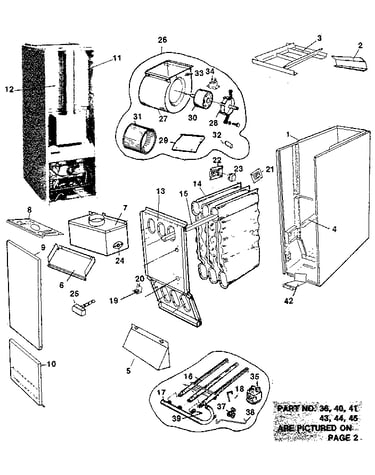

All parts diagram

Capacitor

Part #43-20847-11

Replaced by #12907

?
Manufacturer substitution
This part replaces 43-20847-11. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
