Model # PFRX30070 Official Proform restoration

Here are the diagrams and repair parts for Official Proform PFRX30070 restoration, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Exercise Equipment Hex Nut 012056
#5

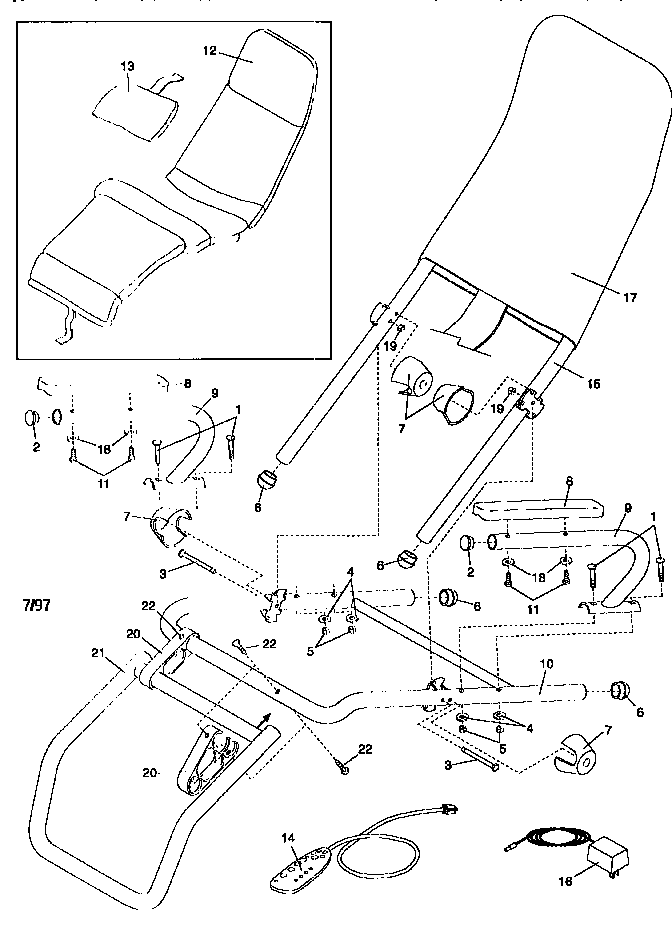

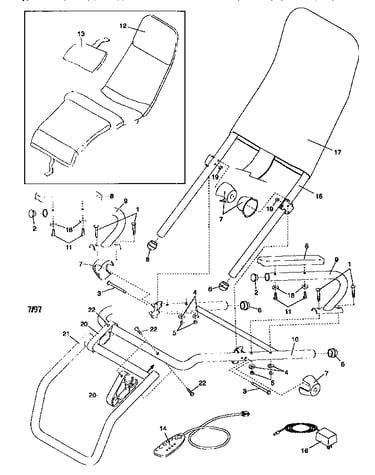

Unit parts diagram

Exercise equipment hex nut

Part #012056

This item is not returnable
$2.16
In Stock
Proform Screw,hhcs,z 124916
#3

Unit parts diagram

Proform screw,hhcs,z

Part #124916

This item is not returnable
$2.16
In Stock
Black & Decker Treadmill Washer 014063
#18

Unit parts diagram

Black & decker treadmill washer

Part #014063

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Exercise Equipment Flat Washer 014073
#4

Unit parts diagram

Exercise equipment flat washer

Part #014073

This item is not returnable
$2.16
In Stock
Om,pfrx30070 138895

#NI

All parts diagram

Om,pfrx30070

Part #138895

The manufacturer no longer makes this part, and there's no substitute part

Cn,usage Of 138753

#NI

All parts diagram

Cn,usage of

Part #138753

The manufacturer no longer makes this part, and there's no substitute part

Nut,hex Nyl 012082
#19

Unit parts diagram

Nut,hex nyl

Part #012082

The manufacturer no longer makes this part, and there's no substitute part

Eca,cntrl,3 138832
#14

Unit parts diagram

Eca,cntrl,3

Part #138832

The manufacturer no longer makes this part, and there's no substitute part

Cvr,pivot,bl 138567
#7

Unit parts diagram

Cvr,pivot,bl

Part #138567

The manufacturer no longer makes this part, and there's no substitute part

Carriage Bolt 013278
#1

Unit parts diagram

Carriage bolt

Part #013278

The manufacturer no longer makes this part, and there's no substitute part
