Model # RR-800/P75592-1M Official Amana countertop microwave

Here are the diagrams and repair parts for Official Amana RR-800-P75592-1M countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

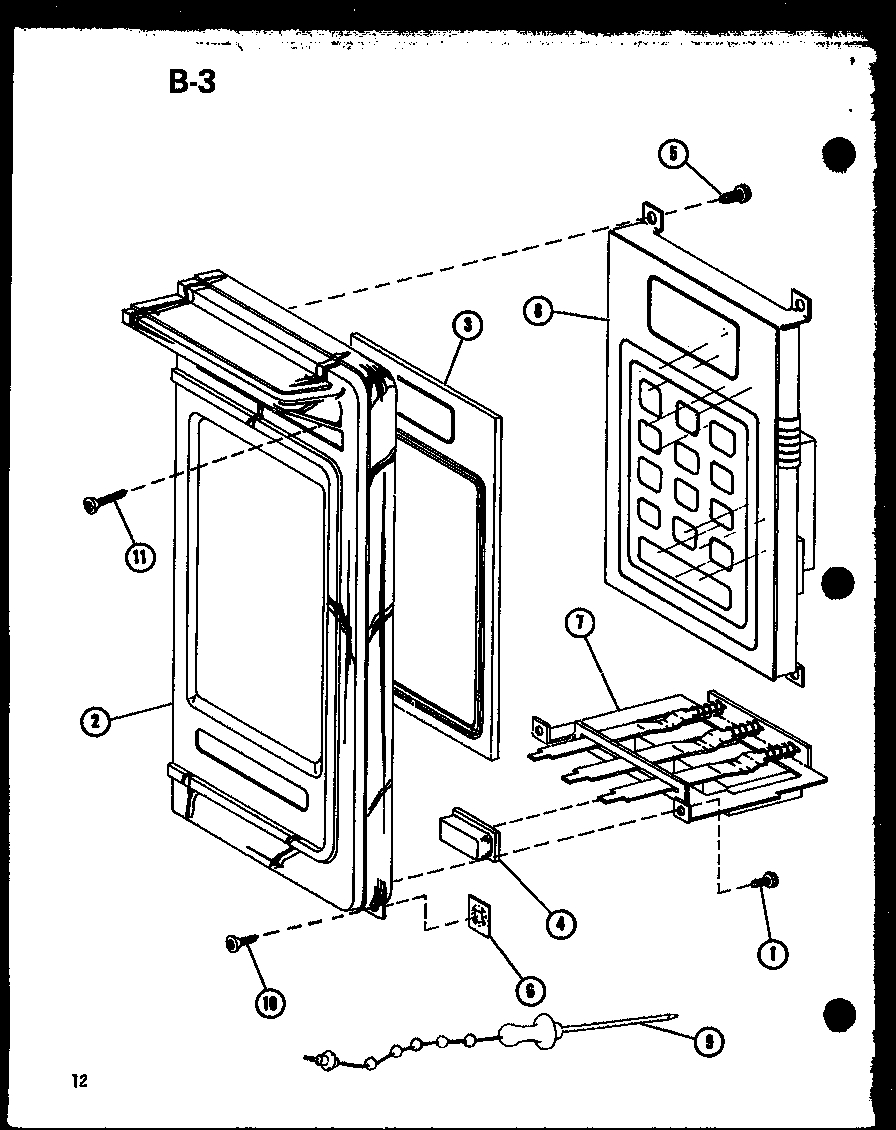

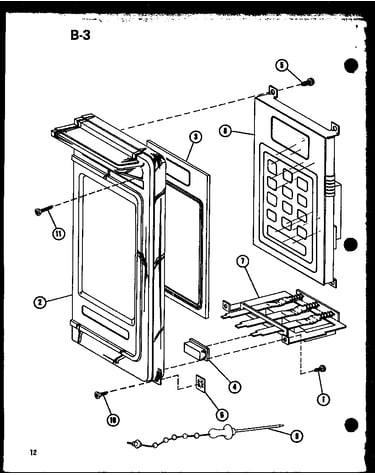

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Head Screw M0211217
#33

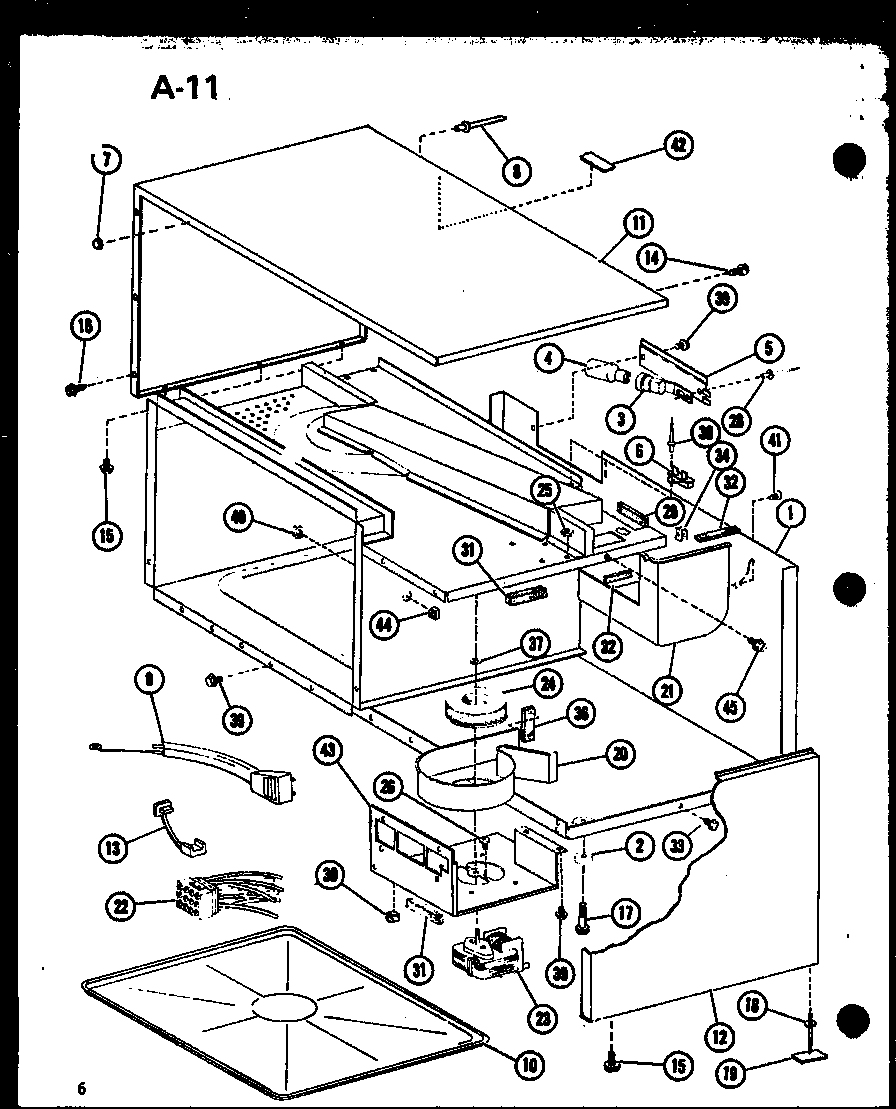

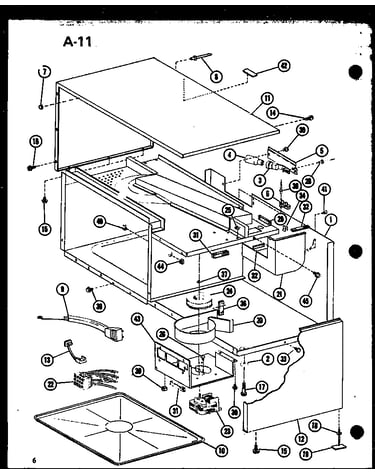

Cabinet parts diagram

Head screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Torx Screw M0234016
Torx screw

Part #M0234016

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0234016. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Torx Screw M0216616
#15

Cabinet parts diagram

Torx screw

Part #M0216616

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0216616. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nut M0282005
#26

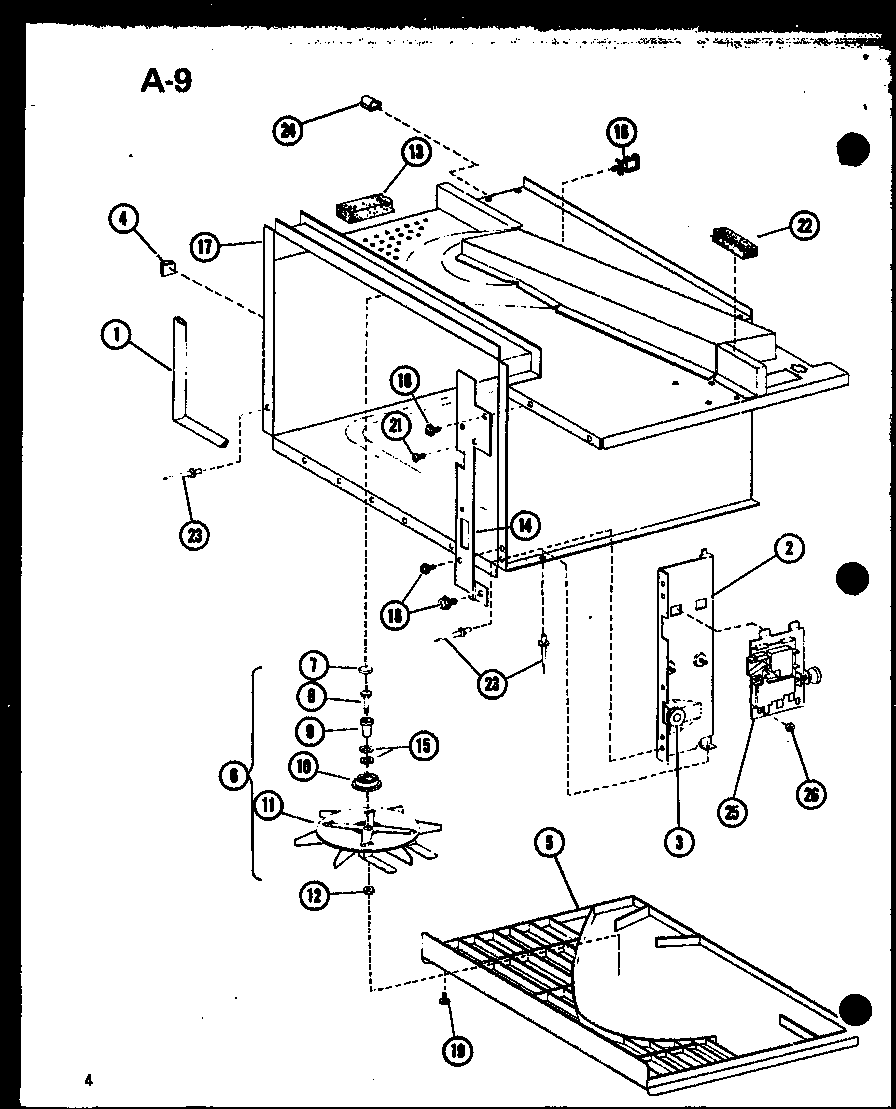

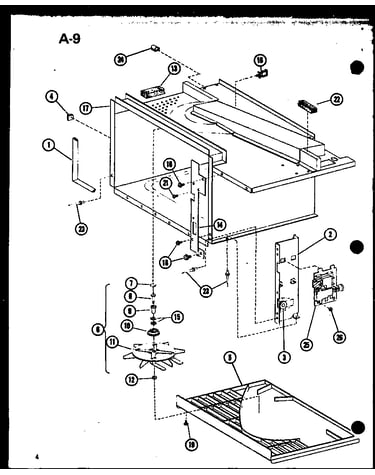

Antenna assembly diagram

Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Screw M0216703
Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Capacitor D8547901
#2

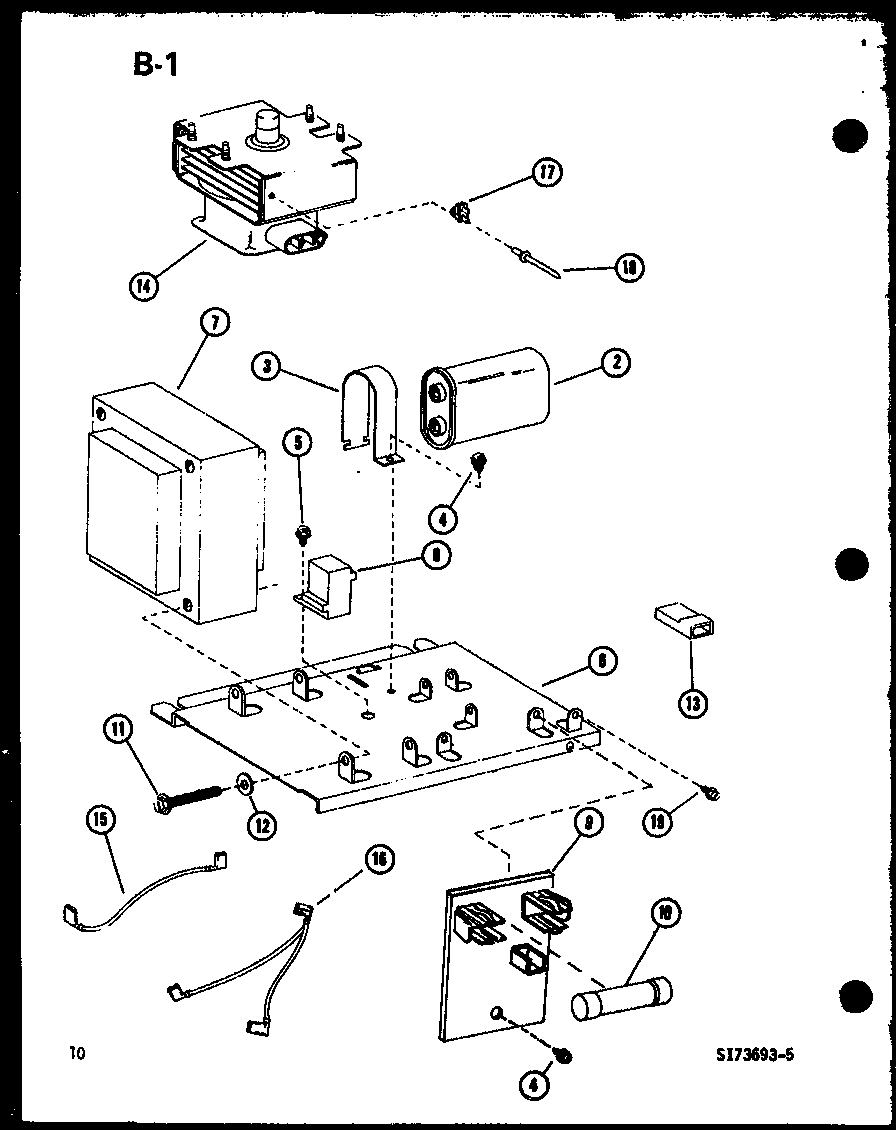

Transformer and magnetron diagram

Capacitor

Part #D8547901

Replaced by #D8547901

?
Manufacturer substitution
This part replaces D8547901. Substitute parts can look different from the original.
$31.49
In Stock
Screw M0216515
#4

Transformer and magnetron diagram

Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Fuse M0805102
#10

Transformer and magnetron diagram

Fuse

Part #M0805102

Replaced by #WPM0805102

?
Manufacturer substitution
This part replaces M0805102. Substitute parts can look different from the original.
$8.69 |
10% OFF Phone Price : $9.69
In Stock
Screw M0234029
#23

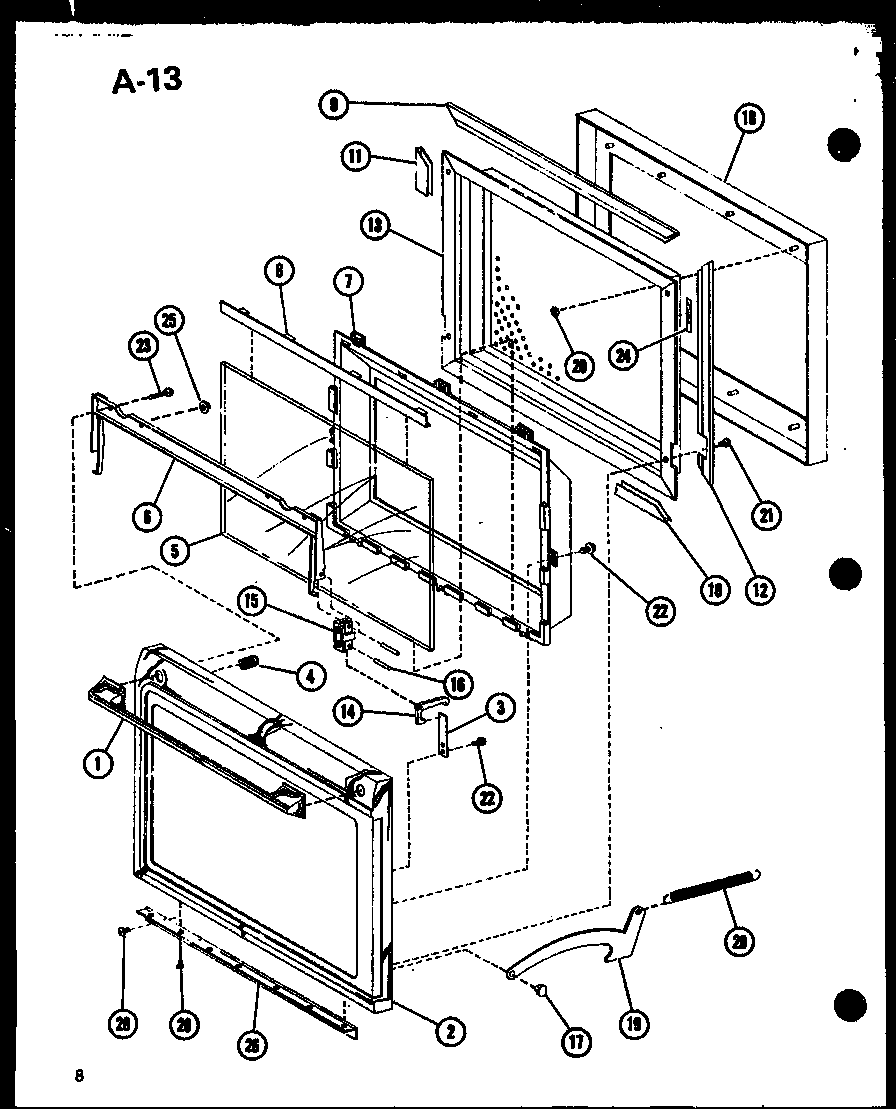

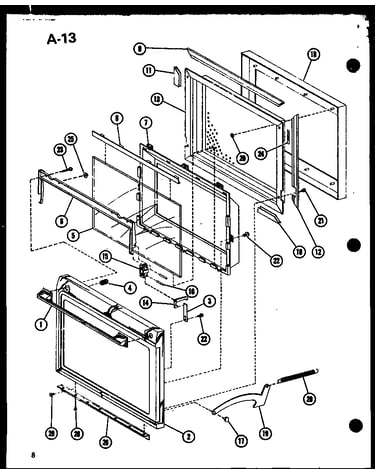

Door diagram

Screw

Part #M0234029

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces M0234029. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Access Panel D7378004
#12

Cabinet parts diagram

Access panel

Part #D7378004

The manufacturer no longer makes this part, and there's no substitute part
