Eureka
Upright Vacuum

Model # 5187AT-1 Official Eureka self-propelled vacuum cleaner

Here are the diagrams and repair parts for Official Eureka 5187AT-1 self-propelled vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

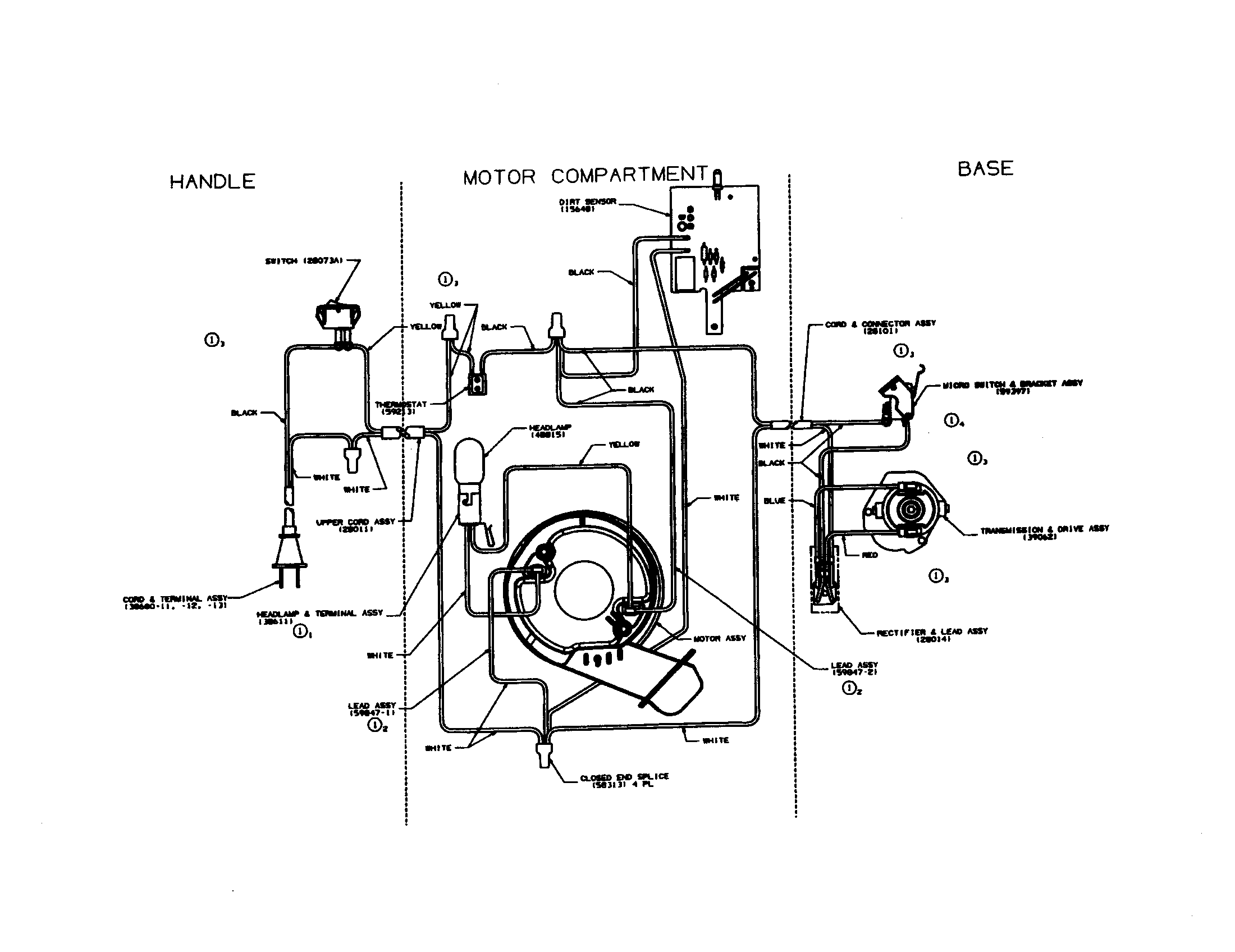

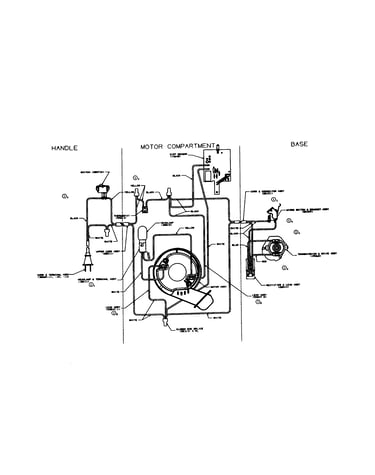

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |

Screw 53257-1
#15

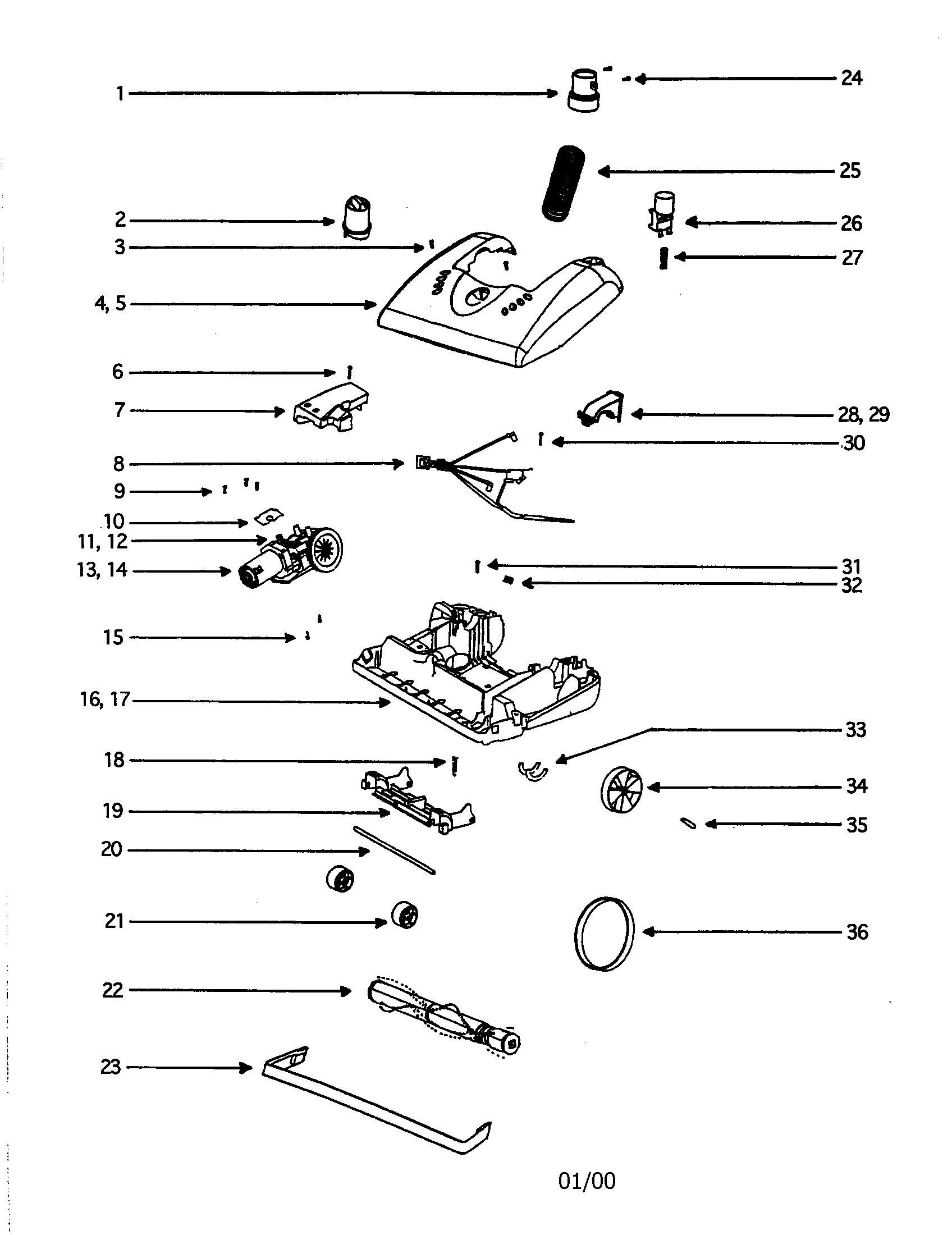

Hood diagram

Screw

Part #53257-1

The manufacturer no longer makes this part, and there's no substitute part

Tube 15614-1
#3

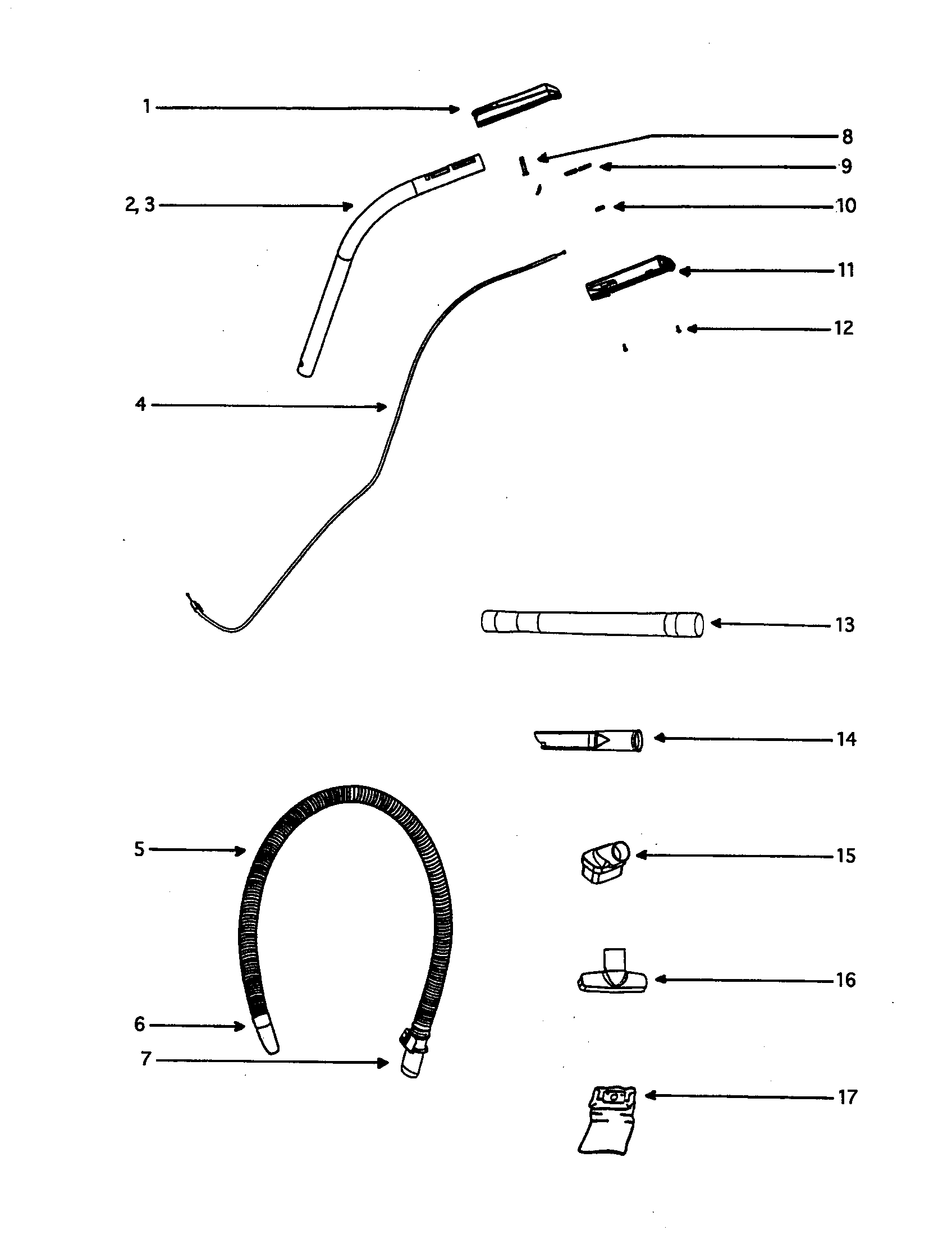

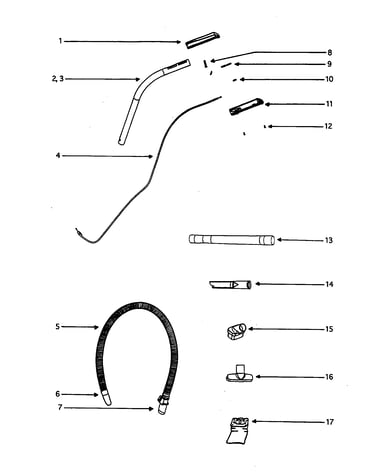

Accessories diagram

Tube

Part #15614-1

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Wire Tie 46713-5
#42

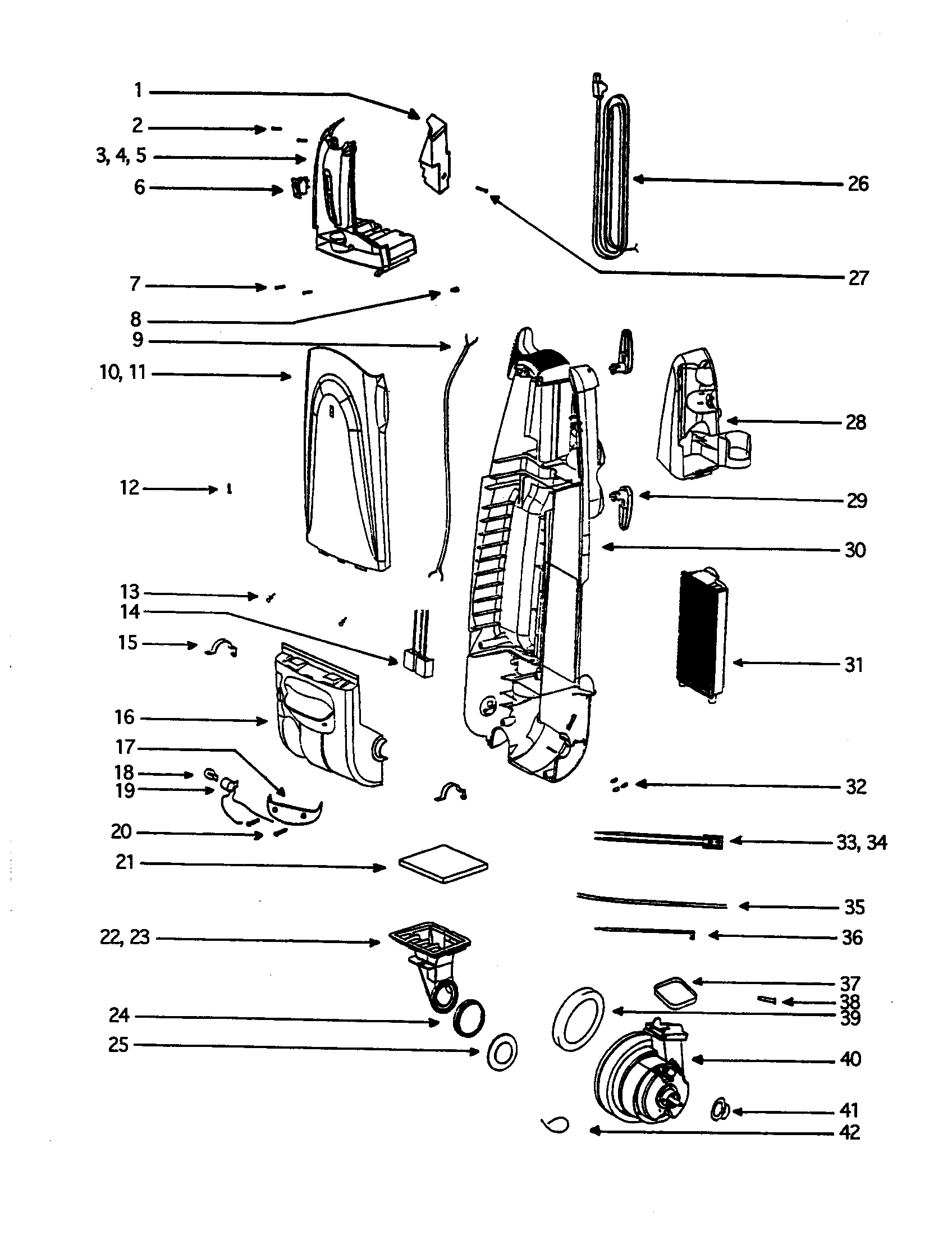

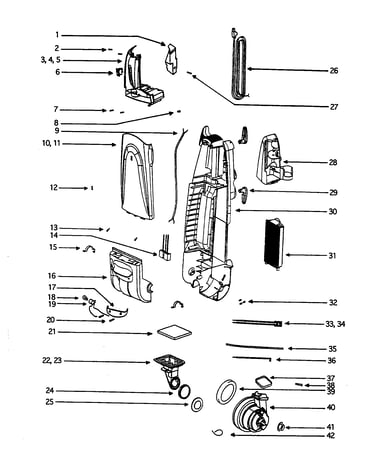

Body diagram

Electrolux wire tie

Part #46713-5

The manufacturer no longer makes this part, and there's no substitute part

Adapter 59361A
#38

Body diagram

Adapter

Part #59361A

The manufacturer no longer makes this part, and there's no substitute part

Push On Nut 60613
#34

Body diagram

Push on nut

Part #60613

The manufacturer no longer makes this part, and there's no substitute part

Pcb 60982-1
#14

Body diagram

Pcb

Part #60982-1

The manufacturer no longer makes this part, and there's no substitute part

Yoke Screw 53193
#9

Hood diagram

Yoke screw

Part #53193

The manufacturer no longer makes this part, and there's no substitute part

Gasket 59586
#5

Hood diagram

Gasket

Part #59586

The manufacturer no longer makes this part, and there's no substitute part

Gasket 59331SV
#11

Body diagram

Gasket

Part #59331SV

The manufacturer no longer makes this part, and there's no substitute part

Screw 60761-1
#31

Hood diagram

Screw

Part #60761-1

The manufacturer no longer makes this part, and there's no substitute part
