Weider
Weight System

Model # E8800 Official Weider weight bench exerciser

Here are the diagrams and repair parts for Official Weider E8800 weight bench exerciser, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

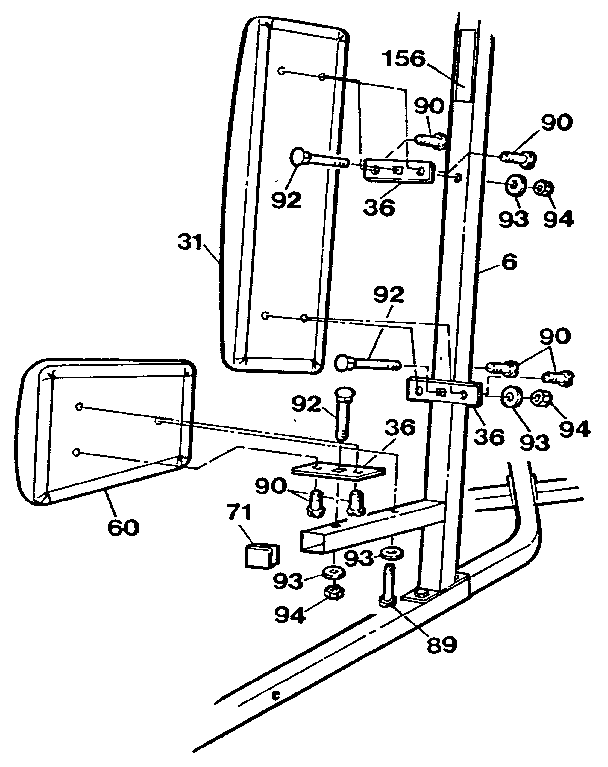

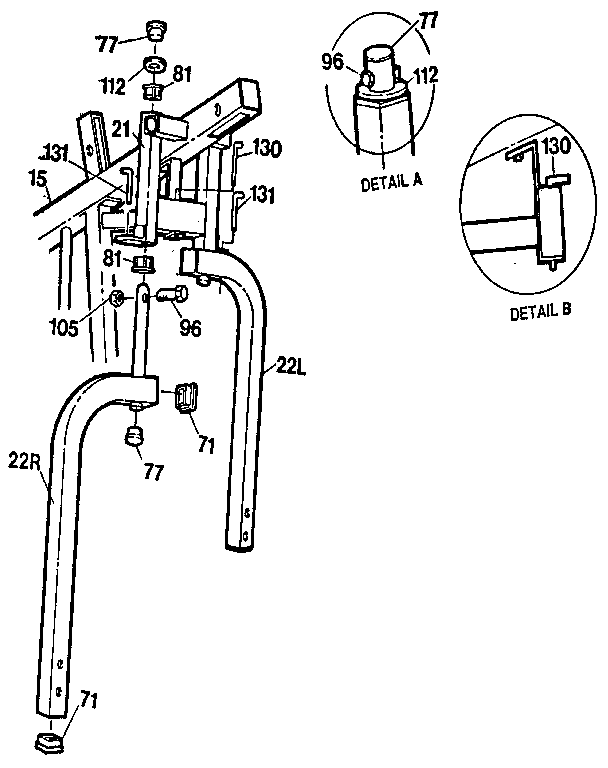

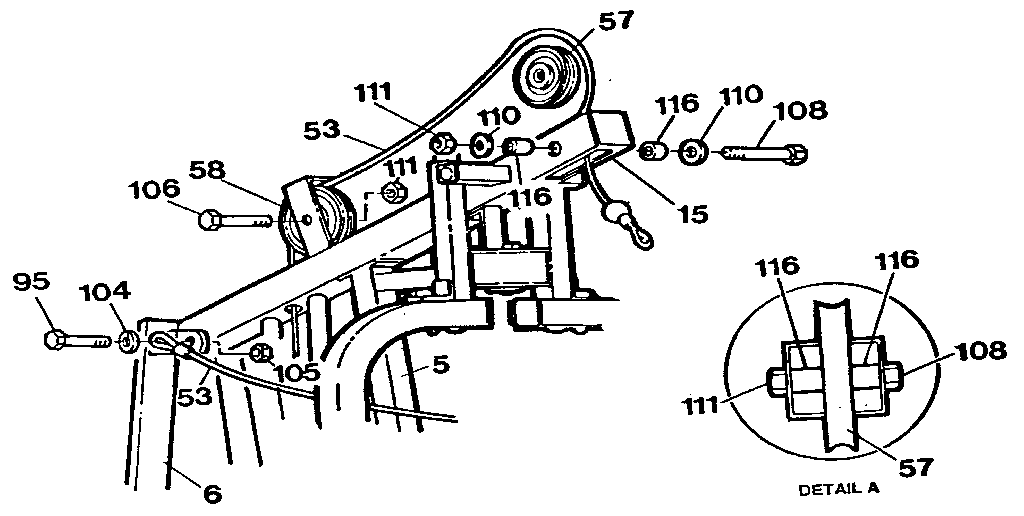

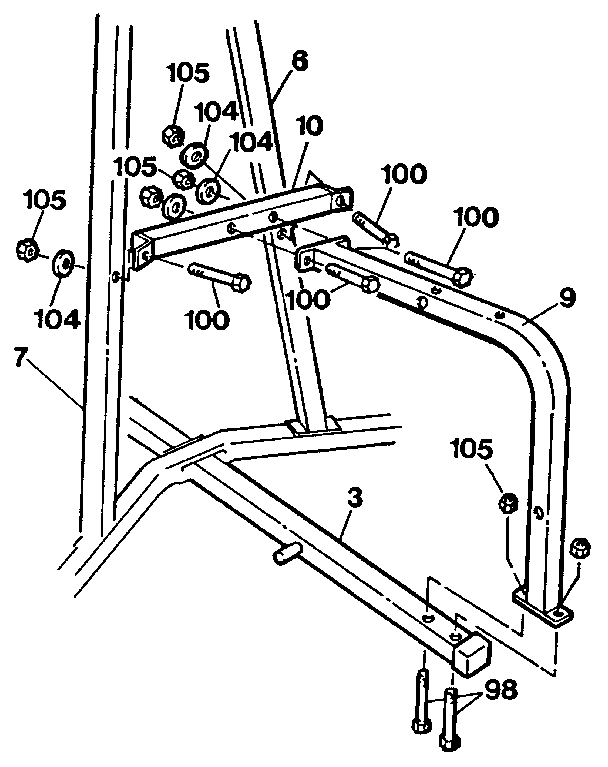

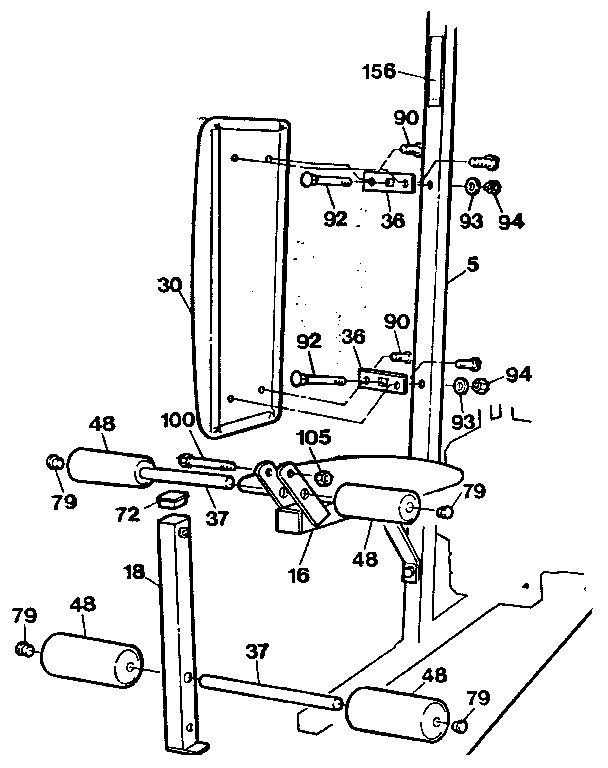

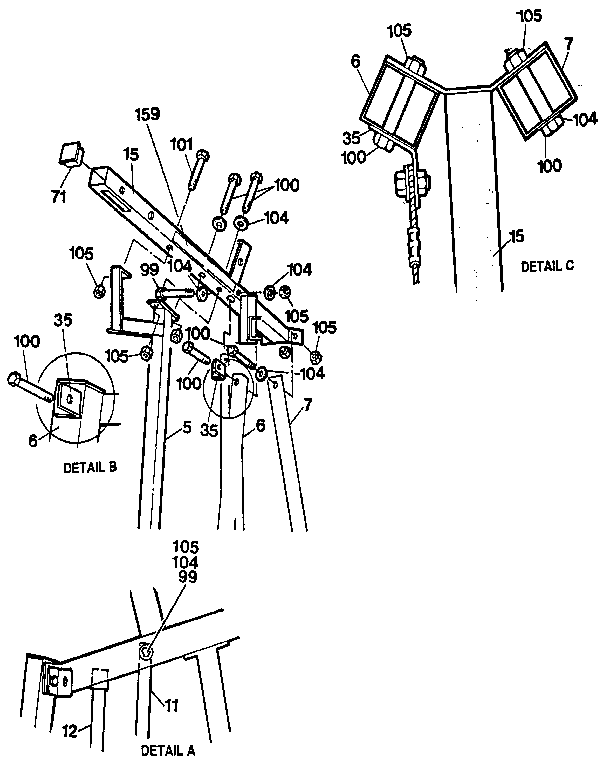

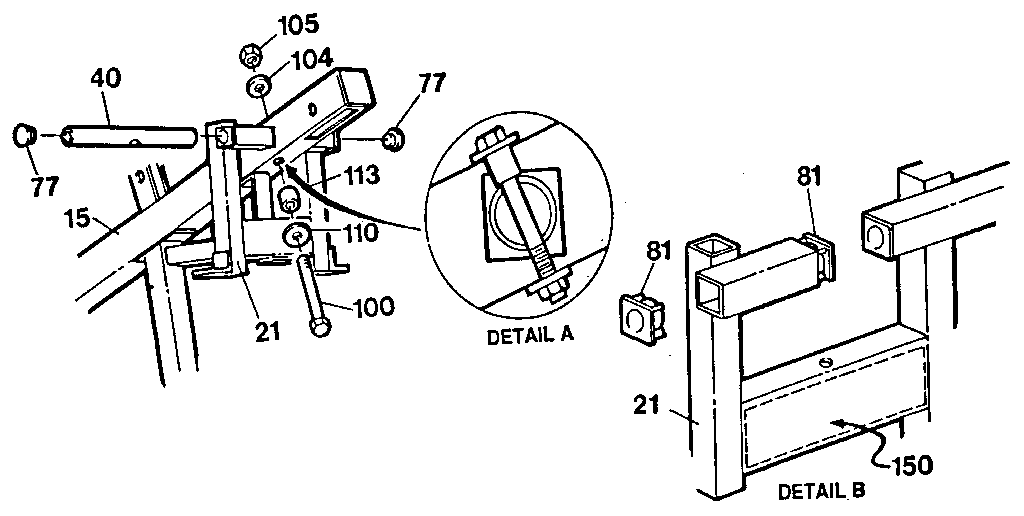

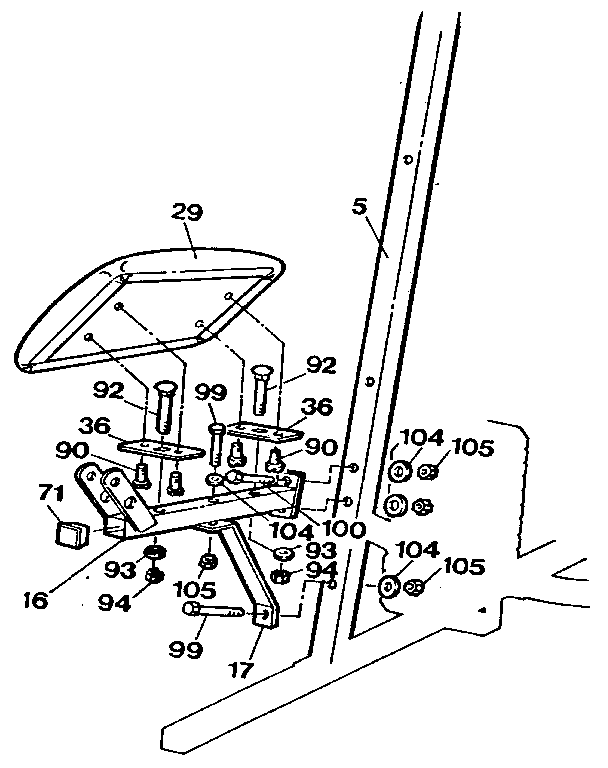

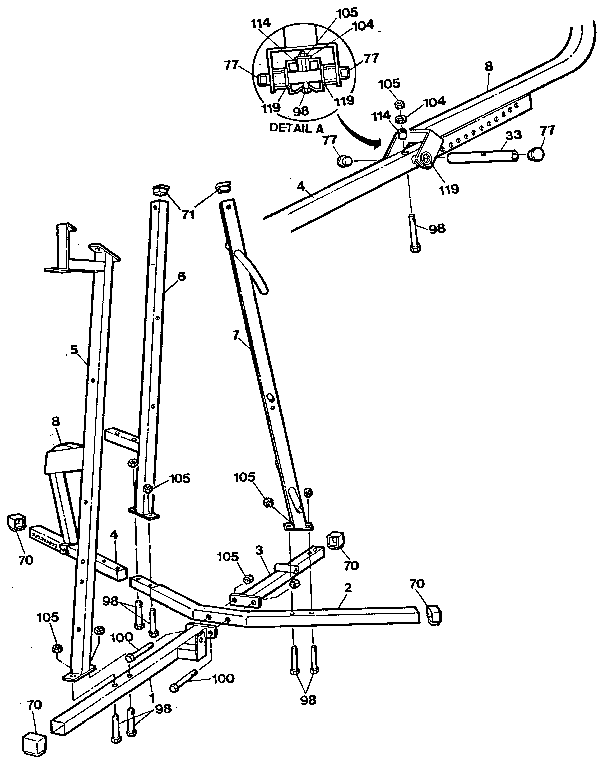

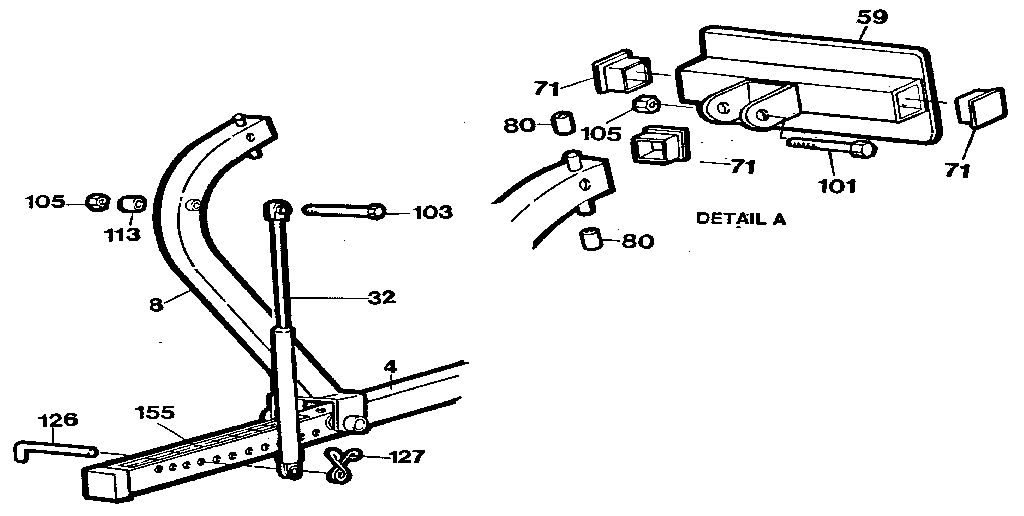

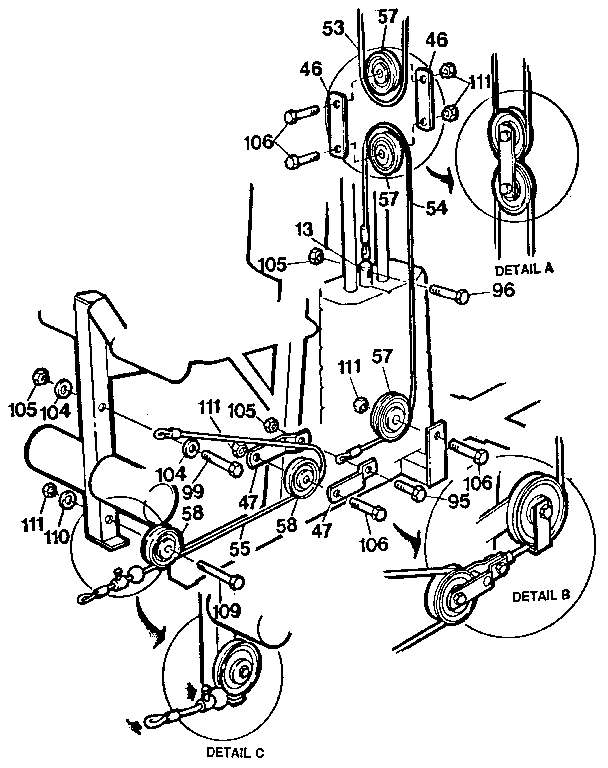

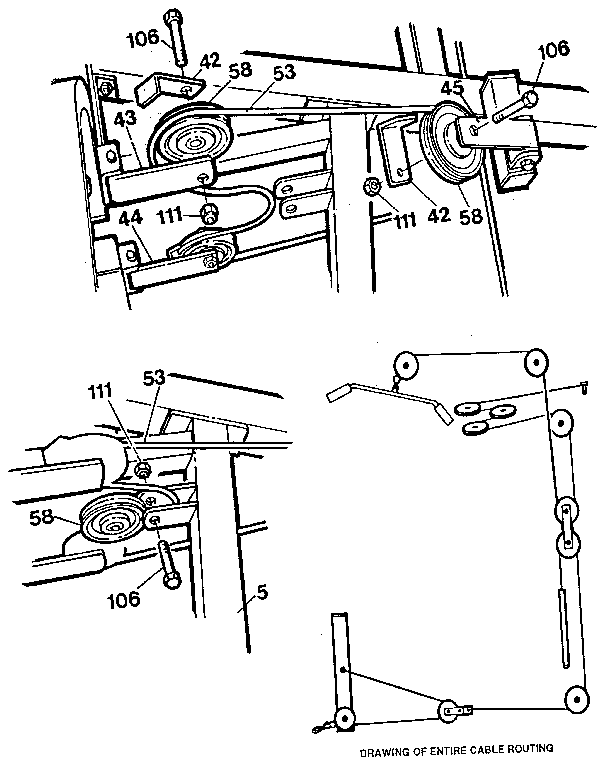

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Wght Plate BB-0318
#14

Weight stack assembly diagram

Wght plate

Part #BB-0318

Replaced by #120294

?
Manufacturer substitution
This part replaces BB-0318. Substitute parts can look different from the original.
$9.30 |
10% OFF Phone Price : $10.30
In Stock
Foam Ped C0412-B18
#50

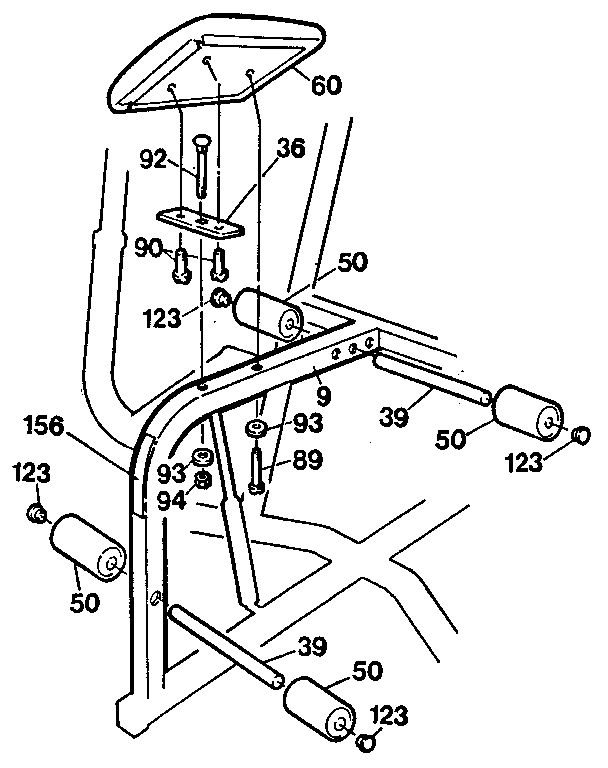

Ab station seat assembly diagram

Foam ped

Part #C0412-B18

Replaced by #140239

?
Manufacturer substitution
This part replaces C0412-B18. Substitute parts can look different from the original.
This item is not returnable
$10.39 |
16% OFF Phone Price : $12.39
In Stock
Hex Bolt HH-5053
Hex bolt

Part #HH-5053

Replaced by #103053

?
Manufacturer substitution
This part replaces HH-5053. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Foot Pad AA-8134
#135

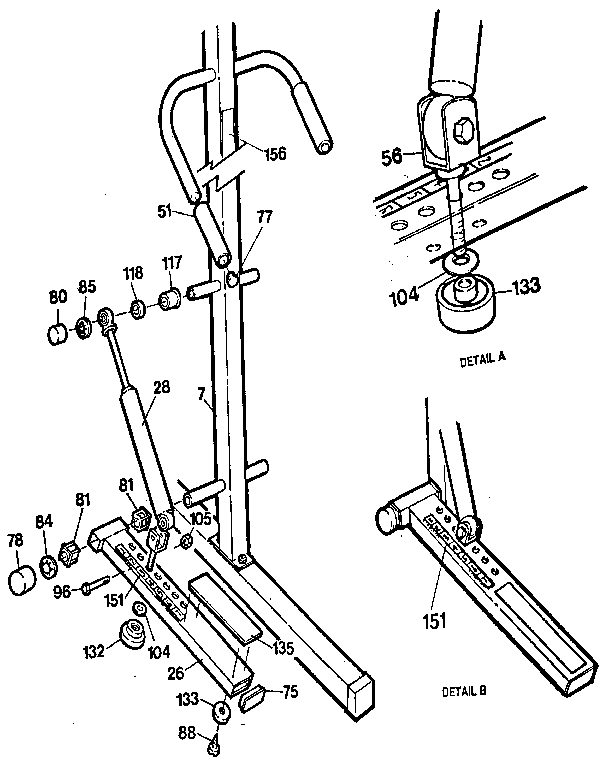

Stepper assembly diagram

Foot pad

Part #AA-8134

This item is not returnable
$3.99
In Stock
Hex Bolt HH-5058
Hex bolt

Part #HH-5058

Replaced by #113744

?
Manufacturer substitution
This part replaces HH-5058. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Lat Bar C6803-D35
#138

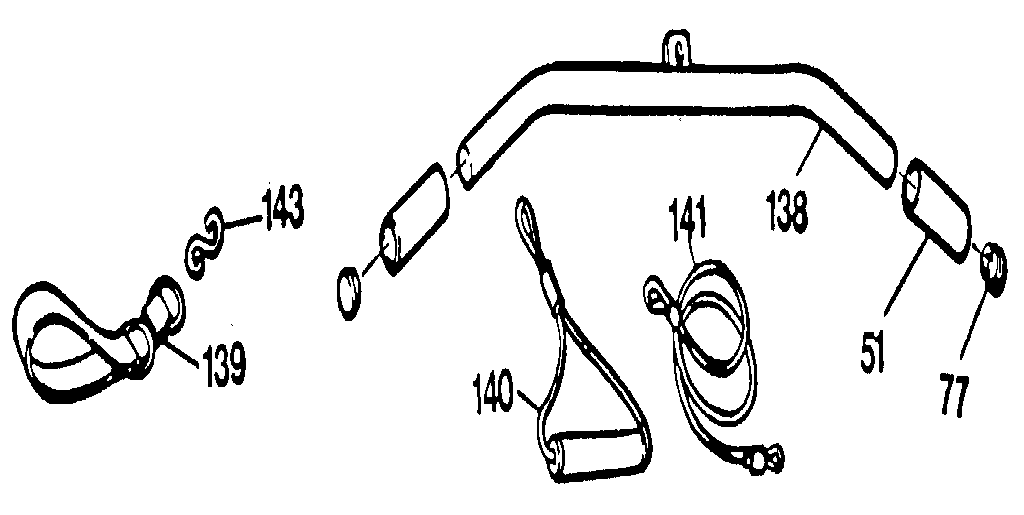

Accessories diagram

Lat bar

Part #C6803-D35

Replaced by #127933

?
Manufacturer substitution
This part replaces C6803-D35. Substitute parts can look different from the original.
$28.99
In Stock
Cap AA-8005
Cap

Part #AA-8005

Replaced by #120733

?
Manufacturer substitution
This part replaces AA-8005. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
End Plug AA-8123
#83

Weight stack assembly diagram

End plug

Part #AA-8123

Replaced by #122691

?
Manufacturer substitution
This part replaces AA-8123. Substitute parts can look different from the original.
This item is not returnable
$2.99
In Stock
Washer HH-5048
Washer

Part #HH-5048

Replaced by #STD551025

?
Manufacturer substitution
This part replaces HH-5048. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Metal Spacer HH-5387
Metal spacer

Part #HH-5387

Replaced by #119967

?
Manufacturer substitution
This part replaces HH-5387. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
