Model # 20861820 Official Kenmore indoor & outdoor wet/dry vacuum

Here are the diagrams and repair parts for Official Kenmore 20861820 indoor & outdoor wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

Curved Wand 61939
#59

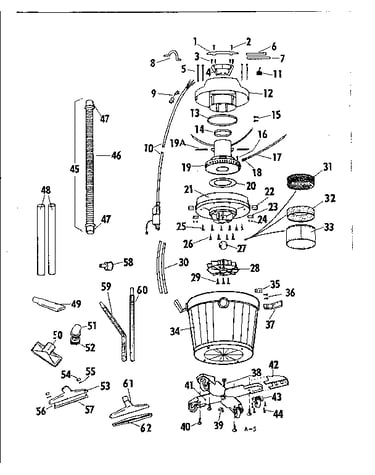

Unit parts diagram

Curved wand

Part #61939

The manufacturer no longer makes this part, and there's no substitute part

Wet Wand 61938
#60

Unit parts diagram

Wet wand

Part #61938

The manufacturer no longer makes this part, and there's no substitute part

Tank 61722-D
#34

Unit parts diagram

Tank

Part #61722-D

The manufacturer no longer makes this part, and there's no substitute part

Brush 61832
#57

Unit parts diagram

Brush

Part #61832

The manufacturer no longer makes this part, and there's no substitute part

Wire Connector 61199
#15

Unit parts diagram

Wire connector

Part #61199

The manufacturer no longer makes this part, and there's no substitute part

Coupling 61792
#47

Unit parts diagram

Coupling

Part #61792

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 61909-A

#NI

All parts diagram

Owner's manual

Part #61909-A

The manufacturer no longer makes this part, and there's no substitute part

Cover 61906-A
#42

Unit parts diagram

Cover

Part #61906-A

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Screw 61913
#2

Unit parts diagram

Shop vacuum screw

Part #61913

The manufacturer no longer makes this part, and there's no substitute part

Hose Assembly 61793
#45

Unit parts diagram

Hose assembly

Part #61793

The manufacturer no longer makes this part, and there's no substitute part
