Carrier
Heating & Cooling Combined Unit

Model # 48XP042090300 Official Carrier central package

Here are the diagrams and repair parts for Official Carrier 48XP042090300 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Blower Assembly 48GS400106
#143

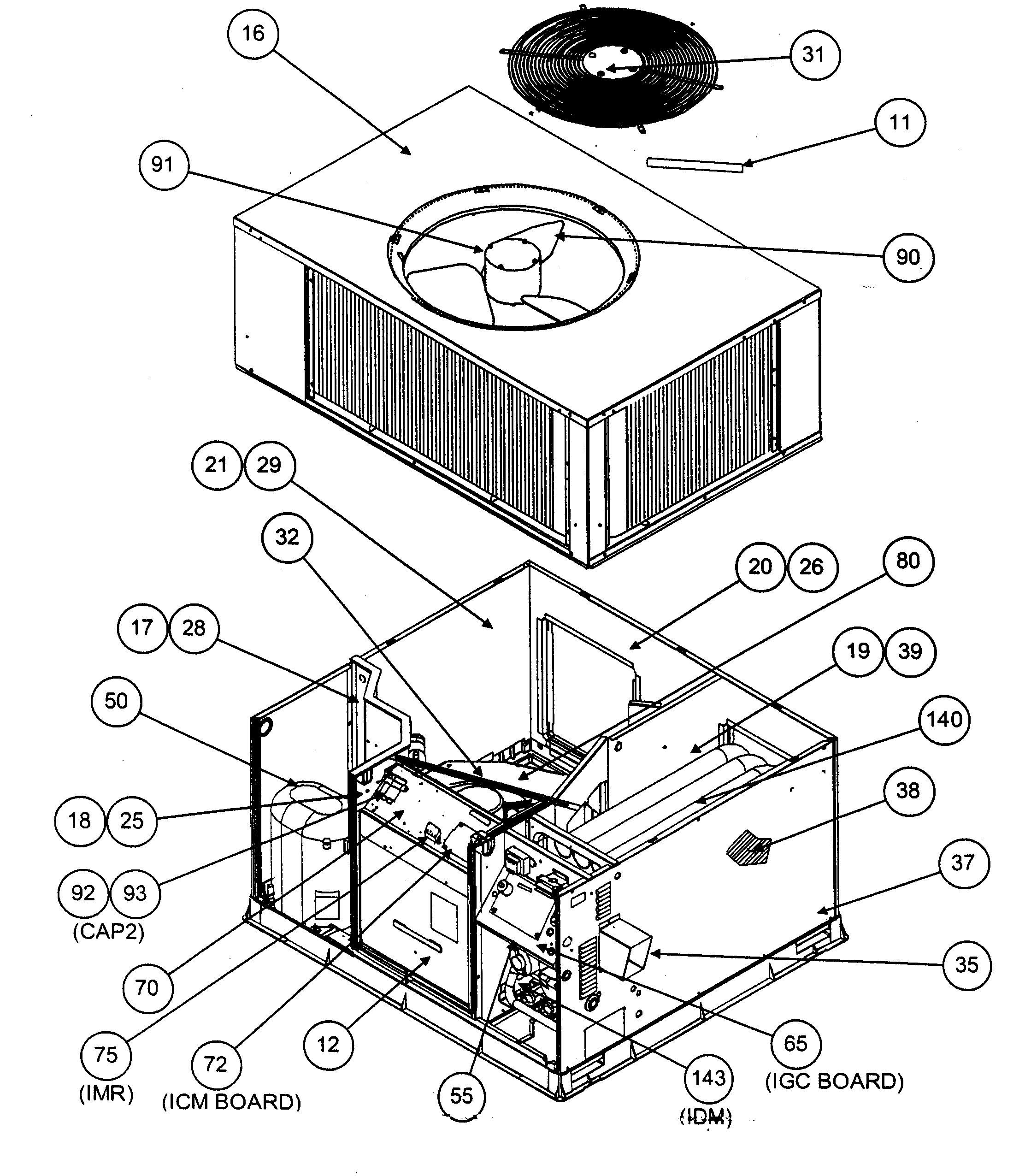

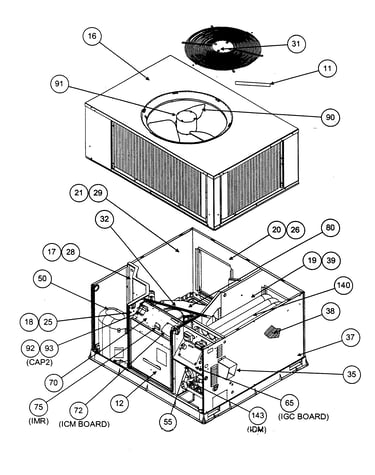

Inside view diagram

Blower assembly

Part #48GS400106

Replaced by #48GS400649

?
Manufacturer substitution
This part replaces 48GS400106. Substitute parts can look different from the original.
$708.46 |
$12.00 OFF Phone Price : $720.46
In Stock
Insulation 48GS500307
#26

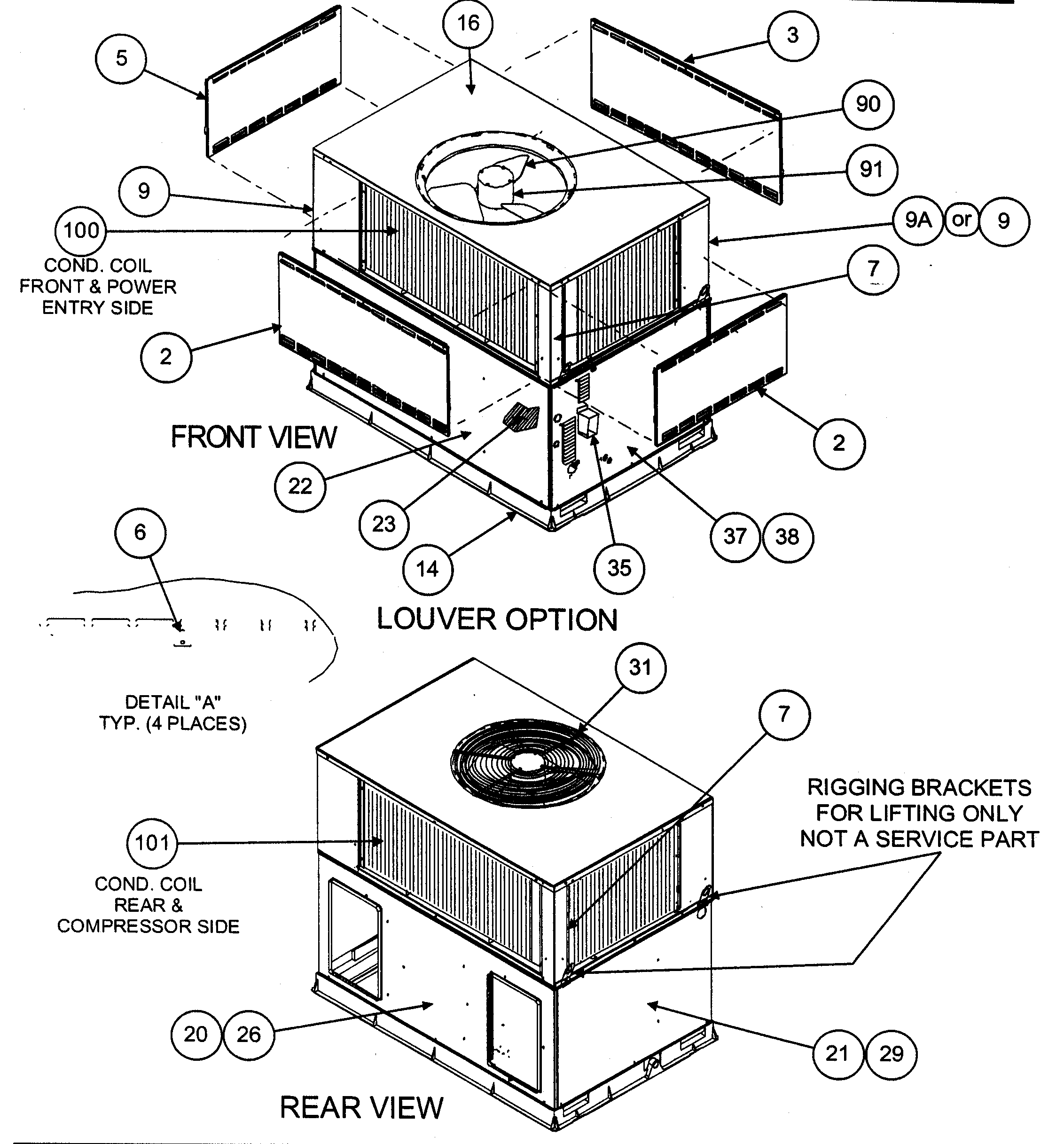

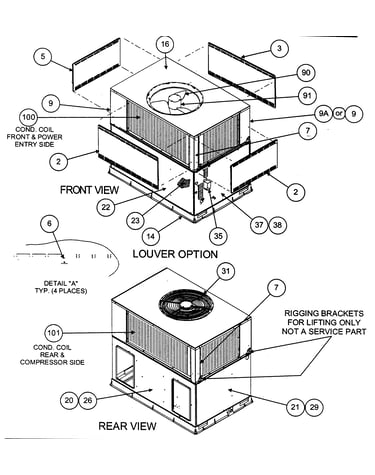

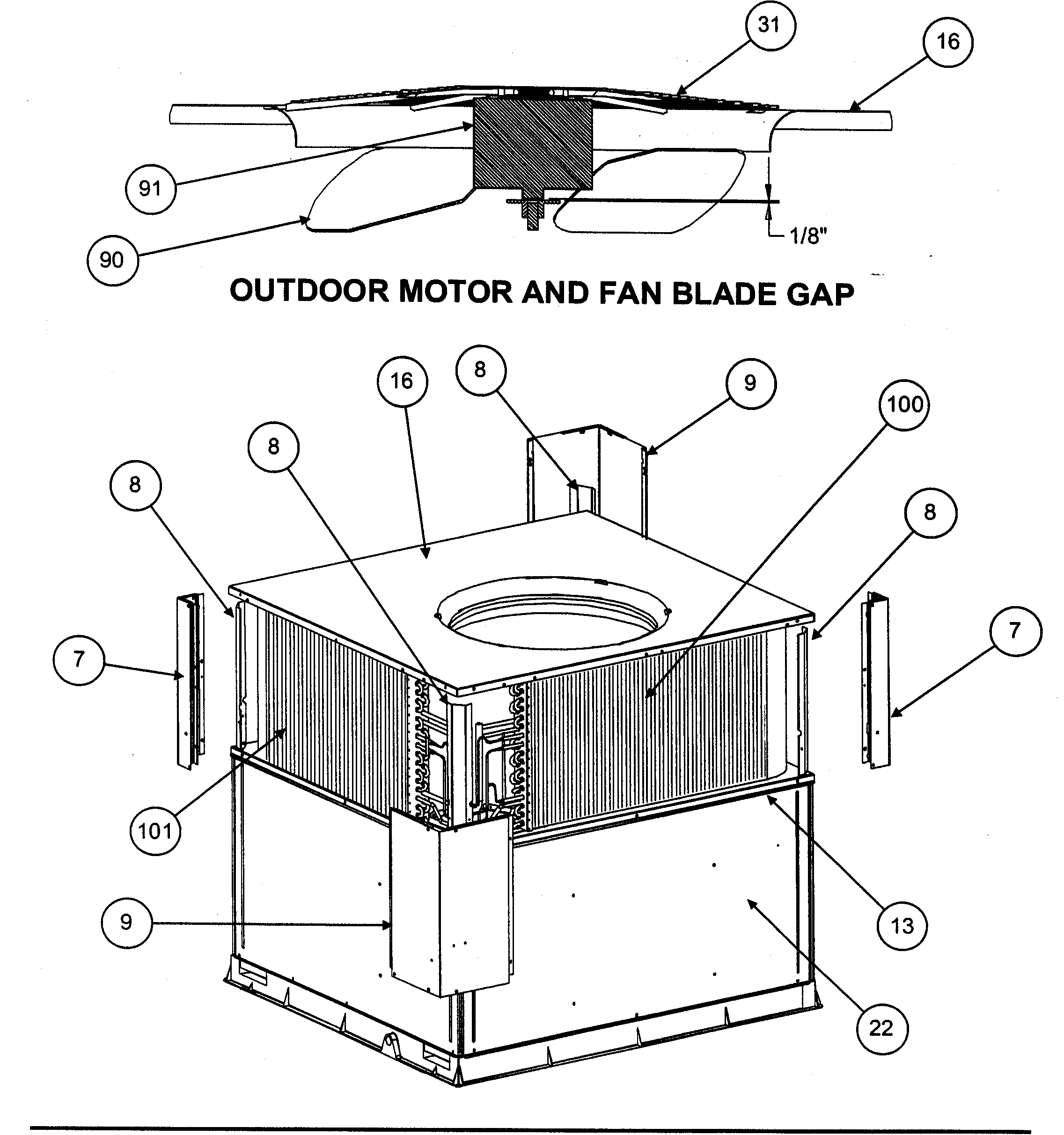

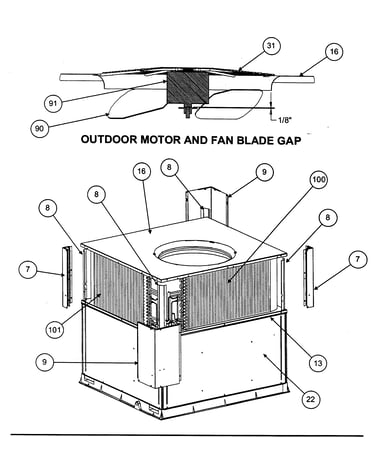

Front/rear view diagram

Insulation

Part #48GS500307

$63.60
In Stock
Furnace Heat Exchanger Cover 48GS400108
#120

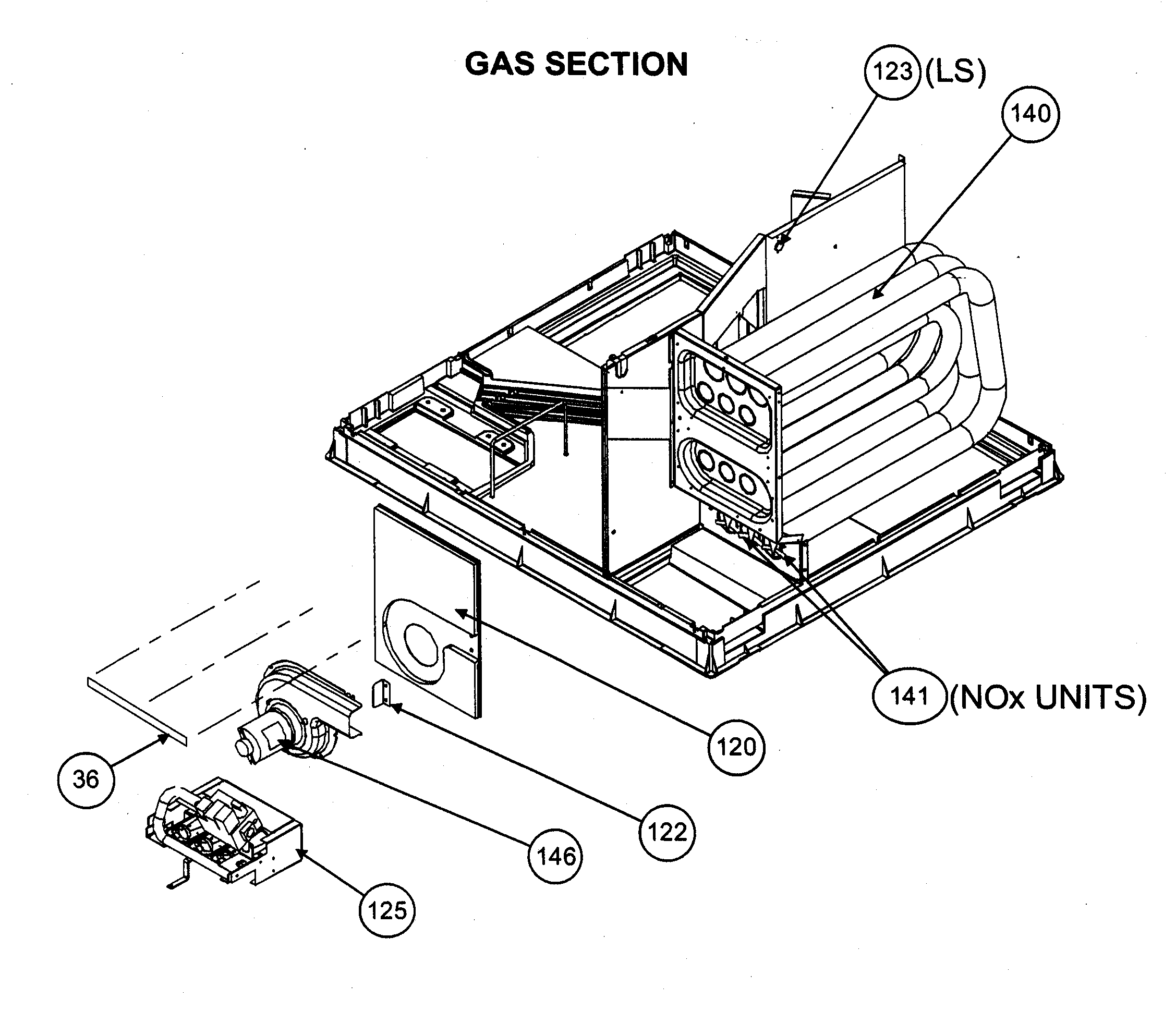

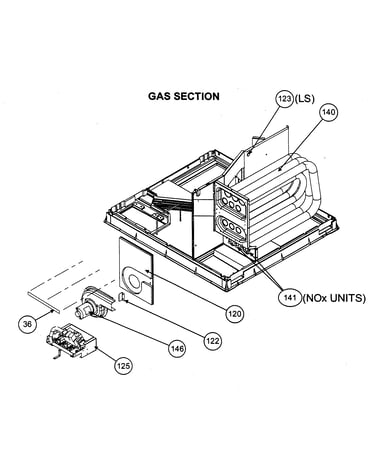

Gas section diagram

Furnace heat exchanger cover

Part #48GS400108

$325.53 |
$12.00 OFF Phone Price : $337.53
In Stock
Bracket 48GS500461
#8

Front/rear view diagram

Bracket

Part #48GS500461

$22.69
In Stock
Payne Panel 48GS400499
#3

Front/rear view diagram

Payne panel

Part #48GS400499

$879.18
In Stock
Payne Panel 50JS400290
#5

Front/rear view diagram

Payne panel

Part #50JS400290

$202.24
In Stock
Panel 50JS500022
#9

Front/rear view diagram

Panel

Part #50JS500022

$220.22
In Stock
Filter KH43LG073
#NI

Front/rear view diagram

Filter

Part #KH43LG073

$87.11
In Stock
Sensor 48GS400192
#125C

Gas section diagram

Sensor

Part #48GS400192

$26.54
In Stock
Paint 313974-751
#NI

Front/rear view diagram

Paint

Part #313974-751

$60.89
In Stock
