Model # 486242051 Official Craftsman cultivator

Here are the diagrams and repair parts for Official Craftsman 486242051 cultivator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |
Lawn & Garden Equipment Lock Washer, 3/8-in 43003
#7

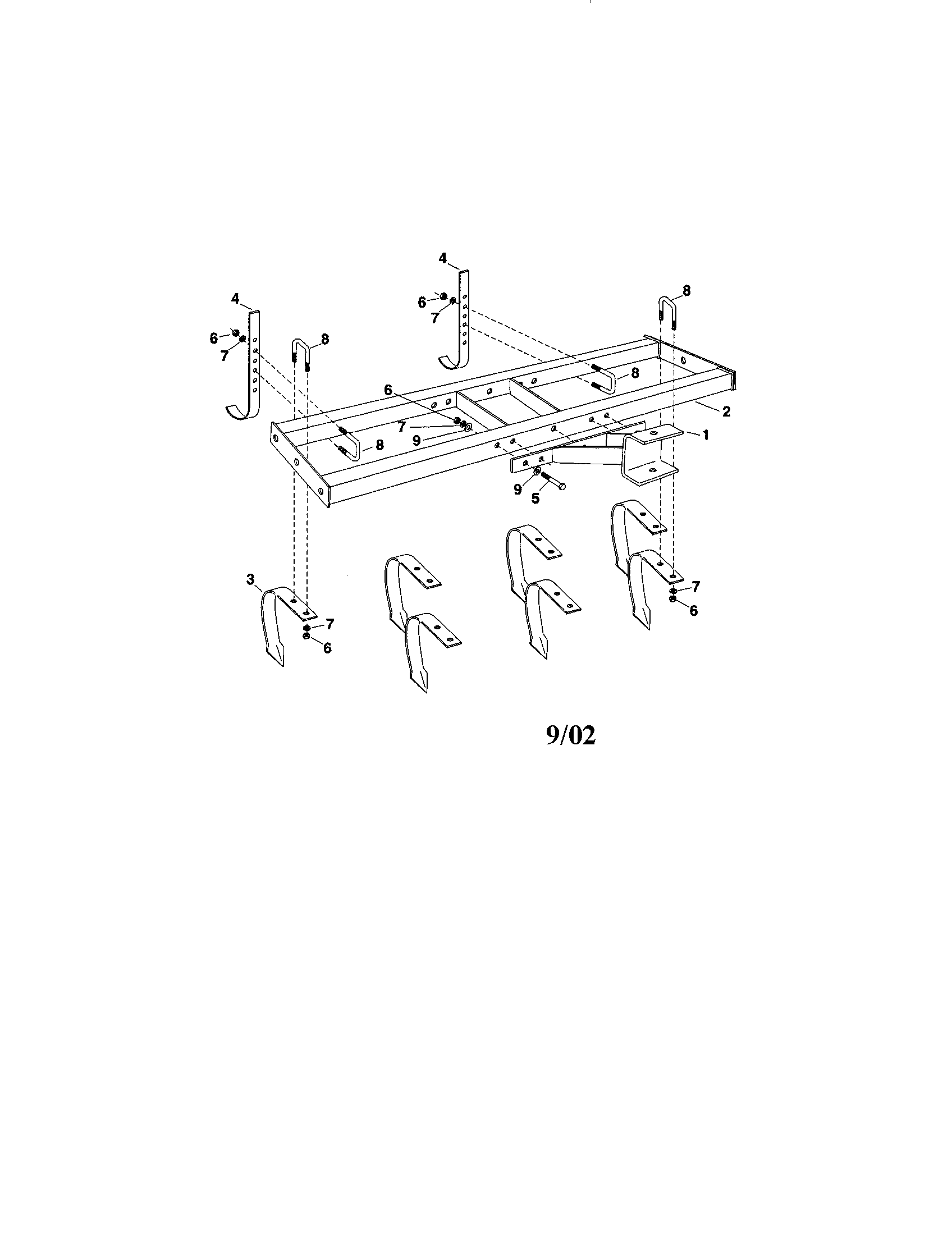

Cultivator frame diagram

Lawn & garden equipment lock washer, 3/8-in

Part #43003

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Washer, 3/8-in (replaces Af-43070) 43070
#9

Cultivator frame diagram

Lawn tractor attachment washer, 3/8-in (replaces af-43070)

Part #43070

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Hex Nut, 3/8-16 43015
#6

Cultivator frame diagram

Lawn & garden equipment hex nut, 3/8-16

Part #43015

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Hex Bolt 43432
#5

Cultivator frame diagram

Lawn & garden equipment hex bolt

Part #43432

This item is not returnable
$2.16
In Stock
Lawn Tractor Box Scraper Attachment Hitch Assembly 63656
#1

Cultivator frame diagram

Lawn tractor box scraper attachment hitch assembly

Part #63656

Replaced by #63656BL1

?
Manufacturer substitution
This part replaces 63656. Substitute parts can look different from the original.
$52.49
In Stock
Lawn & Garden Equipment Bolt 46853
#8

Cultivator frame diagram

Lawn & garden equipment bolt

Part #46853

This item is not returnable
$2.53
In Stock
Craftsman Owner's Manual 48337

#NI

All parts diagram

Craftsman owner's manual

Part #48337

This item is not returnable
$3.05
In Stock
Frame Assembly 64279
#2

Cultivator frame diagram

Frame assembly

Part #64279

Replaced by #64279BL3

?
Manufacturer substitution
This part replaces 64279. Substitute parts can look different from the original.
$112.49
In Stock
Depth Gauge Bar 24238
#4

Cultivator frame diagram

Depth gauge bar

Part #24238

Replaced by #24238BL1

?
Manufacturer substitution
This part replaces 24238. Substitute parts can look different from the original.
$19.99
In Stock
Lawn Tractor Cultivator Attachment Tang 43022
#3

Cultivator frame diagram

Lawn tractor cultivator attachment tang

Part #43022

The manufacturer no longer makes this part, and there's no substitute part
