ICP
Furnace

Model # NUG3075AFA1 Official ICP furnace

Here are the diagrams and repair parts for Official ICP NUG3075AFA1 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

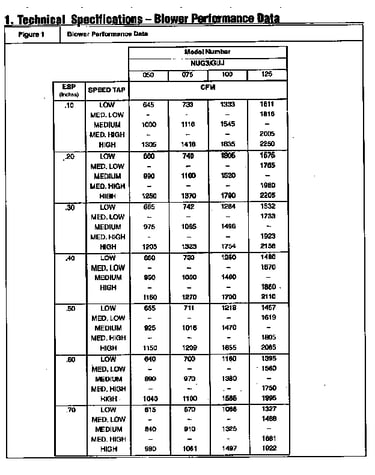

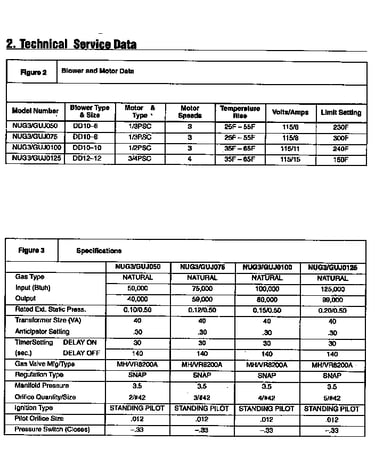

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Trans 40 Va 1008782
#8

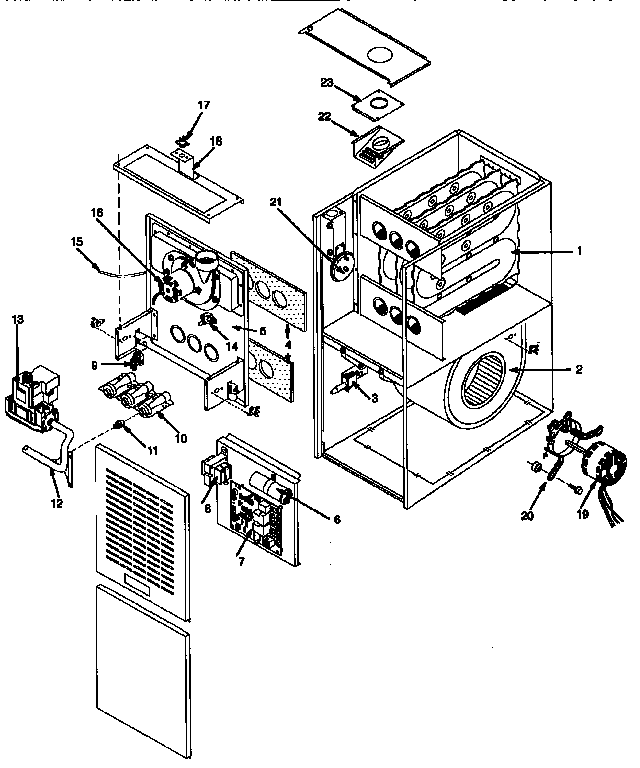

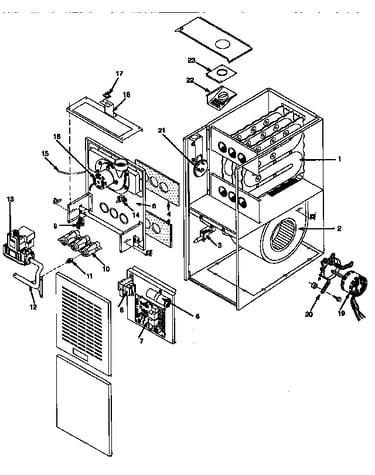

Functional replacement diagram

Trans 40 va

Part #1008782

The manufacturer no longer makes this part, and there's no substitute part

Thermocouple 1010272

#NI

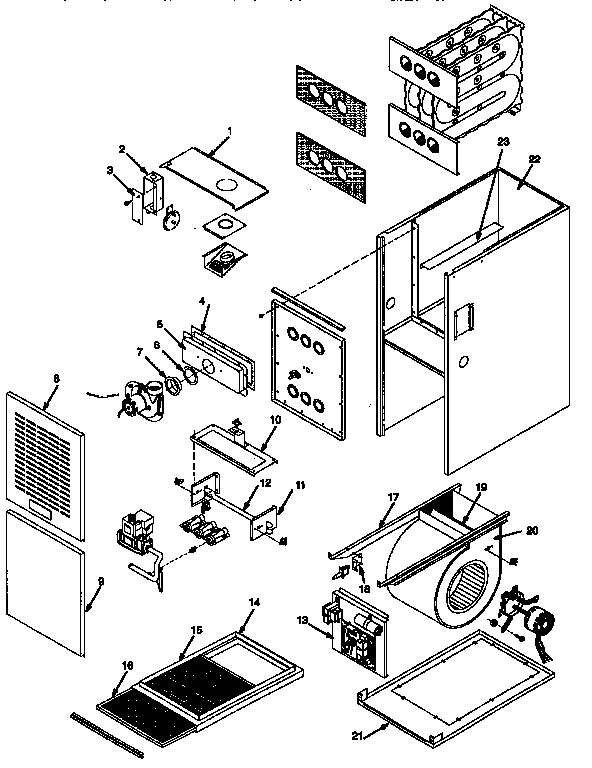

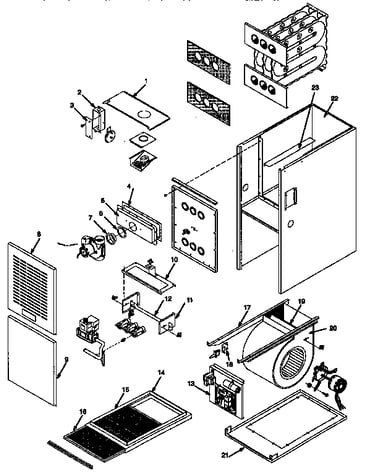

All parts diagram

Thermocouple

Part #1010272

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 1010272. Substitute parts can look different from the original.
This item is not returnable
$14.52 |
12% OFF Phone Price : $16.52
Back Order
Cap Rnrd 1094239
#6

Functional replacement diagram

Cap rnrd

Part #1094239

Replaced by #12907

?
Manufacturer substitution
This part replaces 1094239. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
N Gas Valve 1004612
#13

Functional replacement diagram

N gas valve

Part #1004612

Replaced by #36C03-333

?
Manufacturer substitution
This part replaces 1004612. Substitute parts can look different from the original.
$277.97 |
$12.00 OFF Phone Price : $289.97
In Stock
Lp Gas Valve 1004613

#NI

All parts diagram

Lp gas valve

Part #1004613

Replaced by #36C03-333

?
Manufacturer substitution
This part replaces 1004613. Substitute parts can look different from the original.
$277.97 |
$12.00 OFF Phone Price : $289.97
In Stock
Limit Switch 1005549
#17

Functional replacement diagram

Limit switch

Part #1005549

Replaced by #1013102

?
Manufacturer substitution
This part replaces 1005549. Substitute parts can look different from the original.
$15.62 |
11% OFF Phone Price : $17.62
In Stock
Furnace Burner (replaces 1012383, 1149463) 1008724
#10

Functional replacement diagram

Furnace burner (replaces 1012383, 1149463)

Part #1008724

$84.88 |
7% OFF Phone Price : $90.88
In Stock
Switch 1005548
#14A

Functional replacement diagram

Switch

Part #1005548

Replaced by #1013101

?
Manufacturer substitution
This part replaces 1005548. Substitute parts can look different from the original.
$19.09
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#20

Functional replacement diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Rail Galv Bl 57059

#NI

All parts diagram

Rail galv bl

Part #57059

$952.55
In Stock
