Model # JSP69BVBB Official GE electric range

Here are the diagrams and repair parts for Official GE JSP69BVBB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

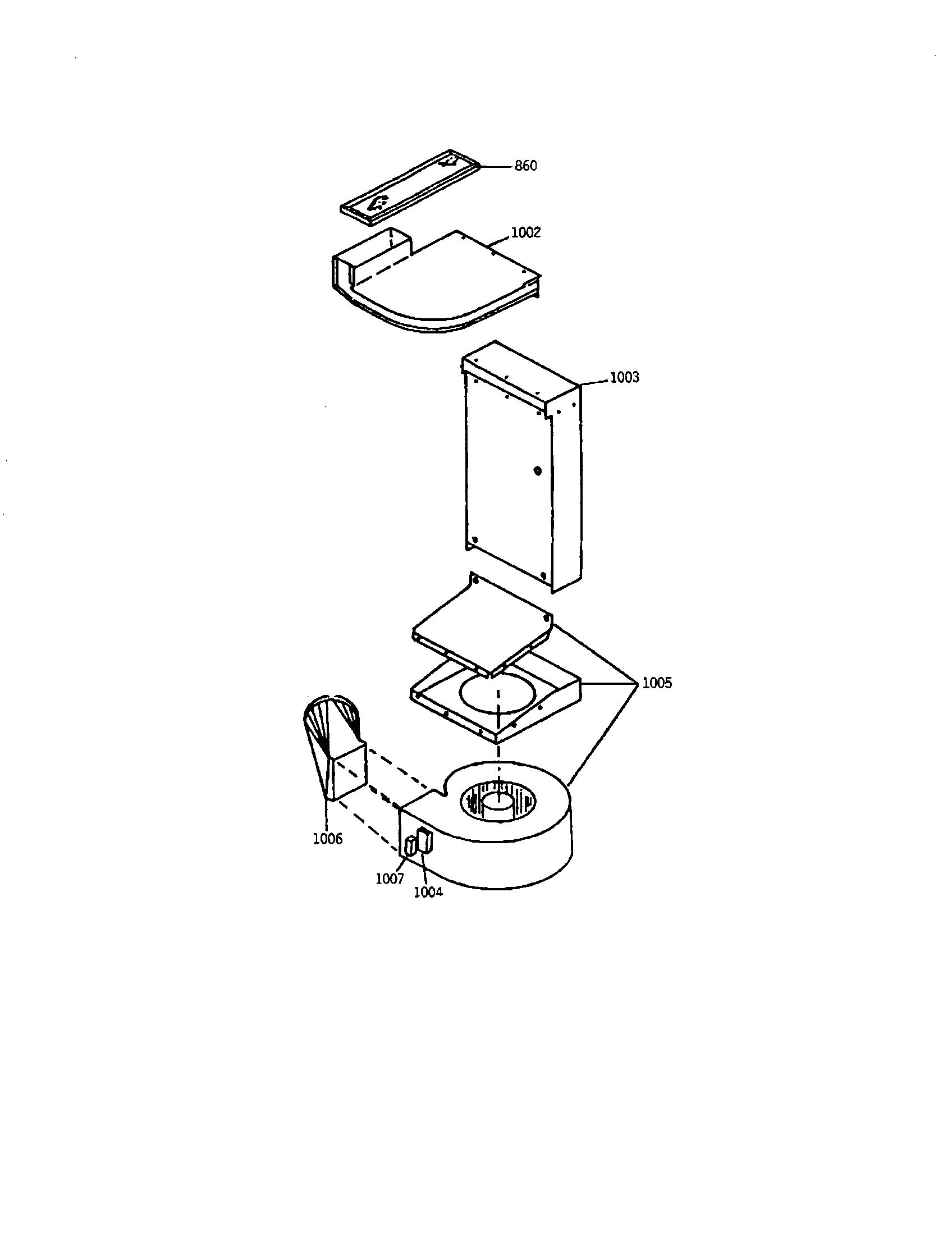

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Range Oven Light Bulb WX12X1510
#1024

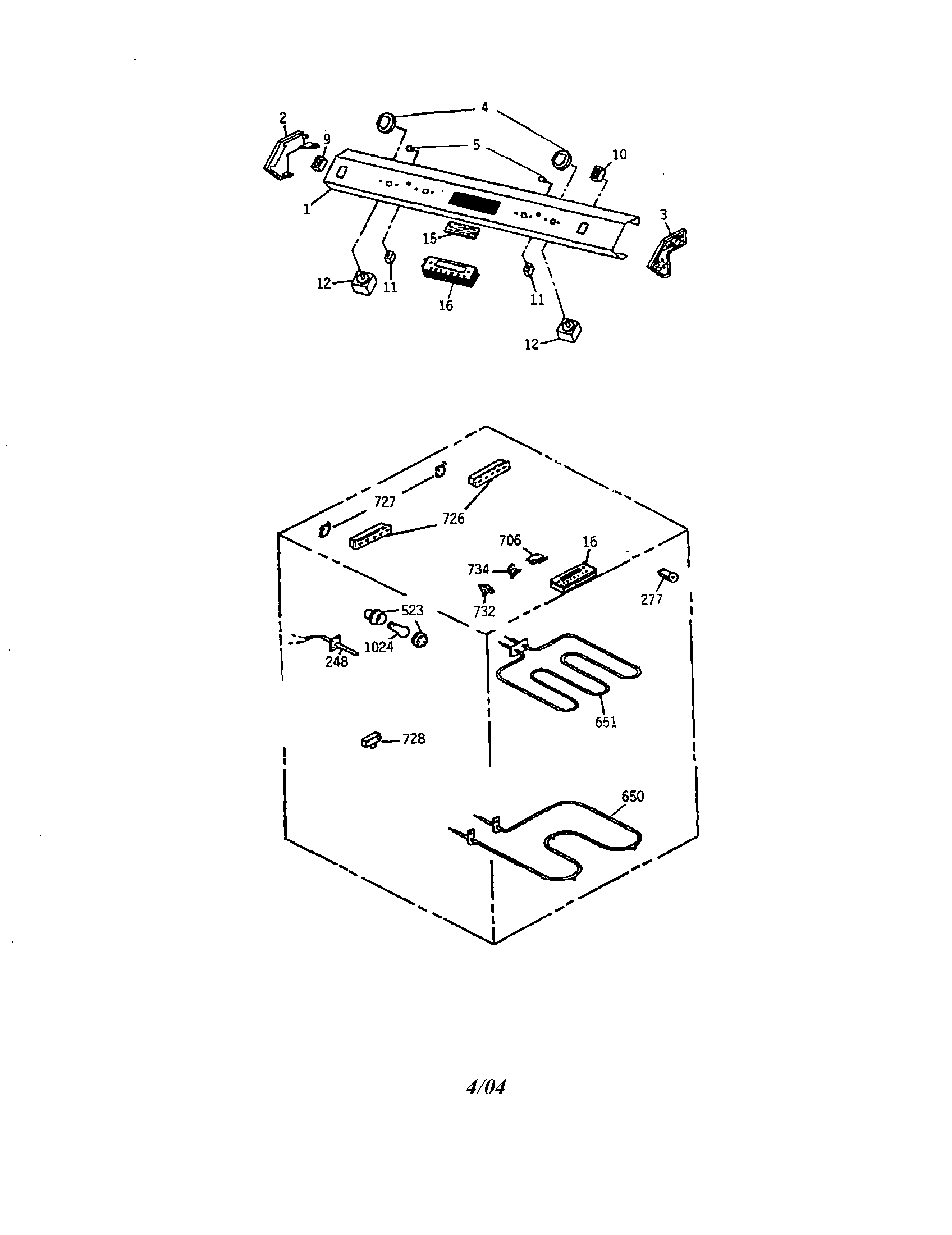

Control panel diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Grid Broiler WB49X5573
#530

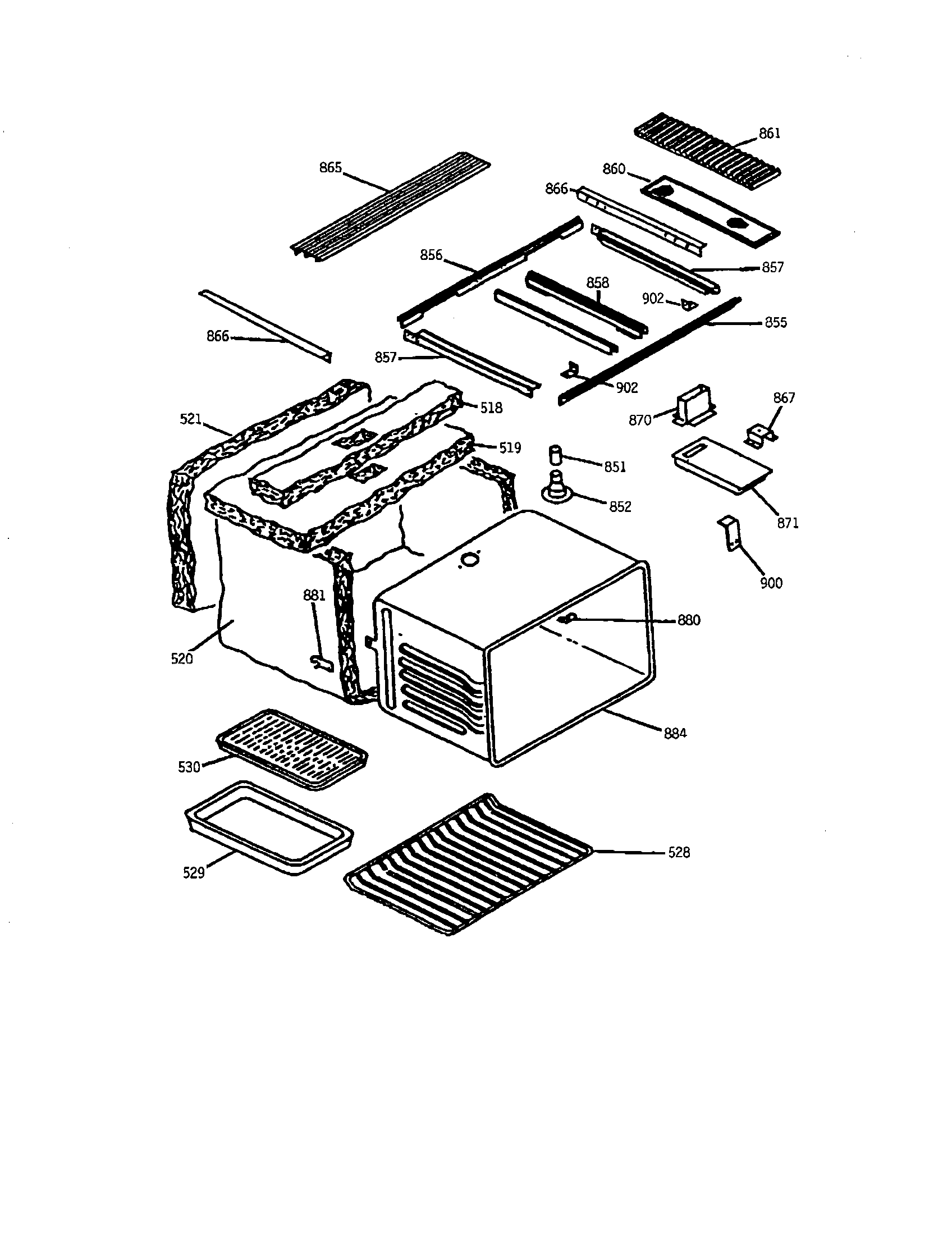

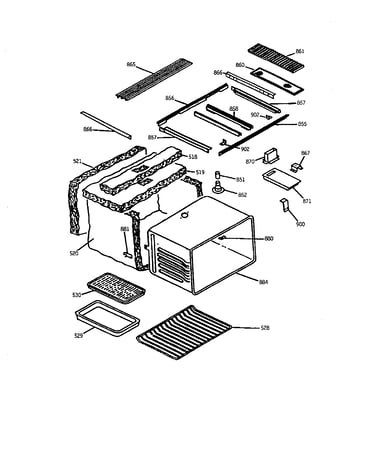

Main top / oven diagram

Grid broiler

Part #WB49X5573

$25.99
In Stock
Range Drip Pan WB32X5103
#72

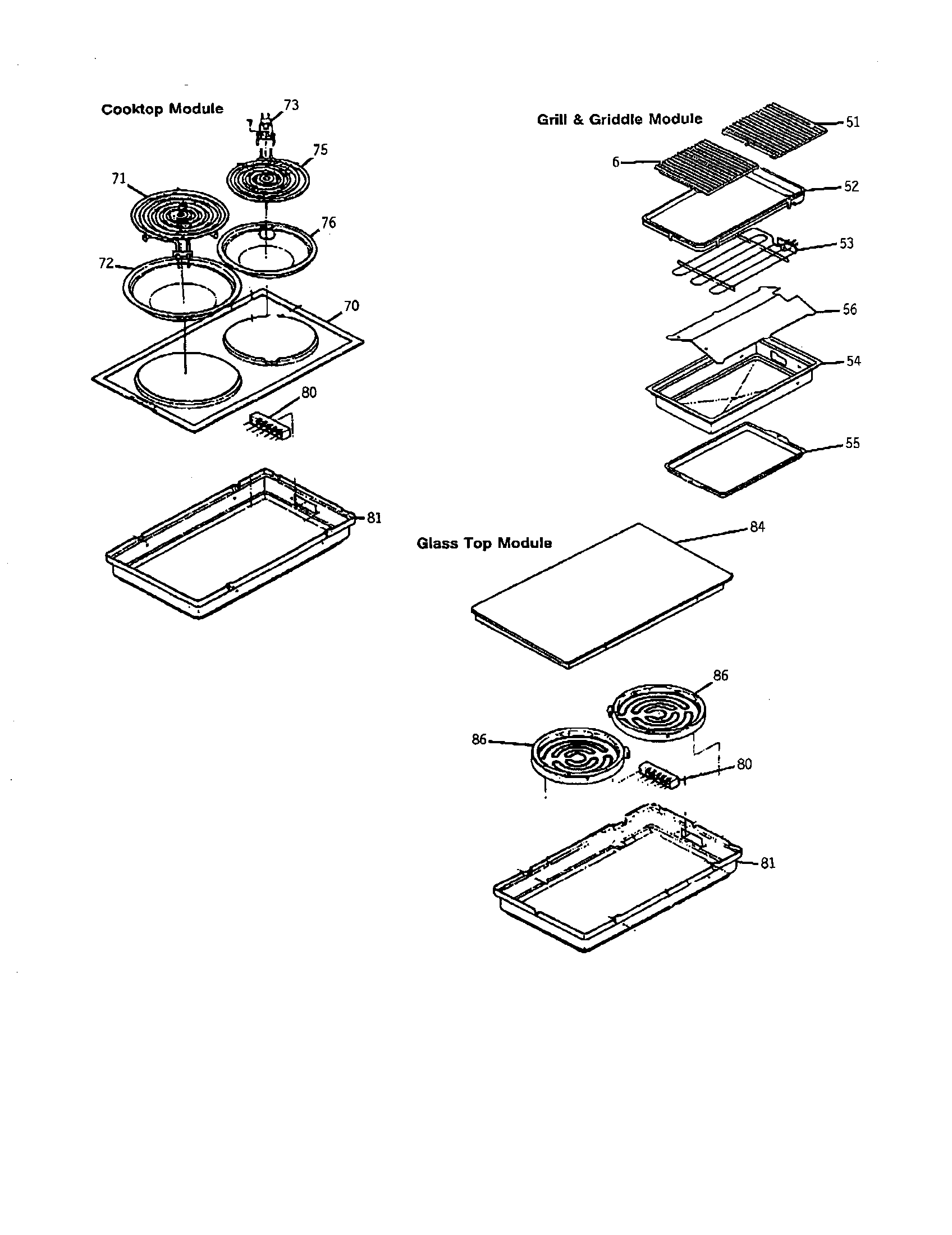

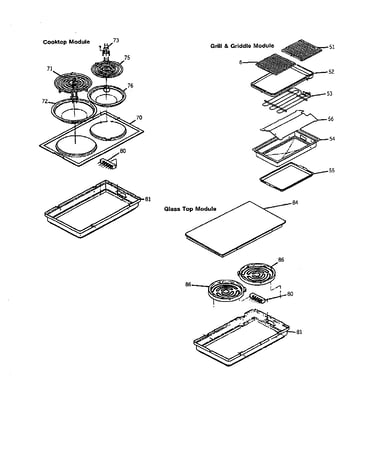

Accessories diagram

Range drip pan

Part #WB32X5103

Replaced by #PM32X143

?
Manufacturer substitution
This part replaces WB32X5103. Substitute parts can look different from the original.
$14.93 |
12% OFF Phone Price : $16.93
In Stock
End Cap WB07X7321
#397

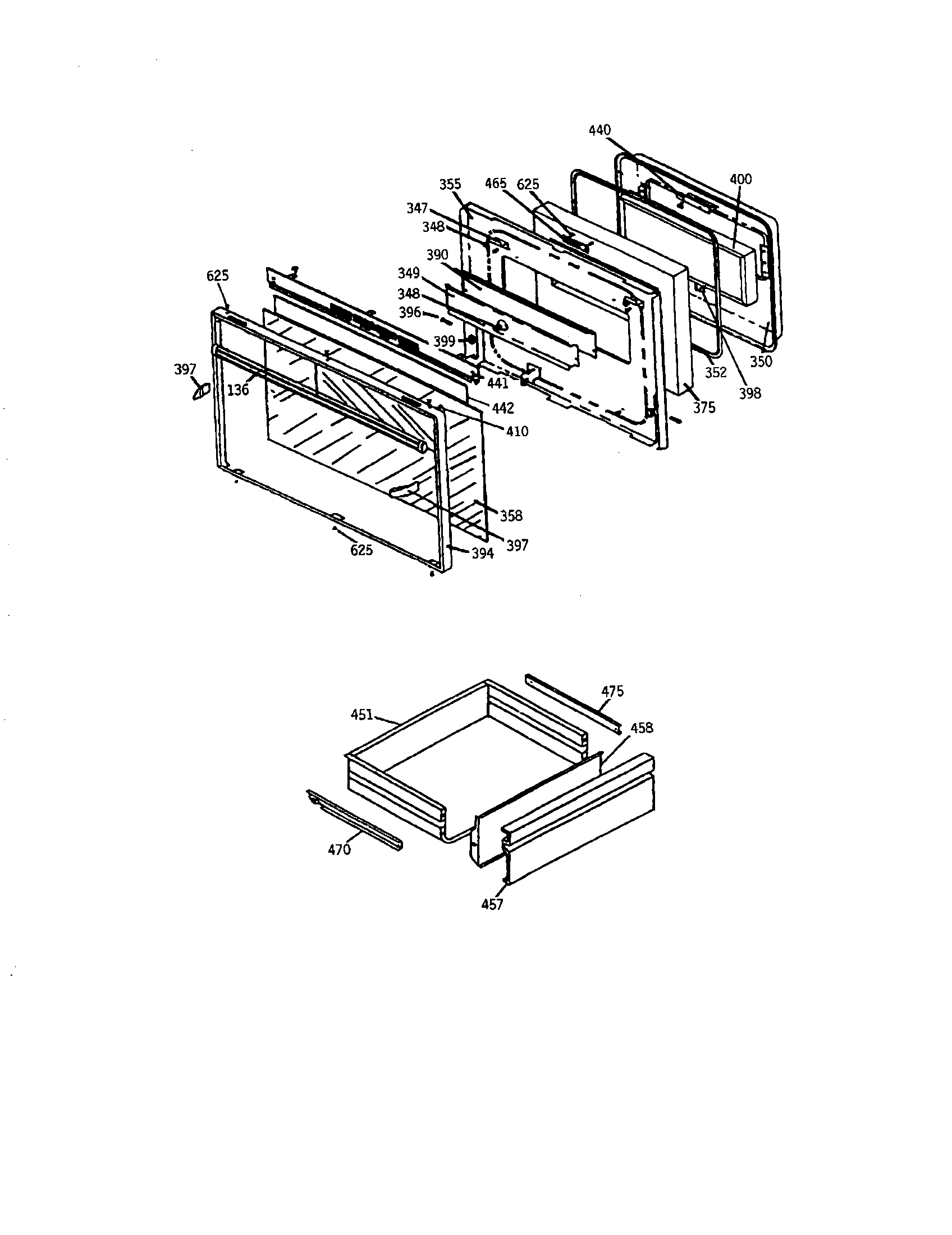

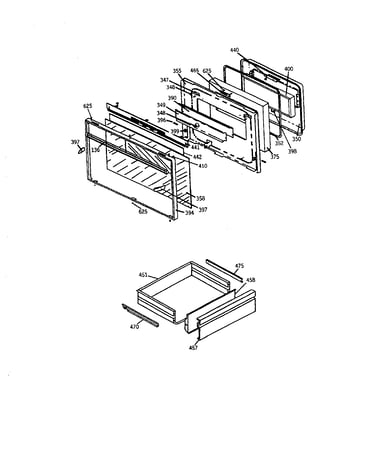

Oven door / drawer diagram

End cap

Part #WB07X7321

Replaced by #WB7X7183

?
Manufacturer substitution
This part replaces WB07X7321. Substitute parts can look different from the original.
$15.82 |
11% OFF Phone Price : $17.82
In Stock
Range Surface Element Control Switch WB21X5329
#12

Control panel diagram

Range surface element control switch

Part #WB21X5329

The manufacturer no longer makes this part, and there's no substitute part

Panel WB63X5240
#600

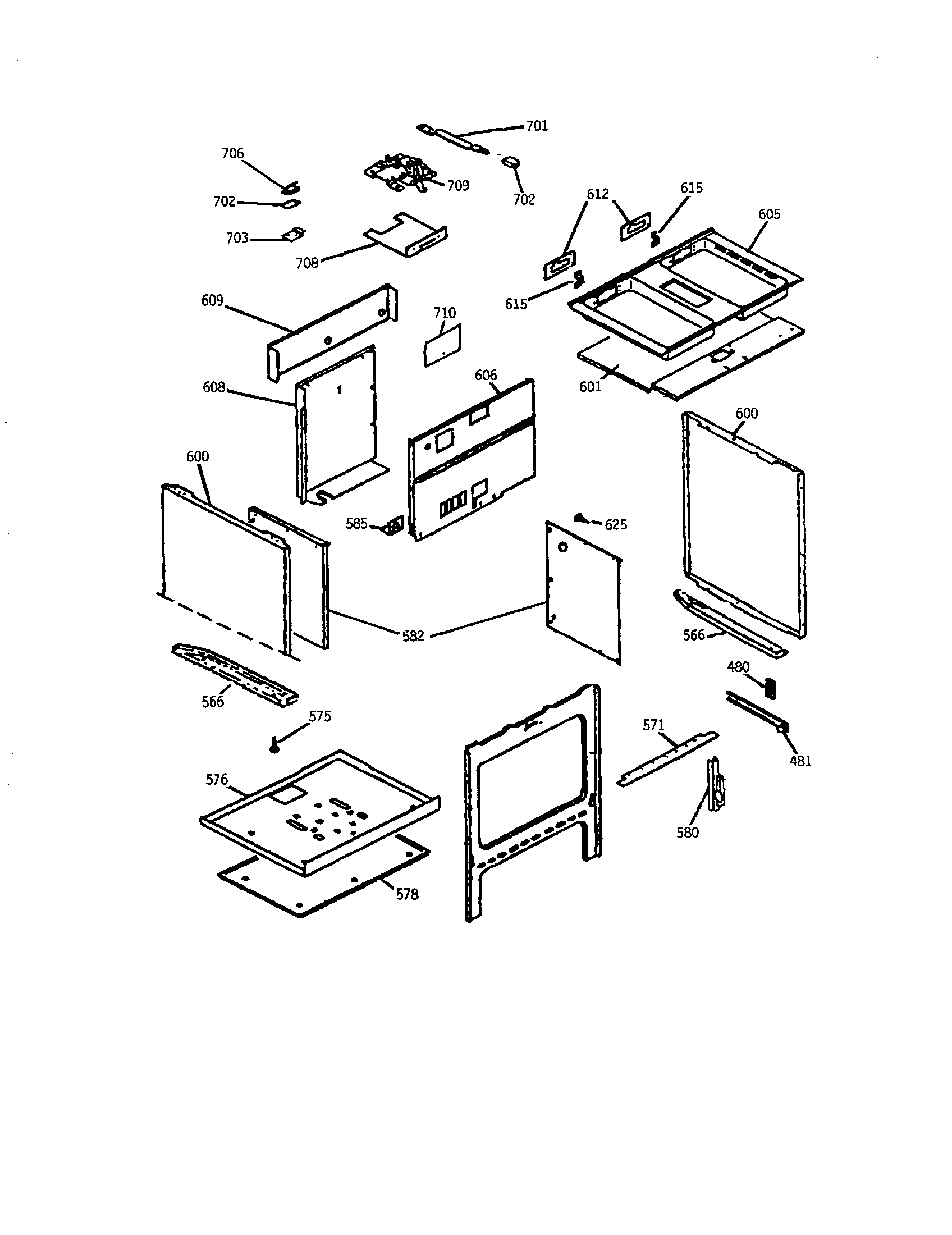

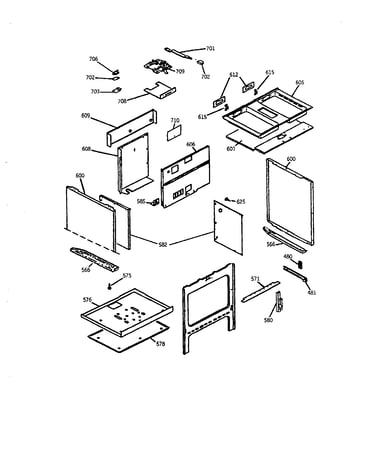

Lower oven cabinet diagram

Panel

Part #WB63X5240

The manufacturer no longer makes this part, and there's no substitute part

Control Panel WB36X5789
#1

Control panel diagram

Control panel

Part #WB36X5789

The manufacturer no longer makes this part, and there's no substitute part

Range Drip Pan WB32X5105
#76

Accessories diagram

Range drip pan

Part #WB32X5105

The manufacturer no longer makes this part, and there's no substitute part

Retainer WB02X8508
#440

Oven door / drawer diagram

Retainer

Part #WB02X8508

The manufacturer no longer makes this part, and there's no substitute part

Range Grille Pan WB49X5576
#54

Accessories diagram

Range grille pan

Part #WB49X5576

The manufacturer no longer makes this part, and there's no substitute part
