LXI
Television

Model # 52843671300 Official LXI television

Here are the diagrams and repair parts for Official LXI 52843671300 television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Ctr Knob 52-3204-0
#2

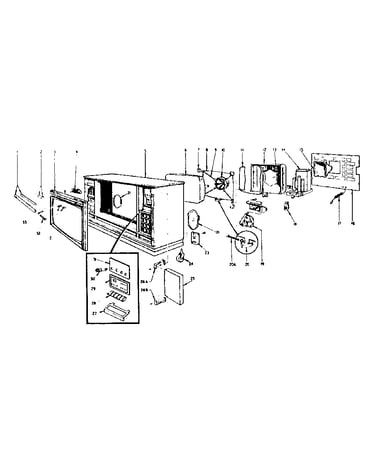

Cabinet view diagram

Ctr knob

Part #52-3204-0

The manufacturer no longer makes this part, and there's no substitute part

Cook Top Side Trim Kit Brkt Bd Conn 11-3433
#20

Cabinet view diagram

Cook top side trim kit brkt bd conn

Part #11-3433

The manufacturer no longer makes this part, and there's no substitute part

Comp. Spring 70-964-0
#30A

Cabinet view diagram

Comp. spring

Part #70-964-0

The manufacturer no longer makes this part, and there's no substitute part

Kit Knob 52-3266-9
#30

Cabinet view diagram

Kit knob

Part #52-3266-9

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Back 21-2528-9
#16

Cabinet view diagram

Cabinet back

Part #21-2528-9

The manufacturer no longer makes this part, and there's no substitute part

Cathode Ray Tube Bracket 11-3744
#7

Cabinet view diagram

Cathode ray tube bracket

Part #11-3744

The manufacturer no longer makes this part, and there's no substitute part

Line Cord 23-247-0
#17

Cabinet view diagram

Line cord

Part #23-247-0

The manufacturer no longer makes this part, and there's no substitute part

Spring 70-774-0
#13

Cabinet view diagram

Spring

Part #70-774-0

The manufacturer no longer makes this part, and there's no substitute part

"aa" Size, 1.5-volt Batteries (not A Service Part) N/P
"aa" size, 1.5-volt batteries (not a service part)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Bezel 40-282-5
#3

Cabinet view diagram

Bezel

Part #40-282-5

The manufacturer no longer makes this part, and there's no substitute part
