Kenmore
Countertop Microwave

Model # 72162344300 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72162344300 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

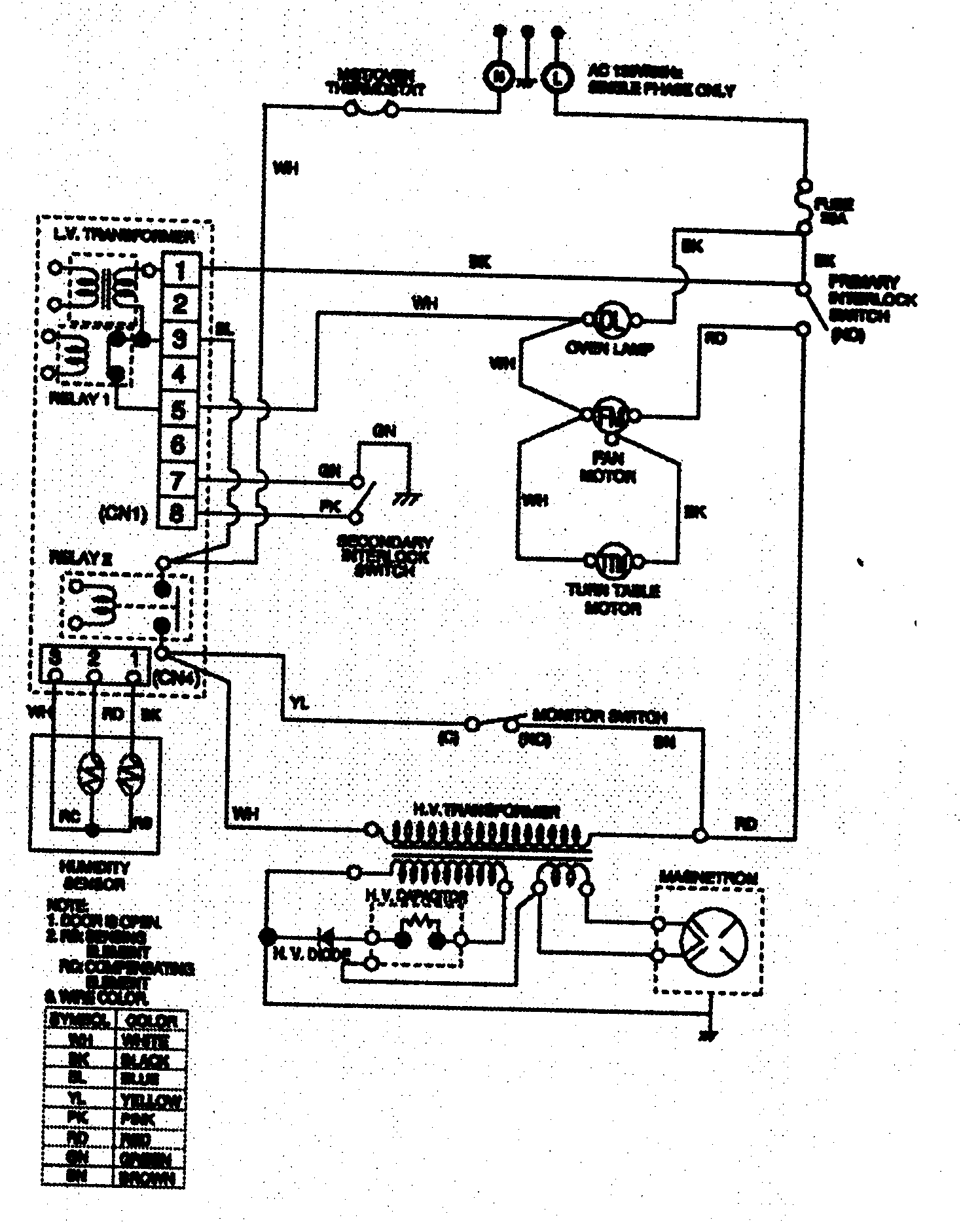

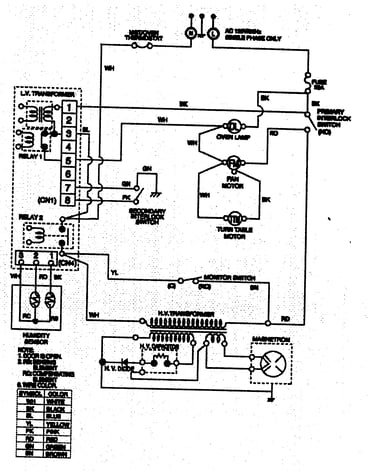

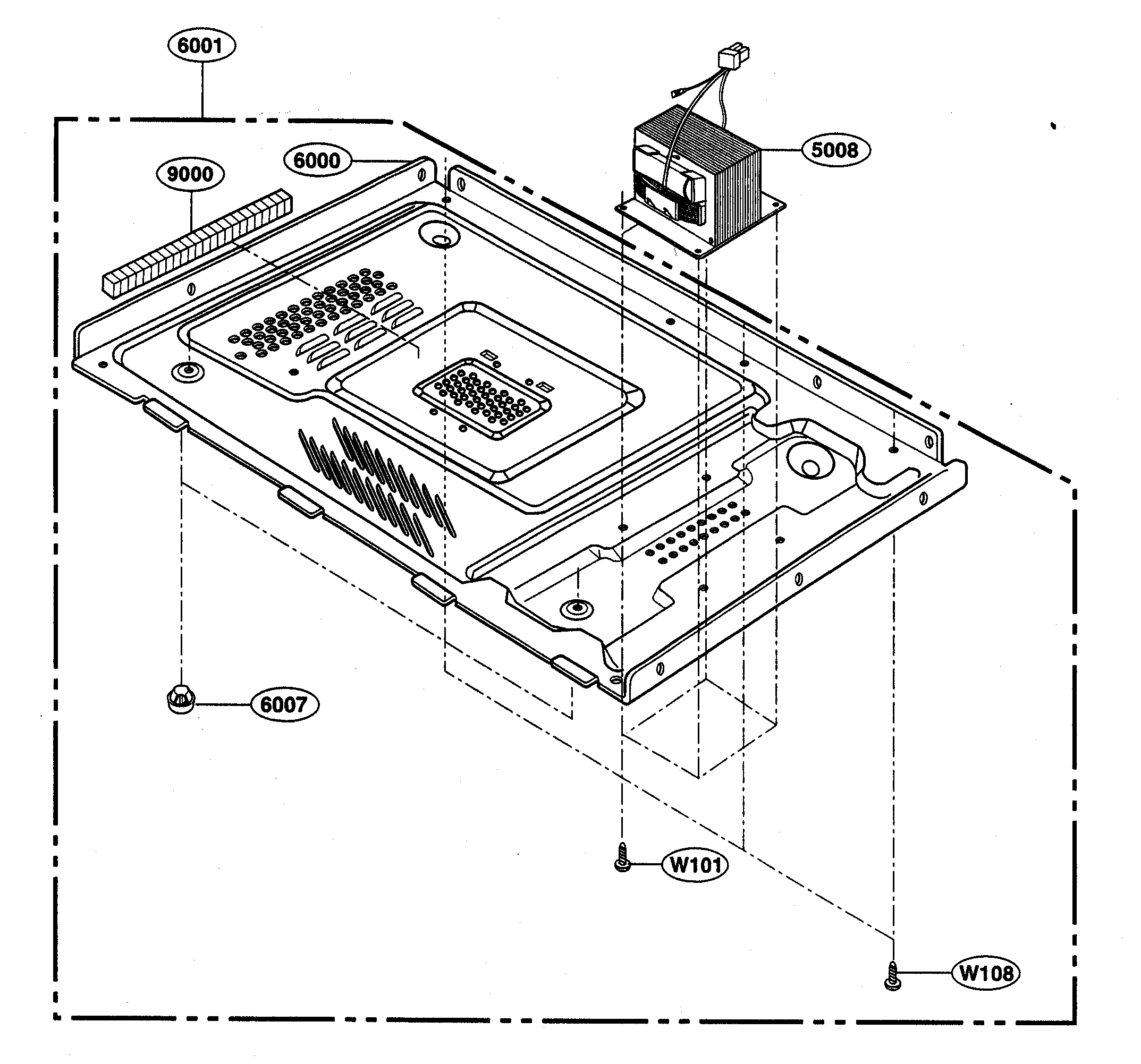

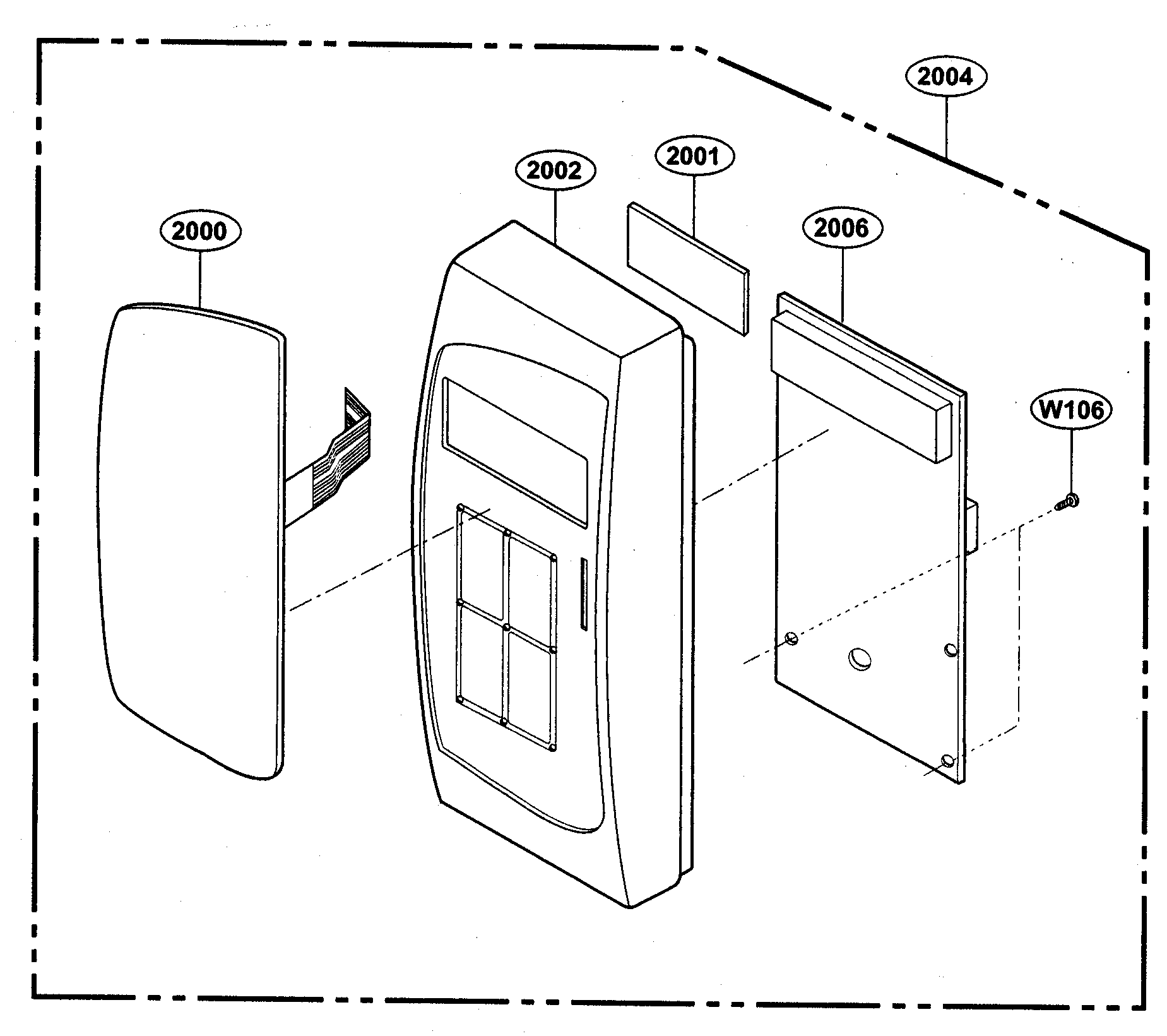

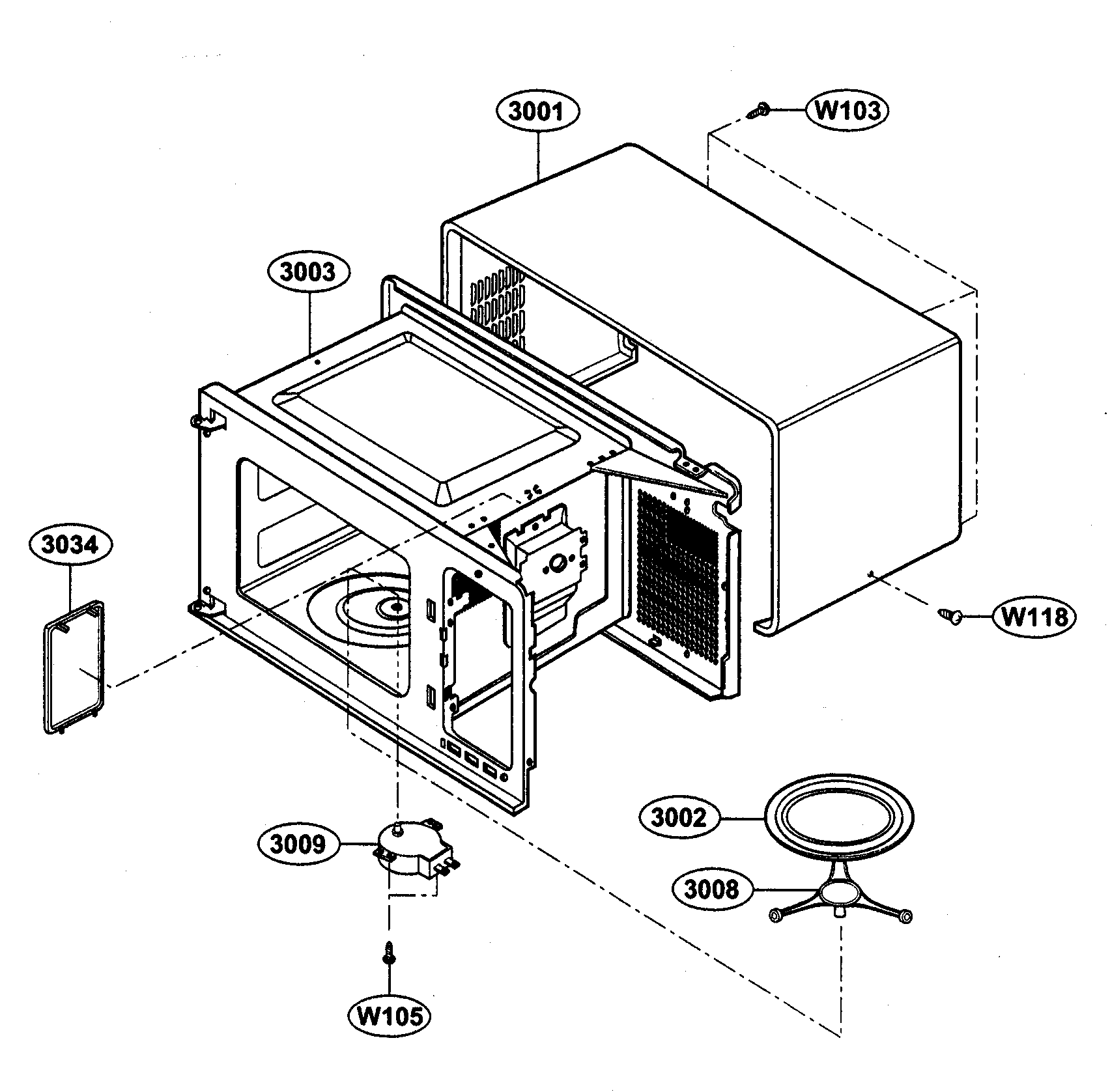

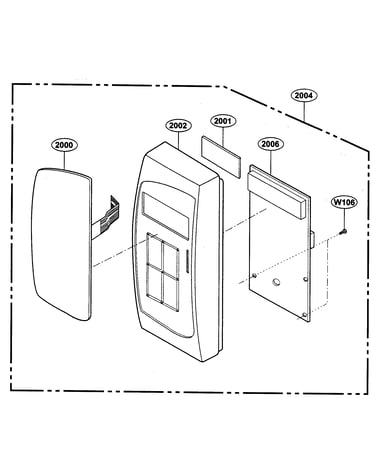

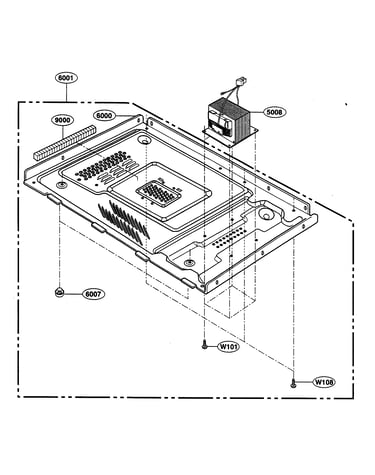

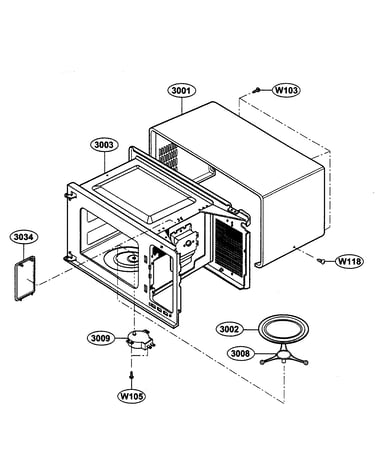

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L
#5015

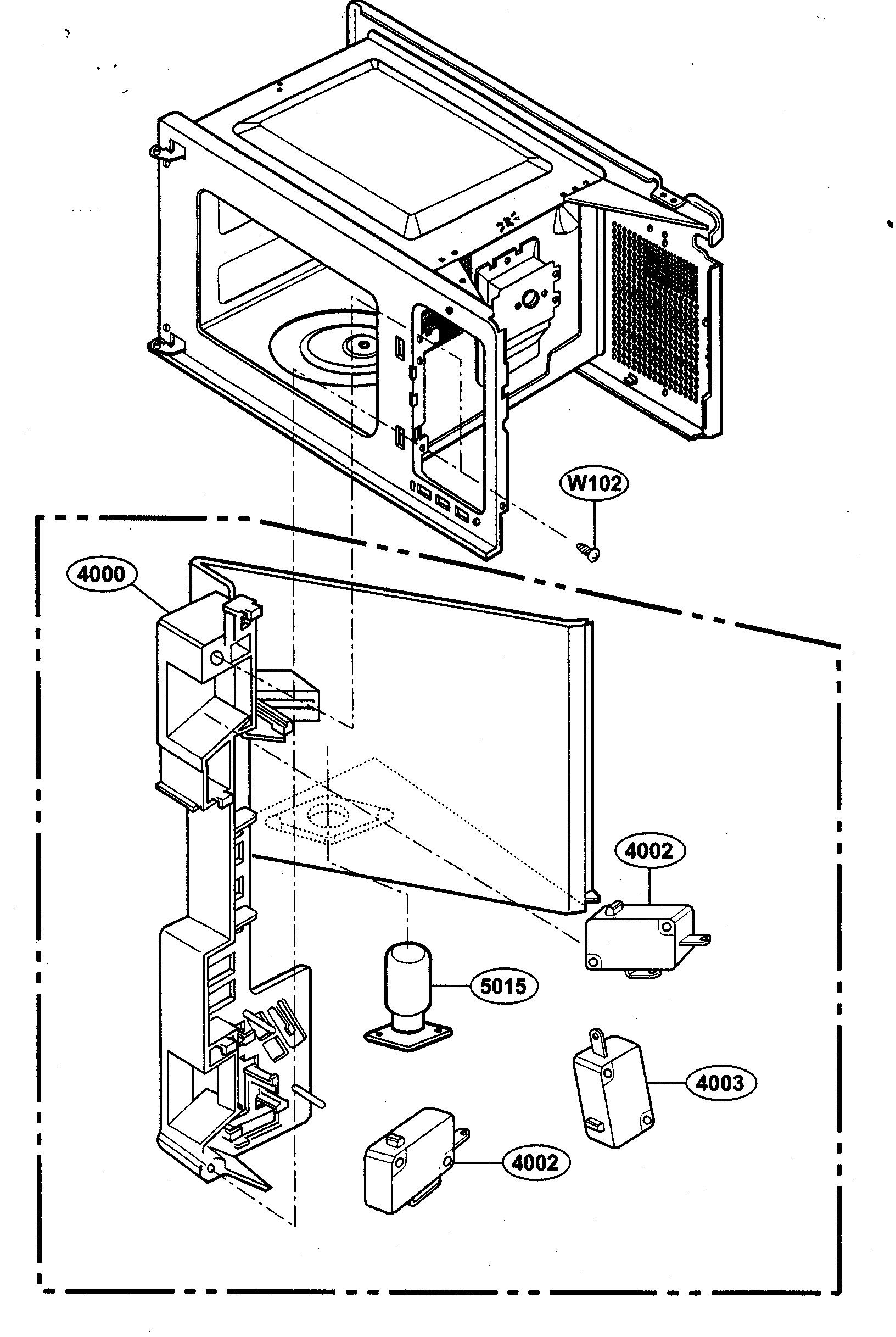

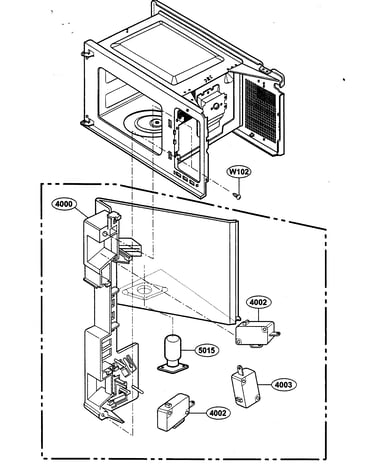

Latch board parts diagram

Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#4003

Latch board parts diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

$12.12 |
14% OFF Phone Price : $14.12
In Stock
Microwave High-voltage Capacitor Strap 4810W4C003B
#5002

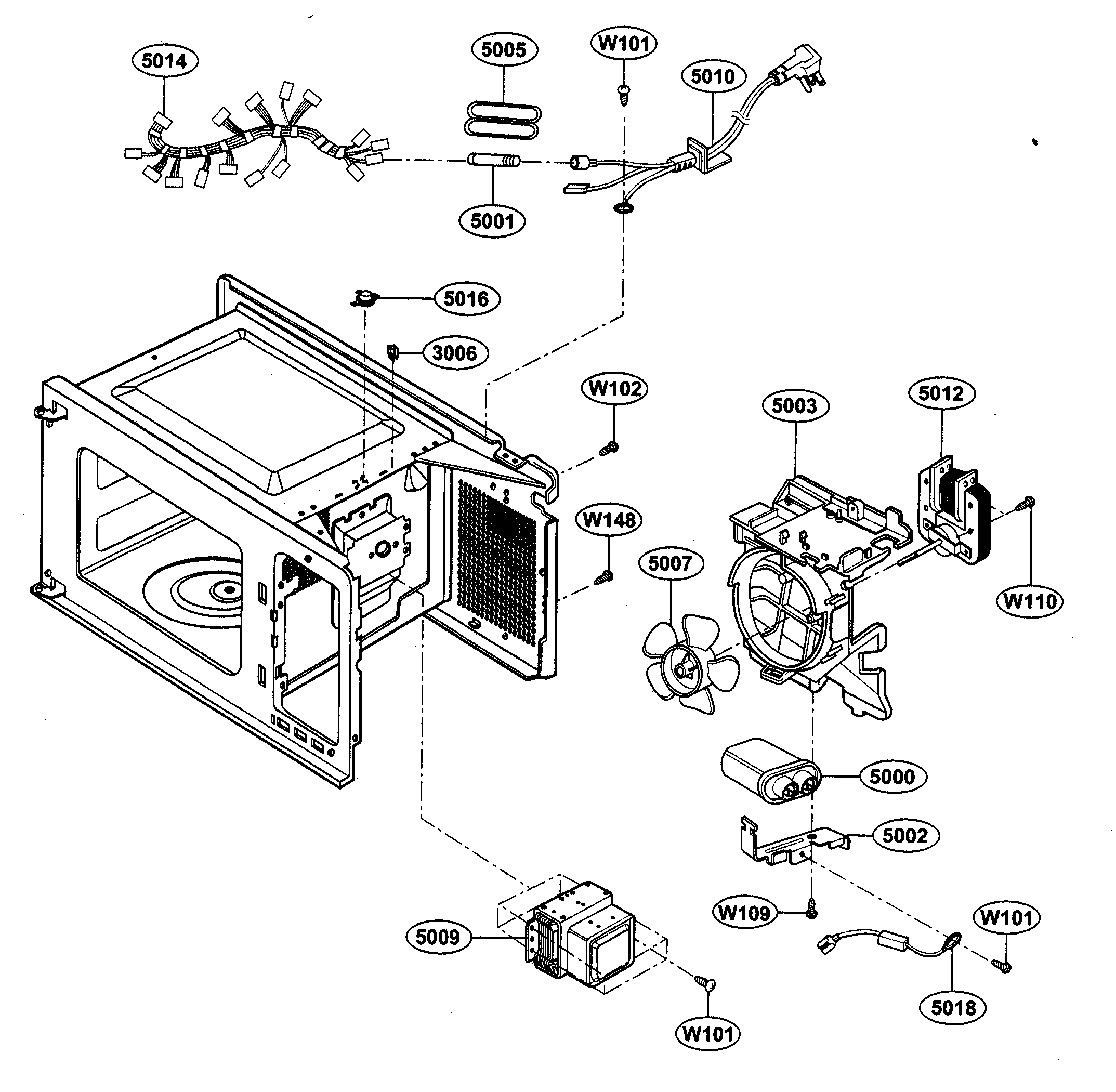

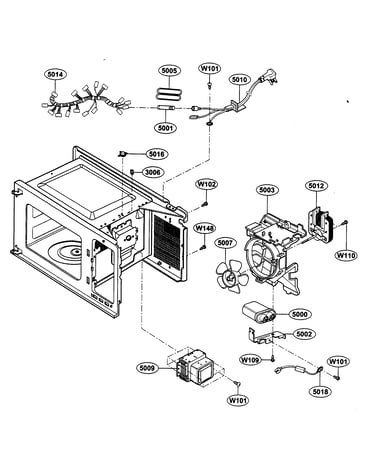

Oven interior parts diagram

Microwave high-voltage capacitor strap

Part #4810W4C003B

This item is not returnable
$8.29
In Stock
Duct 5208W1A014B
#5004

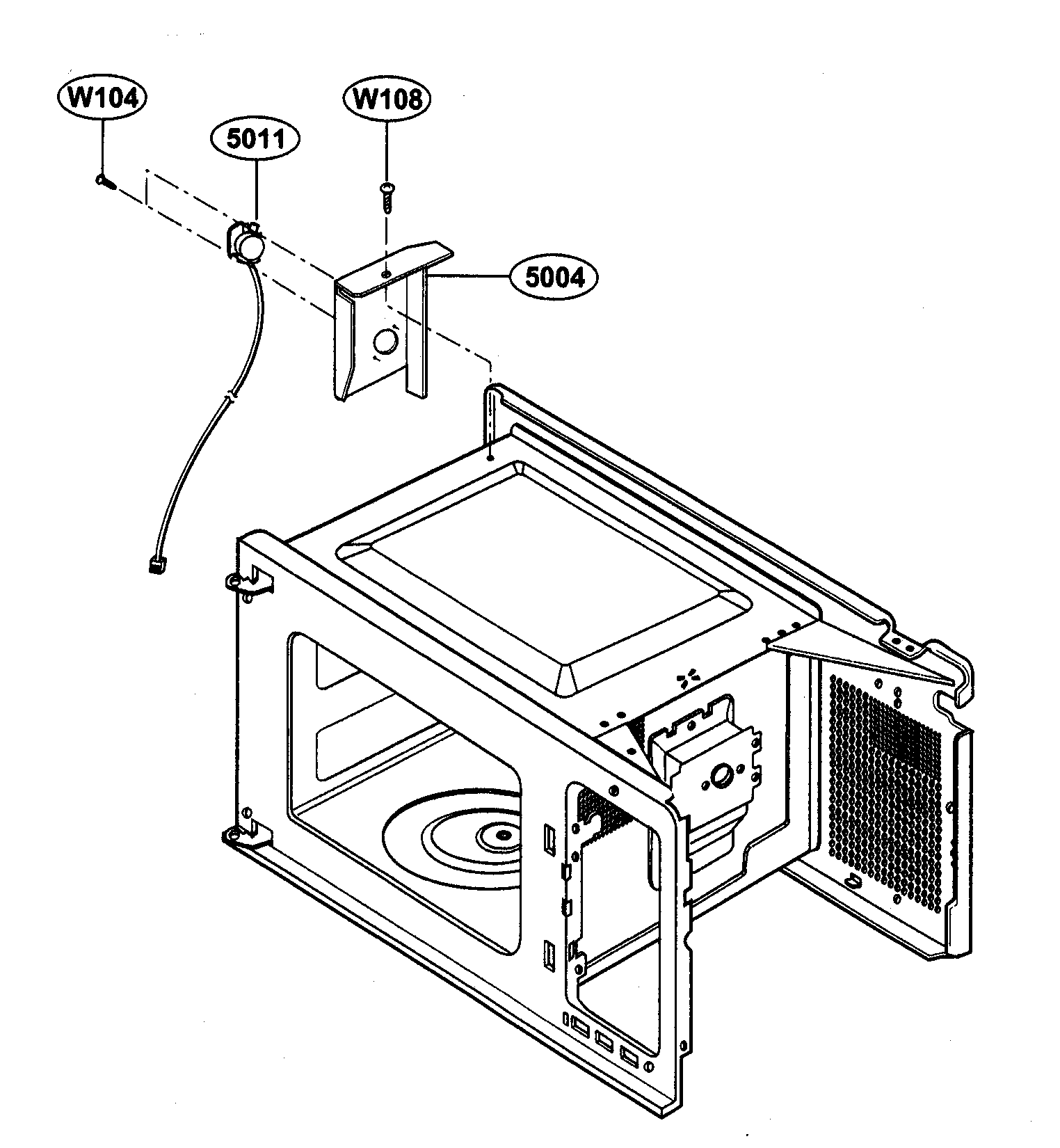

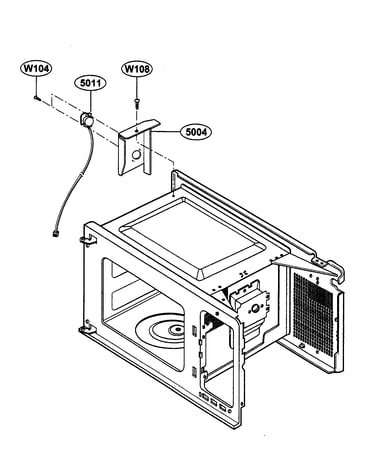

Sensor parts diagram

Duct

Part #5208W1A014B

$8.29
In Stock
Microwave Humidity Sensor 6501W1A006A
#5011

Sensor parts diagram

Microwave humidity sensor

Part #6501W1A006A

$59.29
In Stock
Lg Guide 4974W0A003B
#5003

Oven interior parts diagram

Lg guide

Part #4974W0A003B

$19.77
In Stock
Microwave Cooling Fan Blade 5900W1A007B
#5007

Oven interior parts diagram

Microwave cooling fan blade

Part #5900W1A007B

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Thermostat (replaces 6930wrt002f) 6930W1A003A
#5016

Oven interior parts diagram

Microwave thermostat (replaces 6930wrt002f)

Part #6930W1A003A

This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Harness 6877W1A187V
#5014

Oven interior parts diagram

Harness

Part #6877W1A187V

$32.29
In Stock
Spring 4970WRA001C
#1007

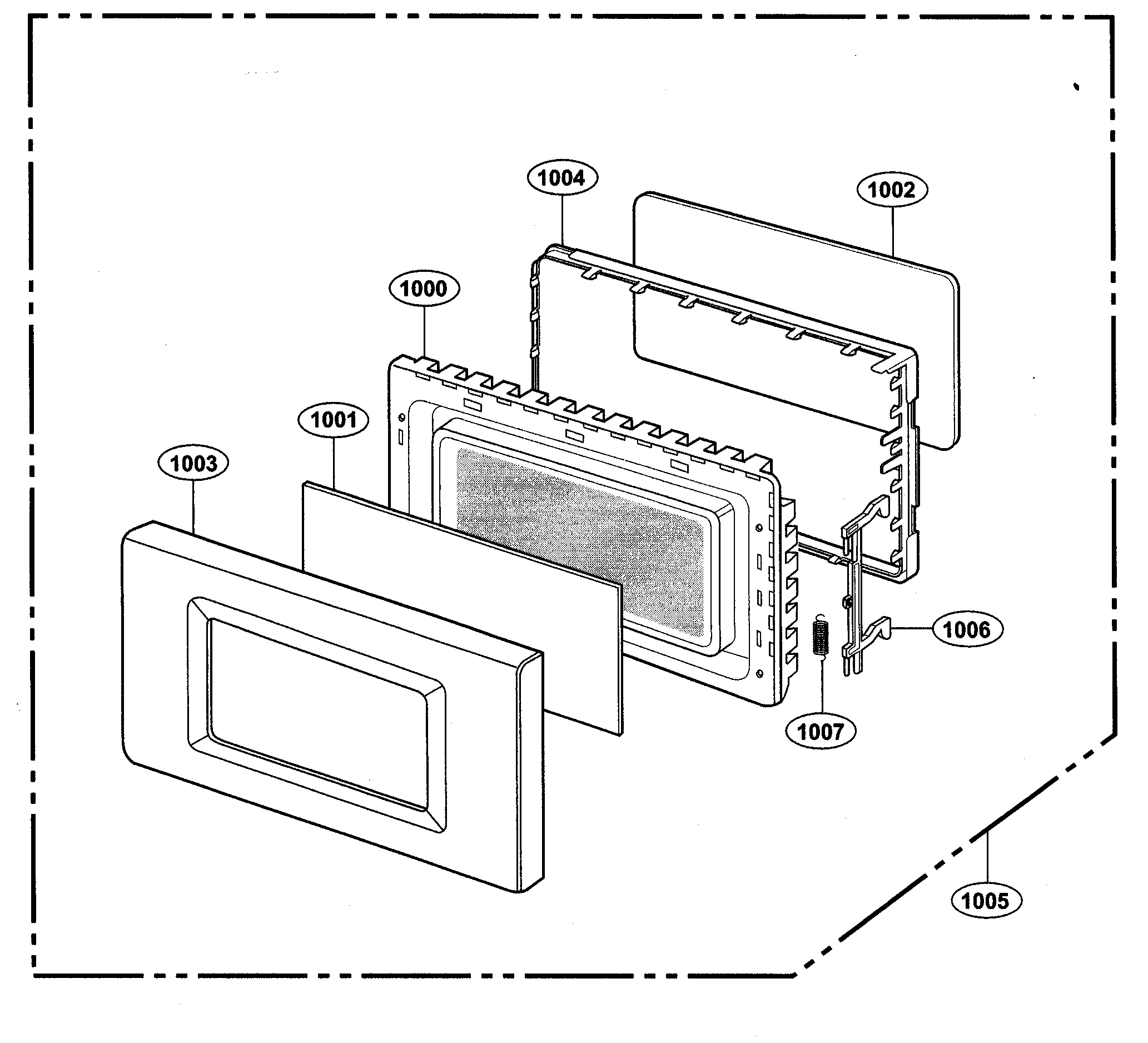

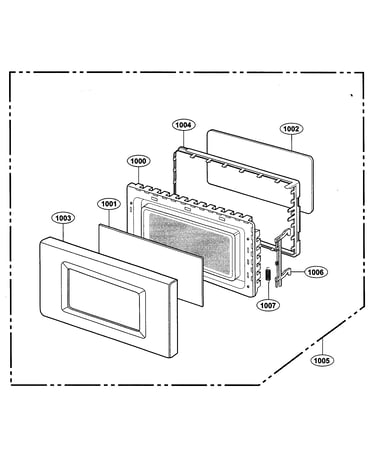

Door parts diagram

Spring

Part #4970WRA001C

This item is not returnable
$2.83
In Stock
