Panasonic
Upright Vacuum

Model # MC-V503700 Official Panasonic vacuum

Here are the diagrams and repair parts for Official Panasonic MC-V503700 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

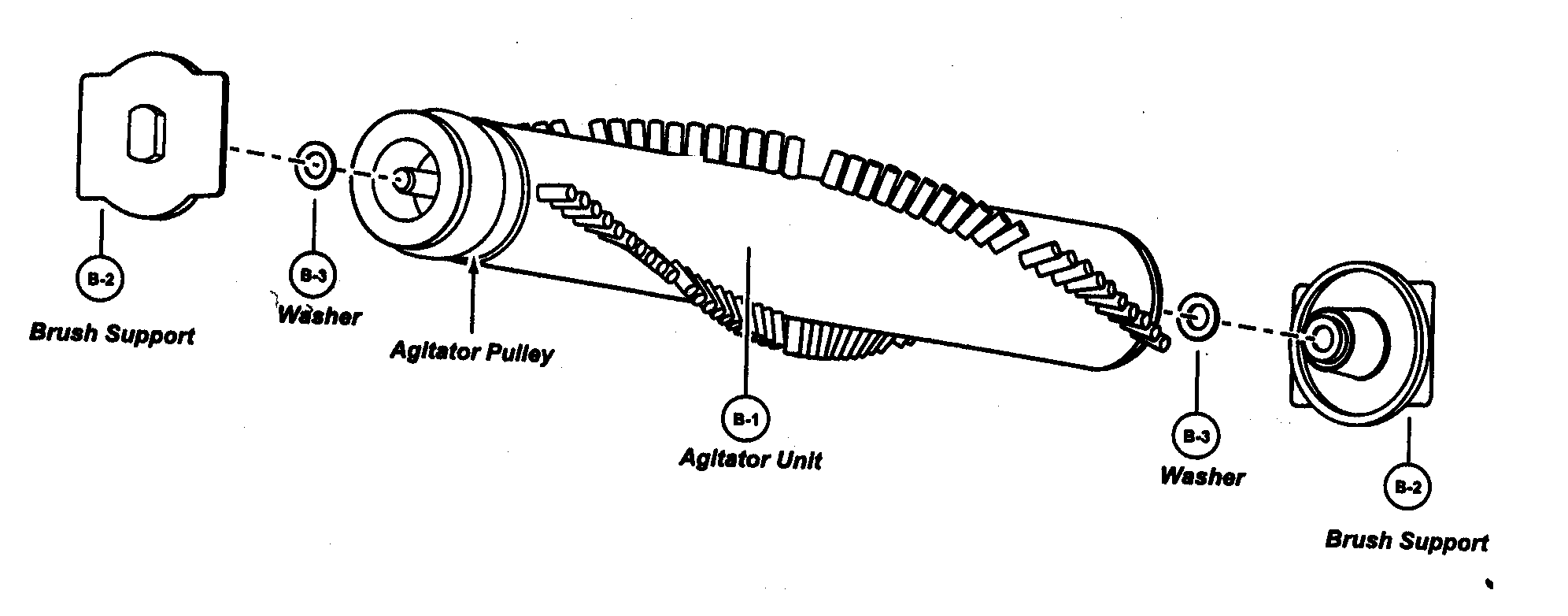

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Panasonic Cover-belt AMC43S-V00
#A-12

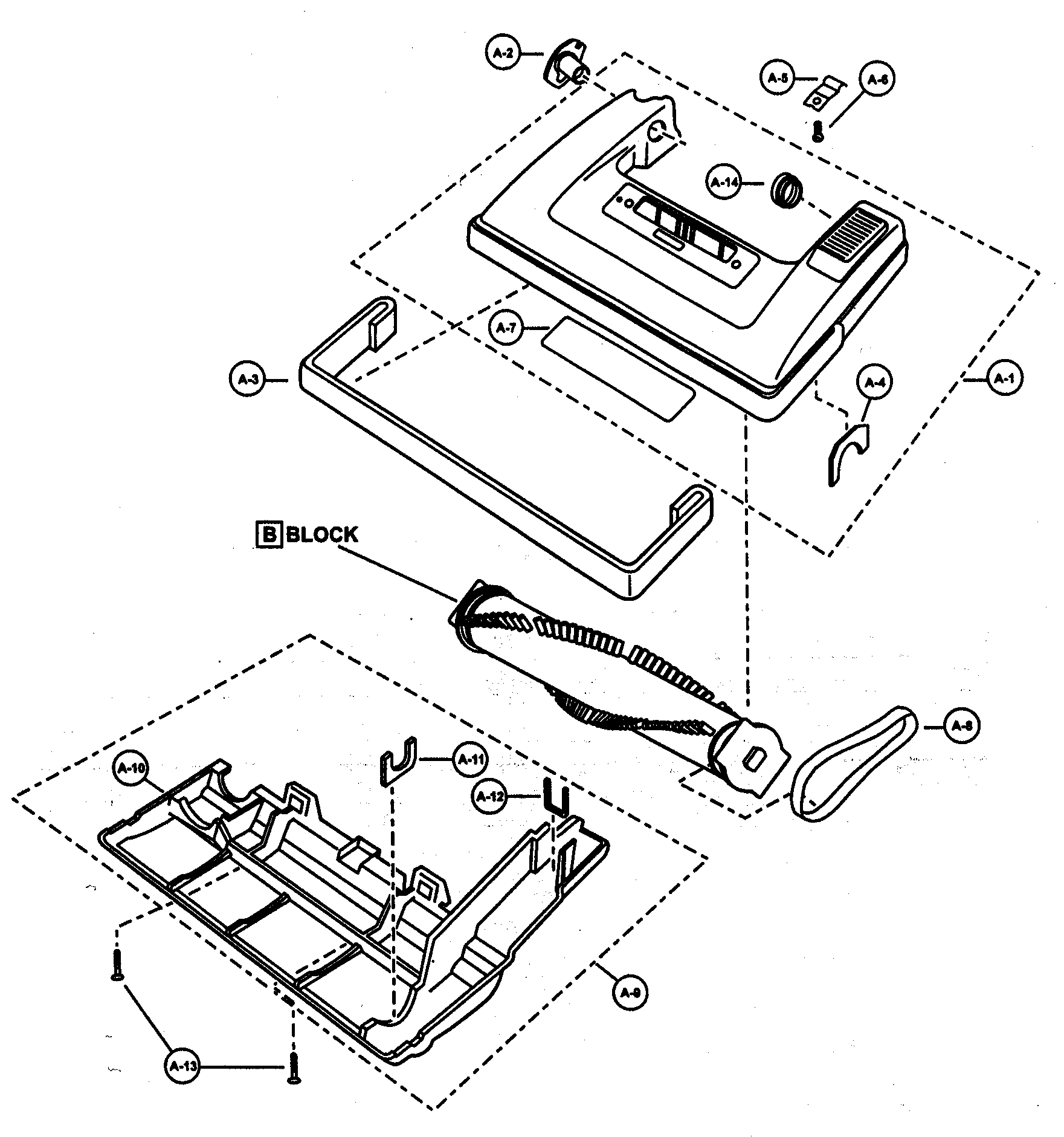

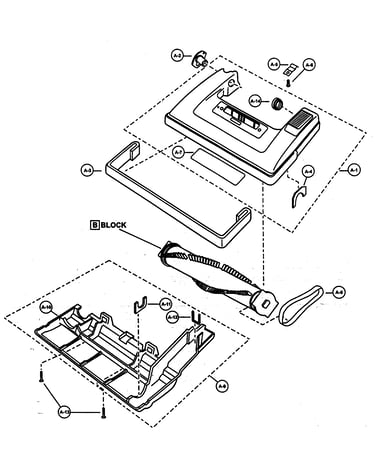

Nozzle housing diagram

Panasonic cover-belt

Part #AMC43S-V00

This item is not returnable
$5.99
In Stock
Panasonic Spring AMC57A-V00
#A-5

Nozzle housing diagram

Panasonic spring

Part #AMC57A-V00

This item is not returnable
$3.99
In Stock
Panasonic Washer AMC58B-F70
#C-36

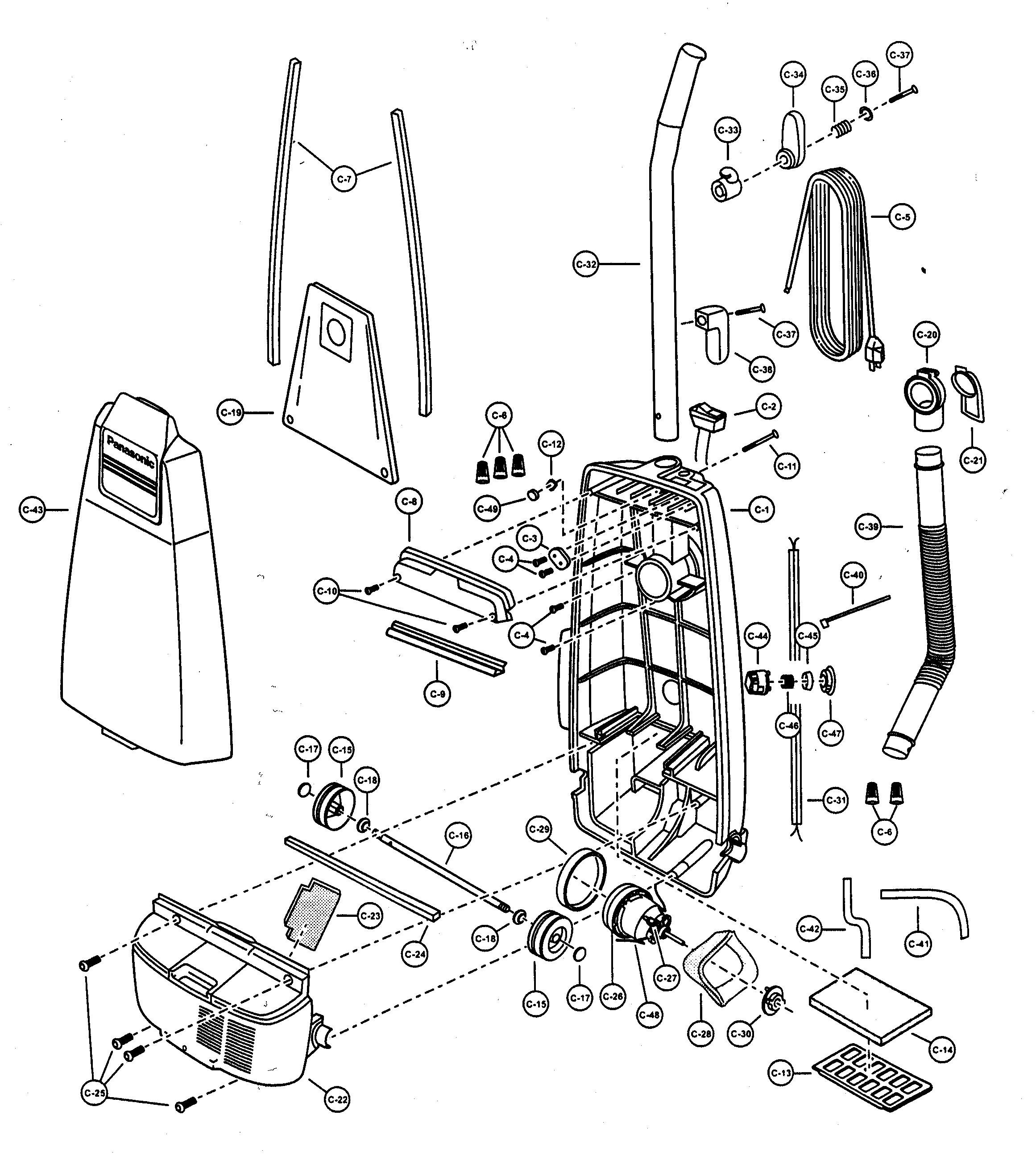

Motor housing/handle/body diagram

Panasonic washer

Part #AMC58B-F70

$14.99
In Stock
Panasonic Packing AC19FJPZV06
#C-24

Motor housing/handle/body diagram

Panasonic packing

Part #AC19FJPZV06

This item is not returnable
$5.99
In Stock
Panasonic Wire Cord AMC37G-V020U
#C-31

Motor housing/handle/body diagram

Panasonic wire cord

Part #AMC37G-V020U

$15.99
In Stock
Panasonic Packing AMC75A-V00
#A-11

Nozzle housing diagram

Panasonic packing

Part #AMC75A-V00

This item is not returnable
$3.49
In Stock
Panasonic Packing AC73KV0ZV06
#C-9

Motor housing/handle/body diagram

Panasonic packing

Part #AC73KV0ZV06

$26.49
In Stock
Panasonic Packing AC40AYUZV00
#C-42

Motor housing/handle/body diagram

Panasonic packing

Part #AC40AYUZV00

This item is not returnable
$4.99
In Stock
Panasonic Screw AC68AZAZ00
#A-13

Nozzle housing diagram

Panasonic screw

Part #AC68AZAZ00

$37.99
In Stock
Panasonic Cover AMC02H-F70E
#C-21

Motor housing/handle/body diagram

Panasonic cover

Part #AMC02H-F70E

This item is not returnable
$6.99
In Stock
