Model # AEB060ESA3 Official ICP electric heat accessory

Here are the diagrams and repair parts for Official ICP AEB060ESA3 electric heat accessory, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Spst Relay 1053004
#14

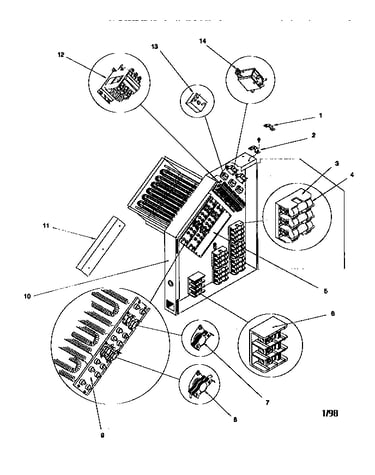

Unit parts diagram

Spst relay

Part #1053004

The manufacturer no longer makes this part, and there's no substitute part

Contactor 1071498
#12

Unit parts diagram

Contactor

Part #1071498

Replaced by #90-170

?
Manufacturer substitution
This part replaces 1071498. Substitute parts can look different from the original.
$35.09 |
15% OFF Phone Price : $41.09
In Stock
Instl-manl 1071843

#NI

All parts diagram

Instl-manl

Part #1071843

The manufacturer no longer makes this part, and there's no substitute part

Relay Time D 1071526
#13

Unit parts diagram

Relay time d

Part #1071526

The manufacturer no longer makes this part, and there's no substitute part

Inlet Grille 1071482
#1

Unit parts diagram

Inlet grille

Part #1071482

The manufacturer no longer makes this part, and there's no substitute part

Fuse Jks 1071674
#4

Unit parts diagram

Fuse jks

Part #1071674

The manufacturer no longer makes this part, and there's no substitute part

Control Tod 1071527
#7

Unit parts diagram

Control tod

Part #1071527

The manufacturer no longer makes this part, and there's no substitute part

Block Term 1071524
#6

Unit parts diagram

Block term

Part #1071524

The manufacturer no longer makes this part, and there's no substitute part

Control Tod 1071692
#8

Unit parts diagram

Control tod

Part #1071692

The manufacturer no longer makes this part, and there's no substitute part

Box Assembly Insulated 1071740
#11

Unit parts diagram

Box assembly insulated

Part #1071740

The manufacturer no longer makes this part, and there's no substitute part
