Dyson
Upright Vacuum

Model # DC14 Official Dyson vacuum

Here are the diagrams and repair parts for Official Dyson DC14 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

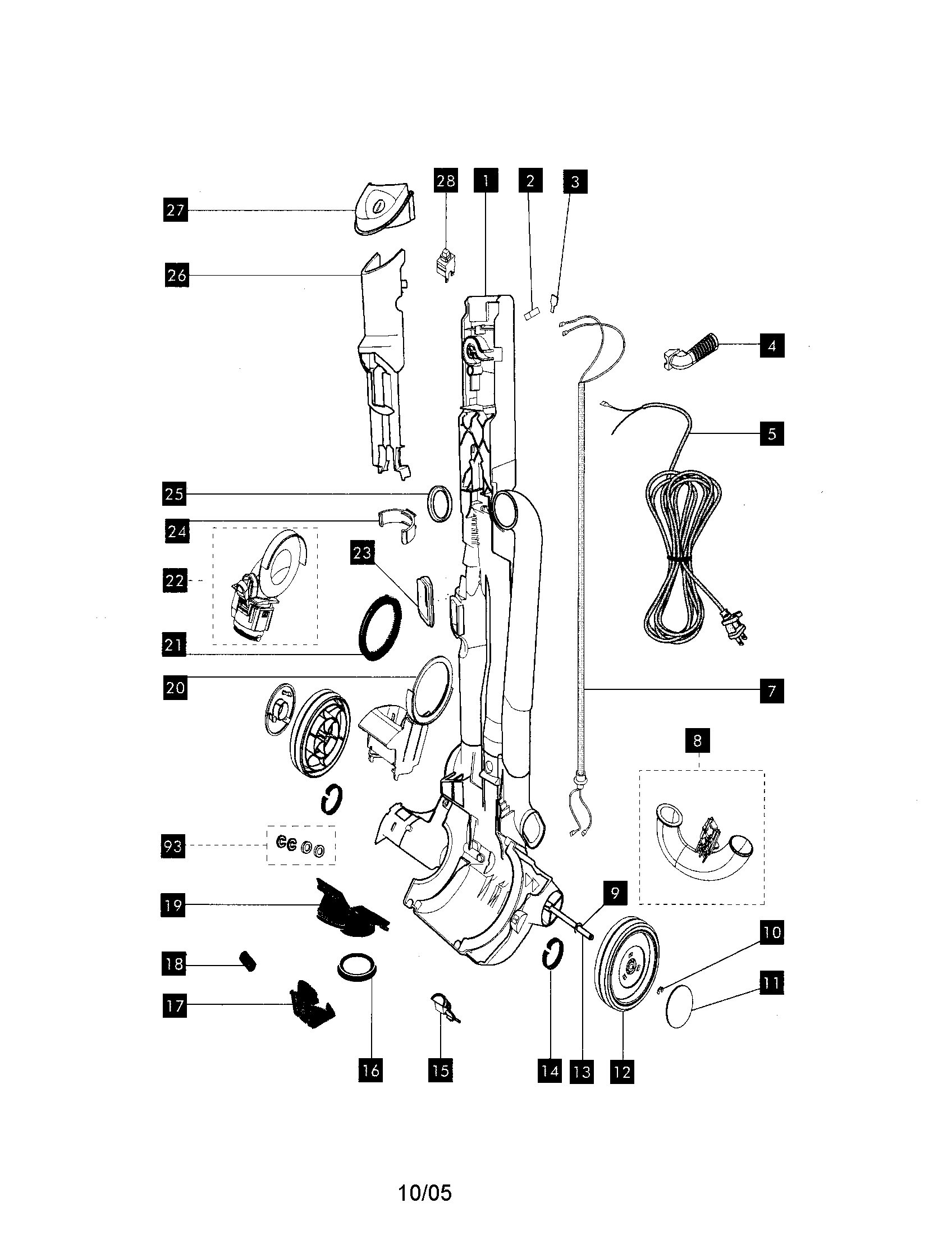

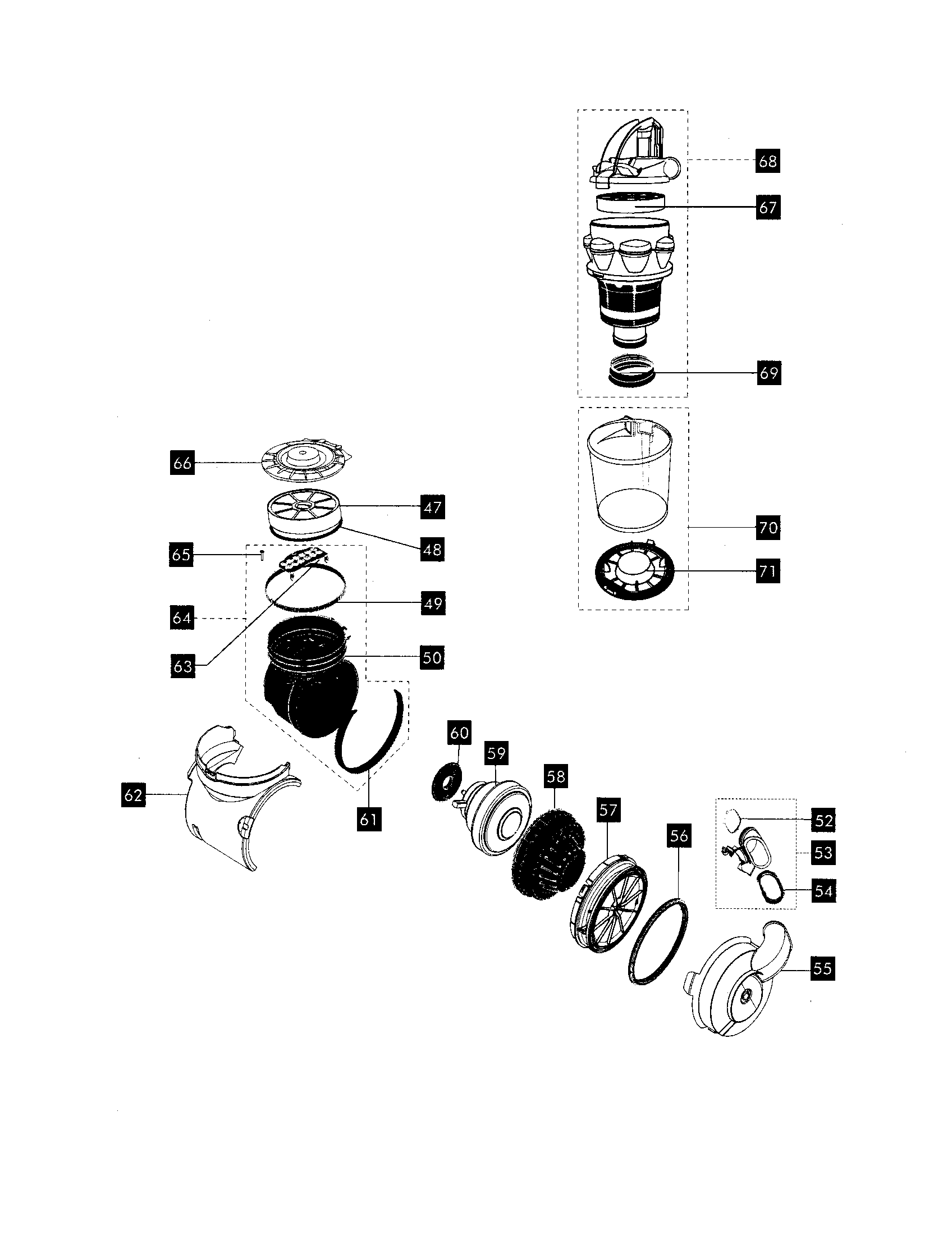

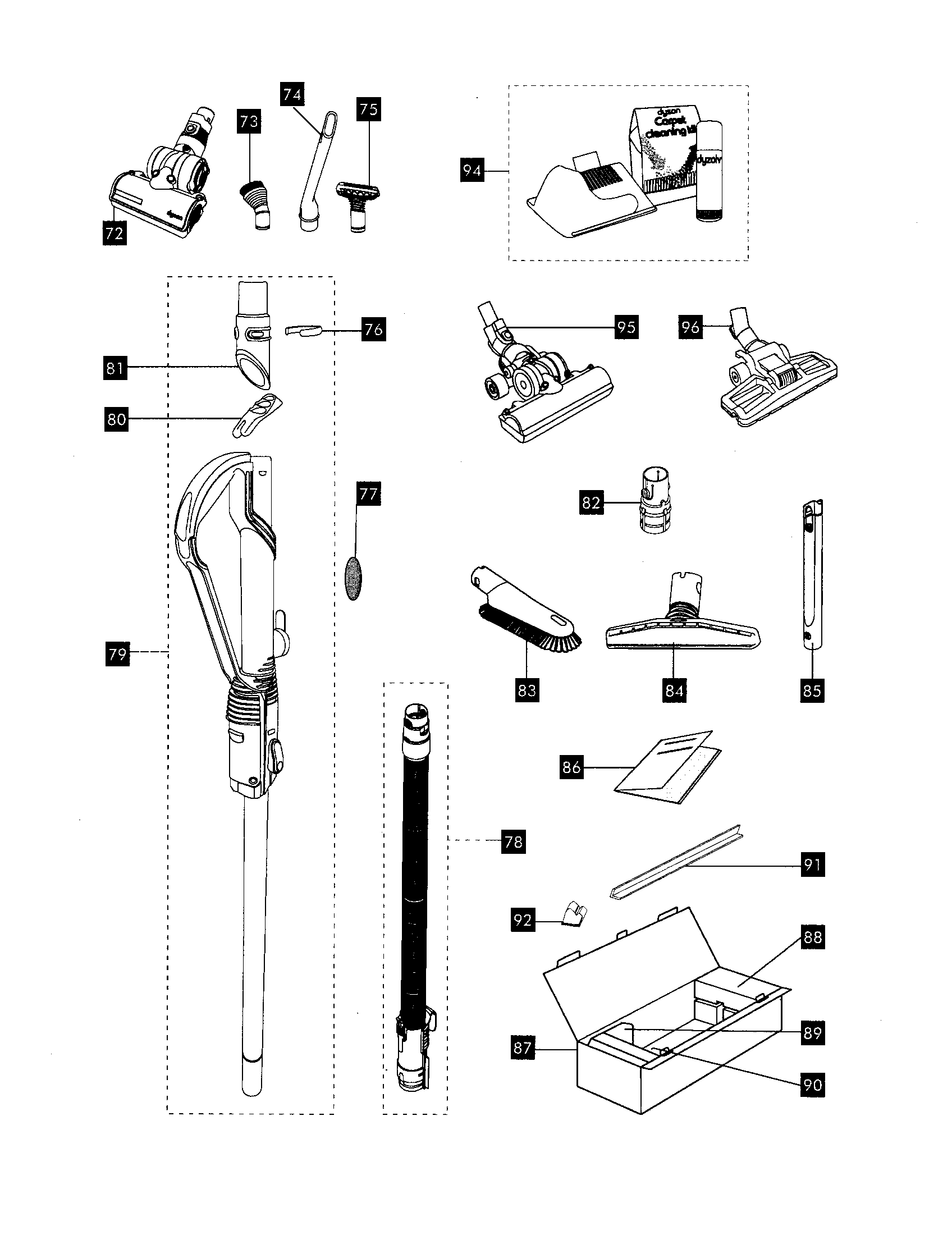

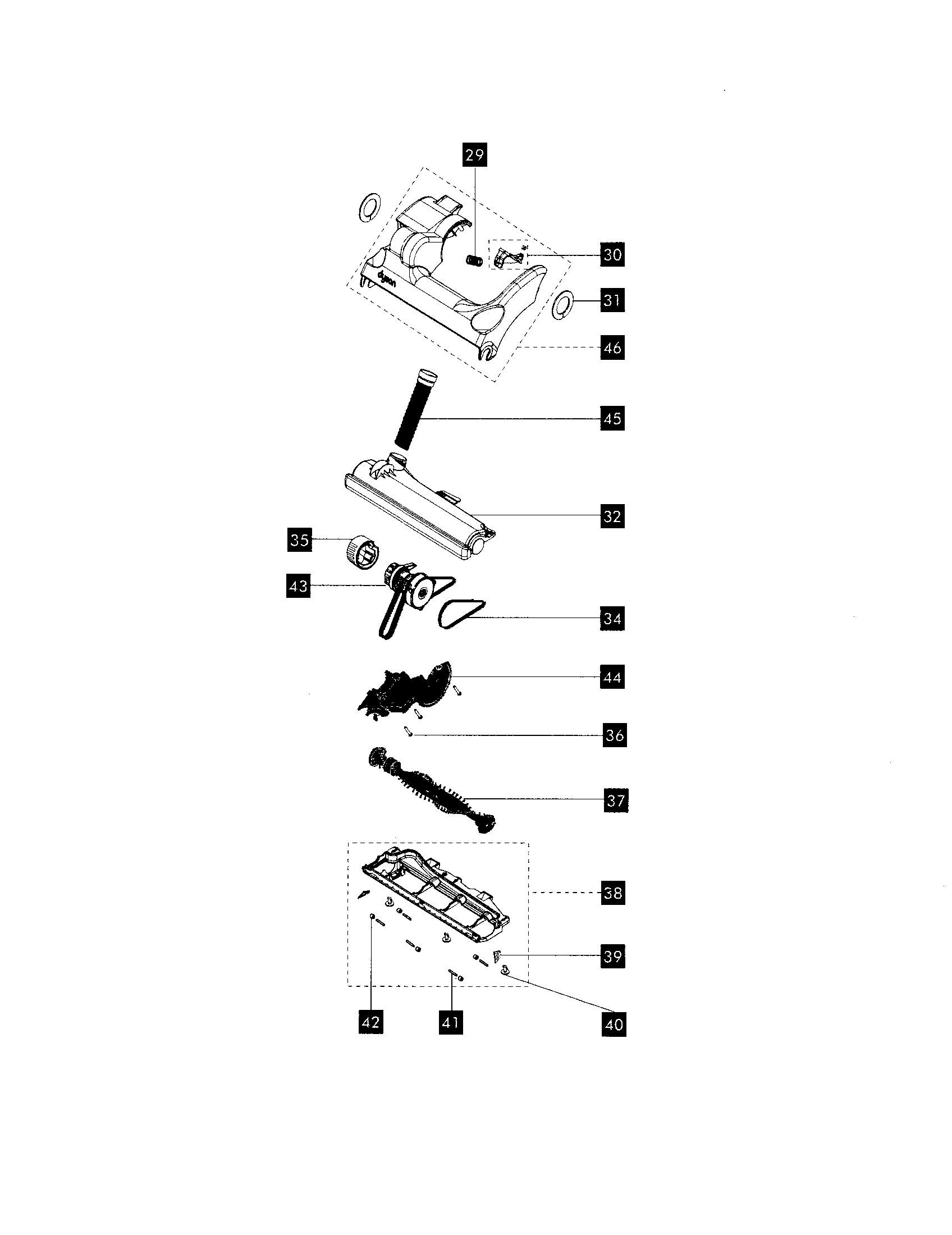

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search

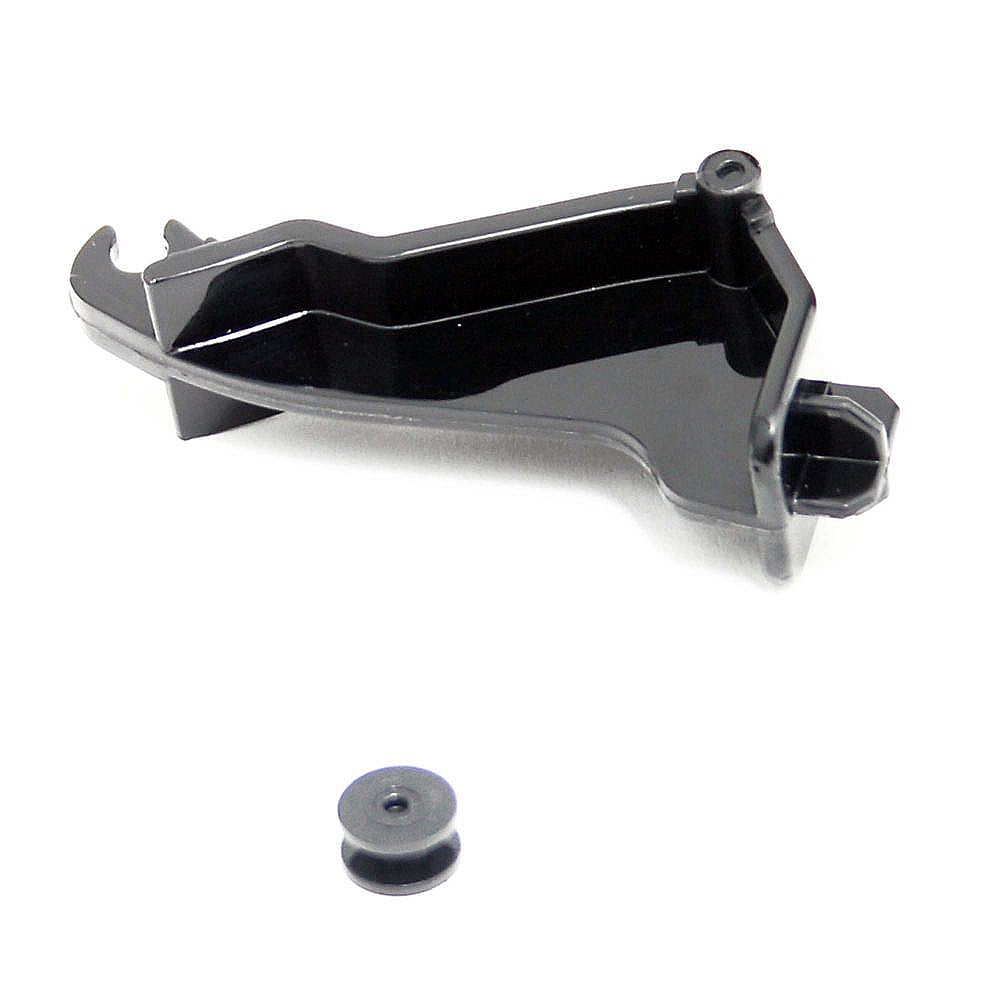

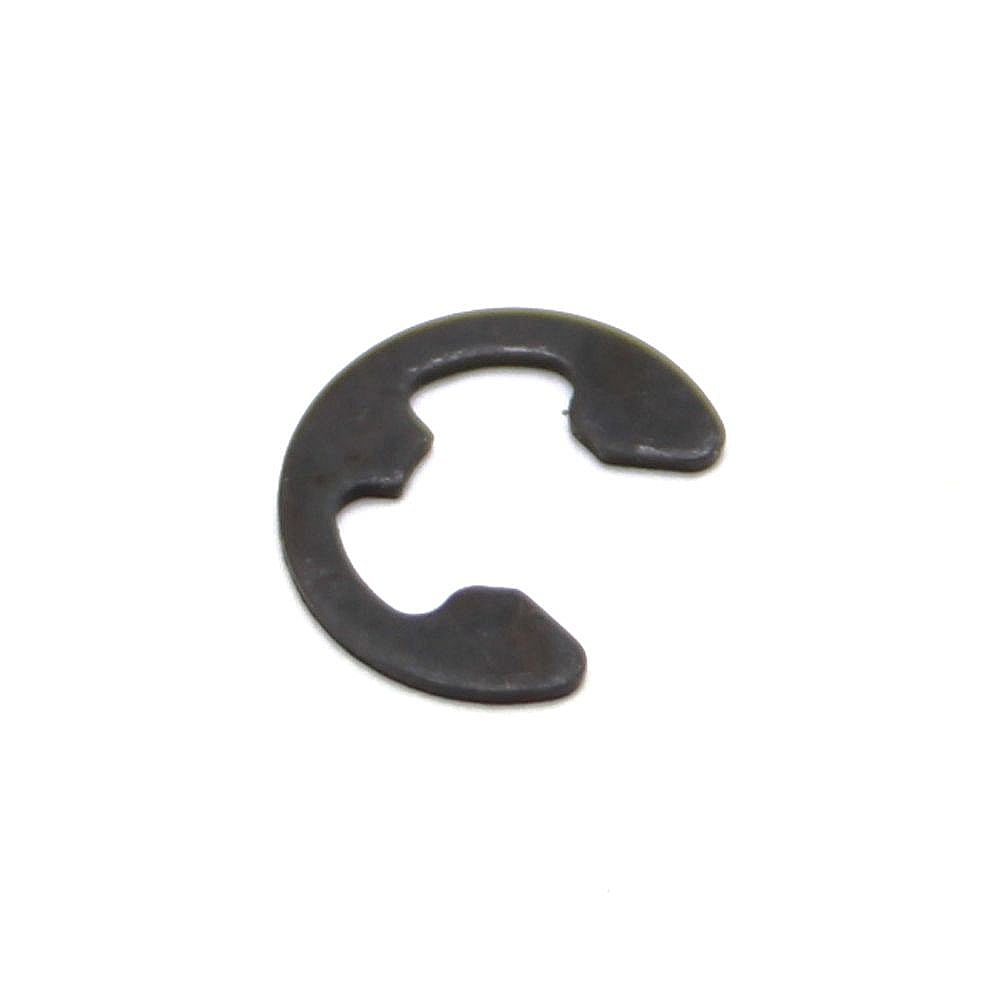

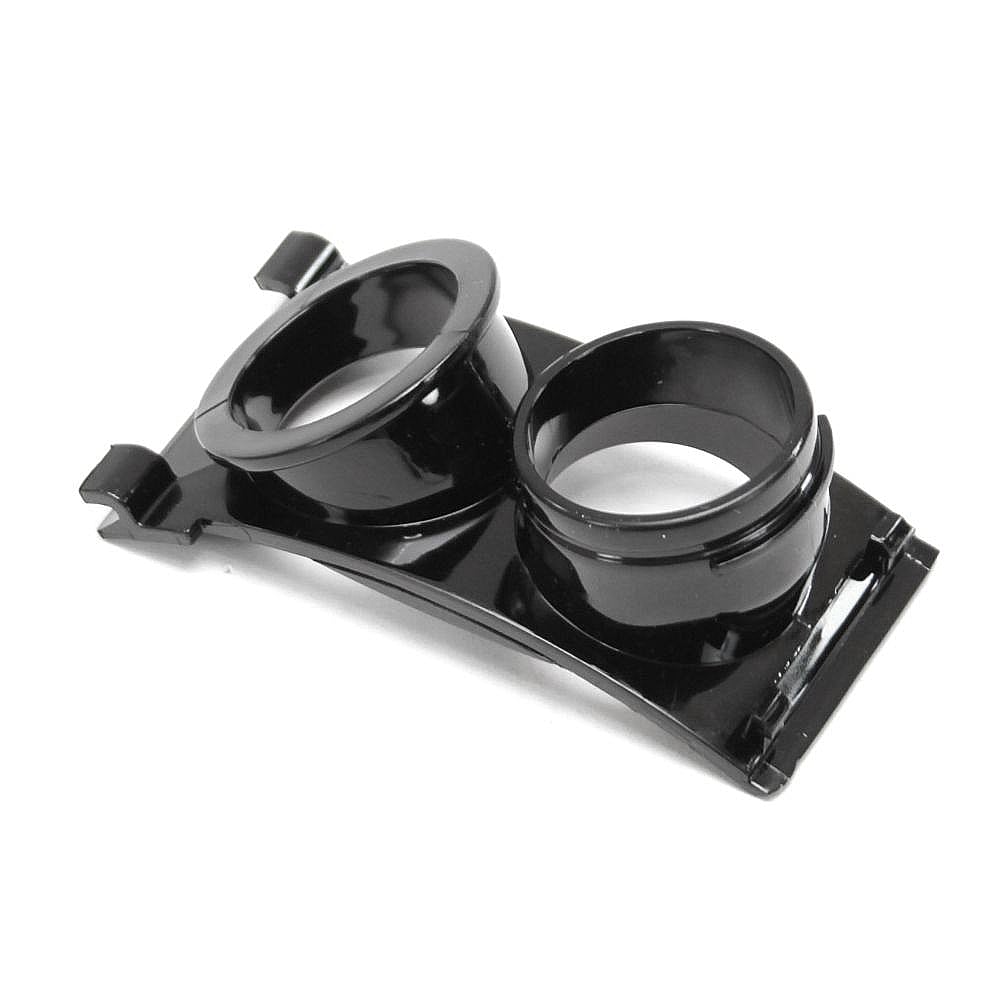

ALL PARTS
Showing 10 of 169 parts  |
Dyson Vacuum Beater Bar Housing Assembly 908654-01

#32

All parts diagram

Dyson vacuum beater bar housing assembly

Part #908654-01

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing End Cap Fastener 900130-04

#40

All parts diagram

Vacuum beater bar housing end cap fastener

Part #900130-04

The manufacturer no longer makes this part, and there's no substitute part

Dyson Seal 907491-01

#25

All parts diagram

Dyson seal

Part #907491-01

The manufacturer no longer makes this part, and there's no substitute part

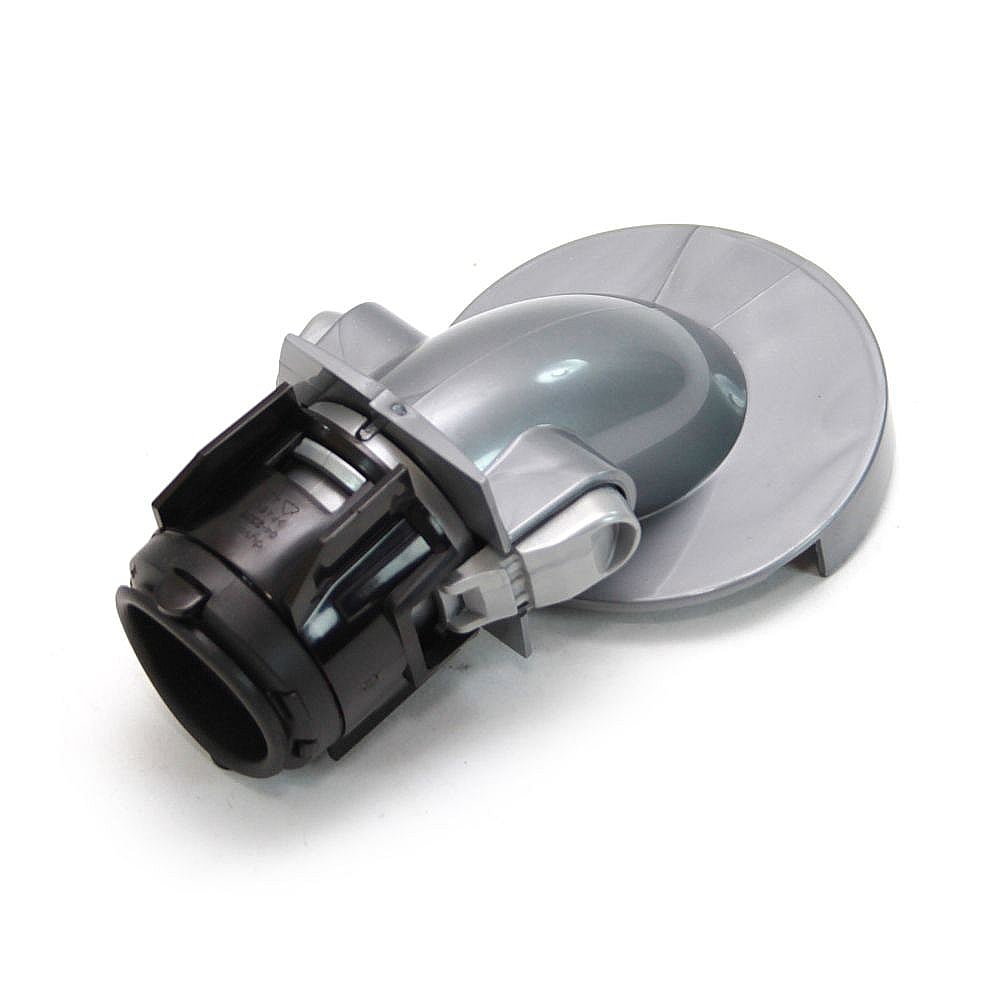

Dyson Valve Pipe 904246-15

#22C

All parts diagram

Dyson valve pipe

Part #904246-15

The manufacturer no longer makes this part, and there's no substitute part

Boot 908062-01

#2

All parts diagram

Boot

Part #908062-01

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 904193-08

#12A

All parts diagram

Vacuum wheel

Part #904193-08

The manufacturer no longer makes this part, and there's no substitute part

Dyson Vacuum Cyclone Assembly (trans-violet) 908658-05

#68

All parts diagram

Dyson vacuum cyclone assembly (trans-violet)

Part #908658-05

The manufacturer no longer makes this part, and there's no substitute part

Dyson Vacuum Wheel (purple Fleck) 904193-06

#12

All parts diagram

Dyson vacuum wheel (purple fleck)

Part #904193-06

The manufacturer no longer makes this part, and there's no substitute part

Dyson Vacuum Cyclone Assembly (trans-orange) 908658-07

#68B

All parts diagram

Dyson vacuum cyclone assembly (trans-orange)

Part #908658-07

The manufacturer no longer makes this part, and there's no substitute part

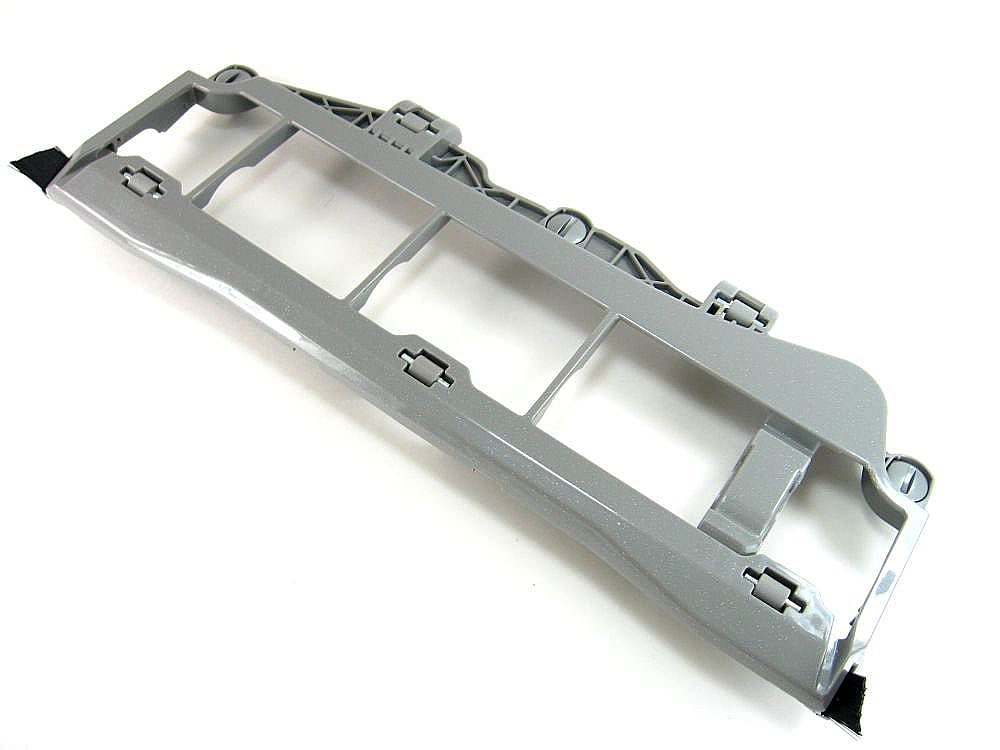

Dyson Vacuum Base Plate 908655-03

#38

All parts diagram

Dyson vacuum base plate

Part #908655-03

The manufacturer no longer makes this part, and there's no substitute part
