Countertop Microwave

Model # JMT20F01 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE JMT20F01 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Diode WB27X272

#1439

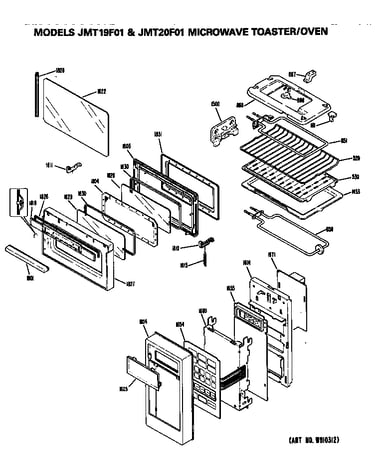

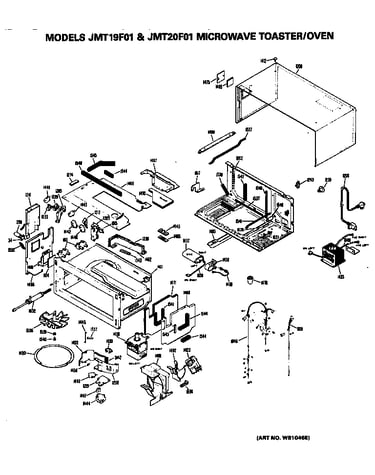

All parts diagram

Diode

Part #WB27X272

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X272. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Cookbook Jmt 49-4672

#9999

All parts diagram

Cookbook jmt

Part #49-4672

$26.99
In Stock
Cushion WB2X4173

#1546

All parts diagram

Cushion

Part #WB2X4173

The manufacturer no longer makes this part, and there's no substitute part

Outer Case Woodgrain WB63X240

#1200

All parts diagram

Outer case woodgrain

Part #WB63X240

The manufacturer no longer makes this part, and there's no substitute part

Glass Oven Lamp WB36X674

#904

All parts diagram

Glass oven lamp

Part #WB36X674

The manufacturer no longer makes this part, and there's no substitute part

Power Cord WB18X209

#1206

All parts diagram

Power cord

Part #WB18X209

The manufacturer no longer makes this part, and there's no substitute part

Holder Lamp Glass WB2X4134

#1461

All parts diagram

Holder lamp glass

Part #WB2X4134

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder WB2X4152

#1621

All parts diagram

Fuse holder

Part #WB2X4152

The manufacturer no longer makes this part, and there's no substitute part

Spacer WB2X4361

#1828

All parts diagram

Spacer

Part #WB2X4361

The manufacturer no longer makes this part, and there's no substitute part

Shelf Support WB2X4546

#1500

All parts diagram

Shelf support

Part #WB2X4546

The manufacturer no longer makes this part, and there's no substitute part
