Model # 143249012 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143249012 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 191 parts  |
Gasket 27110
#20

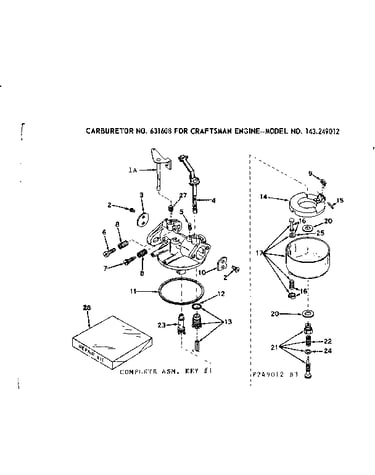

Carburetor diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Screw 30688
#92

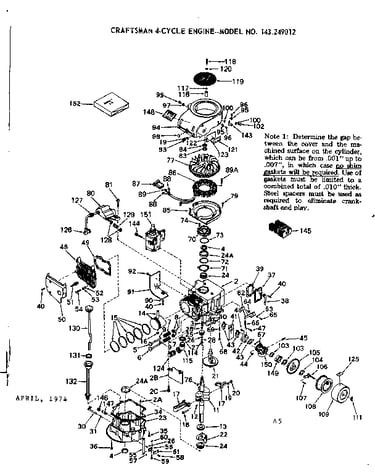

Engine diagram

Screw

Part #30688

Replaced by #30063

?
Manufacturer substitution
This part replaces 30688. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Lawn & Garden Equipment Engine Screw 28942
#96

Engine diagram

Lawn & garden equipment engine screw

Part #28942

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Generac Lawn & Garden Equipment Engine Nut 29752
#44

Engine diagram

Generac lawn & garden equipment engine nut

Part #29752

This item is not returnable
$2.16
In Stock
Carburetor Lawn & Garden Equipment Engine Carburetor Bowl Drain Valve 27136A
#16

Carburetor diagram

Carburetor lawn & garden equipment engine carburetor bowl drain valve

Part #27136A

This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Screw 30564
#35

Engine diagram

Screw

Part #30564

Replaced by #650451

?
Manufacturer substitution
This part replaces 30564. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Lauson Lawn & Garden Equipment Engine O-ring 33590
#131

Engine diagram

Lauson lawn & garden equipment engine o-ring

Part #33590

This item is not returnable
$2.16
In Stock
Tractor Accessories Lawn & Garden Equipment Screw 650517
#47

Engine diagram

Tractor accessories lawn & garden equipment screw

Part #650517

This item is not returnable
$2.16
In Stock
Cook Top Side Trim Kit Retaining Ring 29193
#26

Engine diagram

Cook top side trim kit retaining ring

Part #29193

This item is not returnable
$2.16
In Stock
Lauson Lawn & Garden Equipment Engine Starter Pinion Gear Retainer Ring 33842
#2

Starter motor diagram

Lauson lawn & garden equipment engine starter pinion gear retainer ring

Part #33842

This item is not returnable
$4.43
In Stock
