Model # B26FT80SNS/03 Official Bosch refrigerator

Here are the diagrams and repair parts for Official Bosch B26FT80SNS-03 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

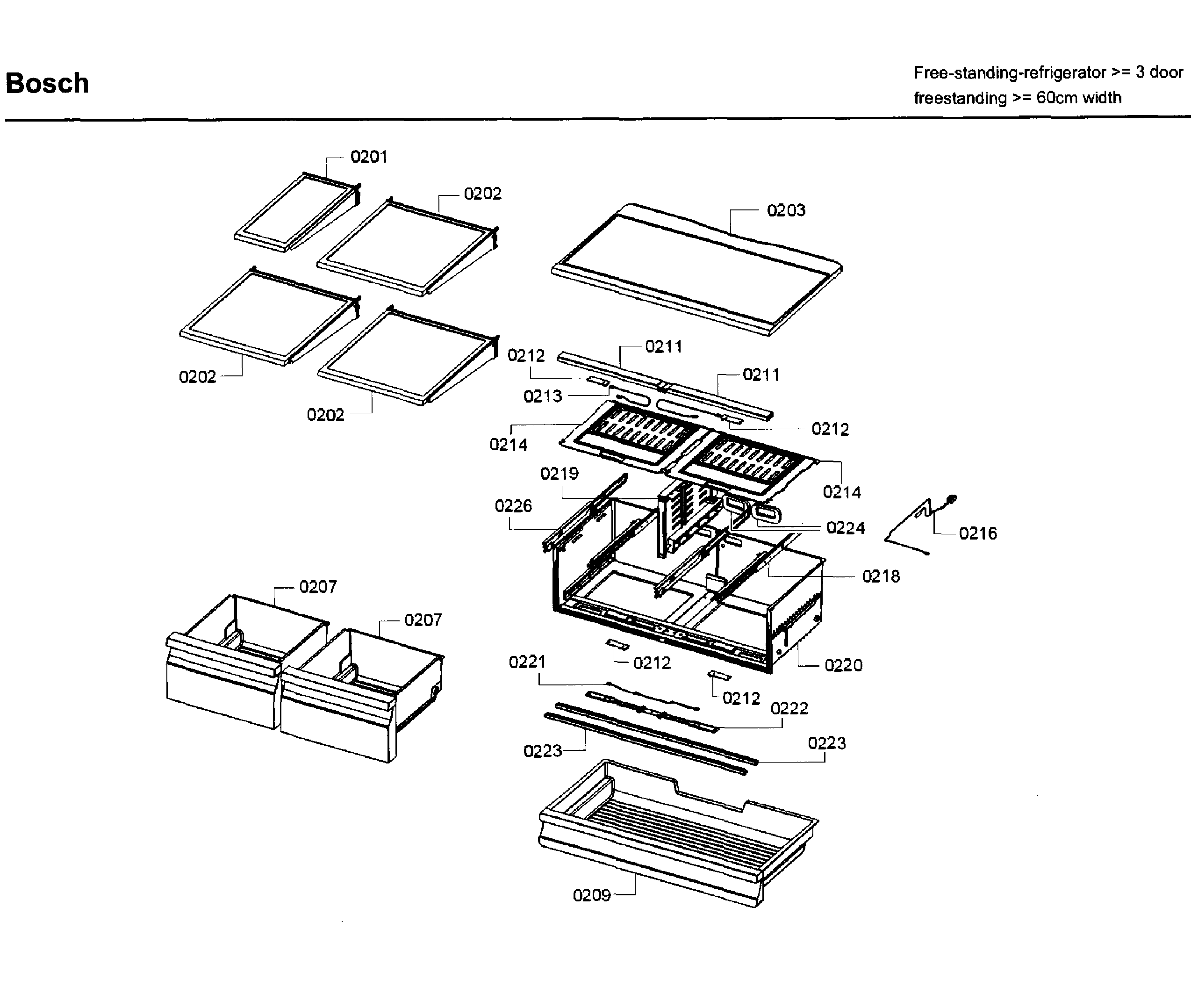

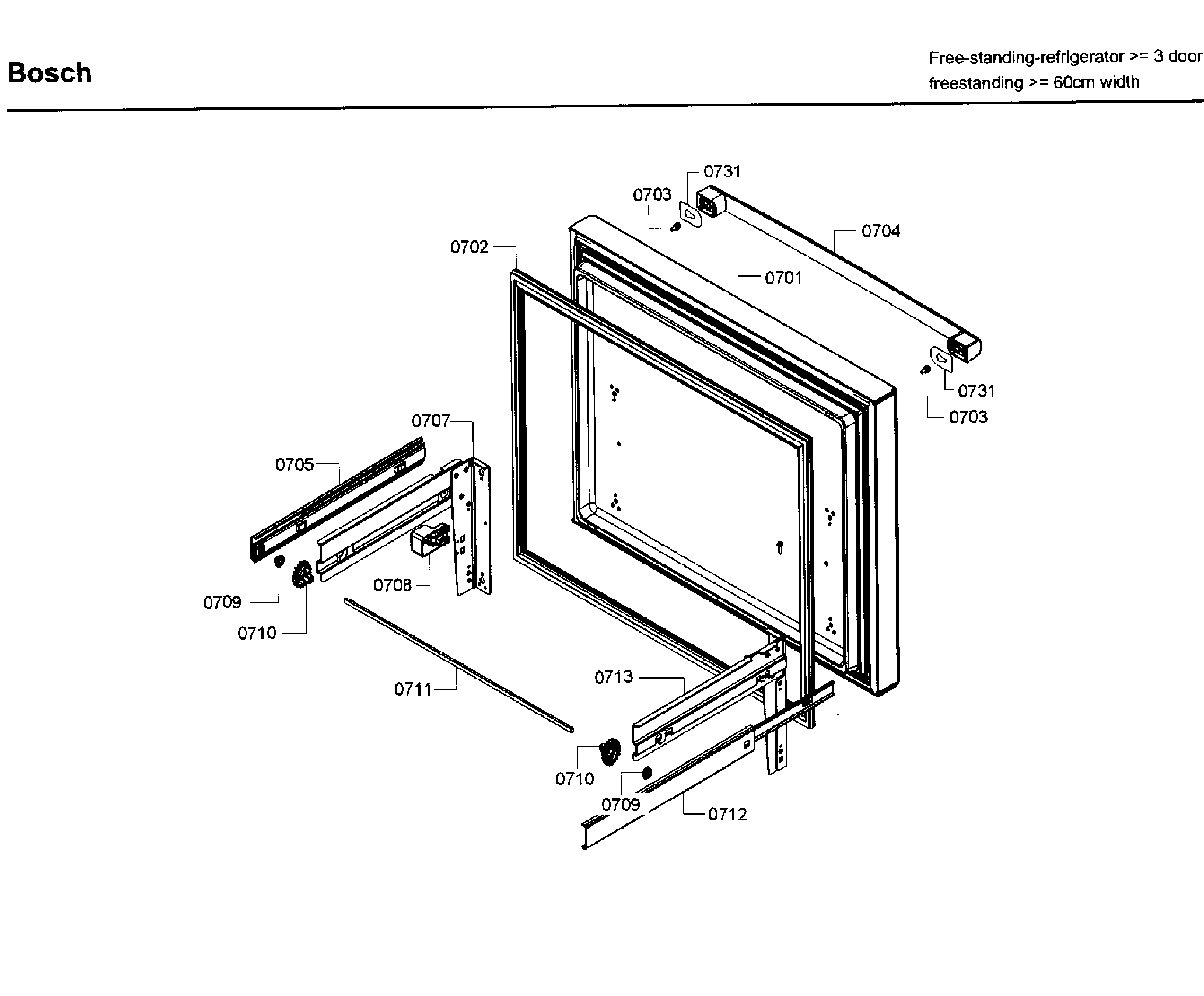

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Refrigerator Water Inlet Valve (replaces 649626) 00649626
#910

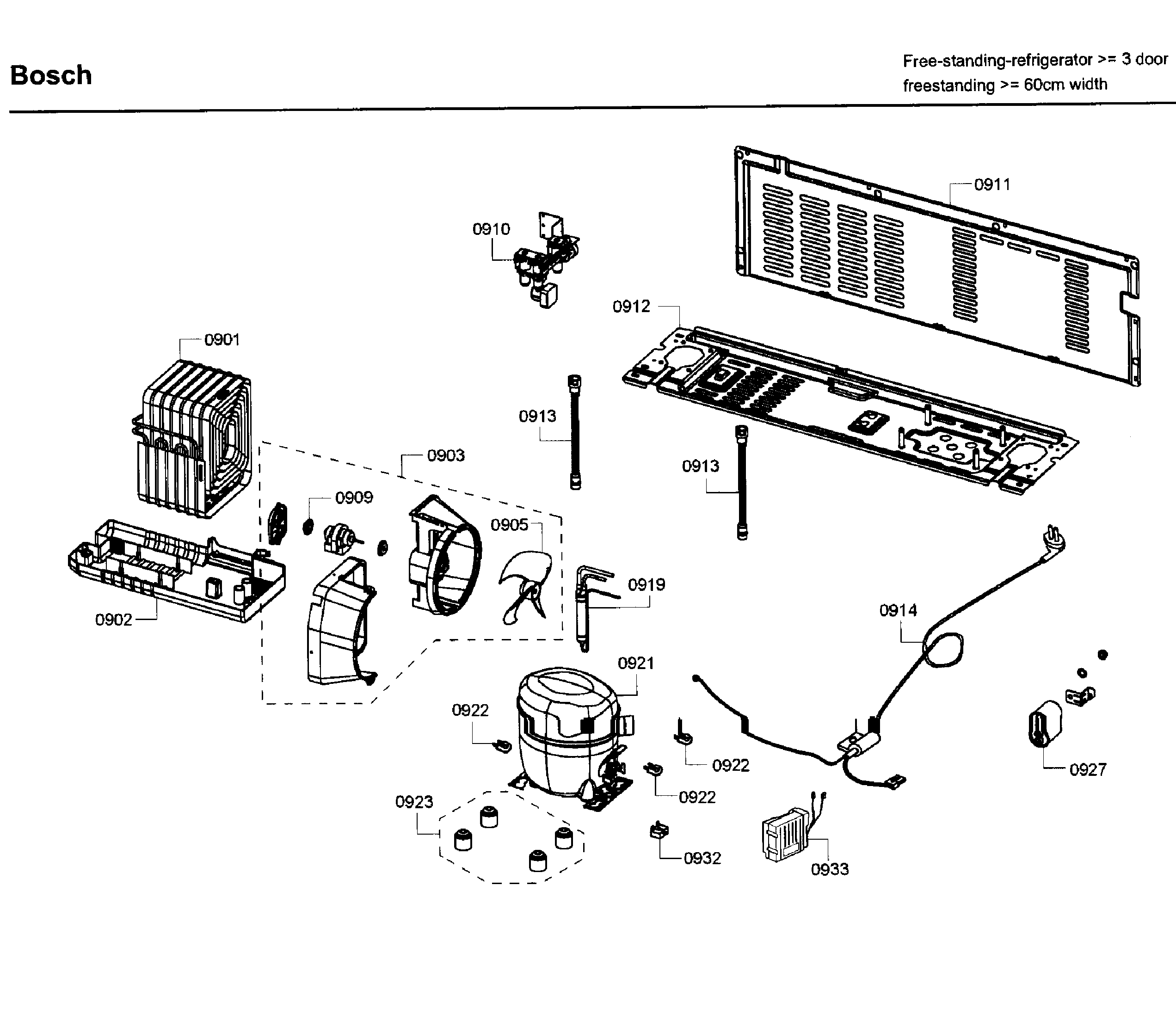

Compressor diagram

Refrigerator water inlet valve (replaces 649626)

Part #00649626

BEST SELLER
$123.13 |
9% OFF Phone Price : $135.13
In Stock

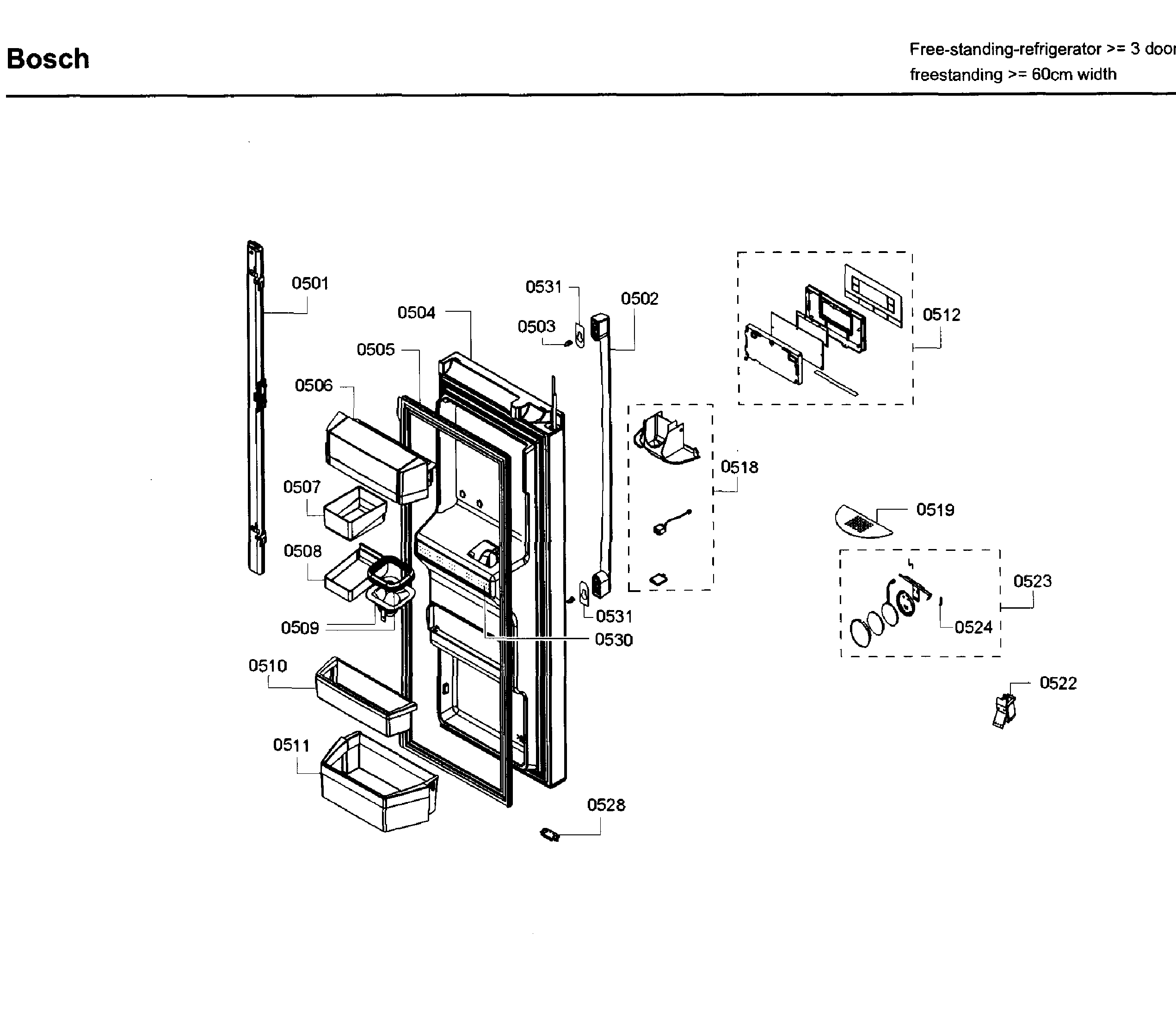

Refrigerator Door Bin, Lower (replaces 677095) 00677095
Refrigerator door bin, lower (replaces 677095)

Part #00677095

BEST SELLER
$63.79 |
9% OFF Phone Price : $69.79
Back Order
Refrigerator Defrost Sensor (replaces 618543) 00618543
#318

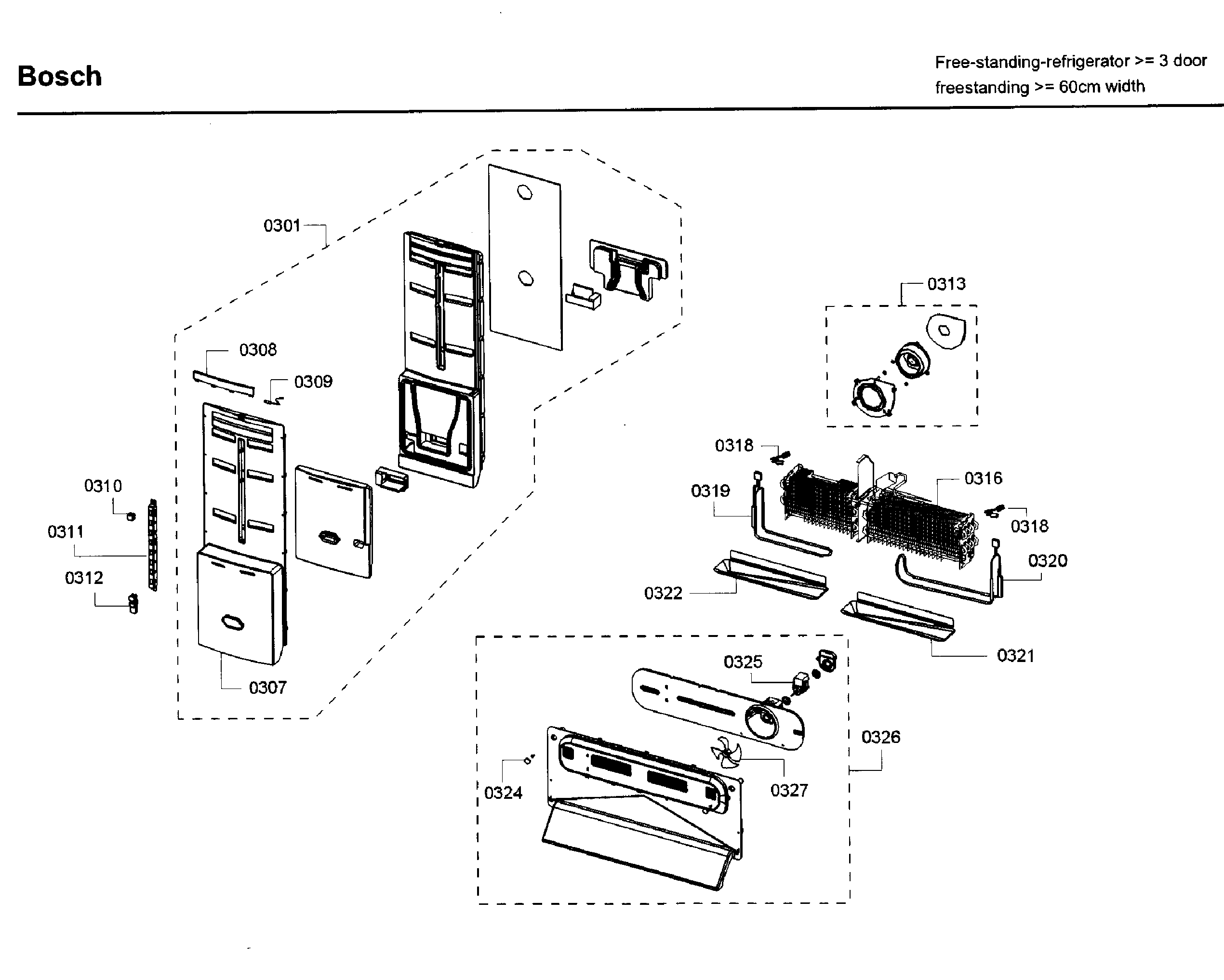

Evap asy diagram

Refrigerator defrost sensor (replaces 618543)

Part #00618543

BEST SELLER
$31.58
In Stock
Refrigerator Defrost Heater And Thermostat (replaces 677518) 00677518
#319

Evap asy diagram

Refrigerator defrost heater and thermostat (replaces 677518)

Part #00677518

BEST SELLER
$92.39 |
6% OFF Phone Price : $98.39
In Stock
Bosch Refrigerator Water Filter 00740570
#138

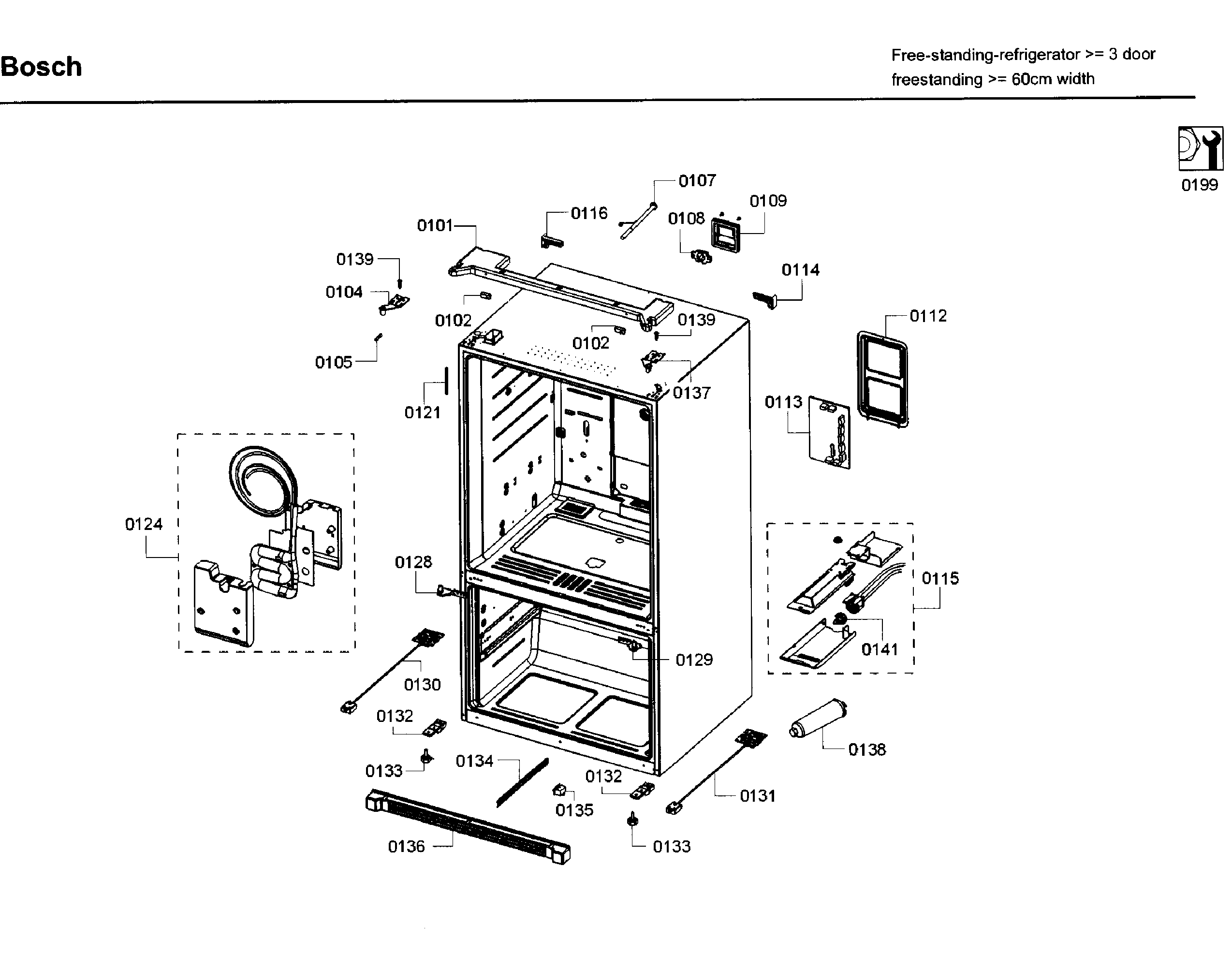

Cabinet diagram

Bosch refrigerator water filter

Part #00740570

Replaced by #11034151

?
Manufacturer substitution
This part replaces 00740570. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$89.19 |
6% OFF Phone Price : $95.19
In Stock
Refrigerator Evaporator Cover Assembly (replaces 678777) 00678777
#301

Evap asy diagram

Refrigerator evaporator cover assembly (replaces 678777)

Part #00678777

$166.37 |
7% OFF Phone Price : $178.37
In Stock

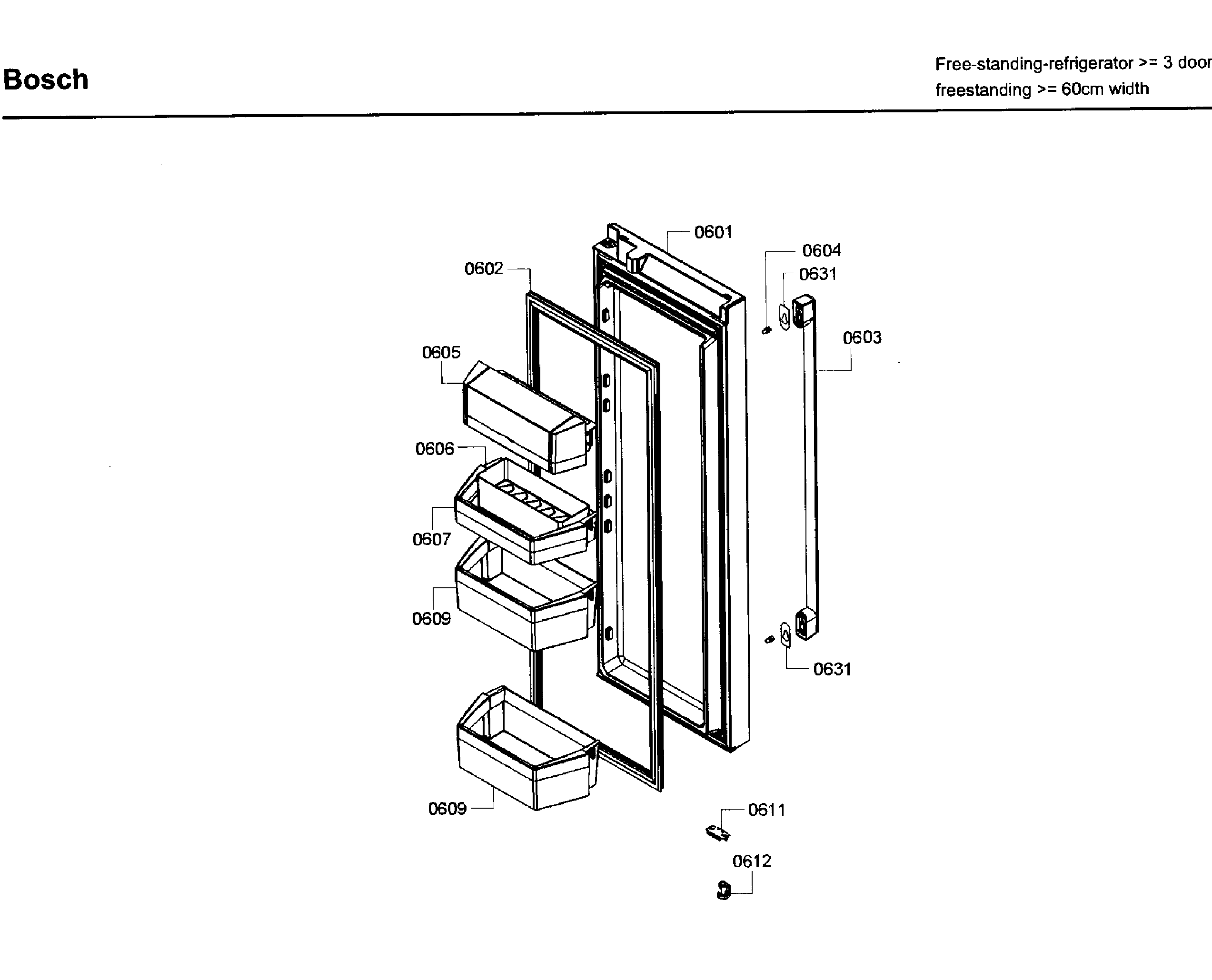

Refrigerator Door Handle 00688822
Refrigerator door handle

Part #00688822

$146.66
In Stock

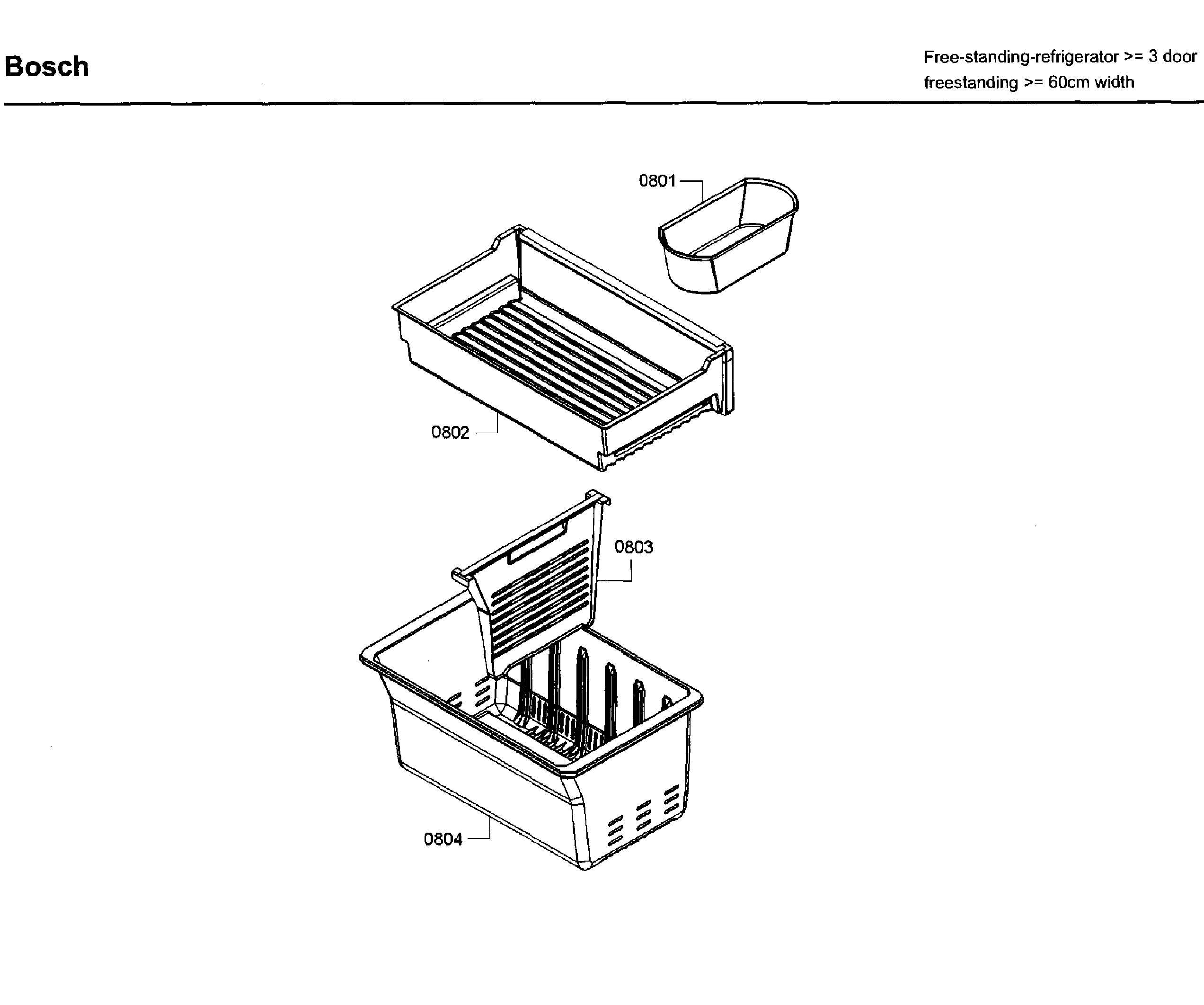

Refrigerator Ice Container Assembly 00677502
#411

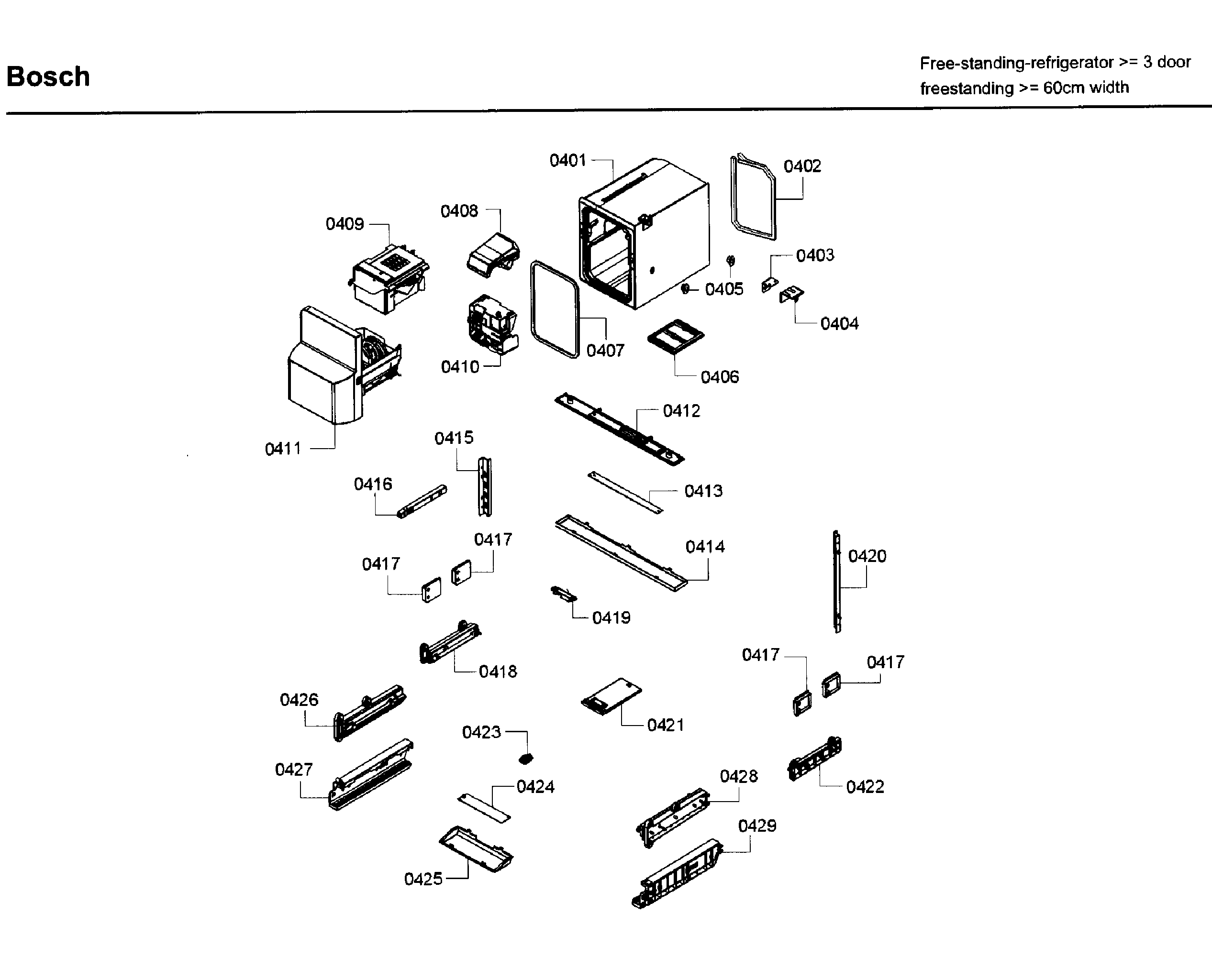

Icemaker diagram
