Model # NF97X060V3B02 Official GE gas furnace

Here are the diagrams and repair parts for Official GE NF97X060V3B02 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

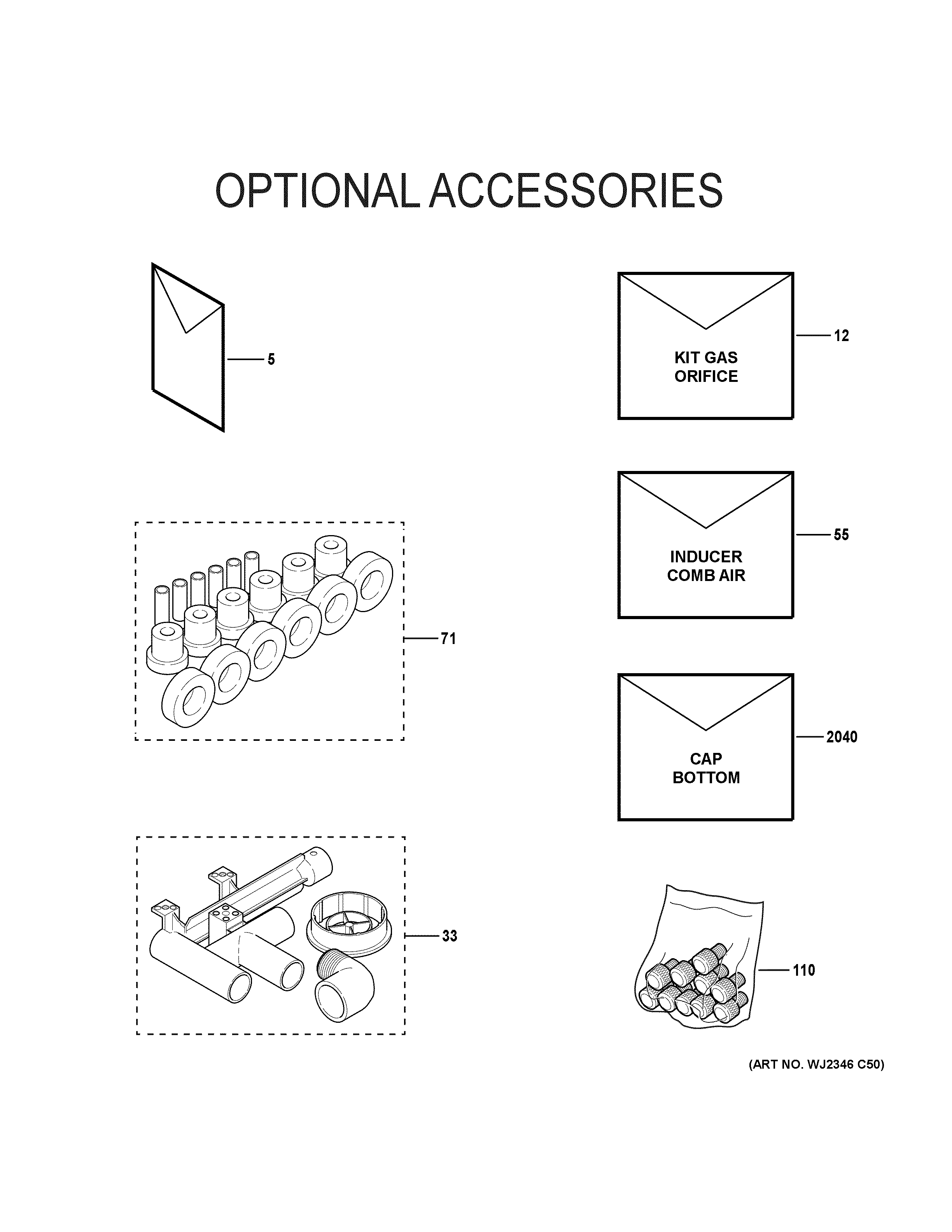

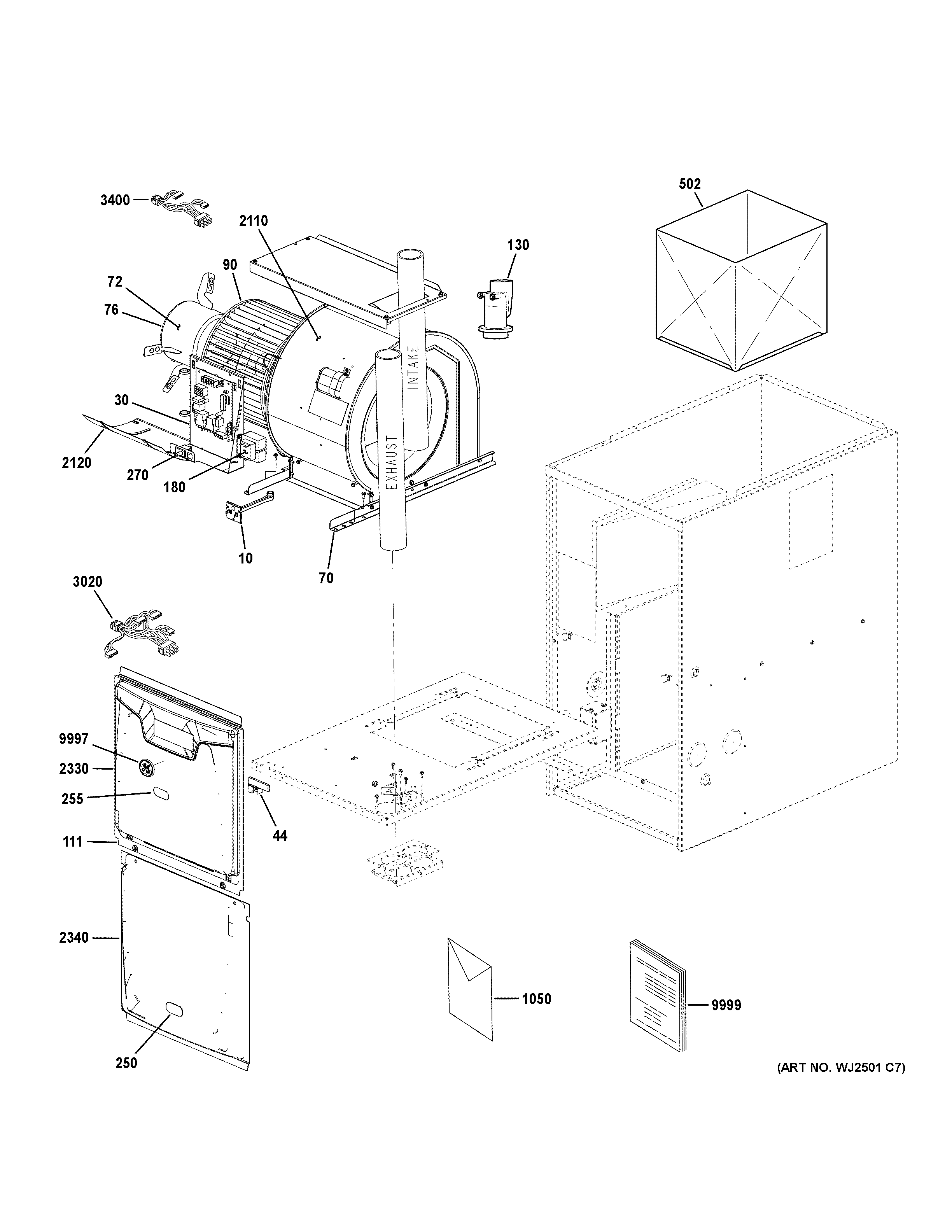

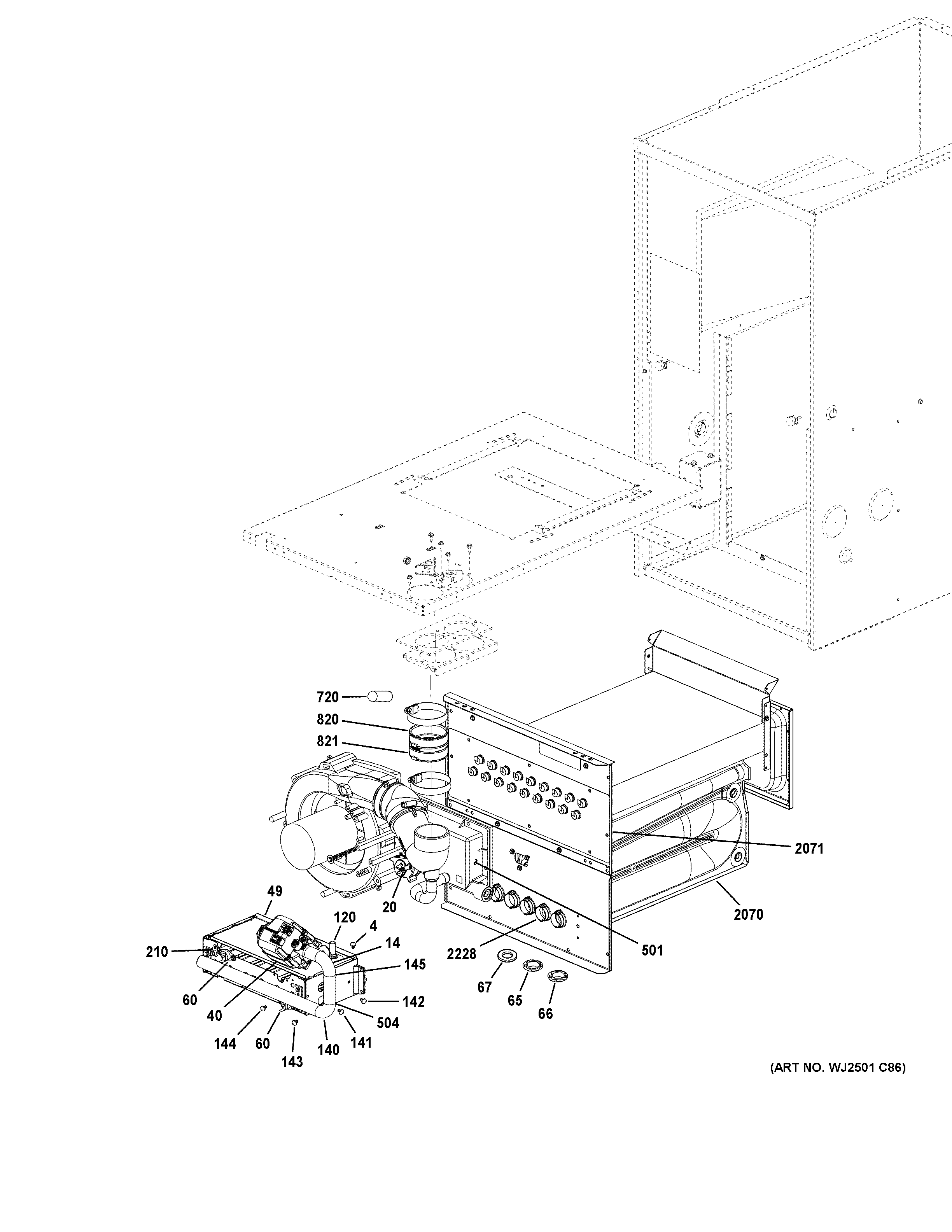

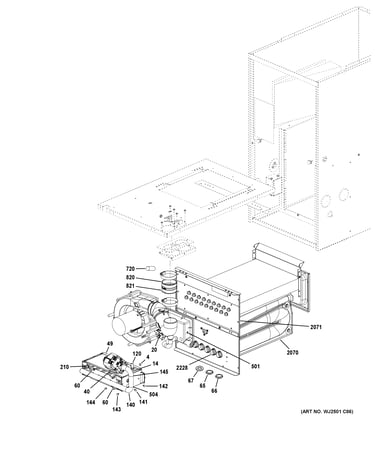

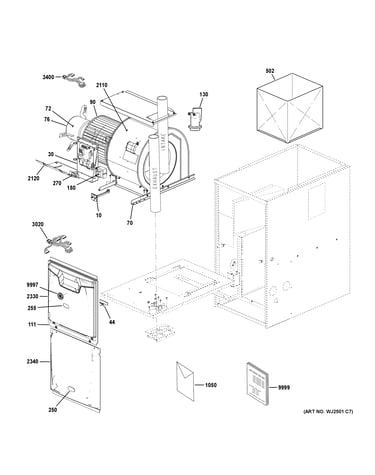

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
105165-01 Gasket-graphite Igniter/sens 16A58
105165-01 gasket-graphite igniter/sens

Part #16A58

$18.63
In Stock
104987-01 Flame Sensor - Uln 15K16
104987-01 flame sensor - uln

Part #15K16

$26.62
In Stock
105224-03 Limit Control (stilt) 190f 16G44
105224-03 limit control (stilt) 190f

Part #16G44

$33.20
In Stock
617498-01 Ignitor Assembly 15K17
617498-01 ignitor assembly

Part #15K17

$103.44
In Stock
66j7801 Rollout Limit 66J78
66j7801 rollout limit

Part #66J78

$35.33
In Stock
607308-18 Kit-ign Cntrl (103131-06) 15T95
607308-18 kit-ign cntrl (103131-06)

Part #15T95

$213.55
In Stock
102317-01 Switch-interlock 51W15
102317-01 switch-interlock

Part #51W15

$23.97
In Stock
Lp Kit 11K48
Lp kit

Part #11K48

$134.26
In Stock
101564-01 Mtr 1/2hp Var Spd 120/240/60/1 33W12
101564-01 mtr 1/2hp var spd 120/240/60/1

Part #33W12

$551.42
In Stock
103016-03 Valve-gas (modulating) 15D34
103016-03 valve-gas (modulating)

Part #15D34

$231.55
In Stock
