GE
Room Air Conditioner

Model # AGM14AAG1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AGM14AAG1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

Air Conditioner Blower WJ73X10025
#180

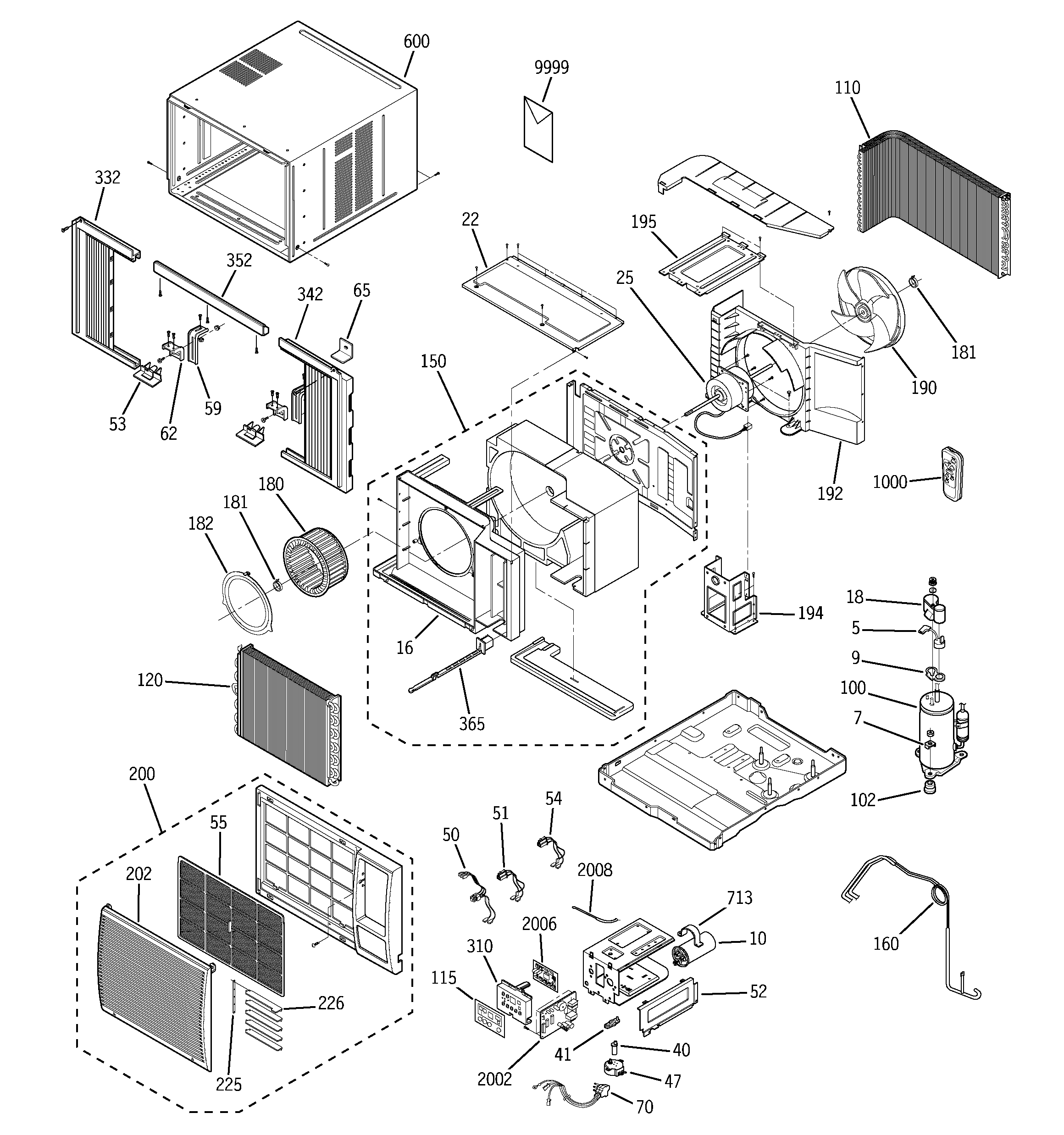

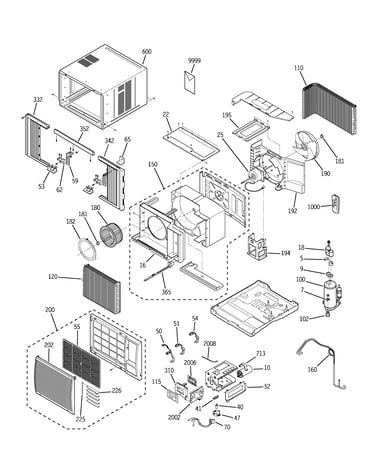

Room air conditioner diagram

Air conditioner blower

Part #WJ73X10025

In Stock
Escutcheon WJ07X10094
#115

Room air conditioner diagram

Escutcheon

Part #WJ07X10094

In Stock
Agm14 + Use/ 49-7429
#9999

Room air conditioner diagram

Agm14 + use/

Part #49-7429

In Stock
Ge Motor WJ94X10083
#25

Room air conditioner diagram

Ge motor

Part #WJ94X10083

In Stock
Fan WJ73X10026
#190

Room air conditioner diagram

Fan

Part #WJ73X10026

In Stock
Capillary Tube WJ53X10079
#160

Room air conditioner diagram

Capillary tube

Part #WJ53X10079

The manufacturer no longer makes this part, and there's no substitute part

Capacitor WJ20X10079
#10

Room air conditioner diagram

Capacitor

Part #WJ20X10079

The manufacturer no longer makes this part, and there's no substitute part

Bracket WJ01X10145
#65

Room air conditioner diagram

Bracket

Part #WJ01X10145

The manufacturer no longer makes this part, and there's no substitute part

Cam WJ01X10095
#40

Room air conditioner diagram

Cam

Part #WJ01X10095

The manufacturer no longer makes this part, and there's no substitute part

Remote Control WJ26X10097
#1000

Room air conditioner diagram

Remote control

Part #WJ26X10097

The manufacturer no longer makes this part, and there's no substitute part
