Makita
Angle Grinder

Model # 9016B Official Makita 6" angle grinder

Here are the diagrams and repair parts for Official Makita 9016B 6" angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

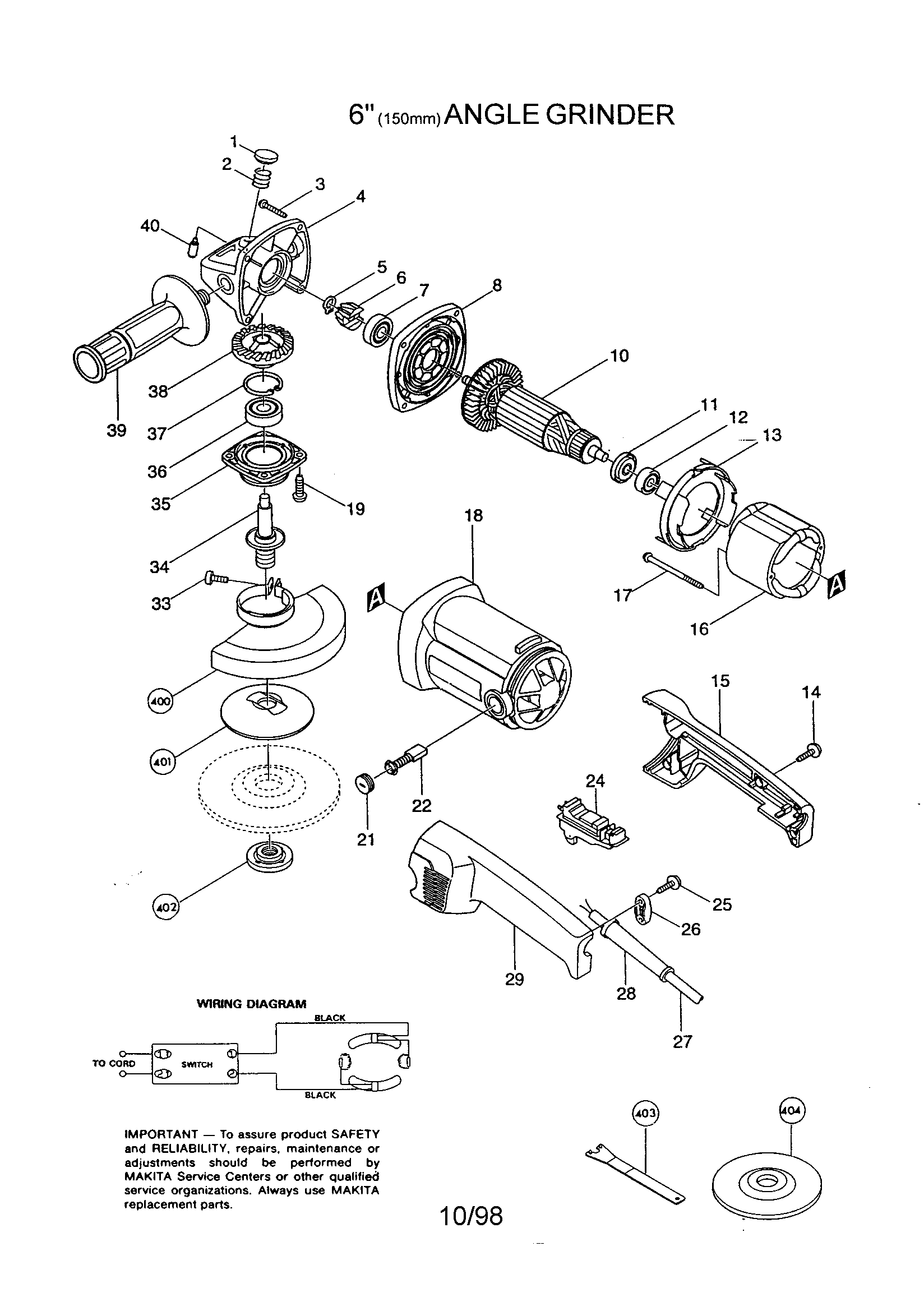

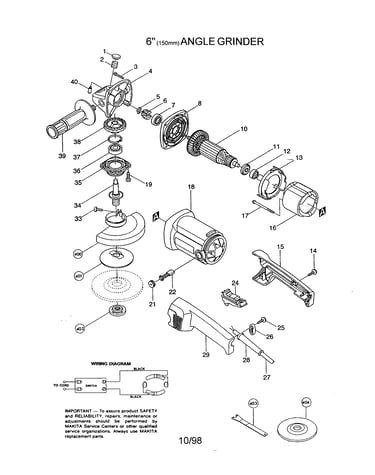

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Screw 266027-2
#19

6" angle grinder diagram

Screw

Part #266027-2

The manufacturer no longer makes this part, and there's no substitute part

Ring 962151-6
#37

6" angle grinder diagram

Ring

Part #962151-6

The manufacturer no longer makes this part, and there's no substitute part

Guard Cord 682505-8
#28

6" angle grinder diagram

Guard cord

Part #682505-8

The manufacturer no longer makes this part, and there's no substitute part

Handle 152492-0
#39

6" angle grinder diagram

Handle

Part #152492-0

The manufacturer no longer makes this part, and there's no substitute part

Field 522836-2
#16

6" angle grinder diagram

Field

Part #522836-2

The manufacturer no longer makes this part, and there's no substitute part

Armature 516331-2
#10

6" angle grinder diagram

Armature

Part #516331-2

The manufacturer no longer makes this part, and there's no substitute part

Brush Holder 643750-0
#21

6" angle grinder diagram

Brush holder

Part #643750-0

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Wrench 782412-6
#403

6" angle grinder diagram

Angle grinder wrench

Part #782412-6

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord 664265-4
#27

6" angle grinder diagram

Power tool power cord

Part #664265-4

The manufacturer no longer makes this part, and there's no substitute part

Screw 251391-4
#33

6" angle grinder diagram

Screw

Part #251391-4

The manufacturer no longer makes this part, and there's no substitute part
