Amana
Built-In Microwave

Model # 827.301 Official Amana built-in microwave

Here are the diagrams and repair parts for Official Amana 827301 built-in microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Oven Rack (2 Req.) M67D34
#40

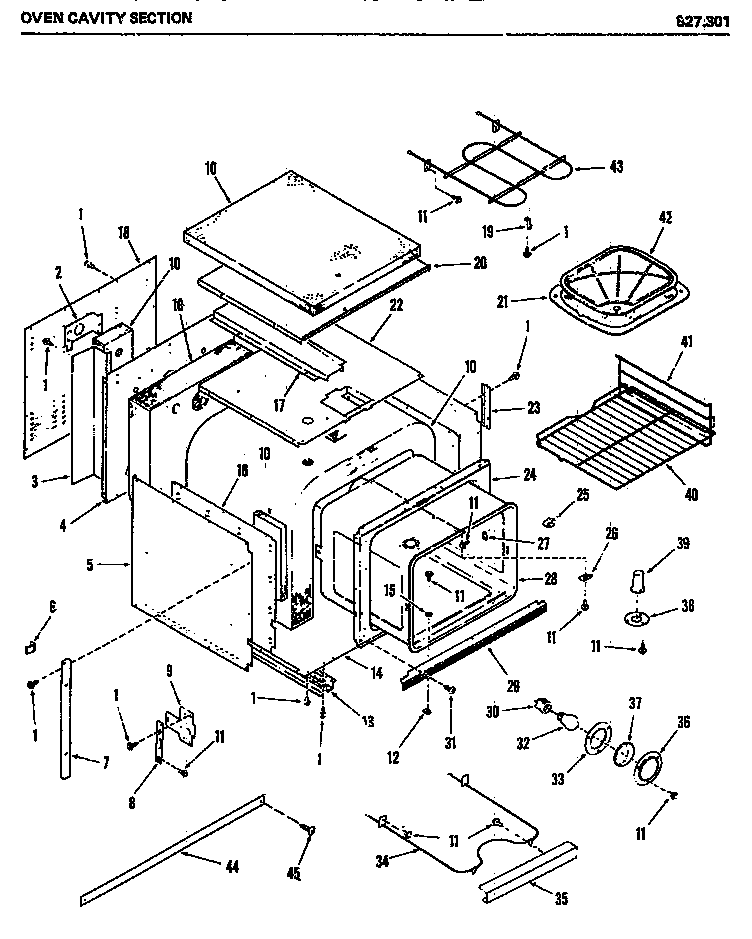

Oven cavity section diagram

Oven rack (2 req.)

Part #M67D34

The manufacturer no longer makes this part, and there's no substitute part

Push Switch (oven & Panel Lights) M14D258
#15

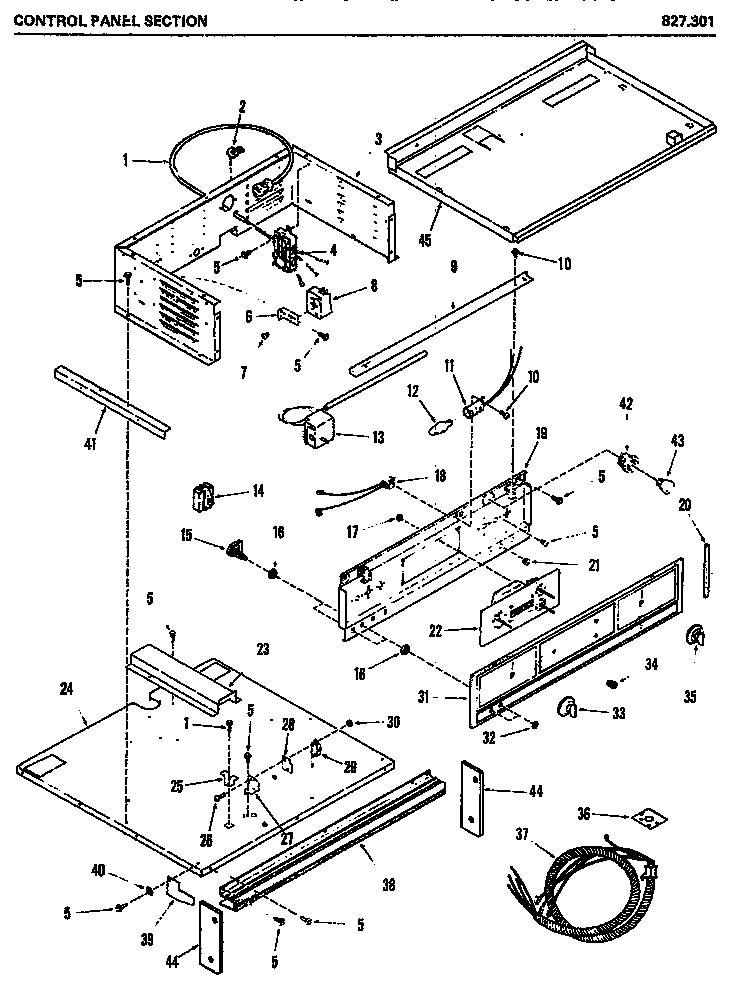

Control diagram

Push switch (oven & panel lights)

Part #M14D258

The manufacturer no longer makes this part, and there's no substitute part

Conduit & Wire Assembly M26D33
#37

Control diagram

Conduit & wire assembly

Part #M26D33

The manufacturer no longer makes this part, and there's no substitute part

Bake Element - 240 Volt M61D63
#34

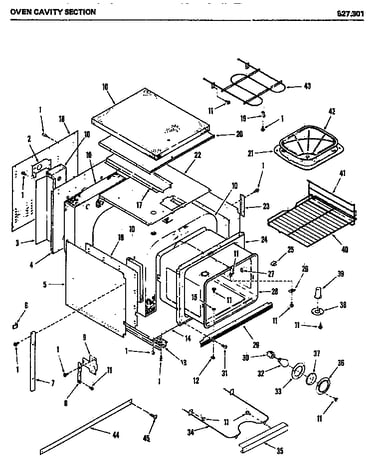

Oven cavity section diagram

Bake element - 240 volt

Part #M61D63

The manufacturer no longer makes this part, and there's no substitute part

Plug - Oven Door Lining M72D75
#4

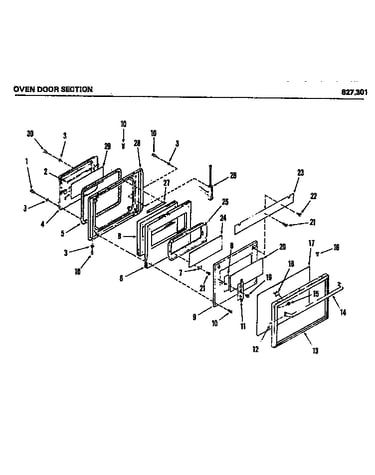

Oven door section diagram

Plug - oven door lining

Part #M72D75

The manufacturer no longer makes this part, and there's no substitute part

Oven Door Glass - Outer M51D49
#17

Oven door section diagram

Oven door glass - outer

Part #M51D49

The manufacturer no longer makes this part, and there's no substitute part

Cord With Plug M26D50
#1

Control diagram

Cord with plug

Part #M26D50

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Handle M49D17
#14

Oven door section diagram

Microwave door handle

Part #M49D17

The manufacturer no longer makes this part, and there's no substitute part

Indicator Light M9D102
#18

Control diagram

Indicator light

Part #M9D102

The manufacturer no longer makes this part, and there's no substitute part

Clamp - Oven Door Glass (lt. Or Rt.) M8D267
#11

Oven door section diagram

Clamp - oven door glass (lt. or rt.)

Part #M8D267

The manufacturer no longer makes this part, and there's no substitute part
