Onan
Lawn & Garden Engine

Model # BF-MS/3265F Official Onan engine

Here are the diagrams and repair parts for Official Onan BF-MS-3265F engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

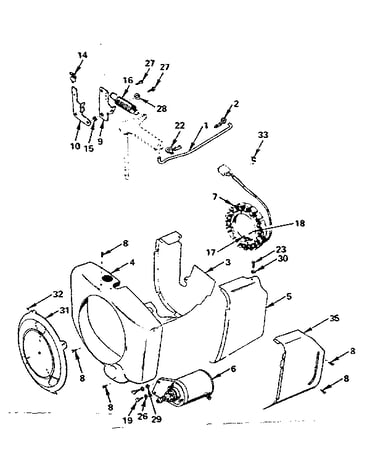

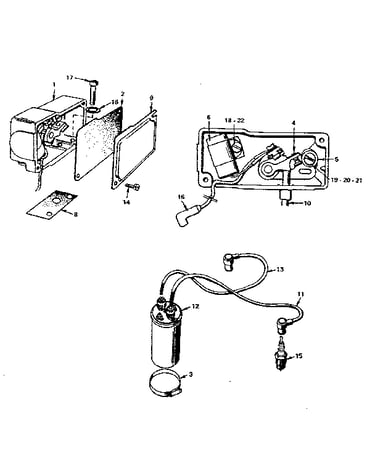

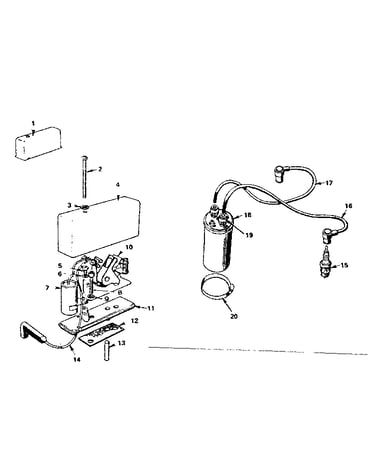

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 303 parts  |

Pre-clner 140-1259
#20

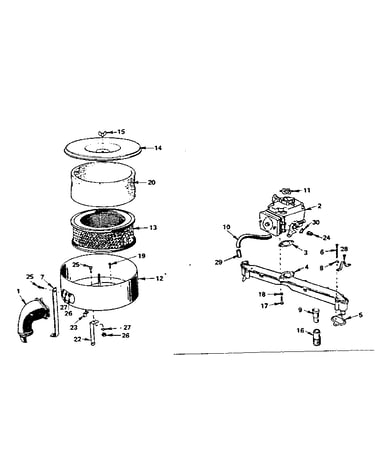

Fuel system group diagram

Pre-clner

Part #140-1259

Replaced by #45-083-01-S

?
Manufacturer substitution
This part replaces 140-1259. Substitute parts can look different from the original.
This item is not returnable
$7.29
12% OFF Phone Price : $8.29
In Stock
Element 140-1216
#13

Fuel system group diagram

Element

Part #140-1216

Replaced by #45-083-02-S

?
Manufacturer substitution
This part replaces 140-1216. Substitute parts can look different from the original.
This item is not returnable
$25.09
19% OFF Phone Price : $31.09
In Stock
Gasket 101-0415
Gasket

Part #101-0415

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 800-0056
#37

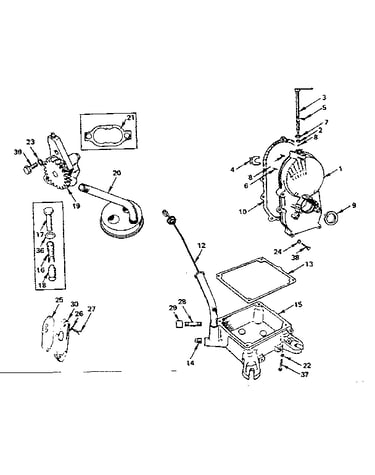

Gear cover, oil base and oil pump group diagram

Cap screw

Part #800-0056

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 853-0013
#27

Fuel system group diagram

Lock washer

Part #853-0013

The manufacturer no longer makes this part, and there's no substitute part

Washer 526-0066
Washer

Part #526-0066

The manufacturer no longer makes this part, and there's no substitute part

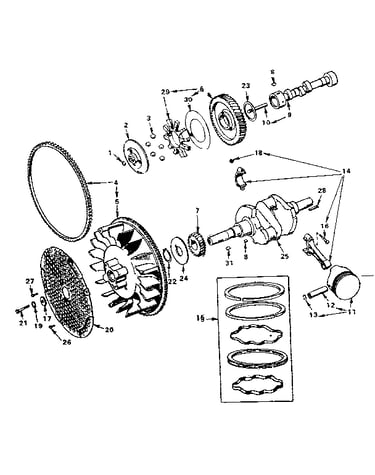

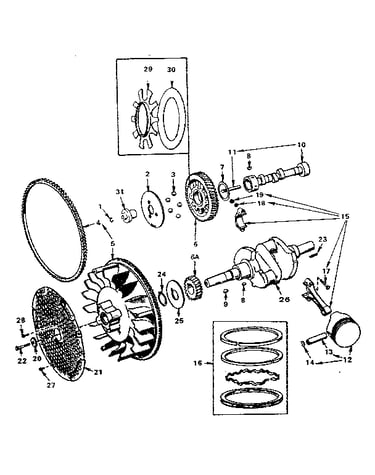

Ring 113-0186-30
#15E

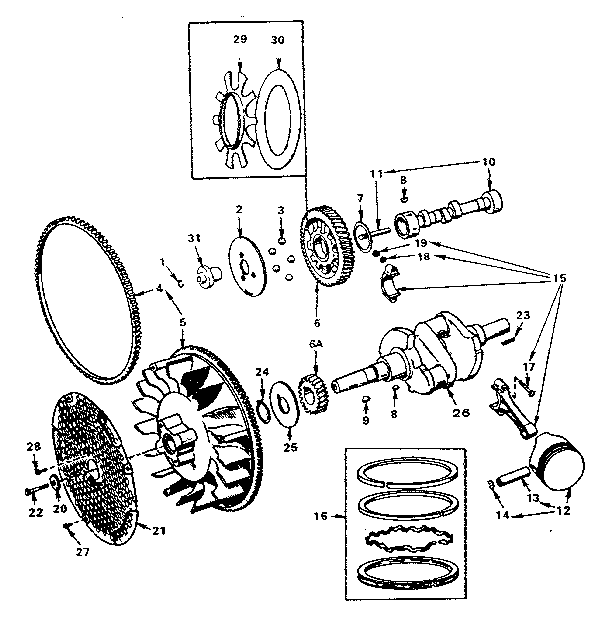

Crankshaft, flywheel, camshaft and piston group diagram

Ring

Part #113-0186-30

The manufacturer no longer makes this part, and there's no substitute part

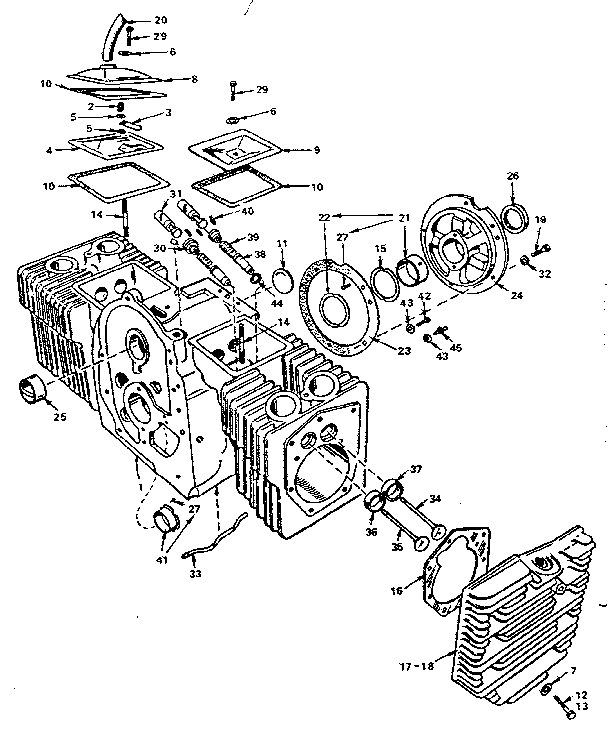

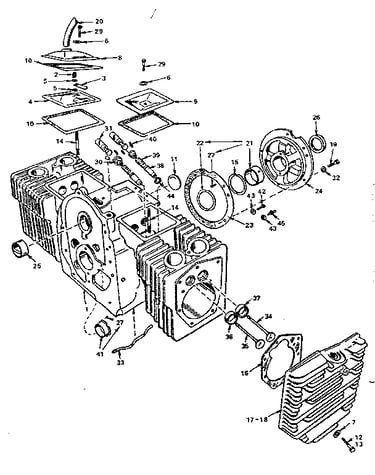

Breather Tube 123-1277
#14

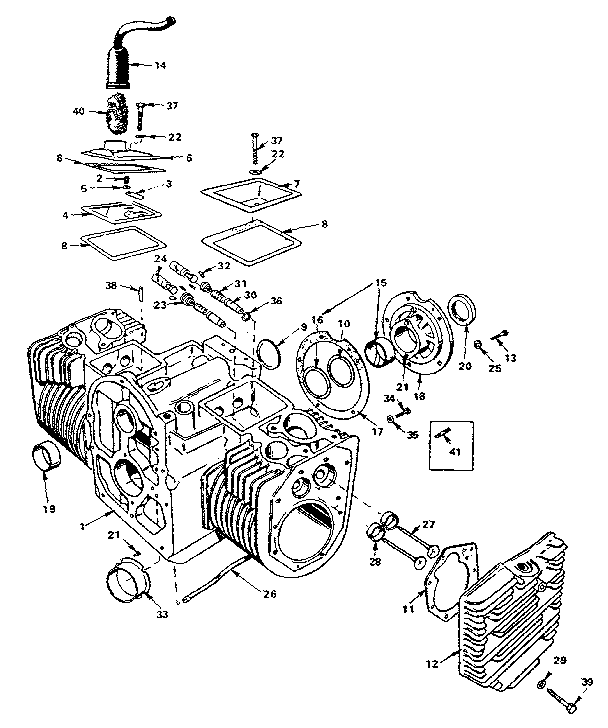

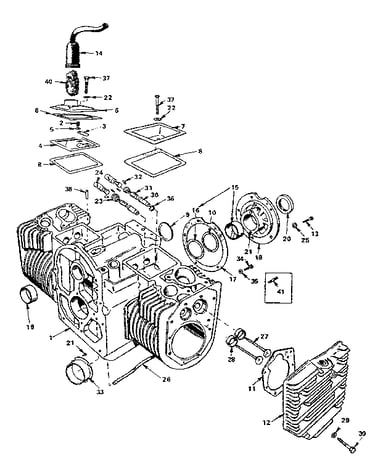

Cylinder block group (for model bg-ms/3344a only) diagram

Breather tube

Part #123-1277

The manufacturer no longer makes this part, and there's no substitute part

Washer 191-1046
#3

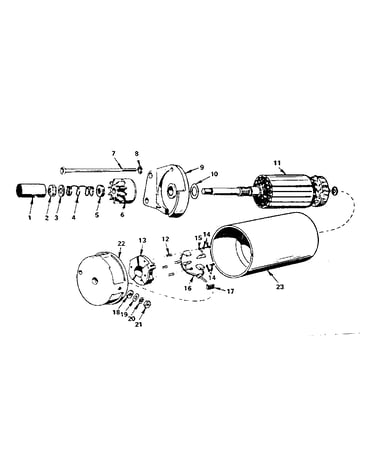

Starter parts group diagram

Washer

Part #191-1046

The manufacturer no longer makes this part, and there's no substitute part

Plate 142-0552
#26

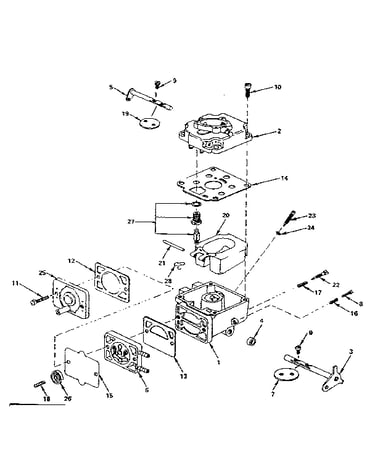

Carburetor parts group diagram

Plate

Part #142-0552

The manufacturer no longer makes this part, and there's no substitute part
