Hoover
Handheld Vacuum

Model # S1095 Official Hoover handheld vacuum

Here are the diagrams and repair parts for Official Hoover S1095 handheld vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |
Attachment Cord 46388004
#2

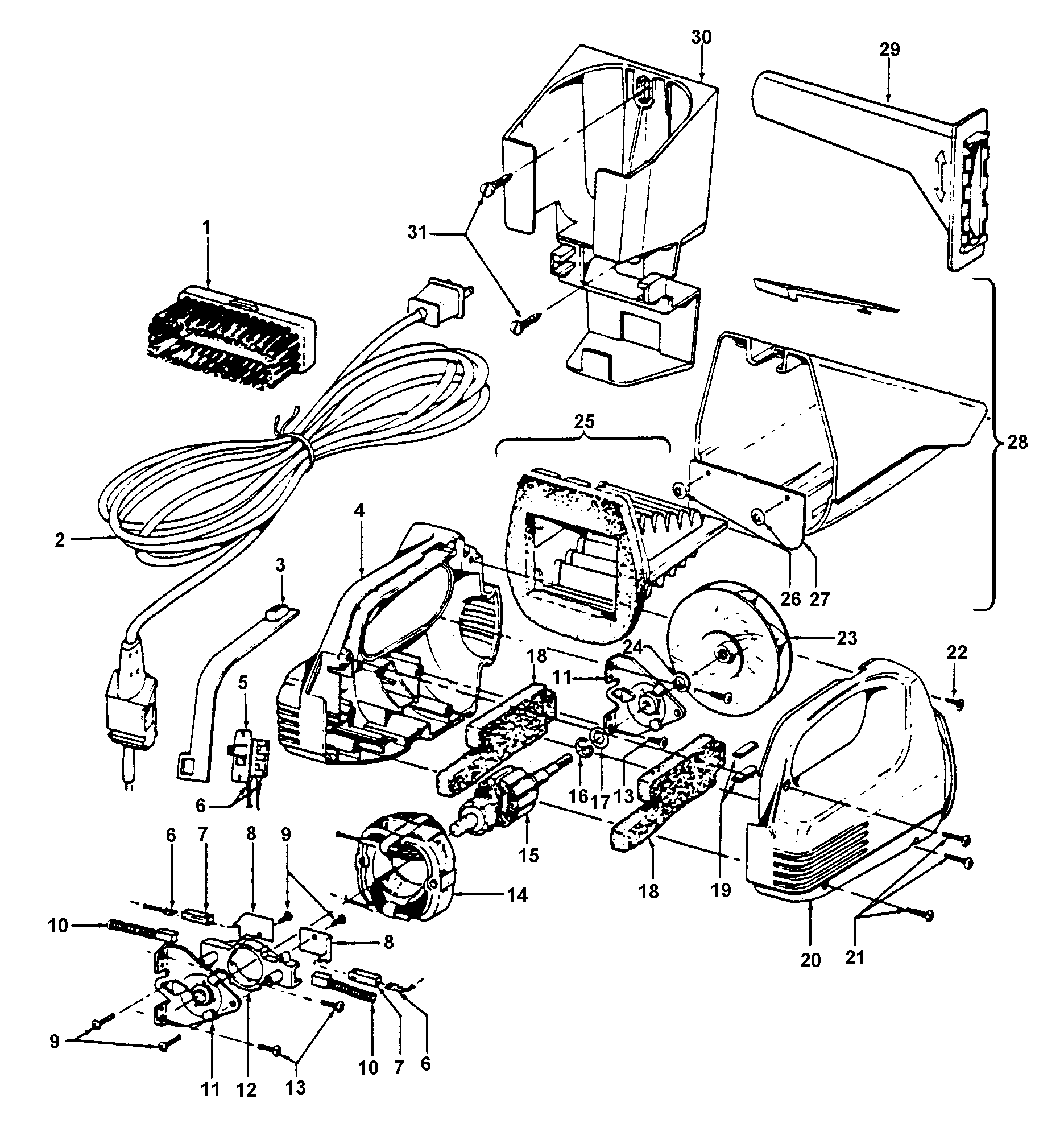

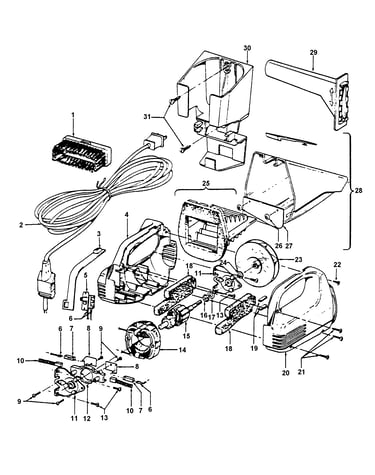

Mainhousing, cleaningtools, motorhsg diagram

Attachment cord

Part #46388004

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Terminal 27666702
#6

Mainhousing, cleaningtools, motorhsg diagram

Kenmore terminal

Part #27666702

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 48451001
#1

Mainhousing, cleaningtools, motorhsg diagram

Vacuum dust brush

Part #48451001

The manufacturer no longer makes this part, and there's no substitute part

Filter, 1-pack 43615051
#25

Mainhousing, cleaningtools, motorhsg diagram

Filter, 1-pack

Part #43615051

The manufacturer no longer makes this part, and there's no substitute part

Screw Packet-s1073 40201053
#31

Mainhousing, cleaningtools, motorhsg diagram

Screw packet-s1073

Part #40201053

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 38617009
#29

Mainhousing, cleaningtools, motorhsg diagram

Crevice tool

Part #38617009

The manufacturer no longer makes this part, and there's no substitute part

#35 Connecting Link- N/P
#35 connecting link-

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Screw 3600 017001--
#13

Mainhousing, cleaningtools, motorhsg diagram

Screw 3600

Part #017001--

The manufacturer no longer makes this part, and there's no substitute part

Lock Ring 013730--
#16

Mainhousing, cleaningtools, motorhsg diagram

Lock ring

Part #013730--

The manufacturer no longer makes this part, and there's no substitute part

Switch 281770KD
#5

Mainhousing, cleaningtools, motorhsg diagram

Switch

Part #281770KD

The manufacturer no longer makes this part, and there's no substitute part
