Model # AW05280K Official Samsung air conditioner

Here are the diagrams and repair parts for Official Samsung AW05280K air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

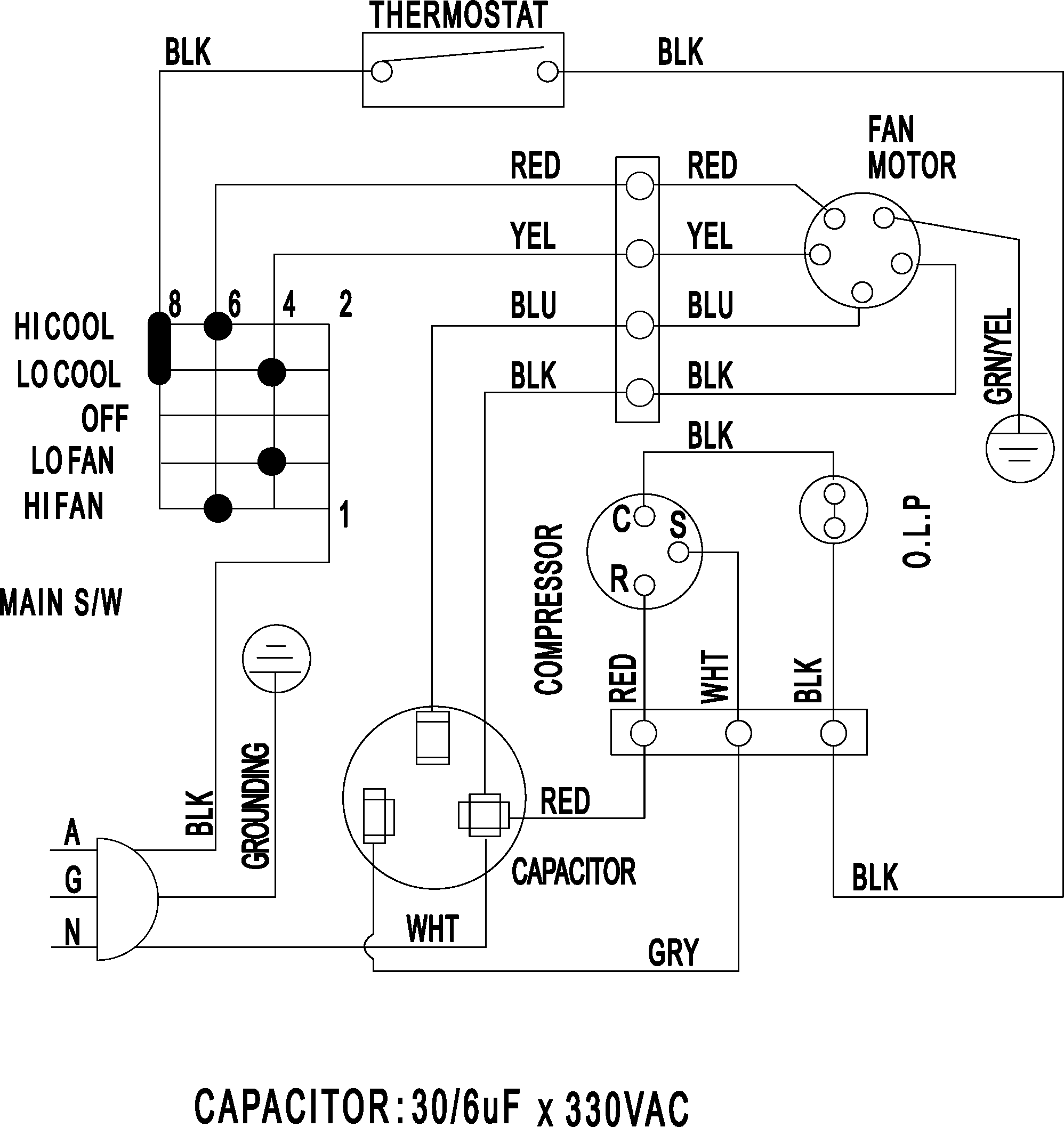

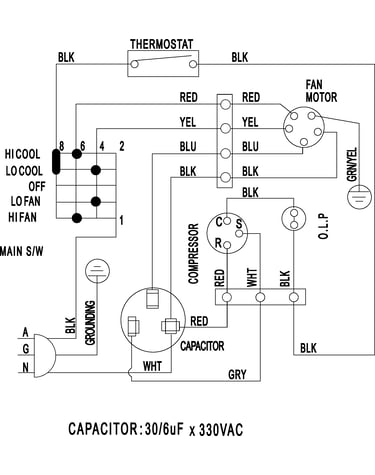

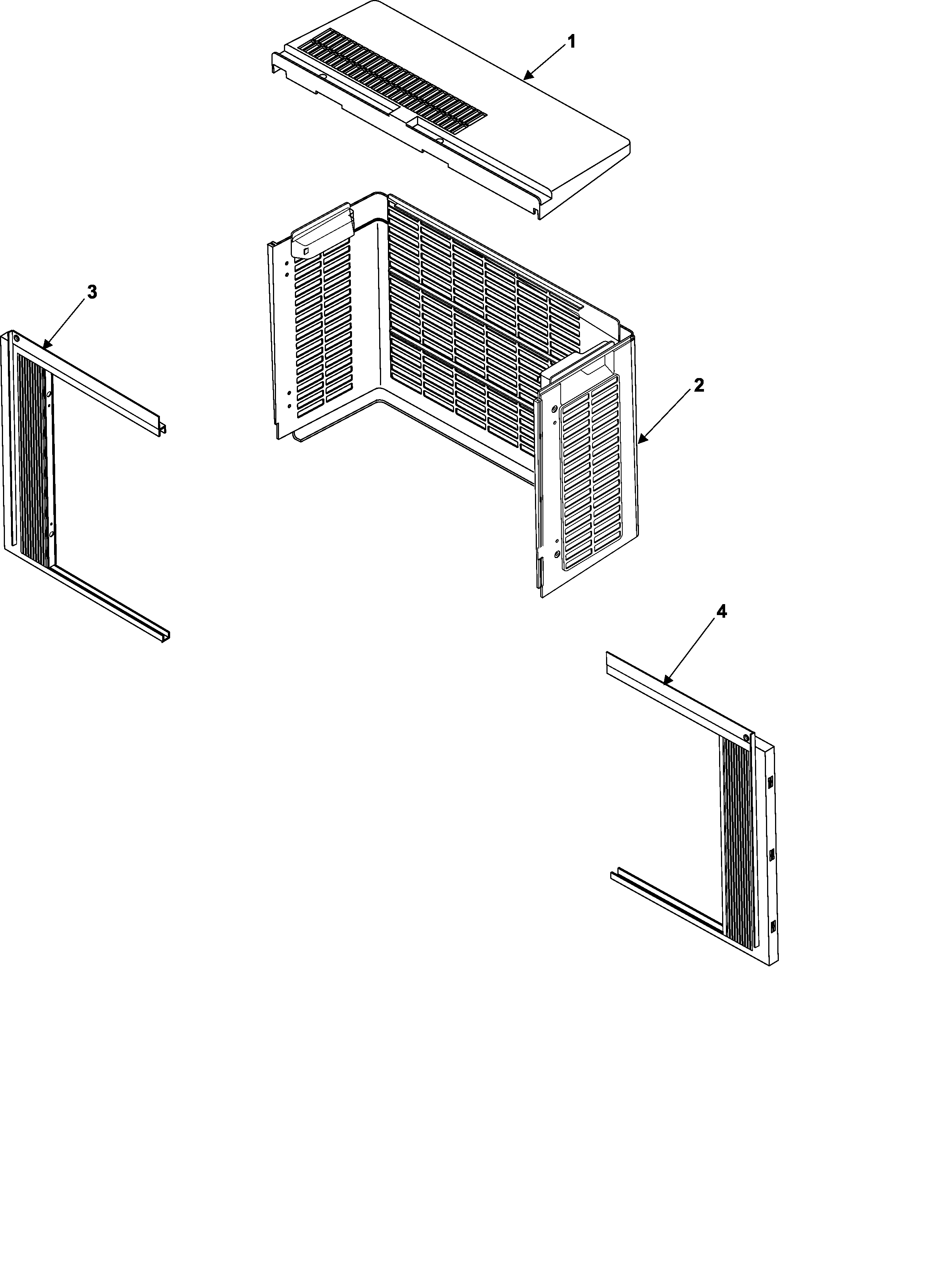

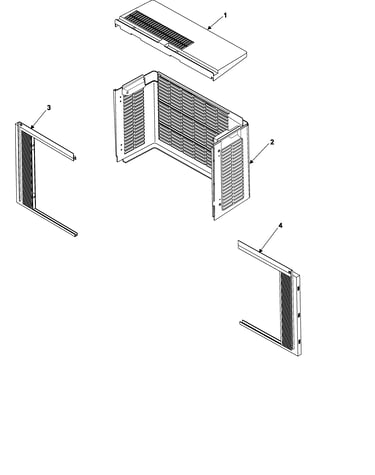

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Flange Nut DB60-30018A
#18

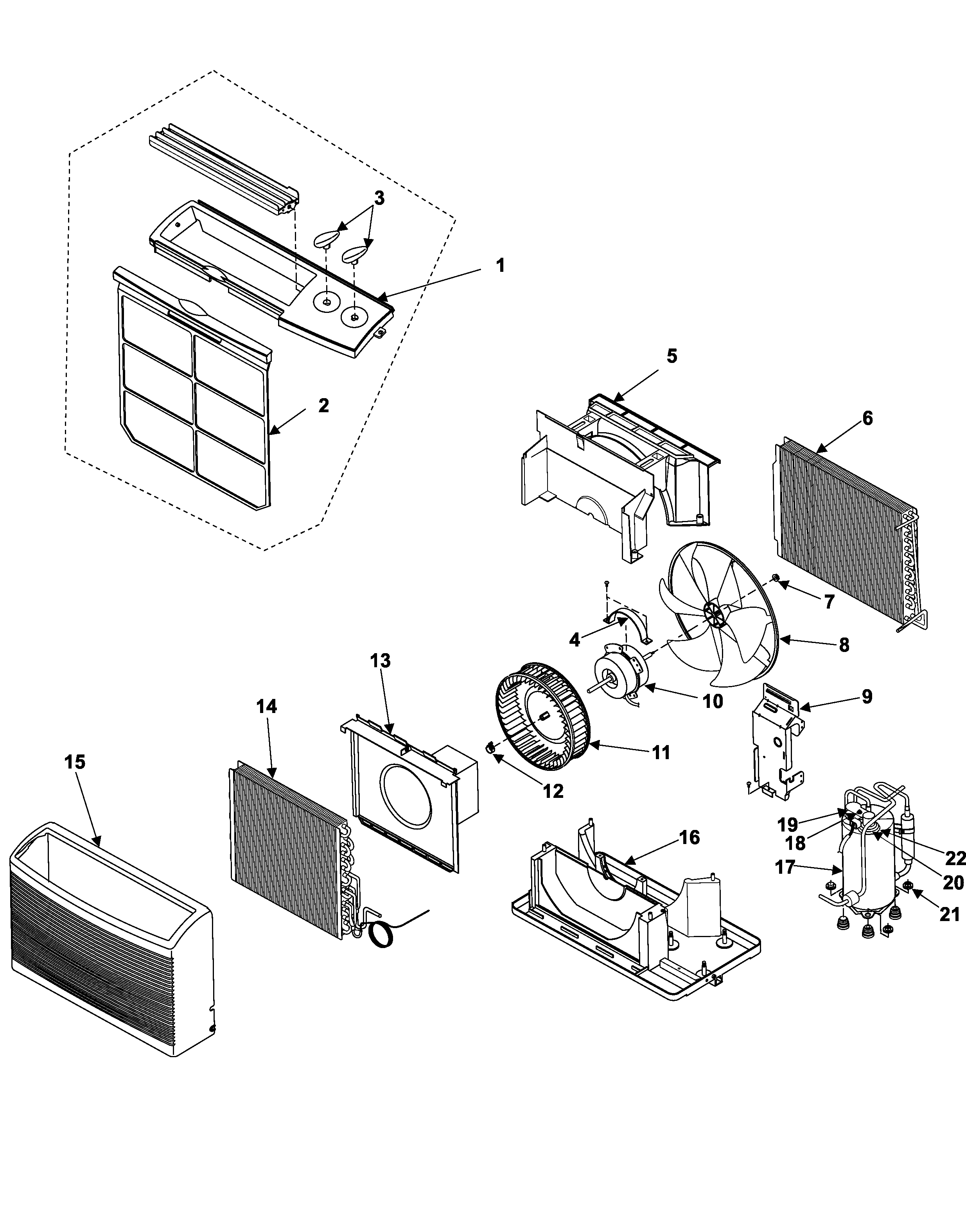

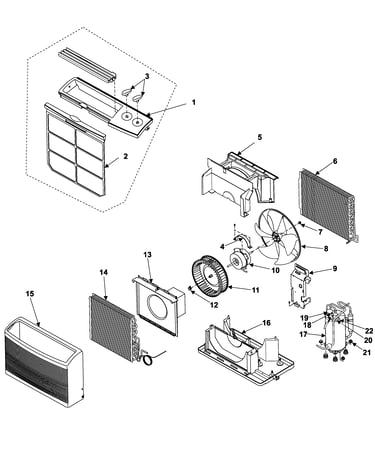

Chassis assembly diagram

Flange nut

Part #DB60-30018A

This item is not returnable
$2.59
In Stock
Control DB93-40648A
#1

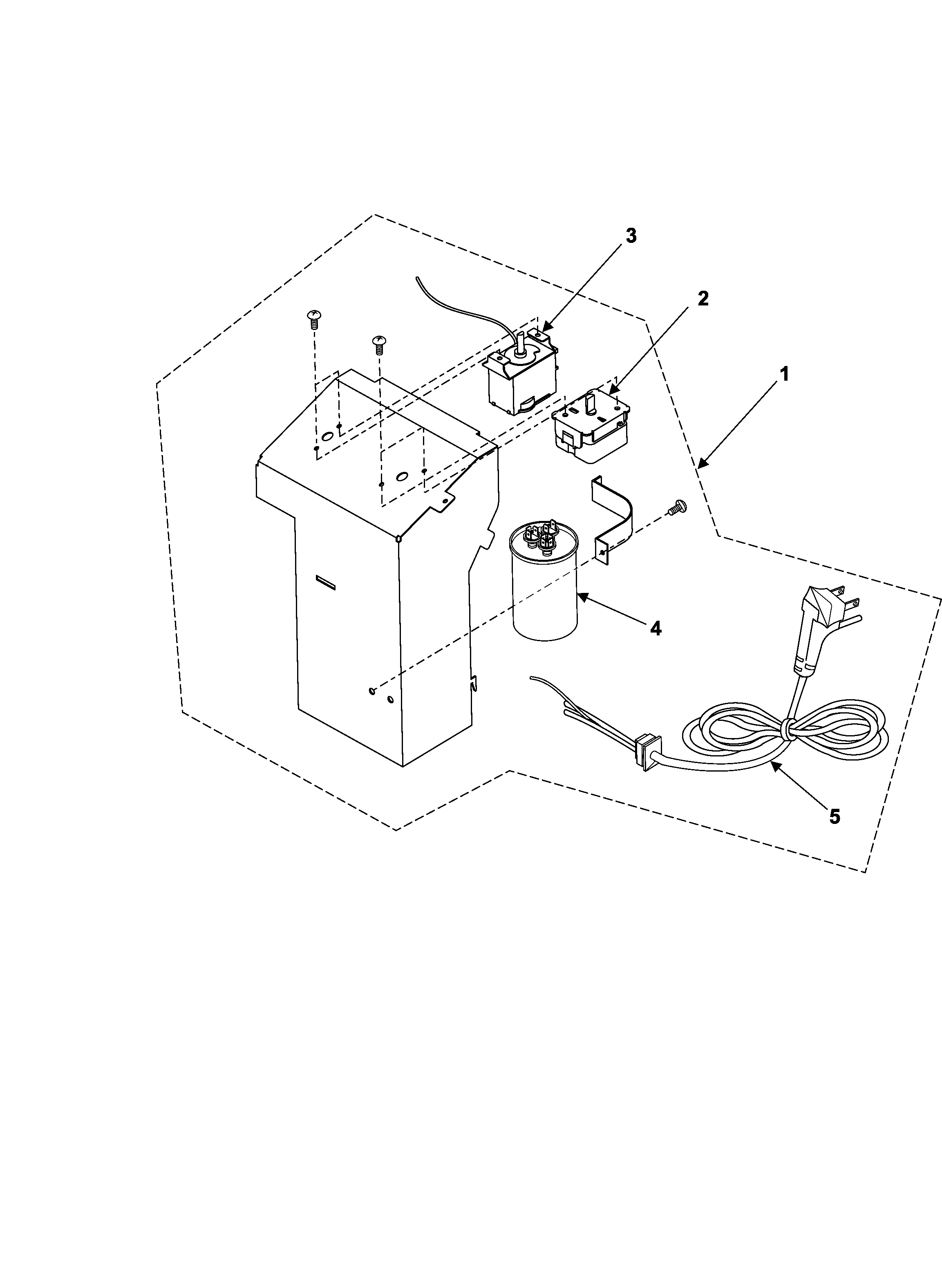

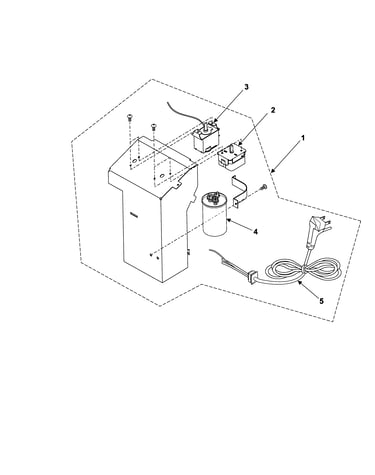

Control assembly diagram

Control

Part #DB93-40648A

The manufacturer no longer makes this part, and there's no substitute part

Samsung, Room Air SAM0126
#1

Supplemental information diagram

Samsung, room air

Part #SAM0126

The manufacturer no longer makes this part, and there's no substitute part

Overload Protector DB47-20002F
#20

Chassis assembly diagram

Overload protector

Part #DB47-20002F

The manufacturer no longer makes this part, and there's no substitute part

Base Assembly DB90-20188A
#16

Chassis assembly diagram

Base assembly

Part #DB90-20188A

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower DB67-50071A
#11

Chassis assembly diagram

Air conditioner blower

Part #DB67-50071A

The manufacturer no longer makes this part, and there's no substitute part

Assy-inlay DB92-50028A
#1

Chassis assembly diagram

Assy-inlay

Part #DB92-50028A

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover DB63-10504A
#19

Chassis assembly diagram

Terminal cover

Part #DB63-10504A

The manufacturer no longer makes this part, and there's no substitute part

Frame Assembly DB90-50136A
#5

Chassis assembly diagram

Frame assembly

Part #DB90-50136A

The manufacturer no longer makes this part, and there's no substitute part

Filter DB74-10080A
#2

Chassis assembly diagram

Filter

Part #DB74-10080A

The manufacturer no longer makes this part, and there's no substitute part
