Model # GGF500PV1WW Official GE free standing gas range

Here are the diagrams and repair parts for Official GE GGF500PV1WW free standing gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

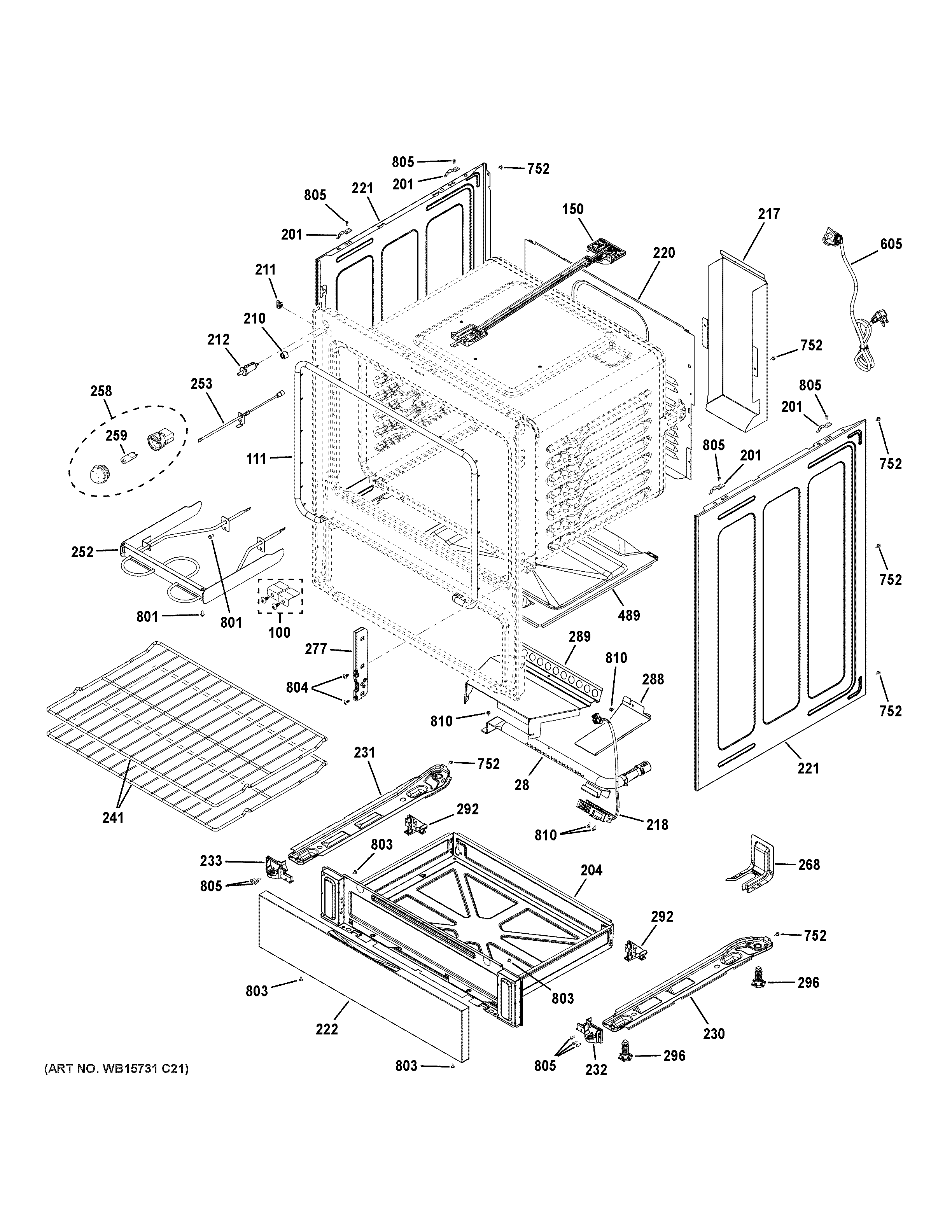

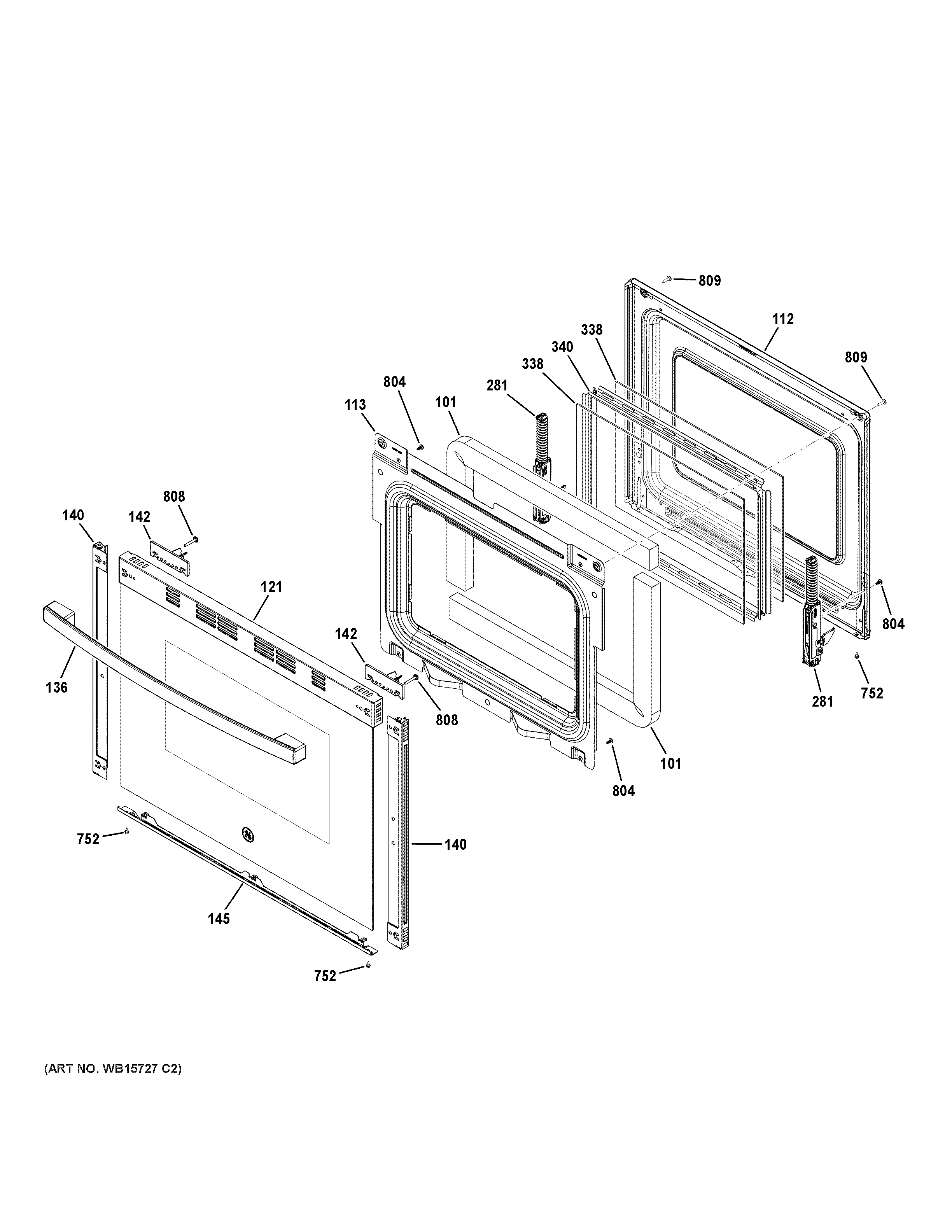

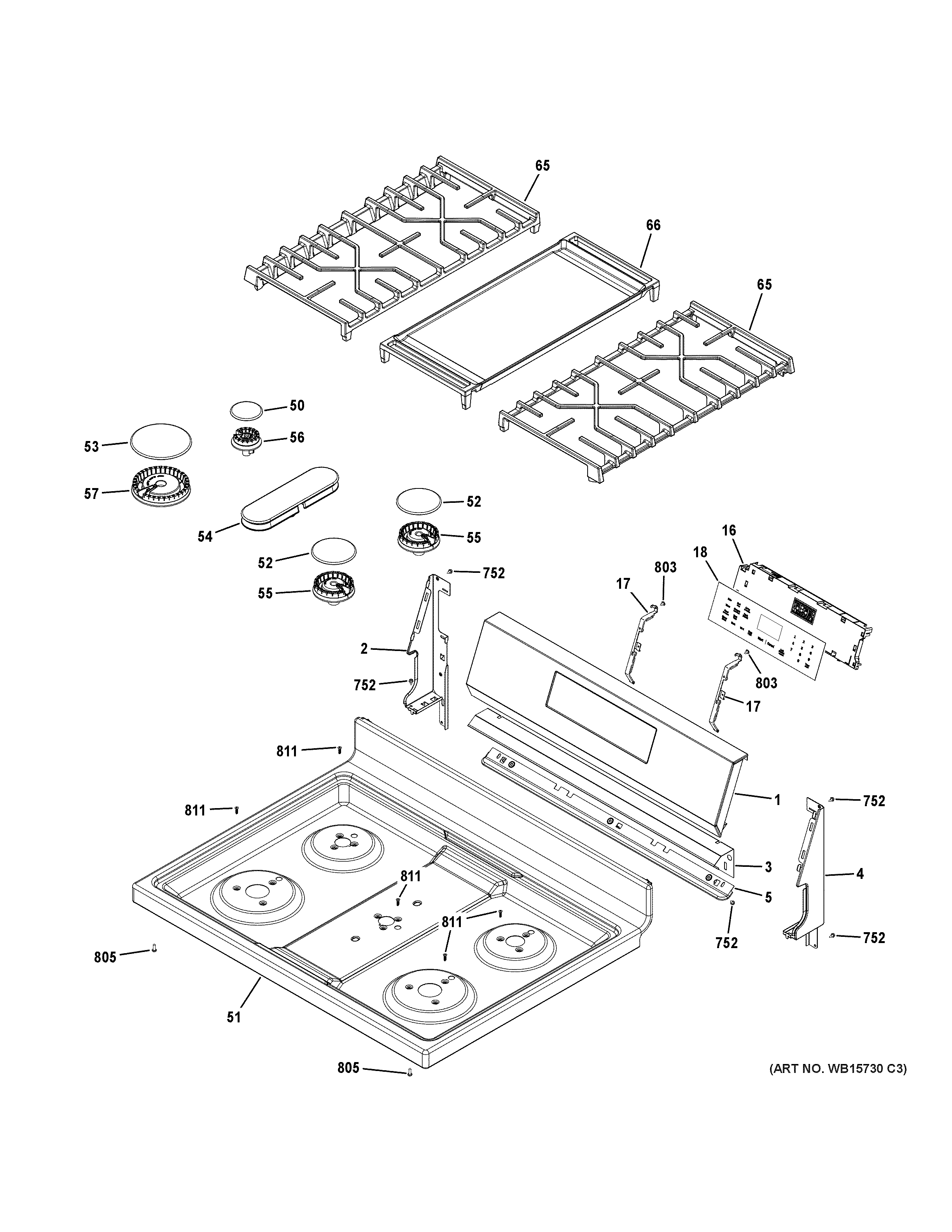

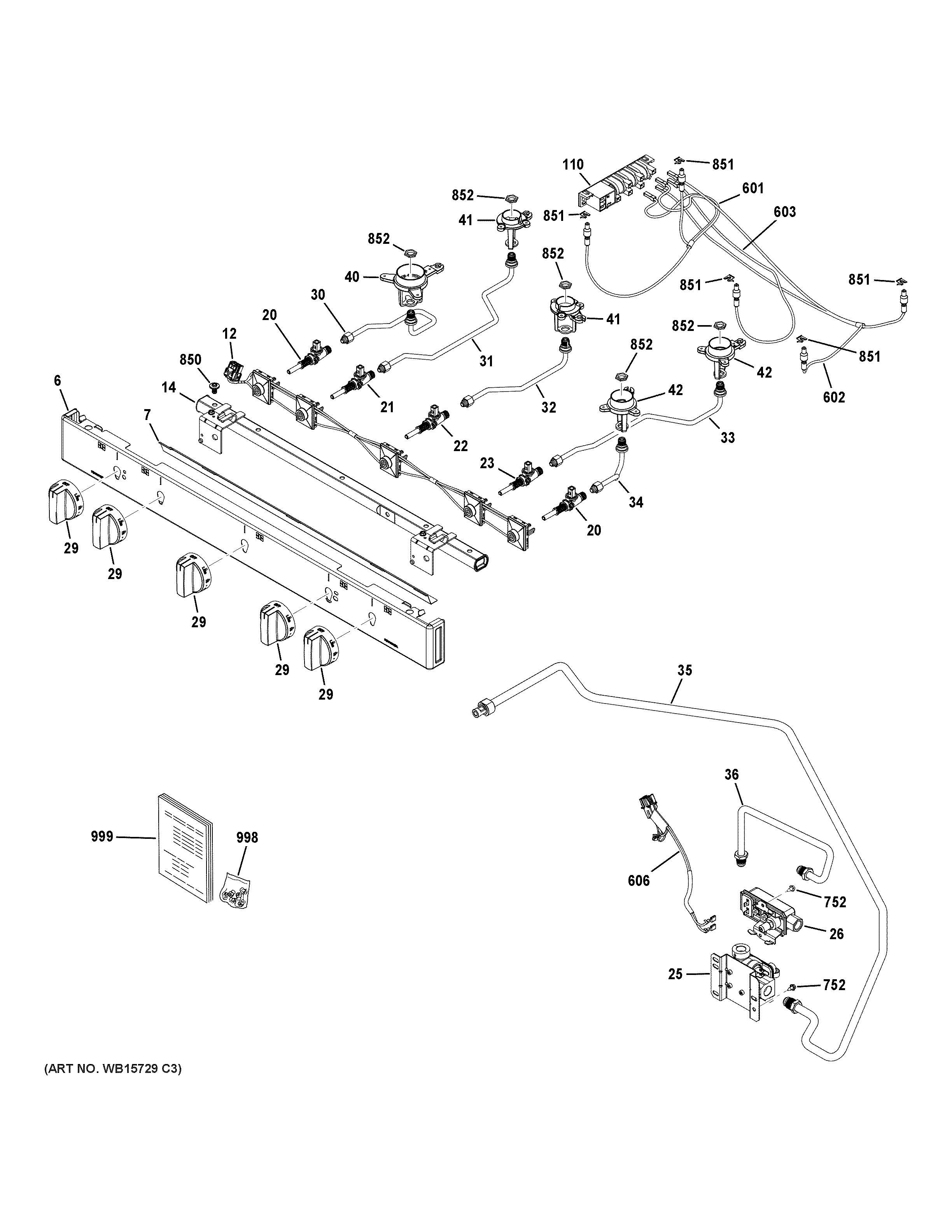

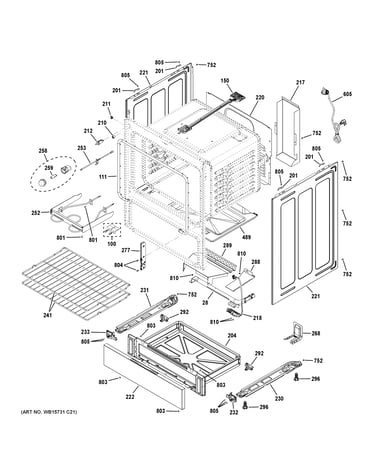

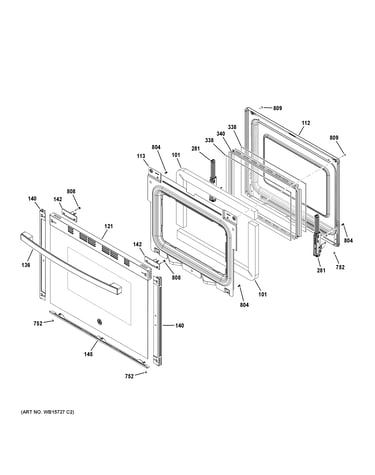

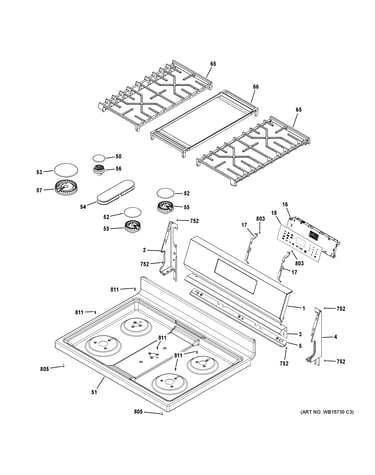

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Range Extra Large Surface Burner, 18,000-btu WB16X24722
Range extra large surface burner, 18,000-btu

Part #WB16X24722

BEST SELLER
This item is not returnable
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Range Surface Burner Valve WB21X20612
Range surface burner valve

Part #WB21X20612

BEST SELLER
This item is not returnable
$22.33 |
21% OFF Phone Price : $28.33
In Stock
Range Surface Burner Valve WB21X20470
Range surface burner valve

Part #WB21X20470

BEST SELLER
$28.44 |
17% OFF Phone Price : $34.44
In Stock
Injet, Xl V2 WB02X24725
Injet, xl v2

Part #WB02X24725

BEST SELLER
$93.16 |
6% OFF Phone Price : $99.16
In Stock
Burner Valve WB21X25979
Burner valve

Part #WB21X25979

$23.18 |
21% OFF Phone Price : $29.18
In Stock
Range Surface Burner, Medium WB16X24724
Range surface burner, medium

Part #WB16X24724

This item is not returnable
$24.26 |
20% OFF Phone Price : $30.26
In Stock
Range Nut WB01K10037
Range nut

Part #WB01K10037

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Valve WB21X20471
Range surface burner valve

Part #WB21X20471

$28.44 |
17% OFF Phone Price : $34.44
In Stock
Scr 8 Hd 1/4 WB01K10067
Scr 8 hd 1/4

Part #WB01K10067

This item is not returnable
$7.92 |
11% OFF Phone Price : $8.92
In Stock
