Model # 917270020 Official Craftsman electric shredder

Here are the diagrams and repair parts for Official Craftsman 917270020 electric shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Carriage Bolt, 5/16-18 X 3/4-in STD533107
Carriage bolt, 5/16-18 x 3/4-in

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Tiller Handle Grip 8206H
#1

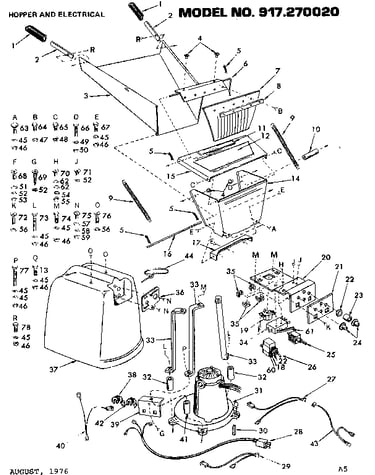

Hopper and electrical diagram

Tiller handle grip

Part #8206H

Replaced by #532008206

?
Manufacturer substitution
This part replaces 8206H. Substitute parts can look different from the original.
$17.11
In Stock
Bolt STD623110
#42

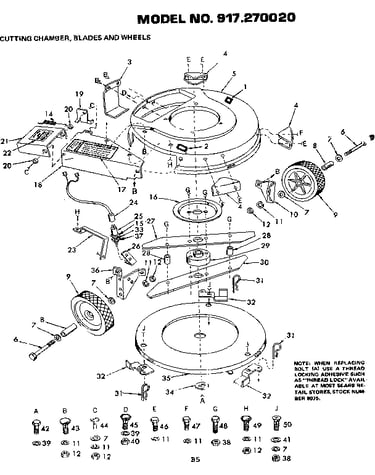

Cutting chamber, blades & wheels diagram

Bolt

Part #STD623110

The manufacturer no longer makes this part, and there's no substitute part

Screw 5533R
#1

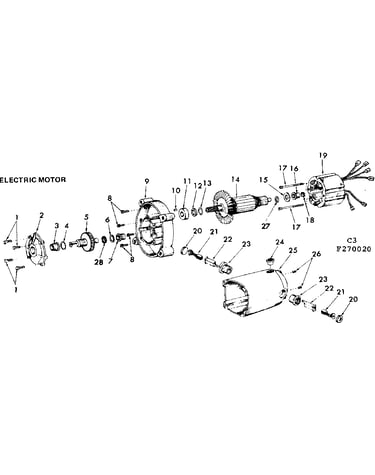

Electric motor diagram

Screw

Part #5533R

The manufacturer no longer makes this part, and there's no substitute part

Washer 5322R
#56

Hopper and electrical diagram

Washer

Part #5322R

The manufacturer no longer makes this part, and there's no substitute part

Blade Support 4564R
#29

Cutting chamber, blades & wheels diagram

Blade support

Part #4564R

The manufacturer no longer makes this part, and there's no substitute part

Blade 4658R
#30

Cutting chamber, blades & wheels diagram

Blade

Part #4658R

The manufacturer no longer makes this part, and there's no substitute part

Washer 5547R
#15

Electric motor diagram

Washer

Part #5547R

The manufacturer no longer makes this part, and there's no substitute part

Pan Head Machine Screw, #8-32 X 1/2-in STD510805
#68

Hopper and electrical diagram

Pan head machine screw, #8-32 x 1/2-in

Part #STD510805

The manufacturer no longer makes this part, and there's no substitute part

Gasket 5310R
#21

Hopper and electrical diagram

Gasket

Part #5310R

The manufacturer no longer makes this part, and there's no substitute part
