Model # MC-V731100 Official Panasonic vacuum

Here are the diagrams and repair parts for Official Panasonic MC-V731100 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

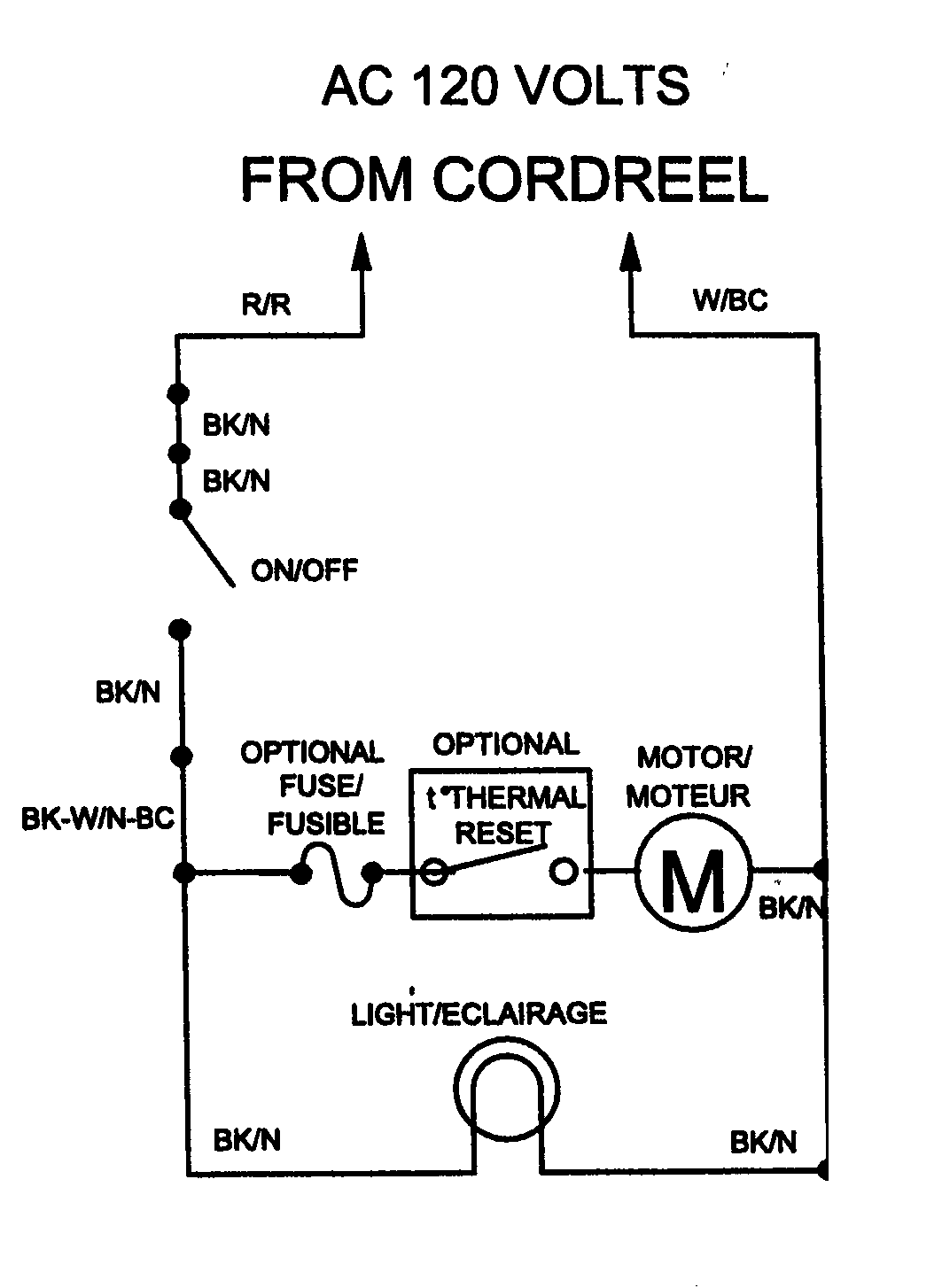

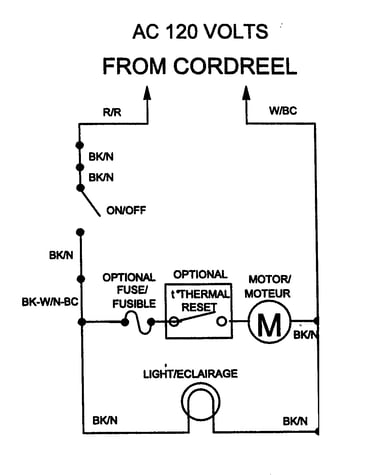

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Panasonic Lamp AC28GADFZ00
#A-23

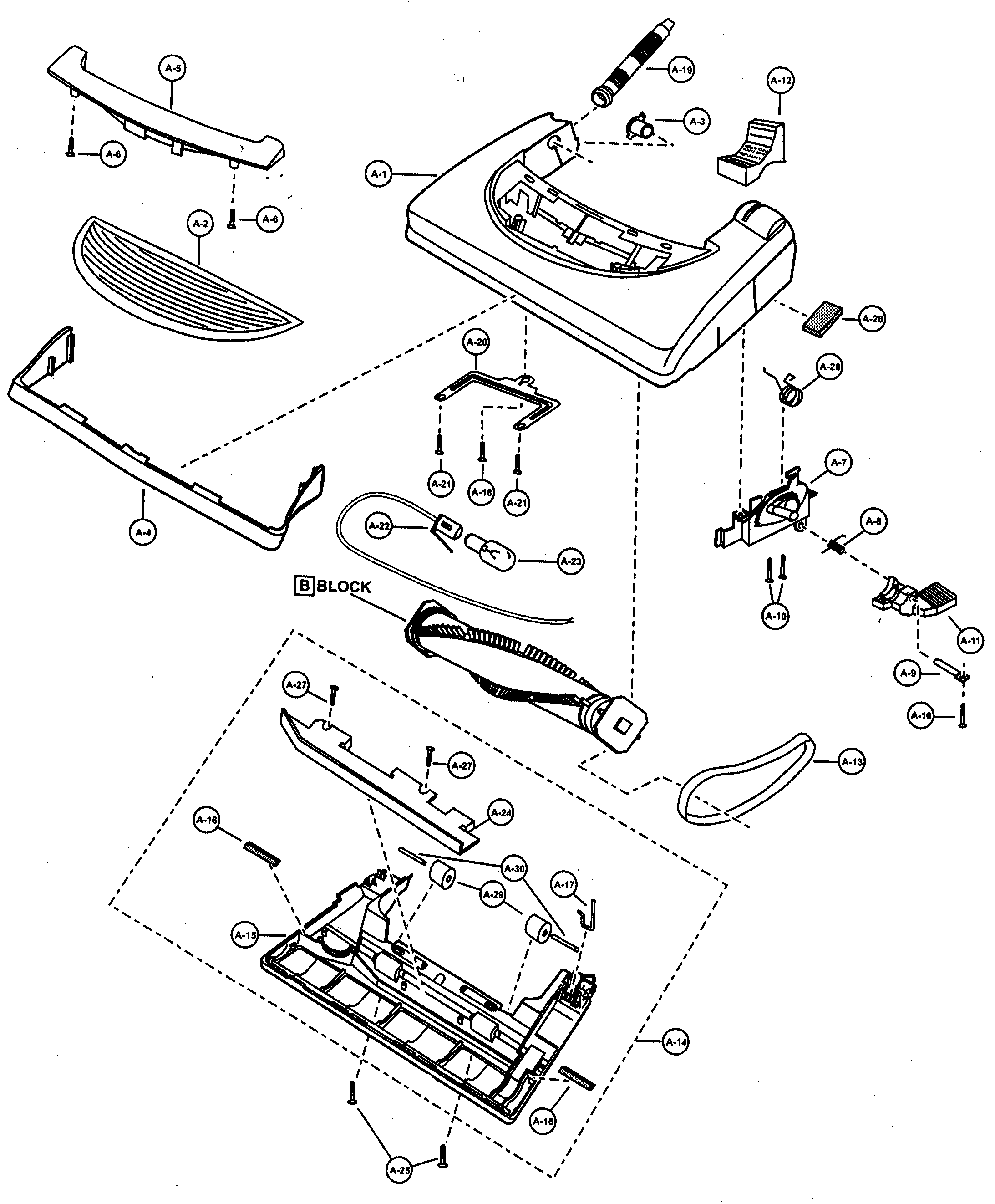

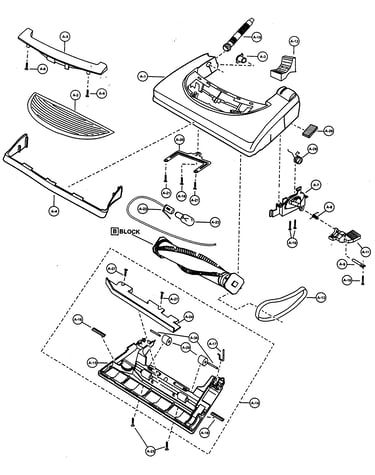

Nozzle housing diagram

Panasonic lamp

Part #AC28GADFZ00

This item is not returnable
$7.99
In Stock
Panasonic Pedal AMC47A-2V0U
#A-11

Nozzle housing diagram

Panasonic pedal

Part #AMC47A-2V0U

$8.99
In Stock
Panasonic Washr-10pk AMC681-424
#B-3

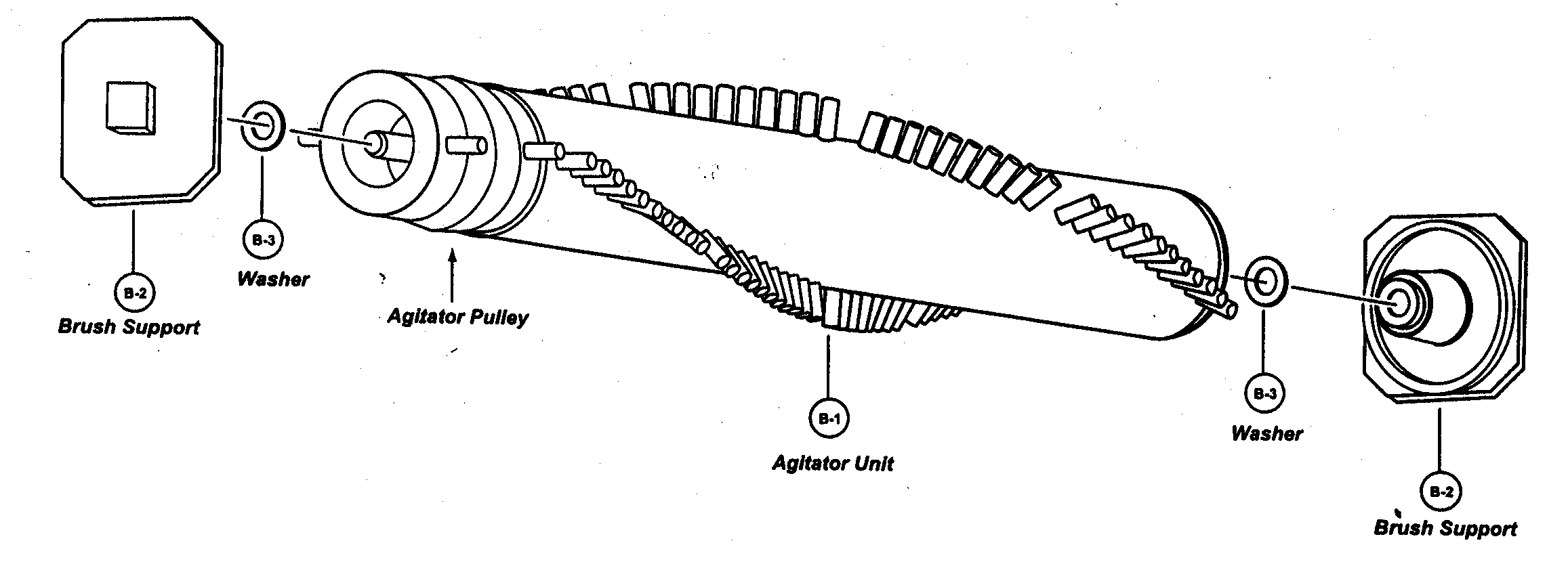

Agitator assy diagram

Panasonic washr-10pk

Part #AMC681-424

$14.49
In Stock
Panasonic Suppressor AC99GAMMZ00
#E-7

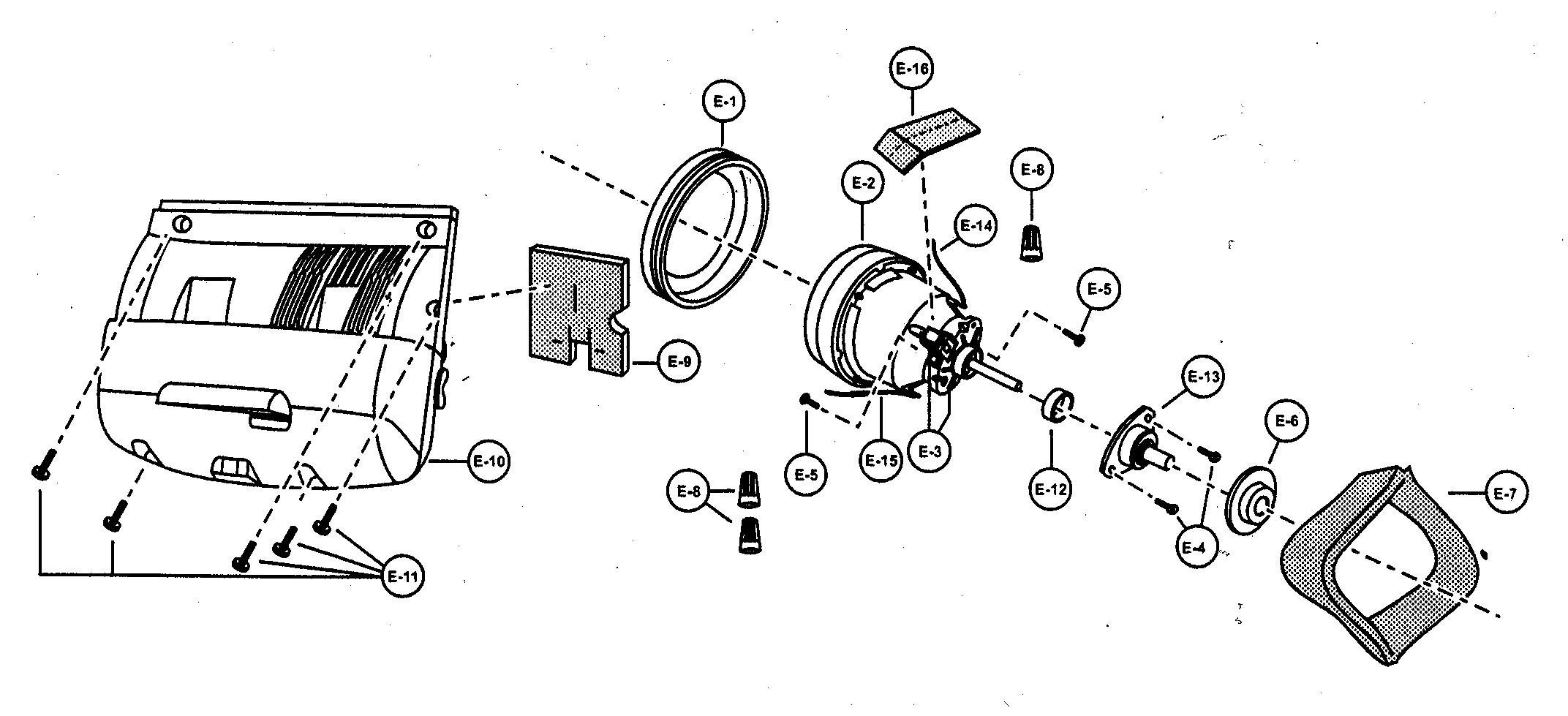

Dust bin diagram

Panasonic suppressor

Part #AC99GAMMZ00

$44.49
In Stock
Panasonic Spacer AC53MAKEZ00
#E-12

Dust bin diagram

Panasonic spacer

Part #AC53MAKEZ00

$8.49
In Stock
Panasonic Hose Ring AC43PAFXZV06
#D-10

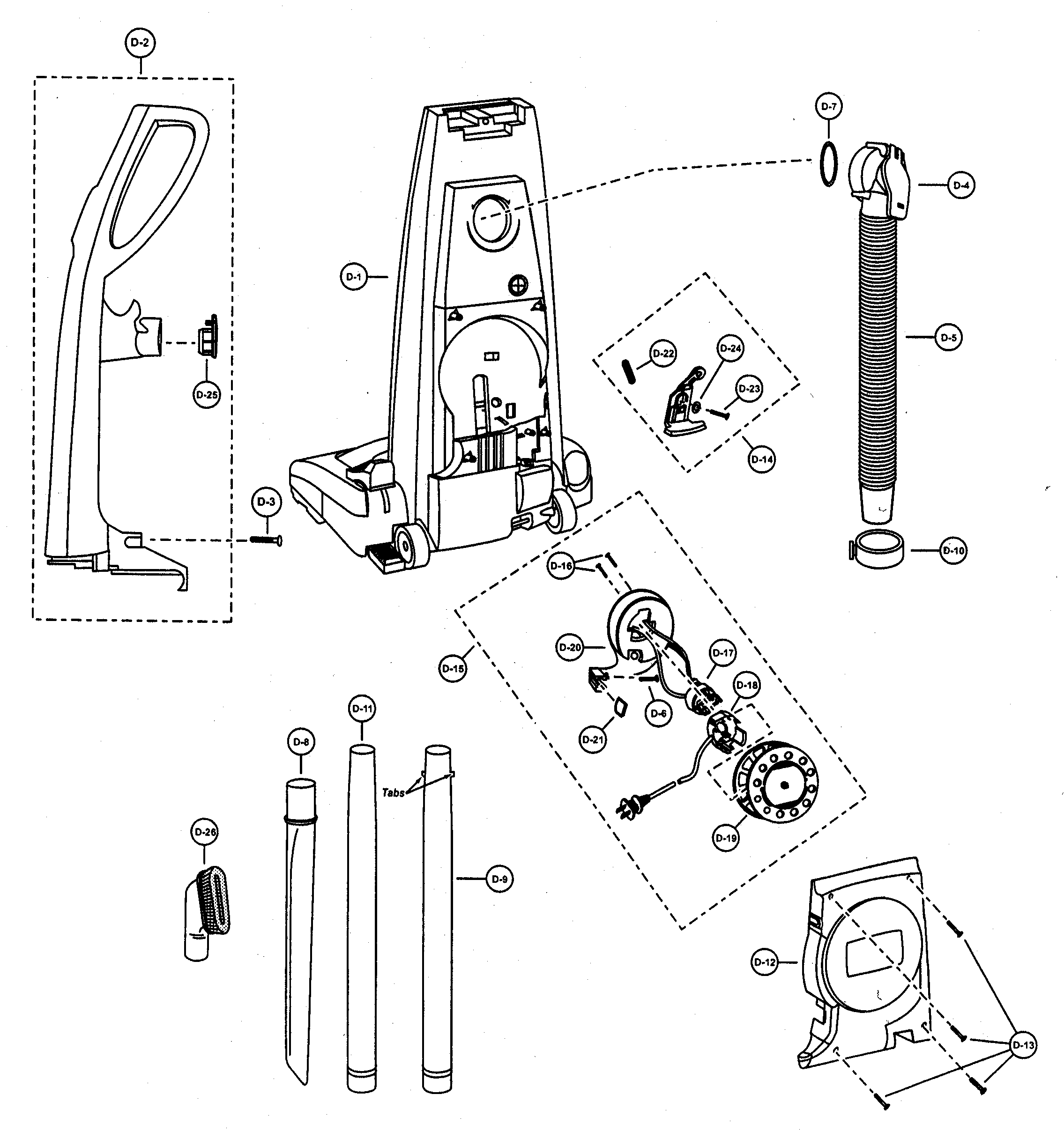

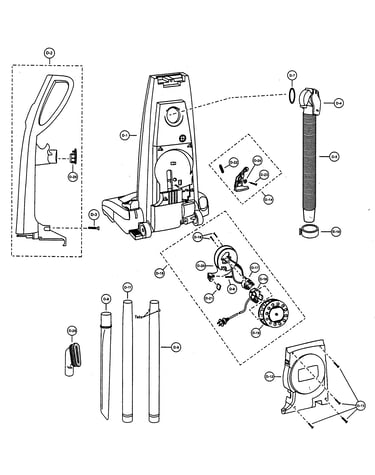

Body/handle/rear dust compartment diagram

Panasonic hose ring

Part #AC43PAFXZV06

$8.99
In Stock
Panasonic Plate AC91AATDZV07
#A-14

Nozzle housing diagram

Panasonic plate

Part #AC91AATDZV07

$70.99
In Stock
Panasonic Screw AC73BZAZ00
#D-3

Body/handle/rear dust compartment diagram

Panasonic screw

Part #AC73BZAZ00

This item is not returnable
$5.99
In Stock
Panasonic Filter AC37KATCZ00
#C-9

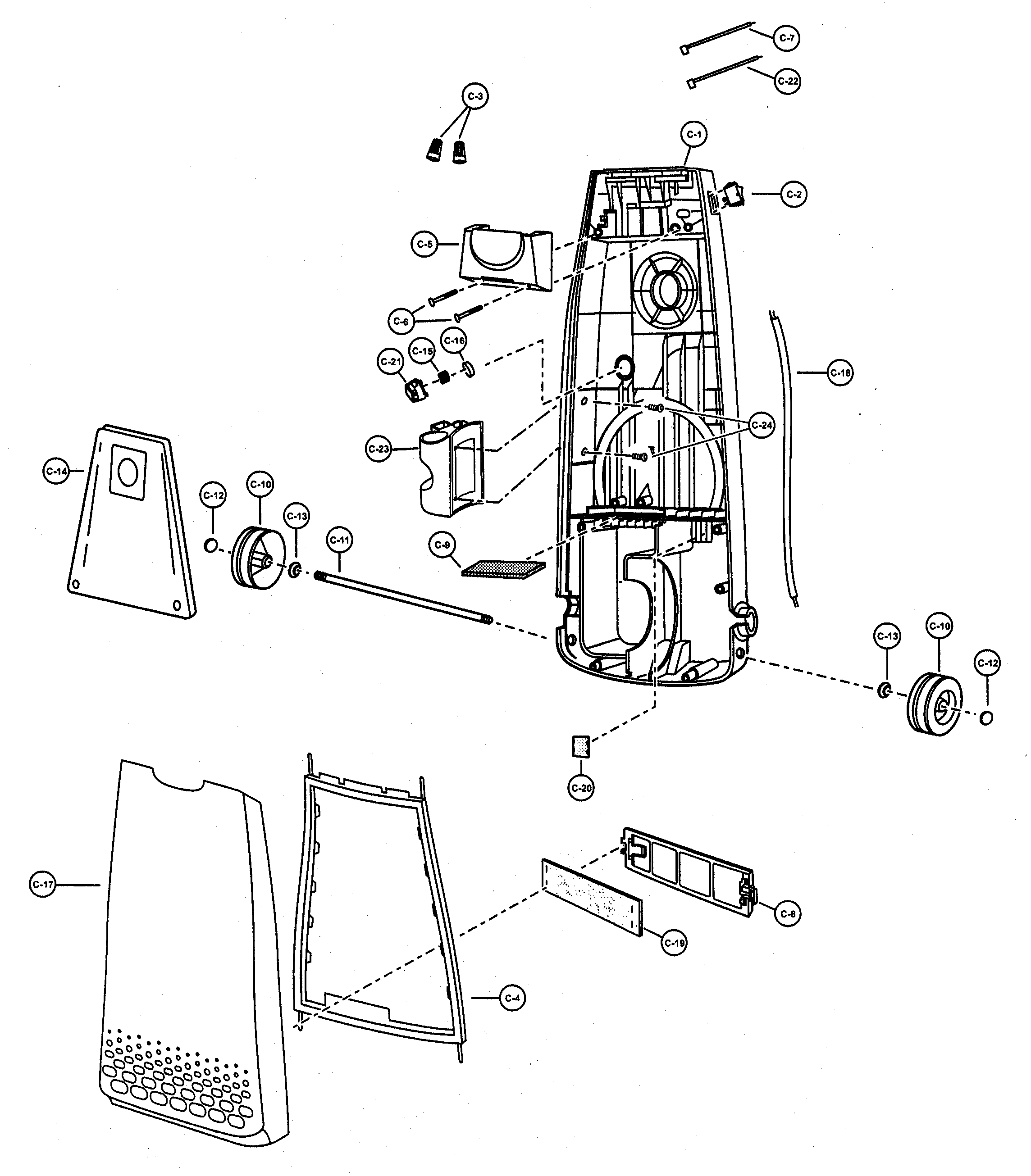

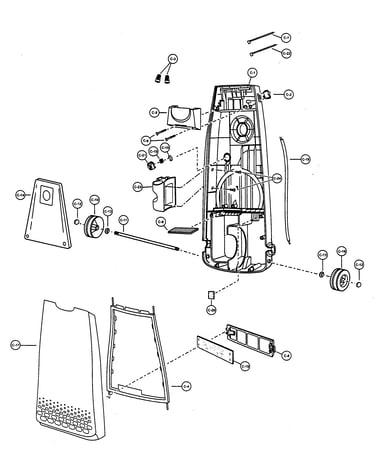

Motor housing/body diagram

Panasonic filter

Part #AC37KATCZ00

This item is not returnable

Get free shipping with Automatic Reorder

$5.99
In Stock
Panasonic Packing AC02LATEZ00
#E-9

Dust bin diagram

Panasonic packing

Part #AC02LATEZ00

This item is not returnable
$3.99
In Stock
