Model # RC519MP/P1199603M Official Amana commercial microwave

Here are the diagrams and repair parts for Official Amana RC519MP-P1199603M commercial microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

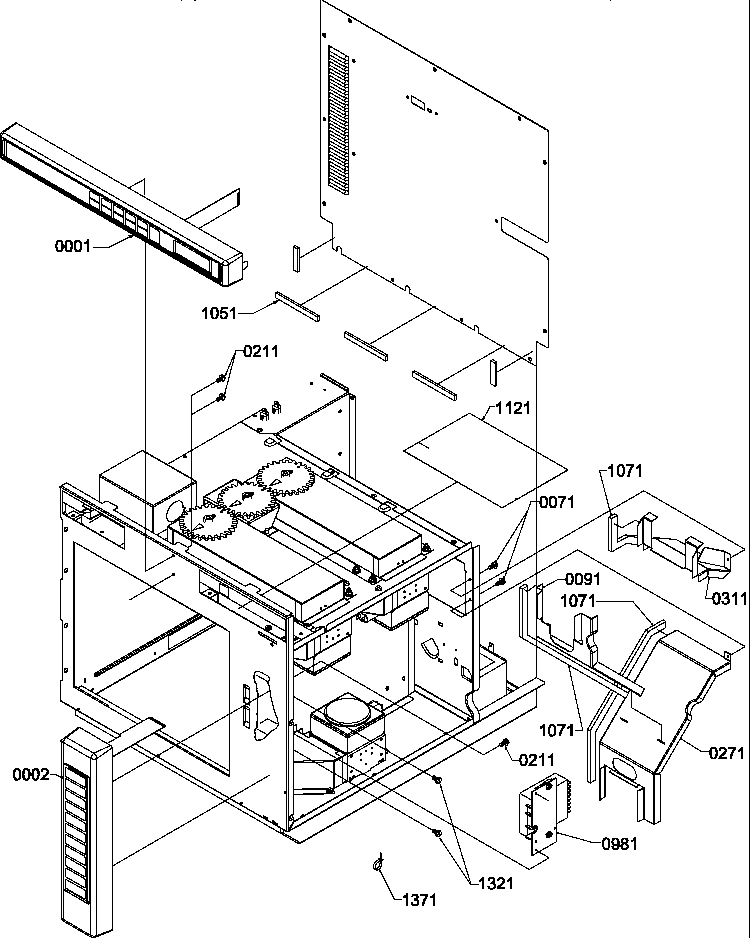

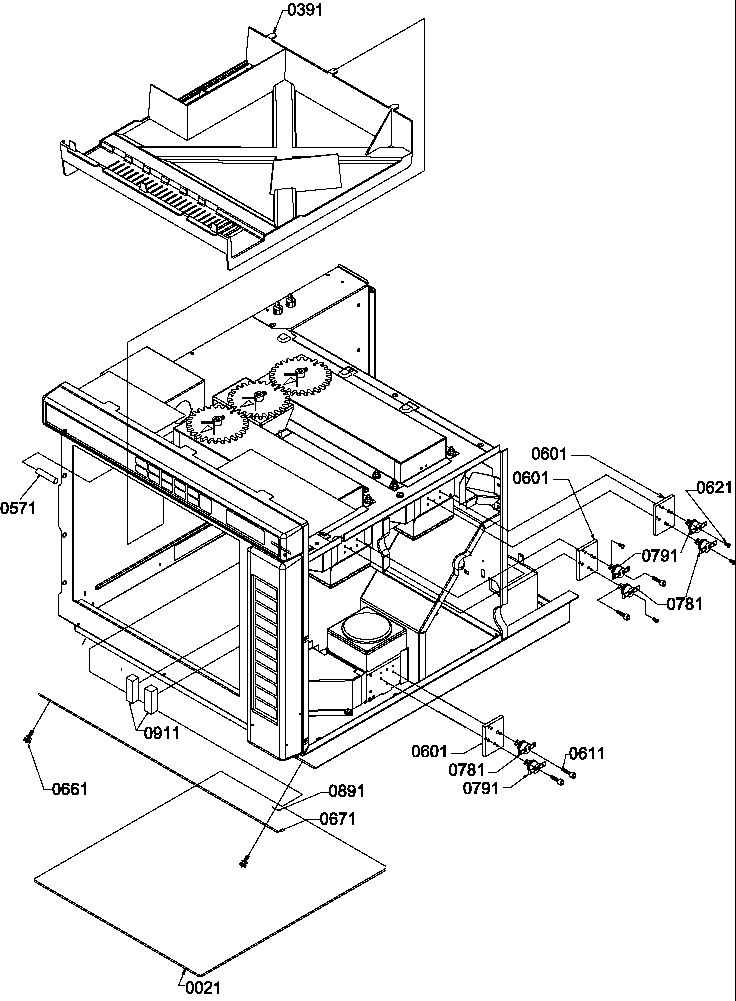

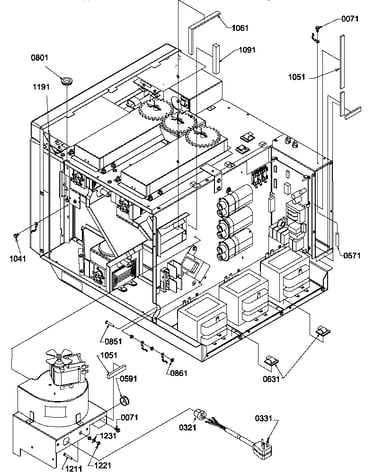

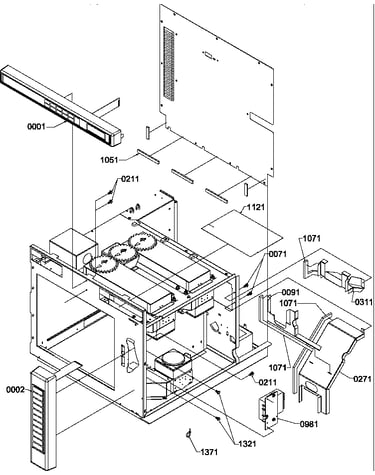

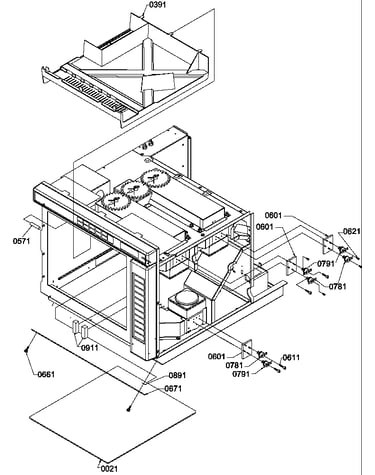

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Fuse M0805101
#1271

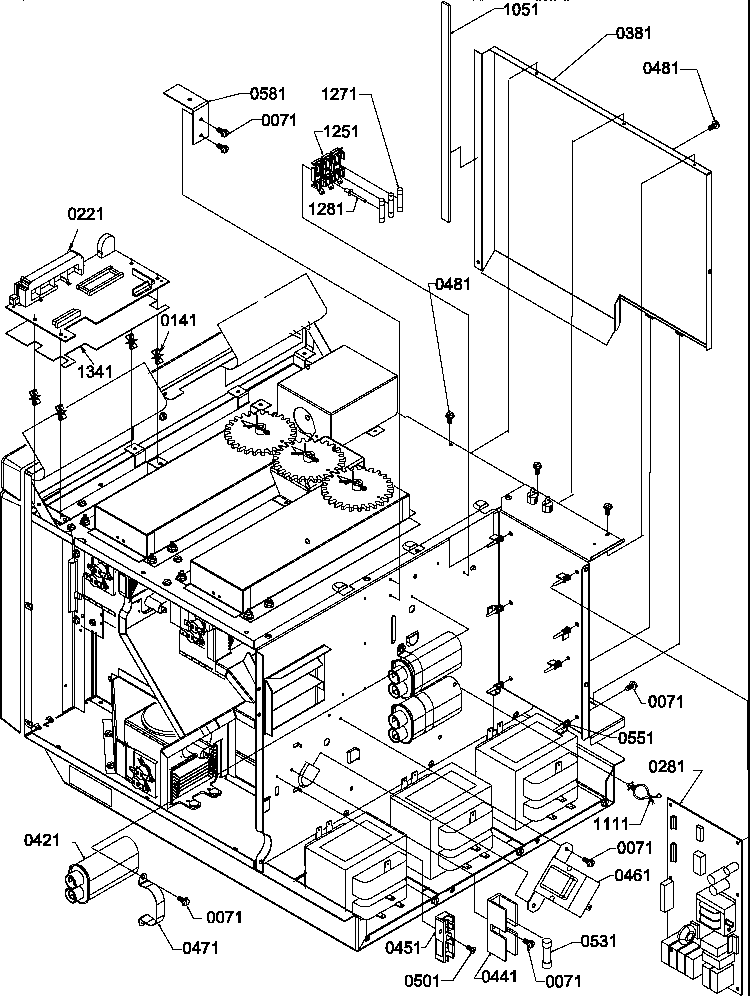

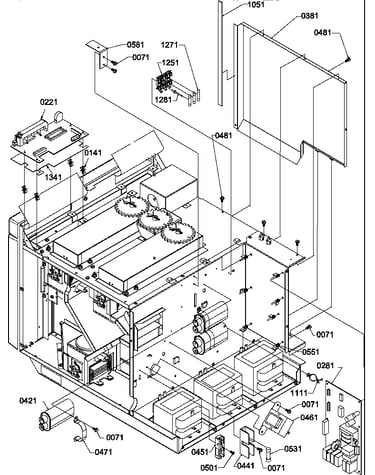

Electrical components diagram

Fuse

Part #M0805101

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces M0805101. Substitute parts can look different from the original.
$6.68 |
13% OFF Phone Price : $7.68
In Stock
Screw M0216515
Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Torx Screw M0216616
#371

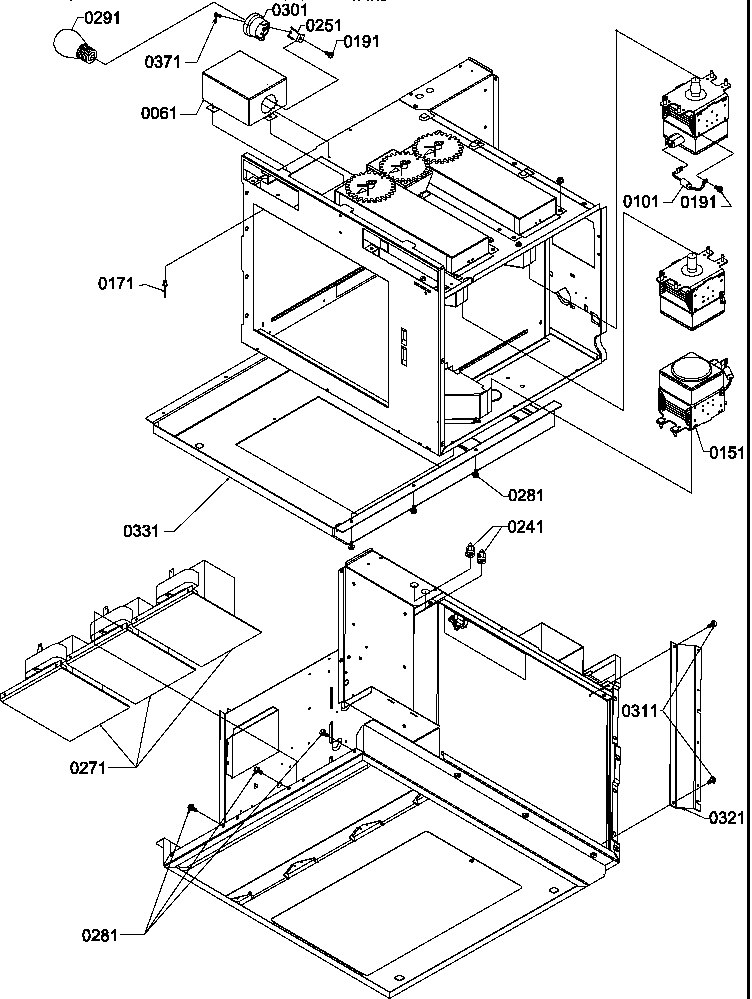

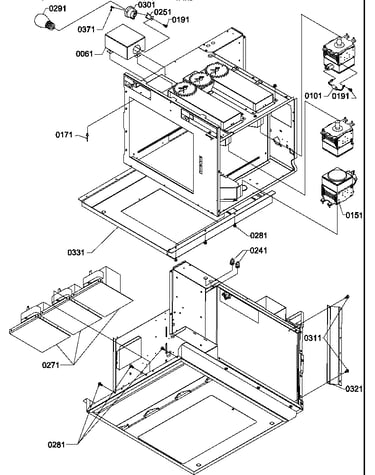

Magnetron/light diagram

Torx screw

Part #M0216616

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0216616. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Torx Screw M0234016
#241

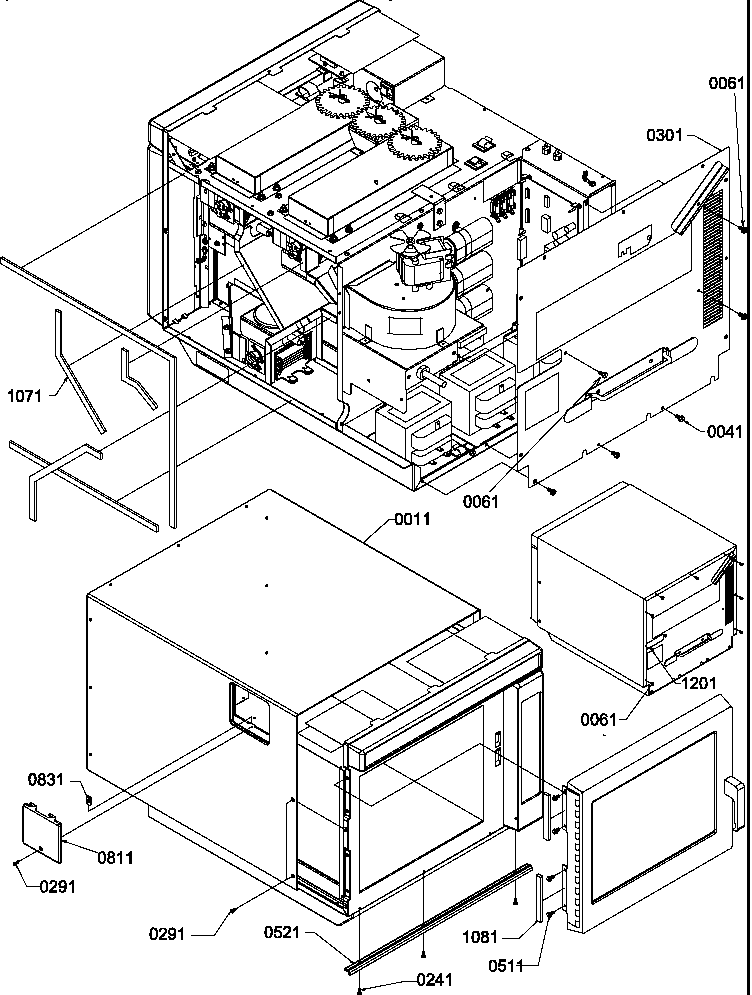

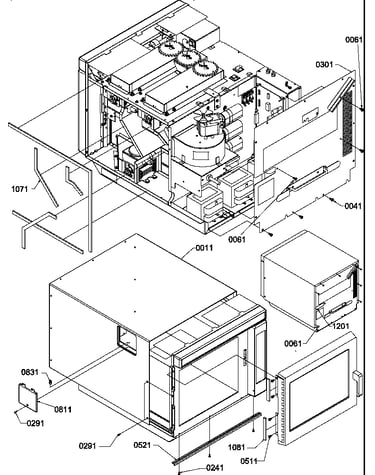

Outercase diagram

Torx screw

Part #M0234016

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0234016. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Lamp A0282802
#291

Magnetron/light diagram

Lamp

Part #A0282802

Replaced by #WP67002552

?
Manufacturer substitution
This part replaces A0282802. Substitute parts can look different from the original.
This item is not returnable
$3.59 |
22% OFF Phone Price : $4.59
In Stock
Diode B8383102
#101

Magnetron/light diagram

Diode

Part #B8383102

Replaced by #WP13091701

?
Manufacturer substitution
This part replaces B8383102. Substitute parts can look different from the original.
$23.01 |
21% OFF Phone Price : $29.01
In Stock

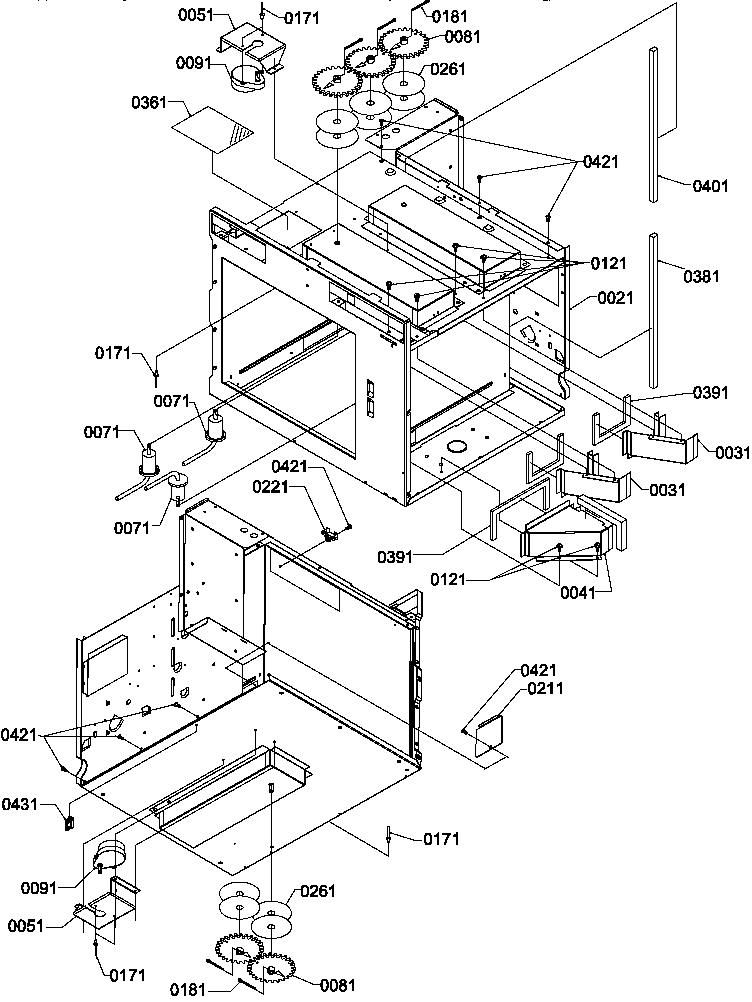

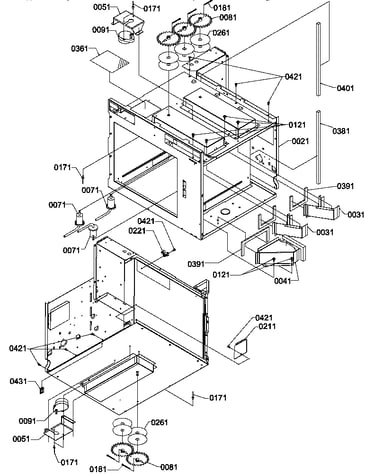

Screw M0234422
#421

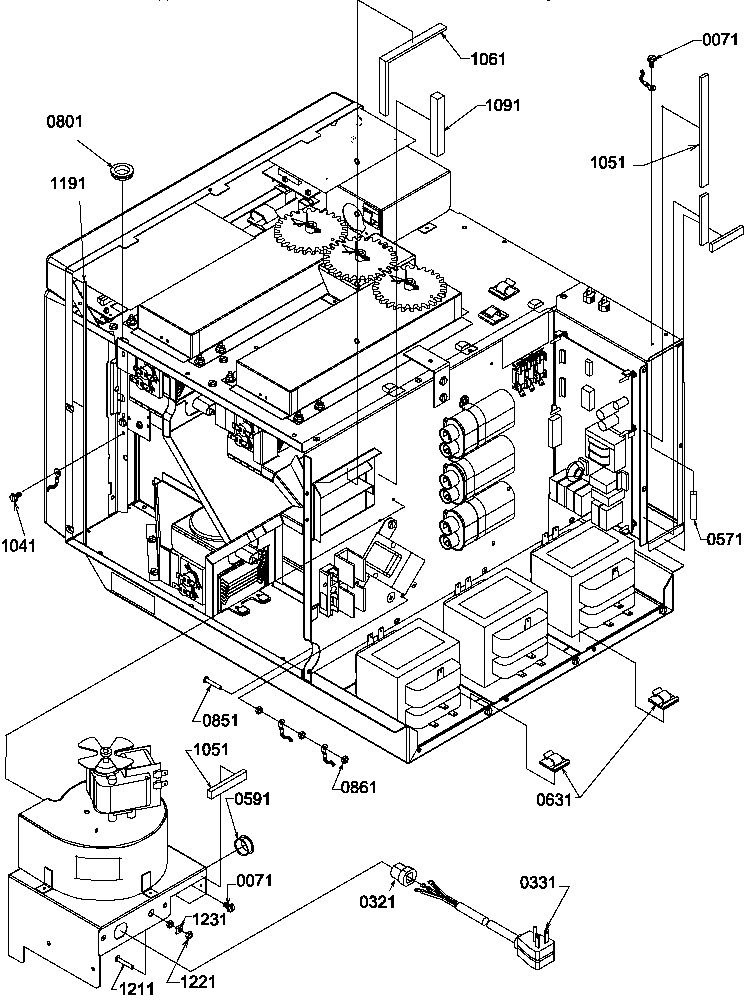

Chassis diagram

Screw

Part #M0234422

Replaced by #M0234422

?
Manufacturer substitution
This part replaces M0234422. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
Terminal Block B5677203
#451

Electrical components diagram

Terminal block

Part #B5677203

Replaced by #B5677203

?
Manufacturer substitution
This part replaces B5677203. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Support M0590602
#551

Electrical components diagram

Support

Part #M0590602

Replaced by #M0590602

?
Manufacturer substitution
This part replaces M0590602. Substitute parts can look different from the original.
This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
Screw 5051032202
#211

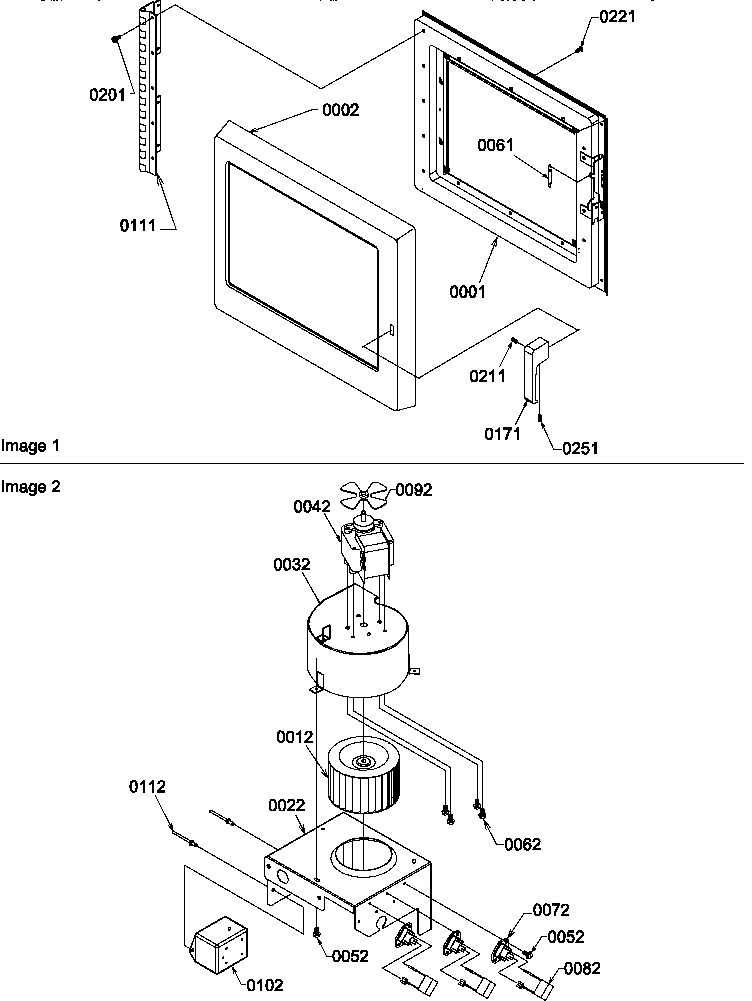

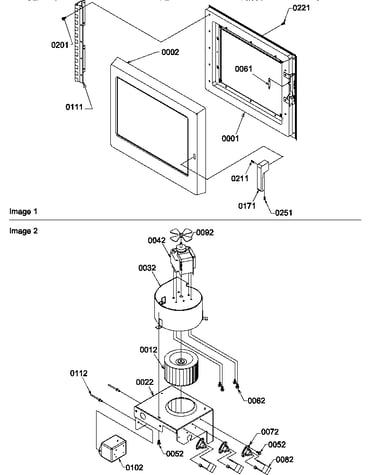

Door/blower diagram

Screw

Part #5051032202

Replaced by #M0208943

?
Manufacturer substitution
This part replaces 5051032202. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
