Panasonic
Upright Vacuum

Model # MC-V100 Official Panasonic commercial vacuum cleaner

Here are the diagrams and repair parts for Official Panasonic MC-V100 commercial vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Panasonic Stopper AC62ETEZU01
#A-26

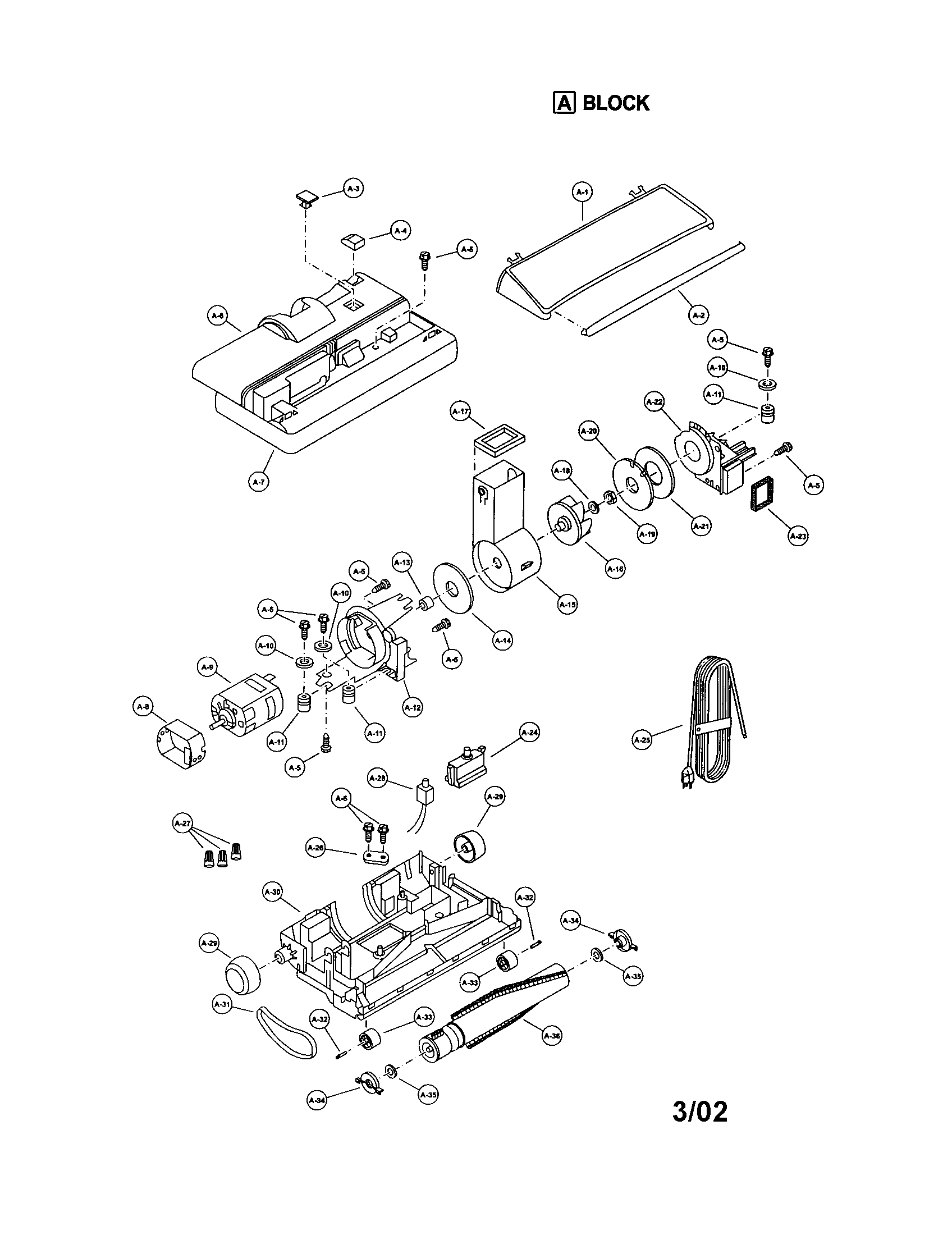

Nozzle housing diagram

Panasonic stopper

Part #AC62ETEZU01

This item is not returnable
$6.49
In Stock
Panasonic Protector AC76FHJZ000
#A-24

Nozzle housing diagram

Panasonic protector

Part #AC76FHJZ000

$13.99
In Stock
Panasonic Panasonic Rear Wheel AC01CHJZV07
#A-29

Nozzle housing diagram

Panasonic panasonic rear wheel

Part #AC01CHJZV07

This item is not returnable
$4.49
In Stock
Panasonic Panasonic Furn Guard AC10AHJZV07
#A-07

Nozzle housing diagram

Panasonic panasonic furn guard

Part #AC10AHJZV07

$11.49
In Stock
Panasonic Panasonic Motor AC01FAPMZ000
#A-09

Nozzle housing diagram

Panasonic panasonic motor

Part #AC01FAPMZ000

$78.49
In Stock
Panasonic Screw AC68AZAZ00
#B-01

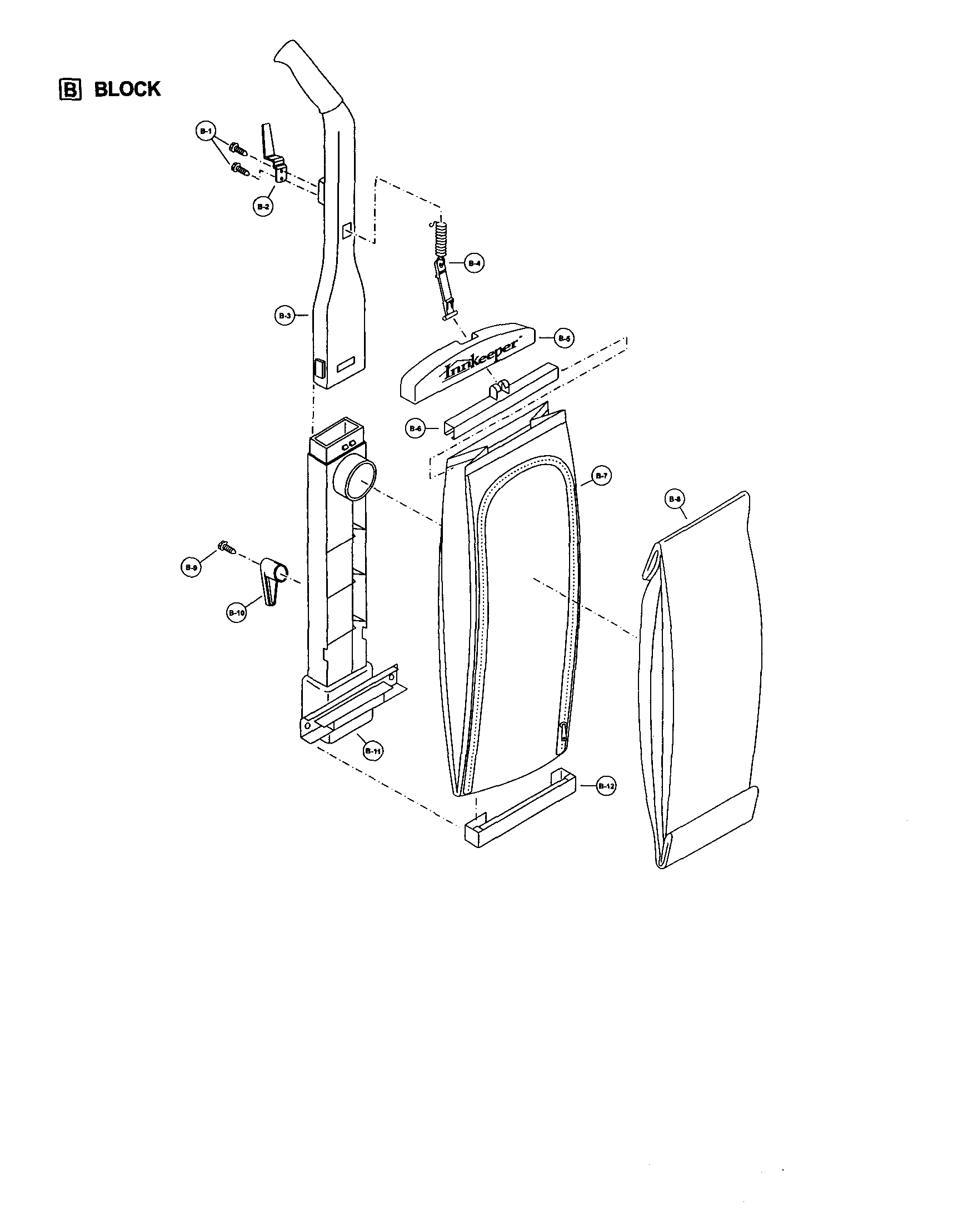

Block diagram

Panasonic screw

Part #AC68AZAZ00

$37.99
In Stock
Panasonic Panasonic Frnt Wheel AC90QNGZV04
#A-33

Nozzle housing diagram

Panasonic panasonic frnt wheel

Part #AC90QNGZV04

This item is not returnable
$3.49
In Stock
Panasonic Hook AC53ETEZ00
#B-02

Block diagram

Panasonic hook

Part #AC53ETEZ00

$8.49
In Stock
Panasonic Shaft AC16CNXZ00
#A-32

Nozzle housing diagram

Panasonic shaft

Part #AC16CNXZ00

$23.99
In Stock
Panasonic Connector AMC-1CTCE23
#A-27

Nozzle housing diagram

Panasonic connector

Part #AMC-1CTCE23

$47.49
In Stock
