LXI
Compact Stereo System

Model # 38610041 Official LXI turntable

Here are the diagrams and repair parts for Official LXI 38610041 turntable, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

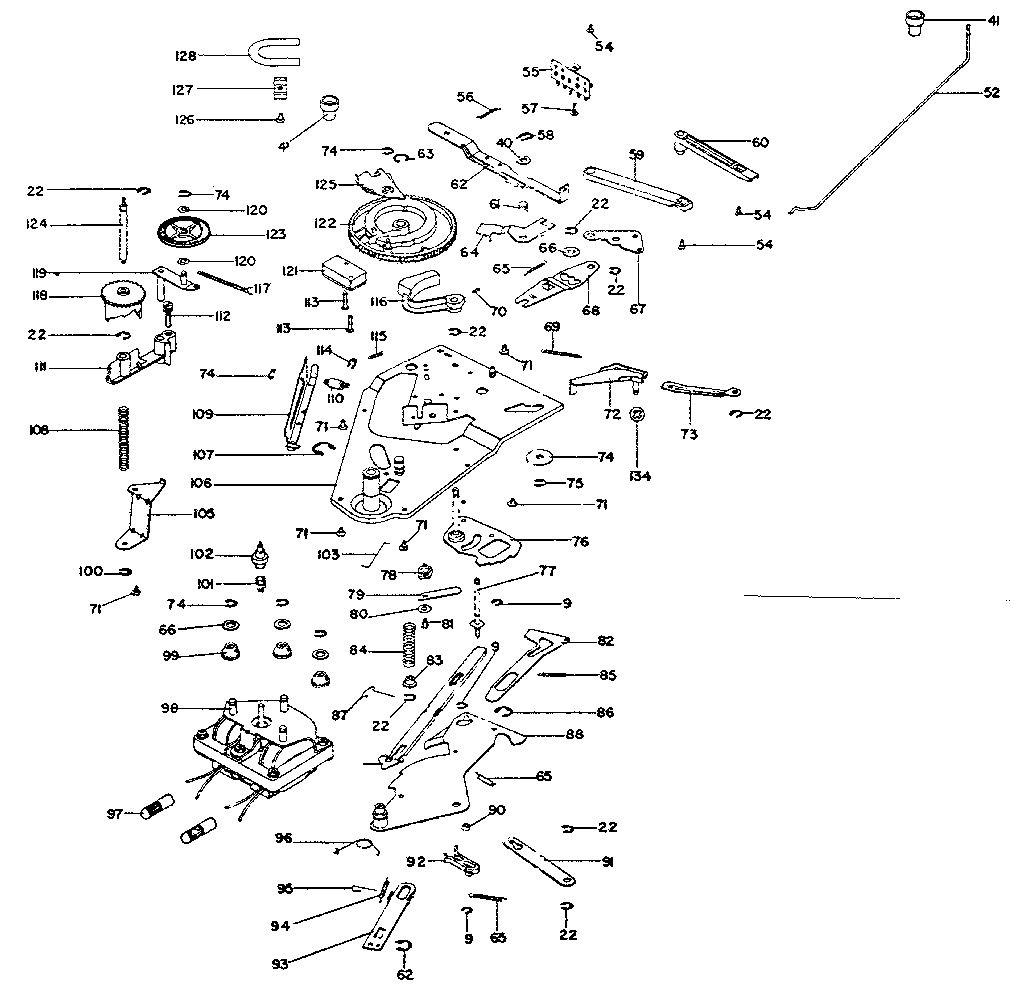

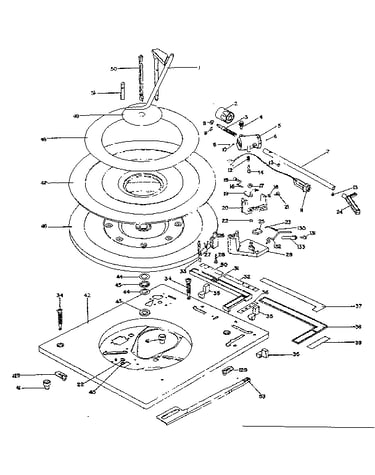

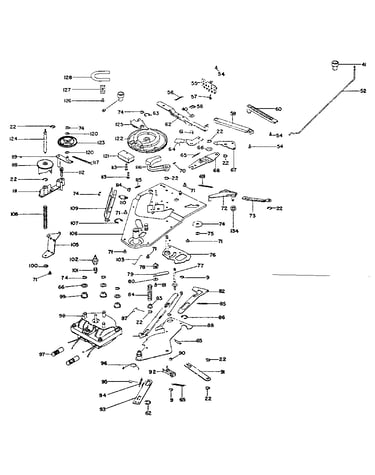

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Support A105609

#78

All parts diagram

Support

Part #A105609

The manufacturer no longer makes this part, and there's no substitute part

Circlip A105678

#107

All parts diagram

Circlip

Part #A105678

The manufacturer no longer makes this part, and there's no substitute part

Spring A105826

#56

All parts diagram

Spring

Part #A105826

The manufacturer no longer makes this part, and there's no substitute part

Washer A102237

#80

All parts diagram

Washer

Part #A102237

The manufacturer no longer makes this part, and there's no substitute part

Circlip A103558

#58

All parts diagram

Circlip

Part #A103558

The manufacturer no longer makes this part, and there's no substitute part

Spring A105849

#115

All parts diagram

Spring

Part #A105849

The manufacturer no longer makes this part, and there's no substitute part

Reject Link A106134

#73

All parts diagram

Reject link

Part #A106134

The manufacturer no longer makes this part, and there's no substitute part

Cart 6-40D-BR1

#24

All parts diagram

Cart

Part #6-40D-BR1

The manufacturer no longer makes this part, and there's no substitute part

Circlip A102128

#100

All parts diagram

Circlip

Part #A102128

The manufacturer no longer makes this part, and there's no substitute part

Spring A105825

#65

All parts diagram

Spring

Part #A105825

The manufacturer no longer makes this part, and there's no substitute part
