Model # MC-V6307 Official Panasonic vacuum cleaner

Here are the diagrams and repair parts for Official Panasonic MC-V6307 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |

Panasonic Panasonic Cap AMC97D-JMZ0000
#B-12

Agitator assembly diagram

Panasonic panasonic cap

Part #AMC97D-JMZ0000

This item is not returnable
In Stock
Panasonic Belt AMC77S-V30
#A-38

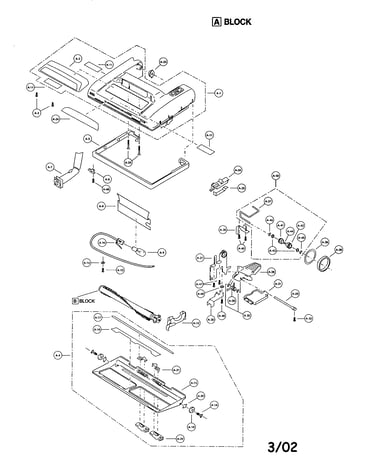

Nozzle housing diagram

Panasonic belt

Part #AMC77S-V30

In Stock
Panasonic Screw AMC73B-V30
#D-20

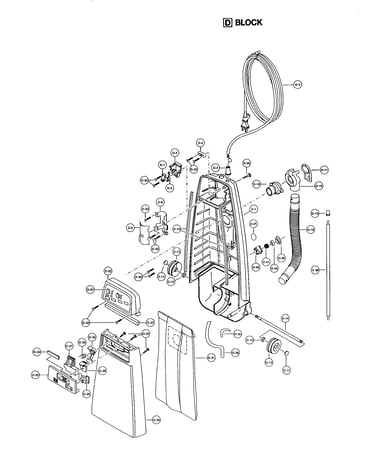

Dust compartment diagram

Panasonic screw

Part #AMC73B-V30

In Stock
Panasonic Nut AMC33F-AC00U
#3

Motor-fan assembly diagram

Panasonic nut

Part #AMC33F-AC00U

In Stock
Panasonic Bulb AMC28G-F100U
#A-09

Nozzle housing diagram

Panasonic bulb

Part #AMC28G-F100U

This item is not returnable
In Stock
Panasonic Spring AMC76N-F70
#E-04

Handle diagram

Panasonic spring

Part #AMC76N-F70

This item is not returnable
In Stock
Panasonic Shaft AMC25S-V31W
#A-23

Nozzle housing diagram

Panasonic shaft

Part #AMC25S-V31W

This item is not returnable
In Stock
Panasonic Screw AMC40D-V300U
#10

Motor-fan assembly diagram

Panasonic screw

Part #AMC40D-V300U

In Stock
Panasonic Latch AMC68N-V30K
#A-22

Nozzle housing diagram

Panasonic latch

Part #AMC68N-V30K

This item is not returnable
In Stock
Panasonic Spring Nut AMC-XNK4FY
#A-20

Nozzle housing diagram

Panasonic spring nut

Part #AMC-XNK4FY

In Stock
