Model # EAC3/P94584-2F Official Amana electronic air cleaner - eac3

Here are the diagrams and repair parts for Official Amana EAC3-P94584-2F electronic air cleaner - eac3, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Insulation, 1 1/2" O.d. X 9/32" I.d. X 25/64" R0101802
#1

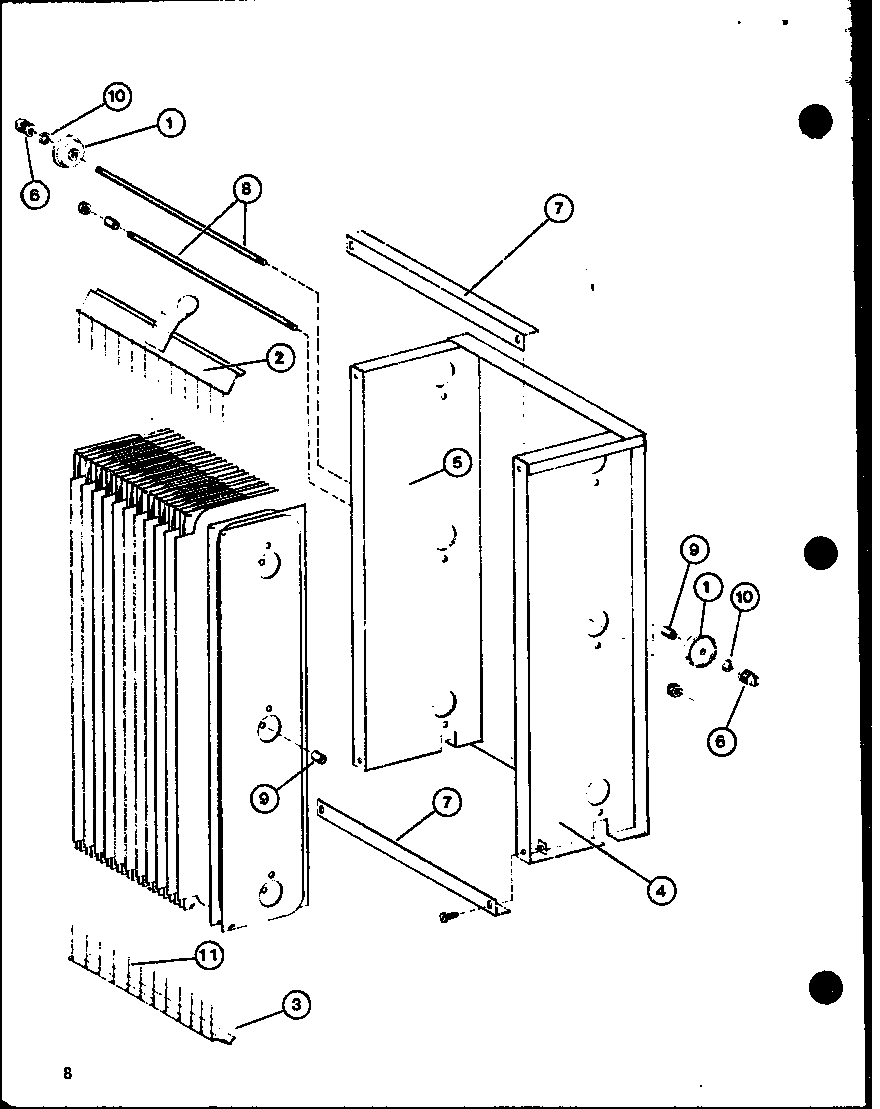

Jacket-section and base diagram

Insulation, 1 1/2" o.d. x 9/32" i.d. x 25/64"

Part #R0101802

The manufacturer no longer makes this part, and there's no substitute part

Power Pack Cover R0100006
#9

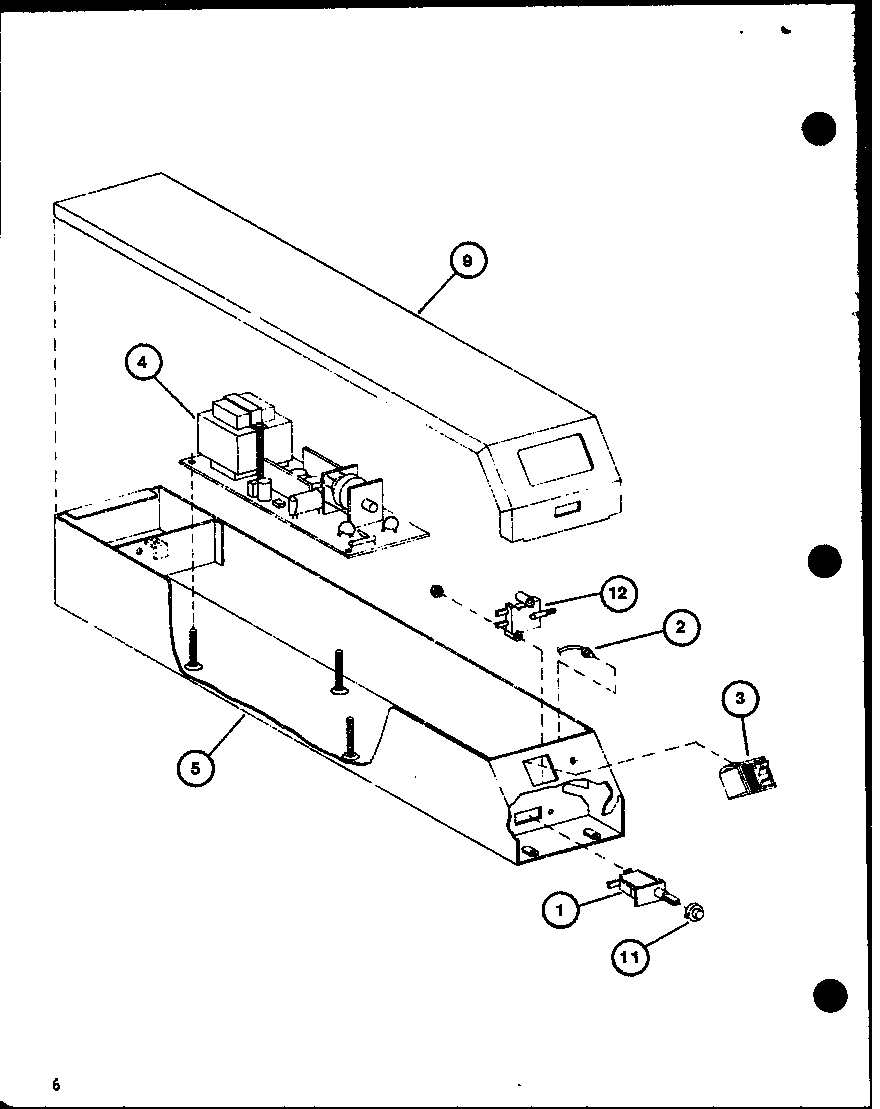

Power pack diagram

Power pack cover

Part #R0100006

The manufacturer no longer makes this part, and there's no substitute part

Left End Plate R0103402
#5

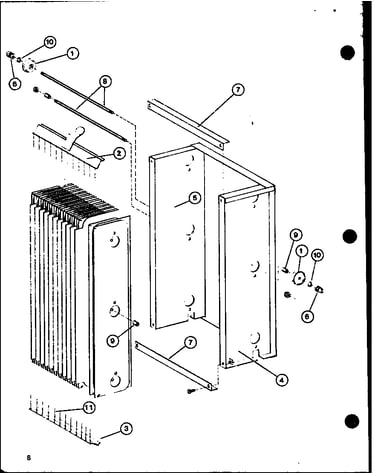

Jacket-section and base diagram

Left end plate

Part #R0103402

The manufacturer no longer makes this part, and there's no substitute part

Pre-filter R0102702
#4

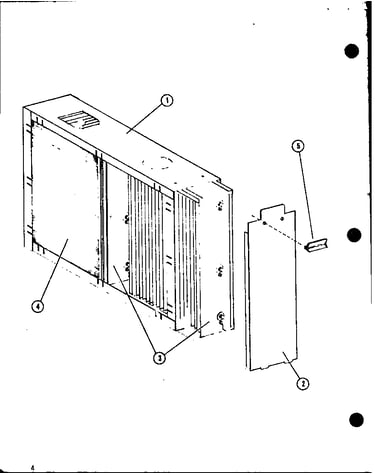

Cabinet assembly diagram

Pre-filter

Part #R0102702

The manufacturer no longer makes this part, and there's no substitute part

Ionizing Wire (5 Wire Pkg.) R0100008
#11

Jacket-section and base diagram

Ionizing wire (5 wire pkg.)

Part #R0100008

The manufacturer no longer makes this part, and there's no substitute part

Bar, Ionizing Wire Support, Top, W/h.v. Contact R0102902
#2

Jacket-section and base diagram

Bar, ionizing wire support, top, w/h.v. contact

Part #R0102902

The manufacturer no longer makes this part, and there's no substitute part

Power Pack (120/24 V., 60 Hz) R0100009
#4

Power pack diagram

Power pack (120/24 v., 60 hz)

Part #R0100009

The manufacturer no longer makes this part, and there's no substitute part

Indicating Light Assembly R0100013
#2

Power pack diagram

Indicating light assembly

Part #R0100013

The manufacturer no longer makes this part, and there's no substitute part

Power Pack Housing R0100005
#5

Power pack diagram

Power pack housing

Part #R0100005

The manufacturer no longer makes this part, and there's no substitute part

Collecting Cell, Ionizing (complete) R0100003
#3

Cabinet assembly diagram

Collecting cell, ionizing (complete)

Part #R0100003

The manufacturer no longer makes this part, and there's no substitute part
