Bosch
Miter Saw

Model # 4405 Official Bosch miter saw

Here are the diagrams and repair parts for Official Bosch 4405 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |
Bosch Rail 2610950404
#105

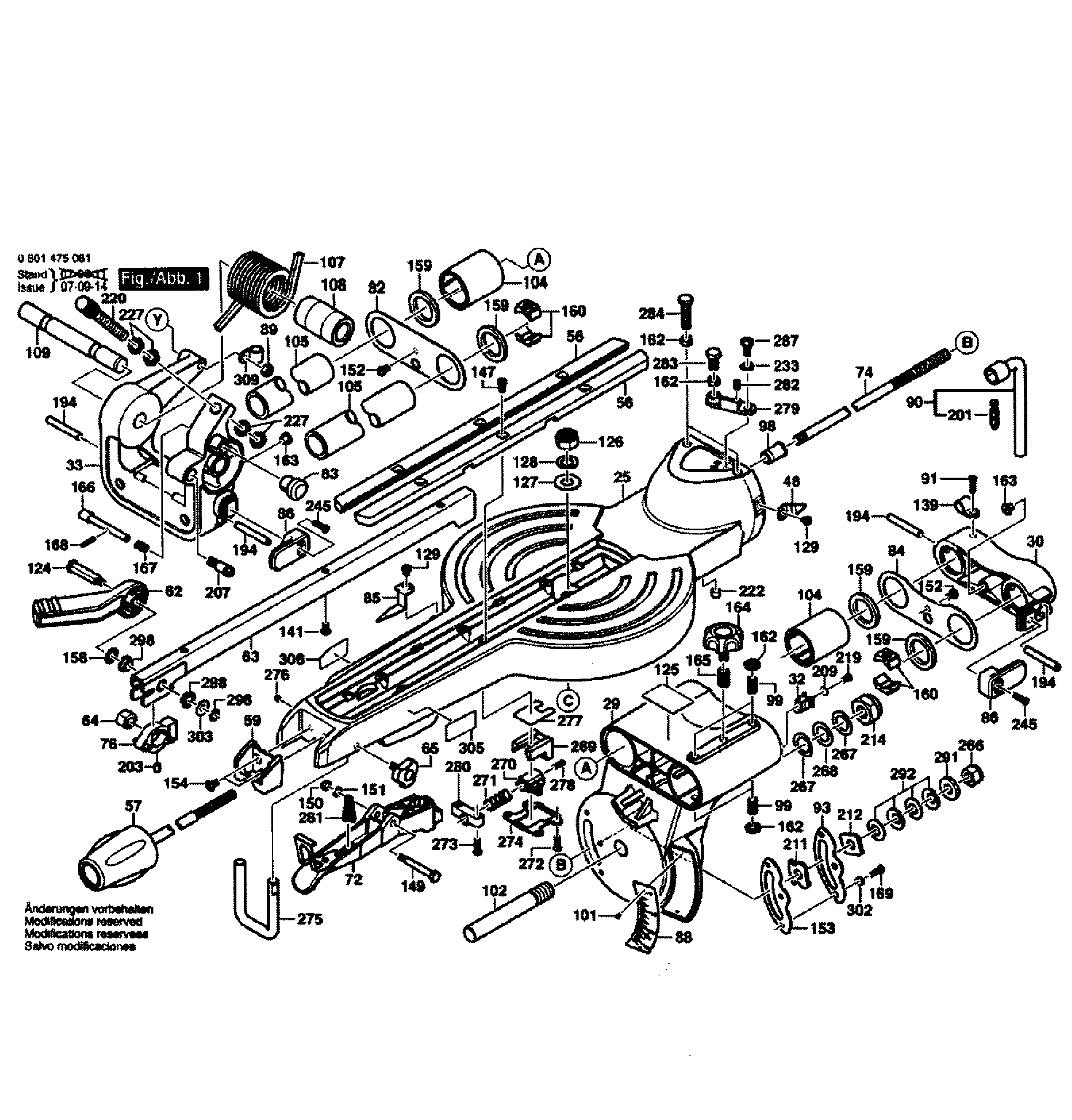

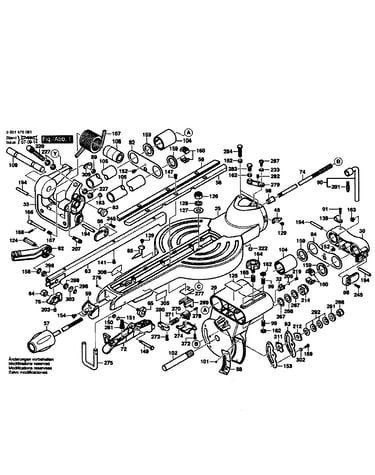

Base 1 diagram

Bosch rail

Part #2610950404

The manufacturer no longer makes this part, and there's no substitute part

Bosch Bushing 2610953067
#236

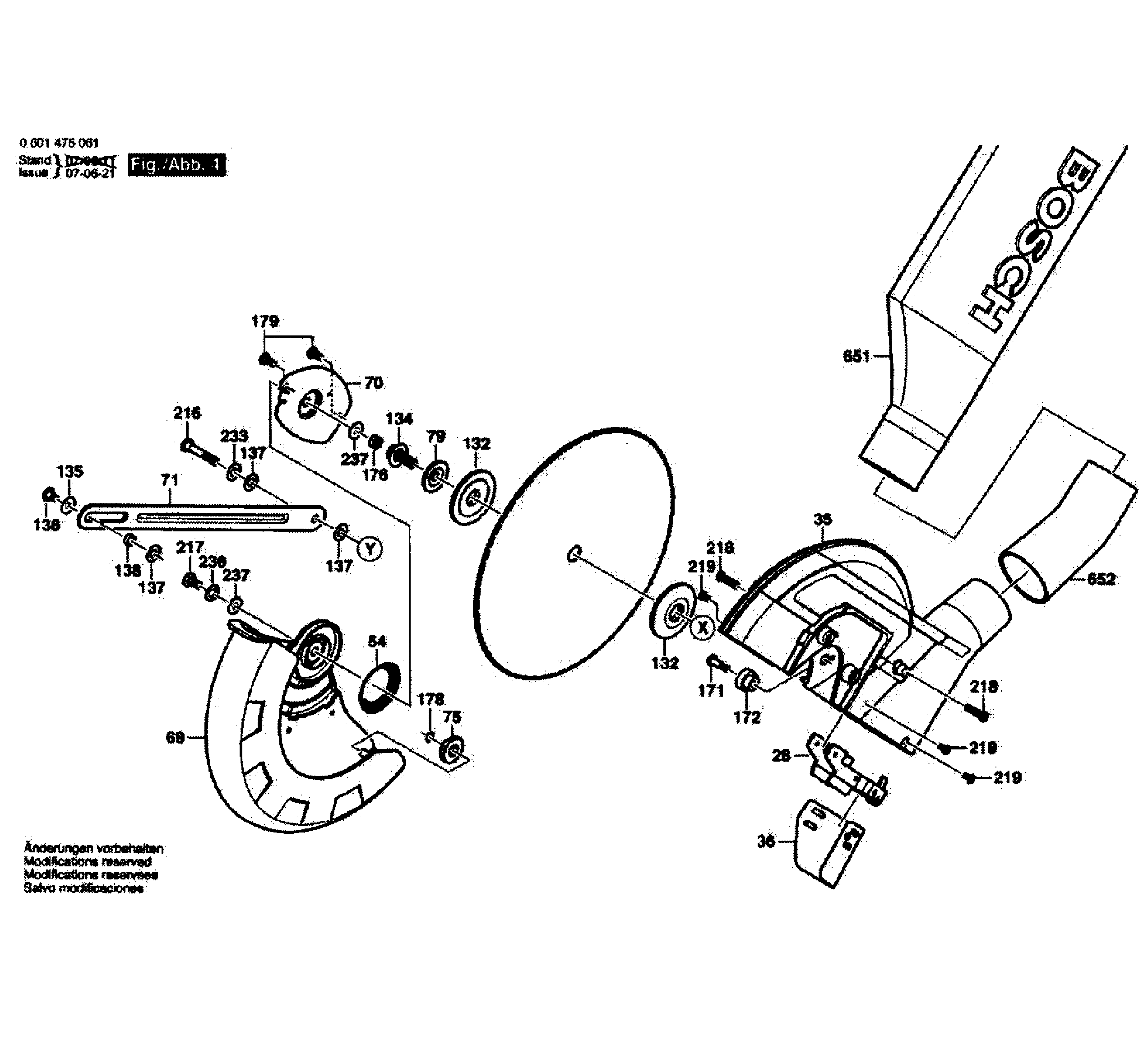

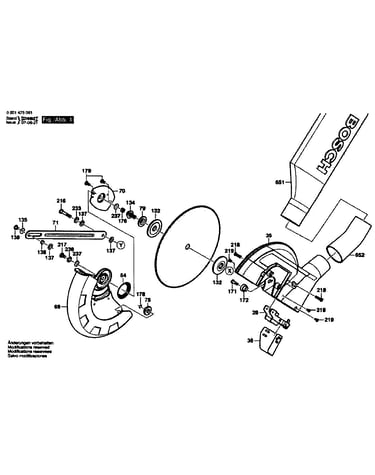

Blade assy diagram

Bosch bushing

Part #2610953067

The manufacturer no longer makes this part, and there's no substitute part

Bosch Bushing 2610919572
#298

Base 1 diagram

Bosch bushing

Part #2610919572

The manufacturer no longer makes this part, and there's no substitute part

Clamp Block 2610919102
#160

Base 1 diagram

Clamp block

Part #2610919102

The manufacturer no longer makes this part, and there's no substitute part

Bosch Washer 2610919282
#291

Base 1 diagram

Bosch washer

Part #2610919282

The manufacturer no longer makes this part, and there's no substitute part

Bosch Lever 2610950369
#49

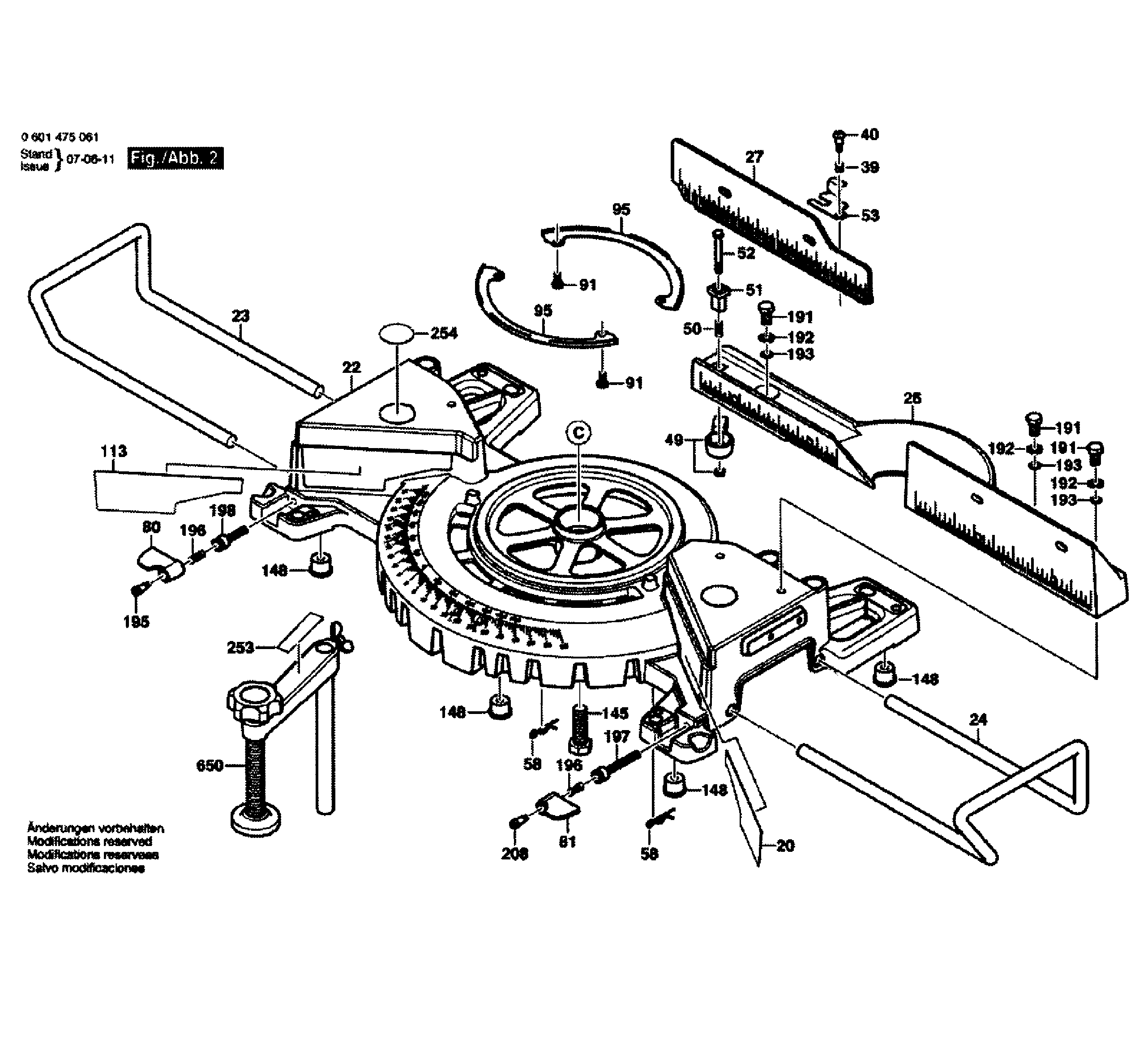

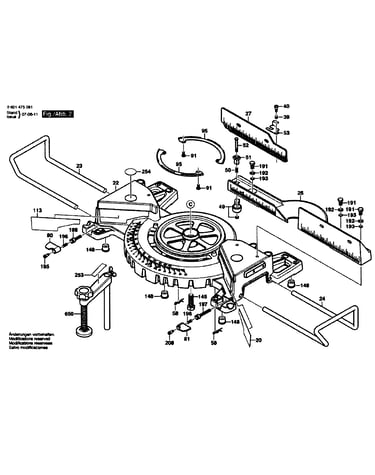

Base 2 diagram

Bosch lever

Part #2610950369

The manufacturer no longer makes this part, and there's no substitute part

Bosch Plate 2610950441
#274

Base 1 diagram

Bosch plate

Part #2610950441

The manufacturer no longer makes this part, and there's no substitute part

Bosch Clamp 2610950397
#86

Base 1 diagram

Bosch clamp

Part #2610950397

The manufacturer no longer makes this part, and there's no substitute part

Bosch Handle 2610950362
#42

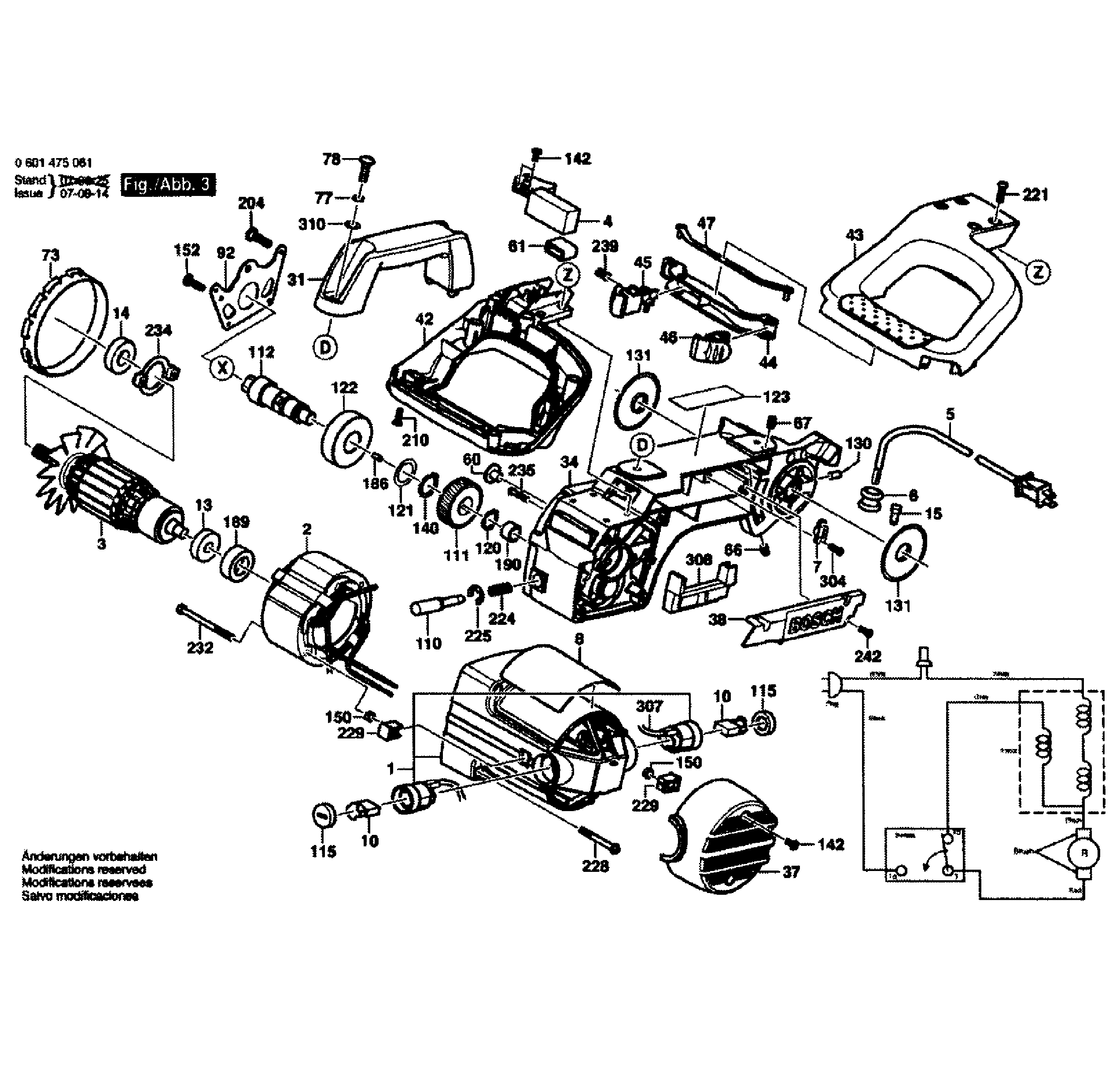

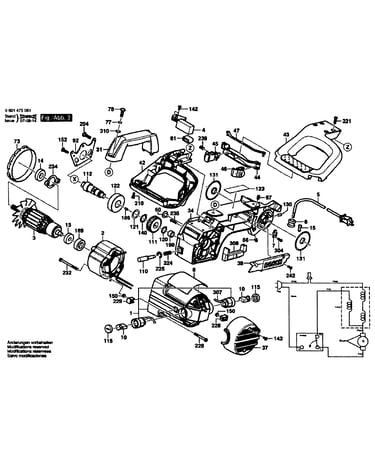

Motor assy diagram

Bosch handle

Part #2610950362

The manufacturer no longer makes this part, and there's no substitute part

Bosch Spacer 2610921467
#302

Base 1 diagram

Bosch spacer

Part #2610921467

The manufacturer no longer makes this part, and there's no substitute part
