Model # LC-20B4U-S Official Sharp lcd television

Here are the diagrams and repair parts for Official Sharp LC-20B4U-S lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Lcd Panel RLCDTA014WJN1
#5-1

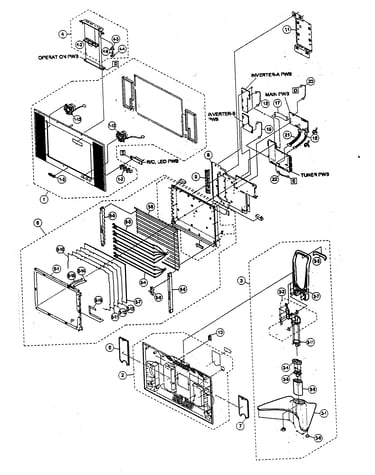

Cabinet parts diagram

Lcd panel

Part #RLCDTA014WJN1

The manufacturer no longer makes this part, and there's no substitute part

Lec Cover GCOVA2020CEZZ
#1-2

Cabinet parts diagram

Lec cover

Part #GCOVA2020CEZZ

The manufacturer no longer makes this part, and there's no substitute part

Remote RRMCGA152WJSA
#NI

Cabinet parts diagram

Remote

Part #RRMCGA152WJSA

The manufacturer no longer makes this part, and there's no substitute part

Sharp Stand Assembly CDAI-A045WJ01
#3

Cabinet parts diagram

Sharp stand assembly

Part #CDAI-A045WJ01

The manufacturer no longer makes this part, and there's no substitute part

Sharp Base Stand GDAI-A045WJSA
#3-1

Cabinet parts diagram

Sharp base stand

Part #GDAI-A045WJSA

The manufacturer no longer makes this part, and there's no substitute part

Conn Cord QCNW-6058CEZZ
#17

Cabinet parts diagram

Conn cord

Part #QCNW-6058CEZZ

The manufacturer no longer makes this part, and there's no substitute part

Conn Cord QCNW-6054CEZZ
#5-14

Cabinet parts diagram

Conn cord

Part #QCNW-6054CEZZ

The manufacturer no longer makes this part, and there's no substitute part

Ito Sheet PSHEP0289CEZZ
#5-13

Cabinet parts diagram

Ito sheet

Part #PSHEP0289CEZZ

The manufacturer no longer makes this part, and there's no substitute part

Television Power Cord QACCD3097CEPA
#NI

Cabinet parts diagram

Television power cord

Part #QACCD3097CEPA

The manufacturer no longer makes this part, and there's no substitute part

Remote Control Receiver RRMCU0239CEZZ
#NI

Cabinet parts diagram

Remote control receiver

Part #RRMCU0239CEZZ

The manufacturer no longer makes this part, and there's no substitute part
