Amana
Countertop Microwave

Model # ACM0860AC Official Amana microwave

Here are the diagrams and repair parts for Official Amana ACM0860AC microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
"screw, Tappi" R0131246
"screw, tappi"

Part #R0131246

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0131246. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
"screw,tap Ti" R0131029
"screw,tap ti"

Part #R0131029

Replaced by #R0131029

?
Manufacturer substitution
This part replaces R0131029. Substitute parts can look different from the original.
$13.11
In Stock
Cap (wht) (qty 4) (series 10-50) 53001118
#5B

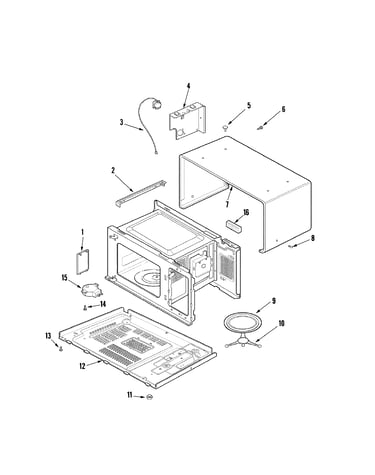

Cavity diagram

Cap (wht) (qty 4) (series 10-50)

Part #53001118

The manufacturer no longer makes this part, and there's no substitute part

Button (wht) (series 10-50) 53001077
#10A

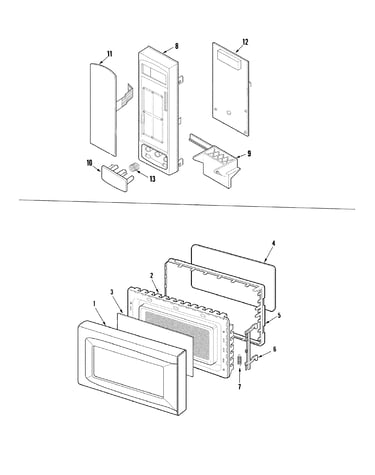

Control/door diagram

Button (wht) (series 10-50)

Part #53001077

The manufacturer no longer makes this part, and there's no substitute part

Panel, Control (bsq) (series 10-50) 53001074
#8B

Control/door diagram

Panel, control (bsq) (series 10-50)

Part #53001074

The manufacturer no longer makes this part, and there's no substitute part

Wrap, Cabinet (blk) (series 10-50) 53001088
#7

Cavity diagram

Wrap, cabinet (blk) (series 10-50)

Part #53001088

The manufacturer no longer makes this part, and there's no substitute part

Wrap, Cabinet (wht) (series 10-50) 53001089
#7A

Cavity diagram

Wrap, cabinet (wht) (series 10-50)

Part #53001089

The manufacturer no longer makes this part, and there's no substitute part

Lamp, Oven/baseless (qty 2) (series 10-50) 53001128
#2

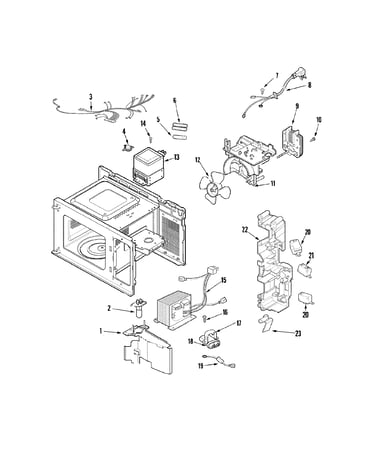

Interior controls diagram

Lamp, oven/baseless (qty 2) (series 10-50)

Part #53001128

The manufacturer no longer makes this part, and there's no substitute part

Sensor, Humidity (series 10-50) 53001097
#3

Cavity diagram

Sensor, humidity (series 10-50)

Part #53001097

The manufacturer no longer makes this part, and there's no substitute part

Fuse R0654166
#5

Interior controls diagram

Fuse

Part #R0654166

The manufacturer no longer makes this part, and there's no substitute part
