Model # 51BTA708100 Official Carrier room air conditioner

Here are the diagrams and repair parts for Official Carrier 51BTA708100 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Room Air Conditioner Spring KA38BR032
#13A

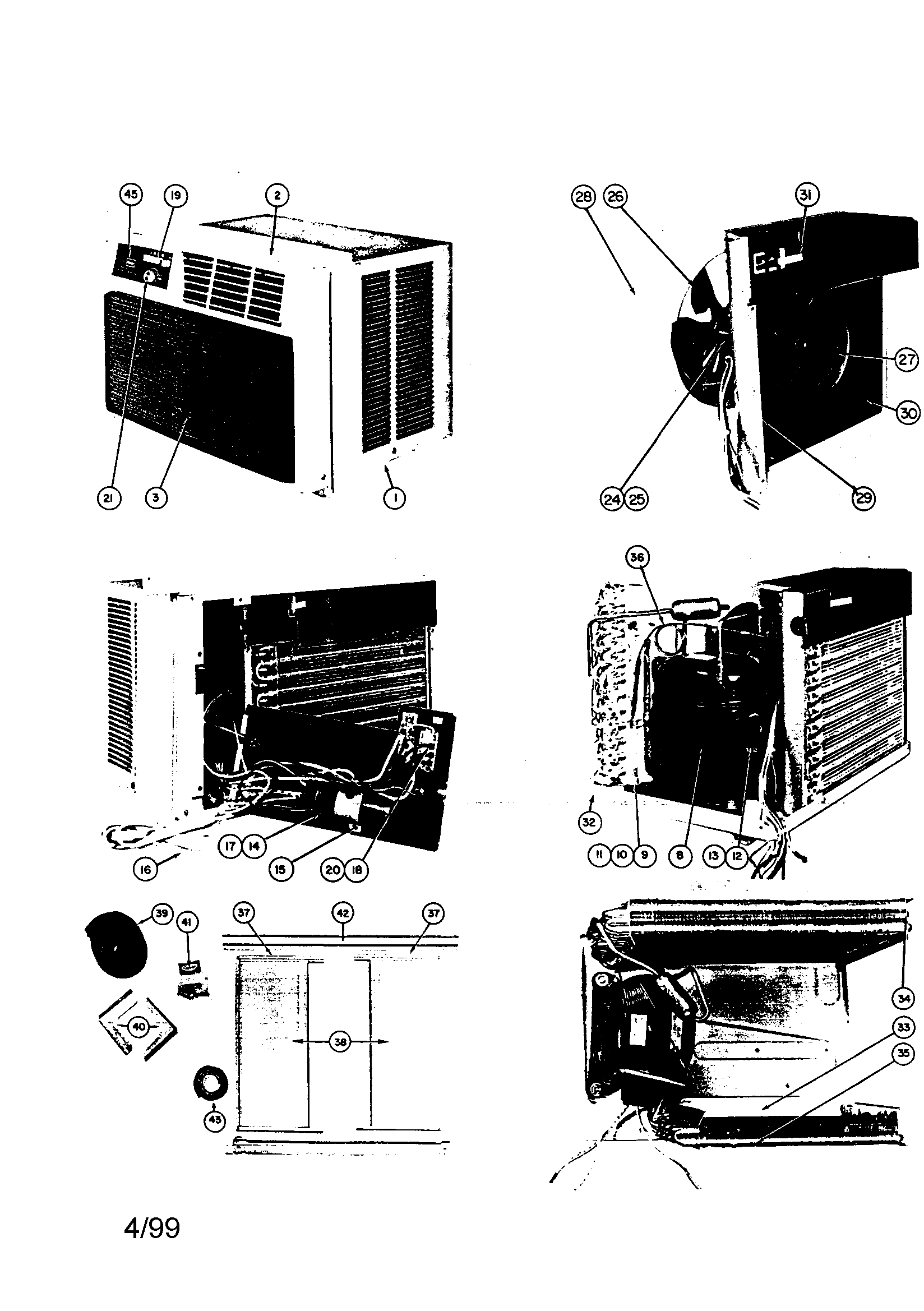

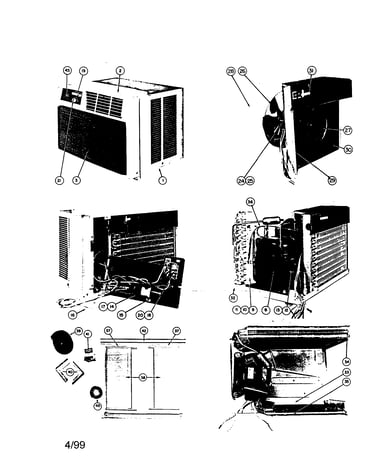

Unit parts diagram

Room air conditioner spring

Part #KA38BR032

This item is not returnable
$4.97
In Stock
Mounting Assembly, Window L.h. 51AT400351
#37A

Unit parts diagram

Mounting assembly, window l.h.

Part #51AT400351

The manufacturer no longer makes this part, and there's no substitute part

Bracket Assembly, Sill 51BJ400183
#40

Unit parts diagram

Bracket assembly, sill

Part #51BJ400183

The manufacturer no longer makes this part, and there's no substitute part

Condensate Pan (51btb705100) 51BJ500424
#33A

Unit parts diagram

Condensate pan (51btb705100)

Part #51BJ500424

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Strap (51bta705100) 51BJ500132
#15A

Unit parts diagram

Capacitor strap (51bta705100)

Part #51BJ500132

The manufacturer no longer makes this part, and there's no substitute part

Mounting Assembly, Window R.h. 51AT400341
#37

Unit parts diagram

Mounting assembly, window r.h.

Part #51AT400341

The manufacturer no longer makes this part, and there's no substitute part

Condenser Coil (51bta109100) (51bta705100) (51bta706100) (51bta708100) 51BK400444
#34

Unit parts diagram

Condenser coil (51bta109100) (51bta705100) (51bta706100) (51bta708100)

Part #51BK400444

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Scroll Assembly (51btb705100) 51BJ400233
#30A

Unit parts diagram

Evaporator scroll assembly (51btb705100)

Part #51BJ400233

The manufacturer no longer makes this part, and there's no substitute part

Compressor (51bta708100) 51FE664101
#8C

Unit parts diagram

Compressor (51bta708100)

Part #51FE664101

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube (51bta705100) (51bta706100) (51btb705100) 491049
#36A

Unit parts diagram

Capillary tube (51bta705100) (51bta706100) (51btb705100)

Part #491049

The manufacturer no longer makes this part, and there's no substitute part
