Model # 38YRA024 SERIES300 Official Carrier heat pump

Here are the diagrams and repair parts for Official Carrier 38YRA024-SERIES300 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Owner’s manual

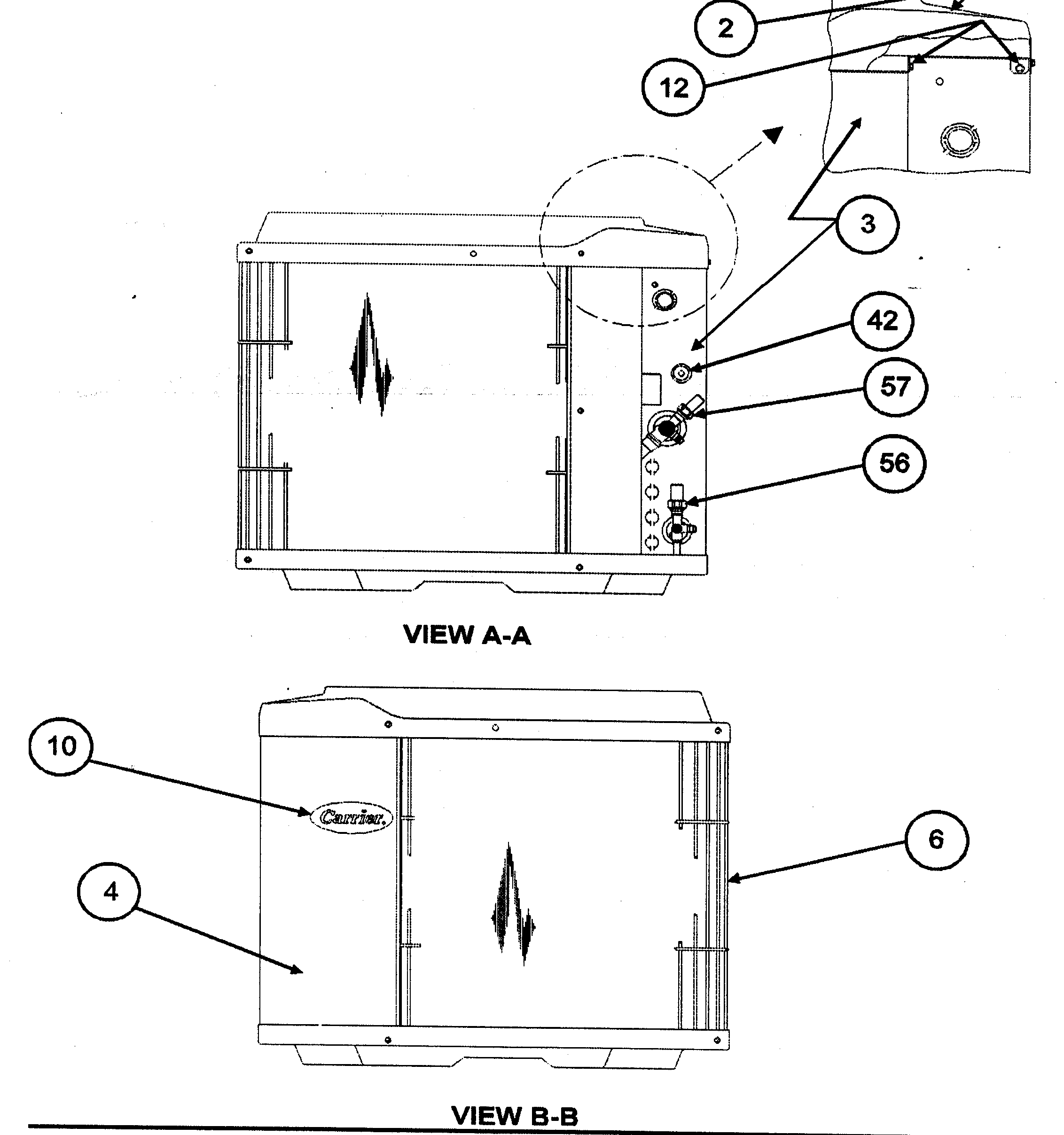

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 66 parts |

#34

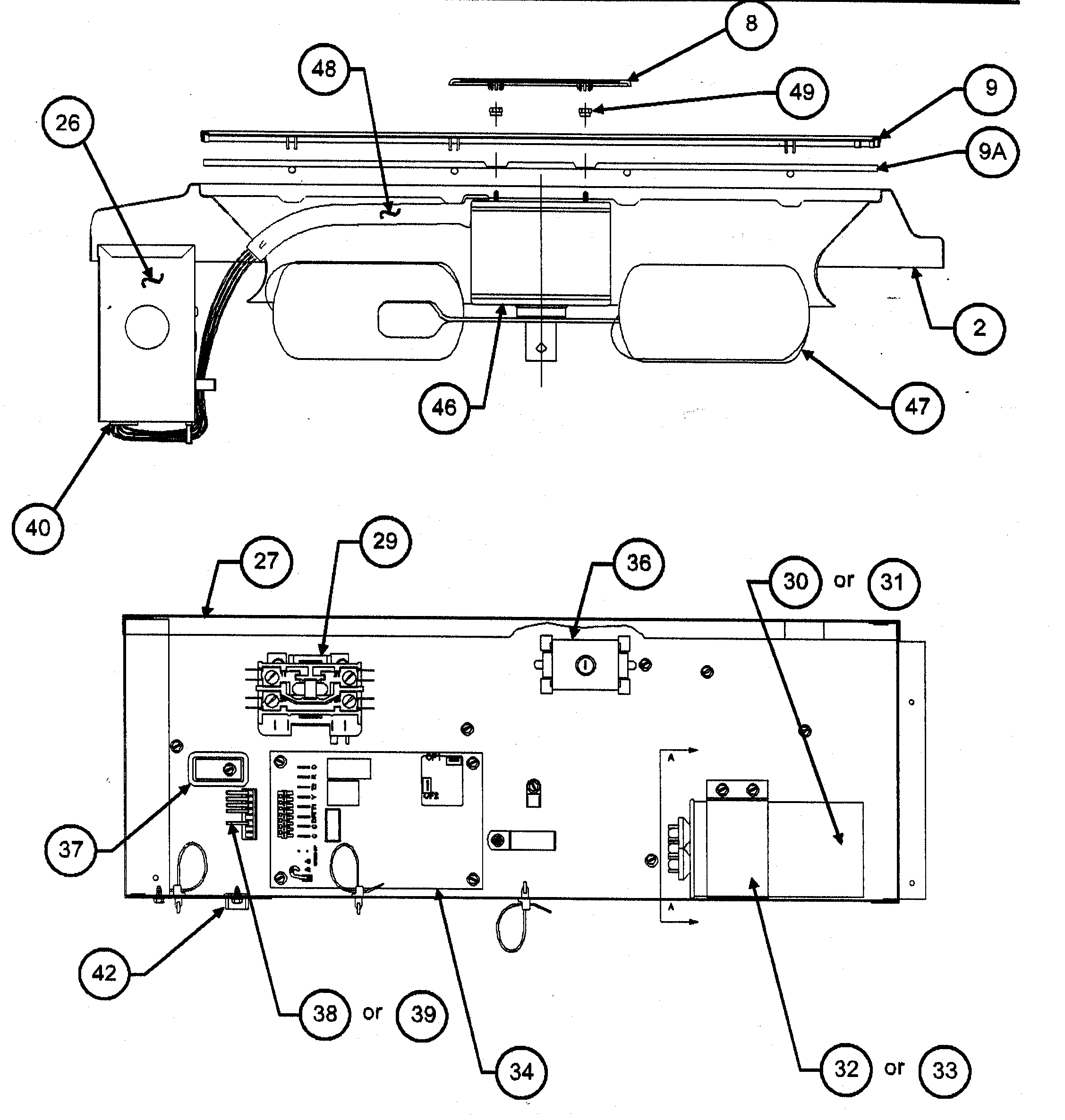

Control box/fan blade diagram

Dfrost cntrl

Part #CESO110063-02

$187.57 |

6% OFF Phone Price : $199.57

In Stock

Qty

#20

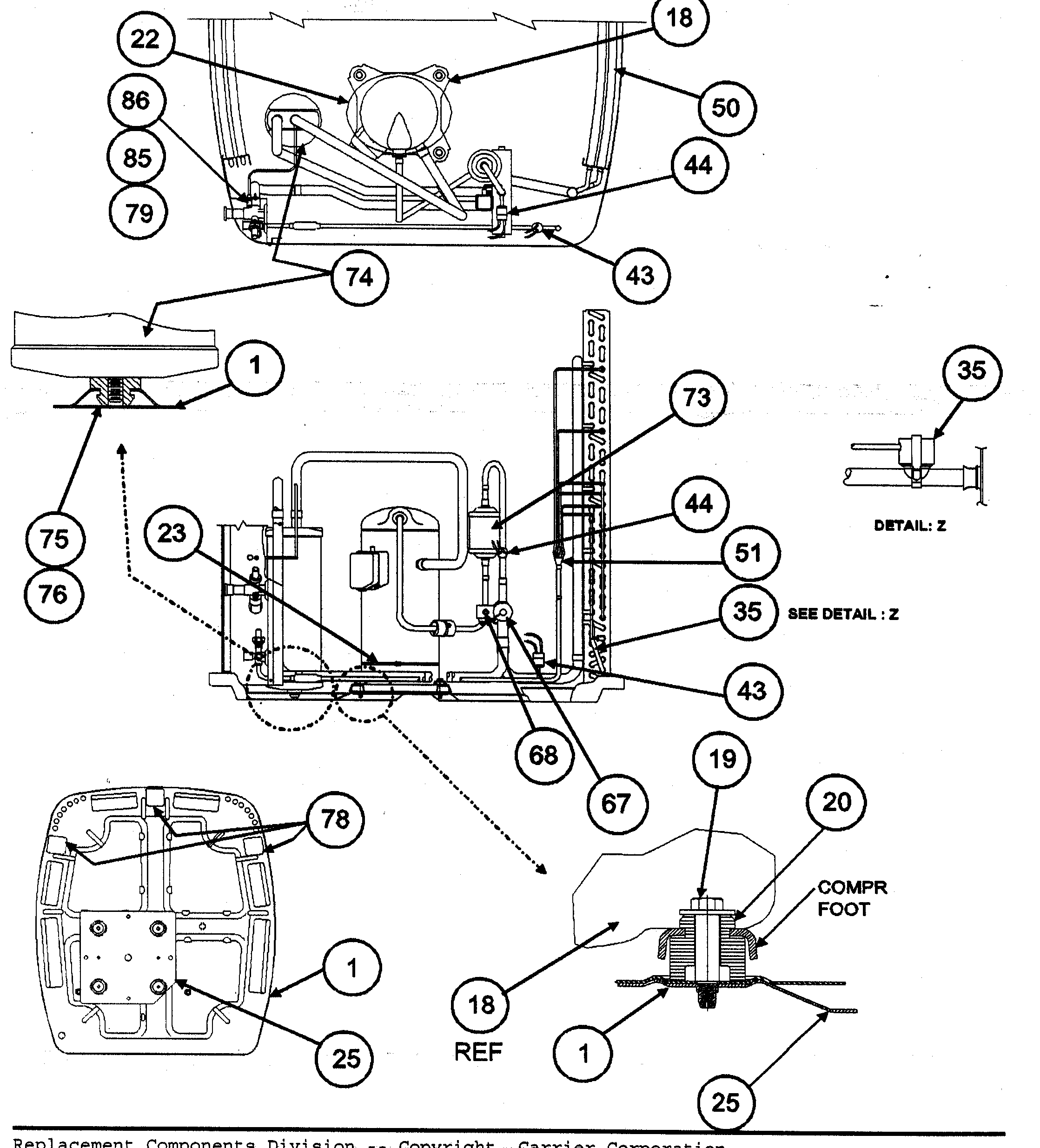

Compressor/condenser diagram

Grommet

Part #P041-5103

$12.60

In Stock

Qty

#47

Control box/fan blade diagram

Fan prop

Part #LA01EB023

$222.13

In Stock

Qty

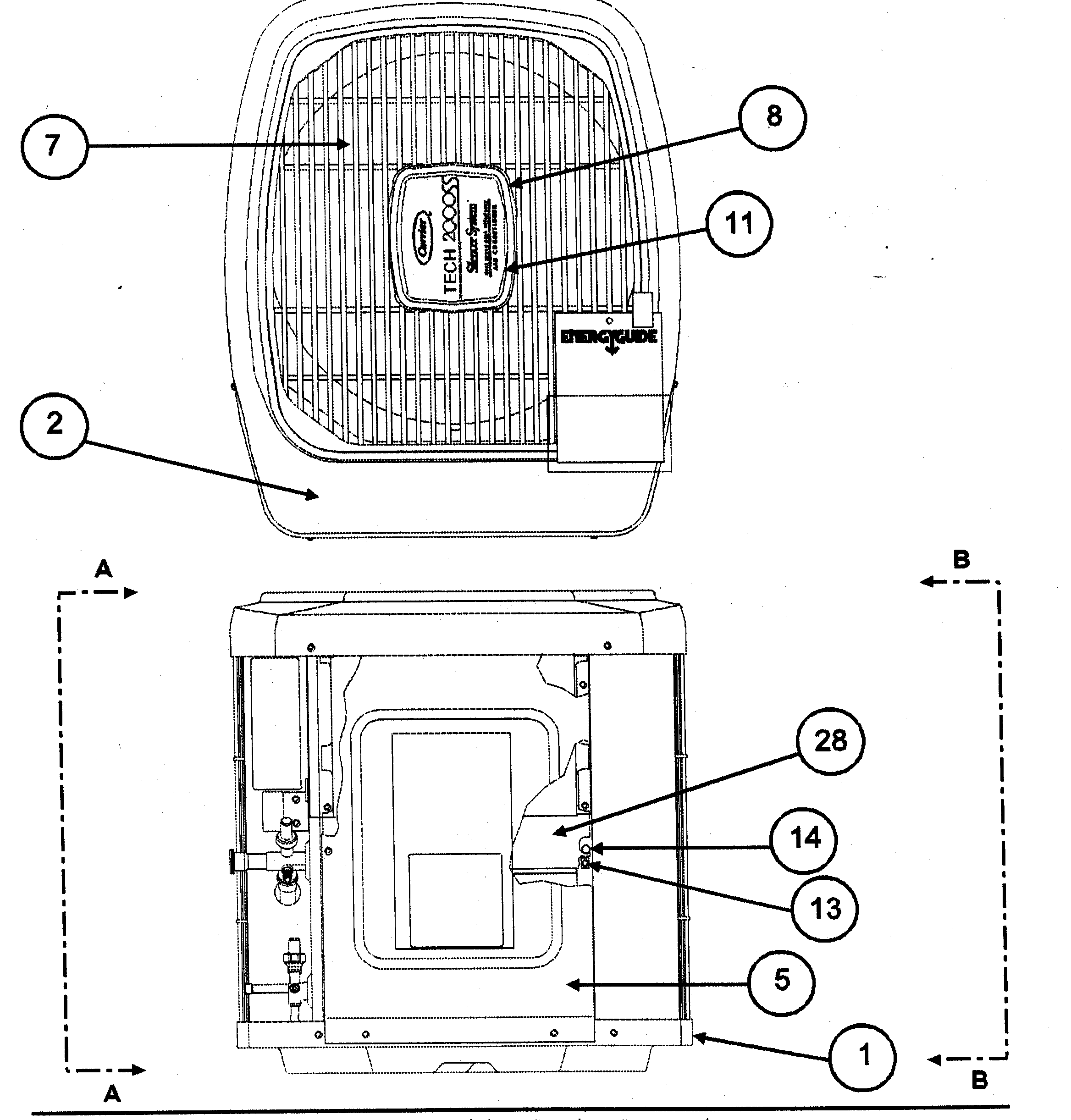

Outlet grille/top cover diagram

Cover

Part #320038-701137

$488.53

In Stock

Qty

#38

Control box/fan blade diagram

Payne harness

Part #317497-701

$52.62

In Stock

Qty

#43

Compressor/condenser diagram

Payne lp switch

Part #HK02ZB038

$56.71

In Stock

Qty

Central Air Conditioner Compressor Hard Start Kit KSAHS1501AAA

#NI

Outlet grille/top cover diagram

Central air conditioner compressor hard start kit

Part #KSAHS1501AAA

$291.43 |

$12.00 OFF Phone Price : $303.43

In Stock

Qty

Payne Central Air Conditioner Condenser Fan Motor Control 32LT660004

#NI

Outlet grille/top cover diagram

Payne central air conditioner condenser fan motor control

Part #32LT660004

$1092.97

In Stock

Qty

#37

Control box/fan blade diagram

Lug

Part #HY90AZ009

$8.23

In Stock

Qty

Carrier Start Assist Ptc Kit KAACS0201PTC

#NI

Outlet grille/top cover diagram

Carrier start assist ptc kit

Part #KAACS0201PTC

$242.33

In Stock

Qty
