GE
Countertop Microwave

Model # JE1250WY01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE1250WY01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

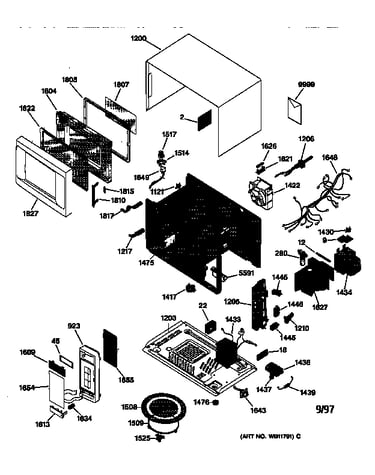

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Switch WB24X0801
#1445

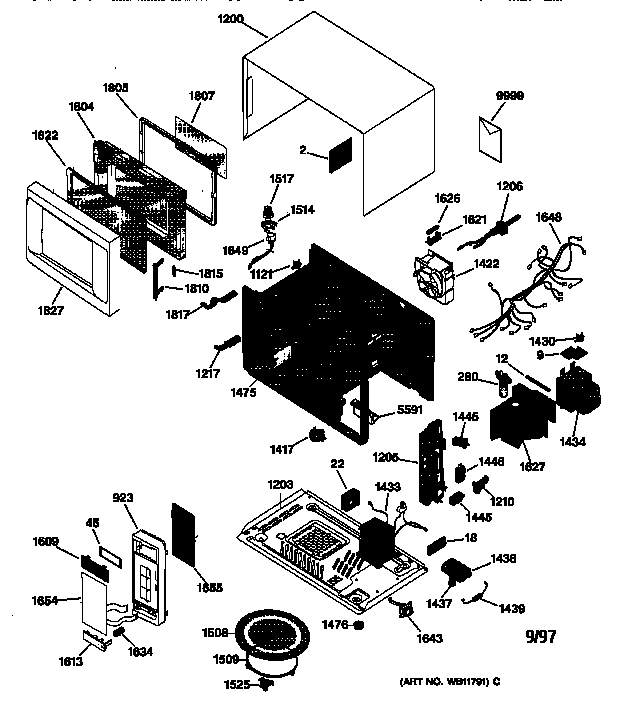

Microwave parts diagram

Switch

Part #WB24X0801

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0801. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Diode WB27X10072
#1439

Microwave parts diagram

Diode

Part #WB27X10072

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X10072. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Magnetron WB27X1114
#1434

Microwave parts diagram

Magnetron

Part #WB27X1114

The manufacturer no longer makes this part, and there's no substitute part

Hldr Sensor WB06X0193
#1514

Microwave parts diagram

Hldr sensor

Part #WB06X0193

Replaced by #WB6X549

?
Manufacturer substitution
This part replaces WB06X0193. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Gas Sensor WB06X0477
#1517

Microwave parts diagram

Gas sensor

Part #WB06X0477

Replaced by #WB27X1170

?
Manufacturer substitution
This part replaces WB06X0477. Substitute parts can look different from the original.
$98.78 |
11% OFF Phone Price : $110.78
In Stock
Microwave Turntable Motor WB26X10024
#1417

Microwave parts diagram

Microwave turntable motor

Part #WB26X10024

$27.49
In Stock
Coupler WB06X10059
#1525

Microwave parts diagram

Coupler

Part #WB06X10059

$45.77 |
12% OFF Phone Price : $51.77
In Stock
Microwave Thermostat WB20X10003
#1430

Microwave parts diagram

Microwave thermostat

Part #WB20X10003

$30.39 |
16% OFF Phone Price : $36.39
In Stock
Microwave High-voltage Capacitor (replaces Wb27x254) WB27X10073
#1438

Microwave parts diagram

Microwave high-voltage capacitor (replaces wb27x254)

Part #WB27X10073

$67.21 |
8% OFF Phone Price : $73.21
In Stock
Thermistor Bracket WB02X10517
#9

Microwave parts diagram

Thermistor bracket

Part #WB02X10517

$11.11
In Stock
